Porshe 911 (997). Manual - part 637

Installation position of scuff plate

Removing lining mat

1. Remove lining mat from oddments tray.

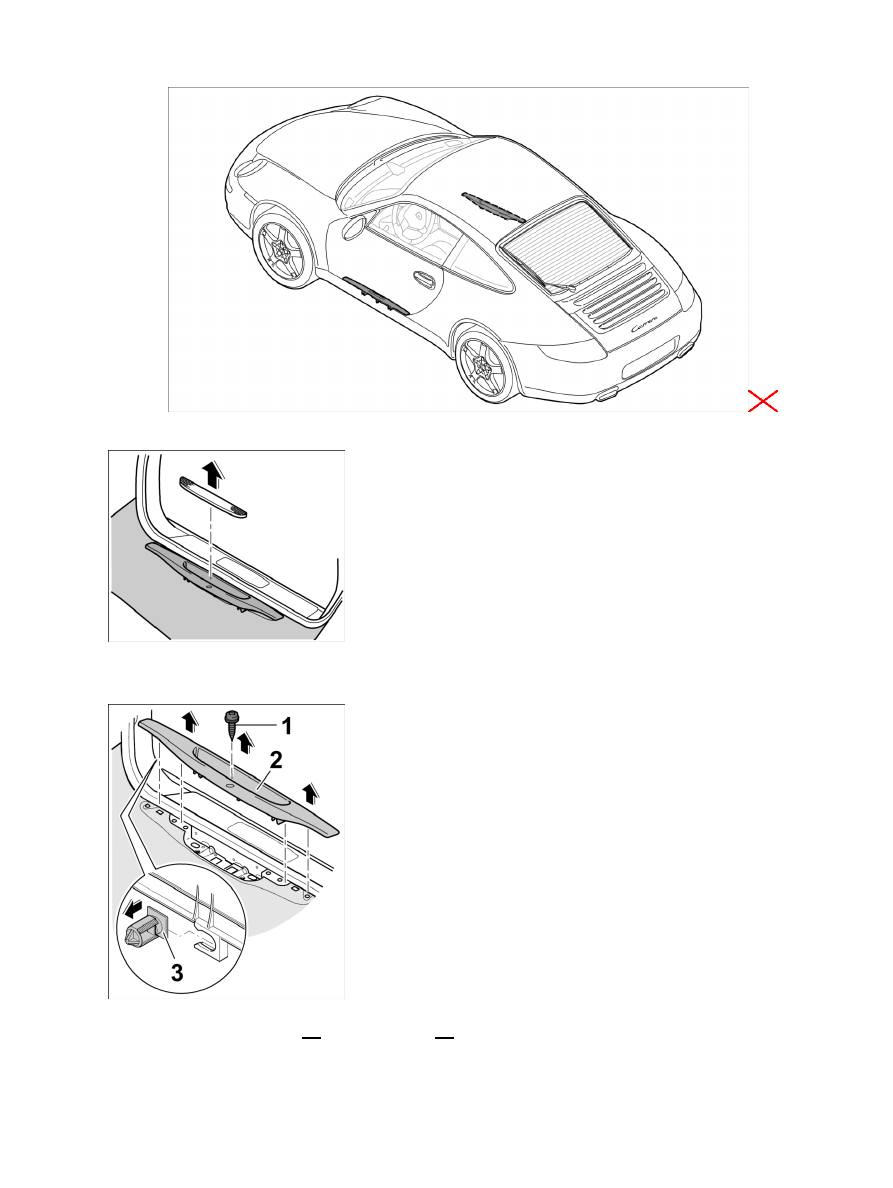

Removing scuff plate

2. Unscrew fastening screw -1- from scuff plate -2- .

3. Lift scuff plate with a plastic wedge, pull off and

remove.

Diagnostic system: reading out fault memory and activating systems

Removing inner door sill trim (passenger's side)

2705

4. Check fixing clips -3- on the underside of the scuff plate, replacing if necessary.

Installing inner door sill trim

Installing inner door sill trim (driver's side)

Installation Location:

Installation position of scuff plate

Locking plug connection

1. Lock plug connection for actuating switch.

Diagnostic system: reading out fault memory and activating systems

 Installing inner door sill trim

2706

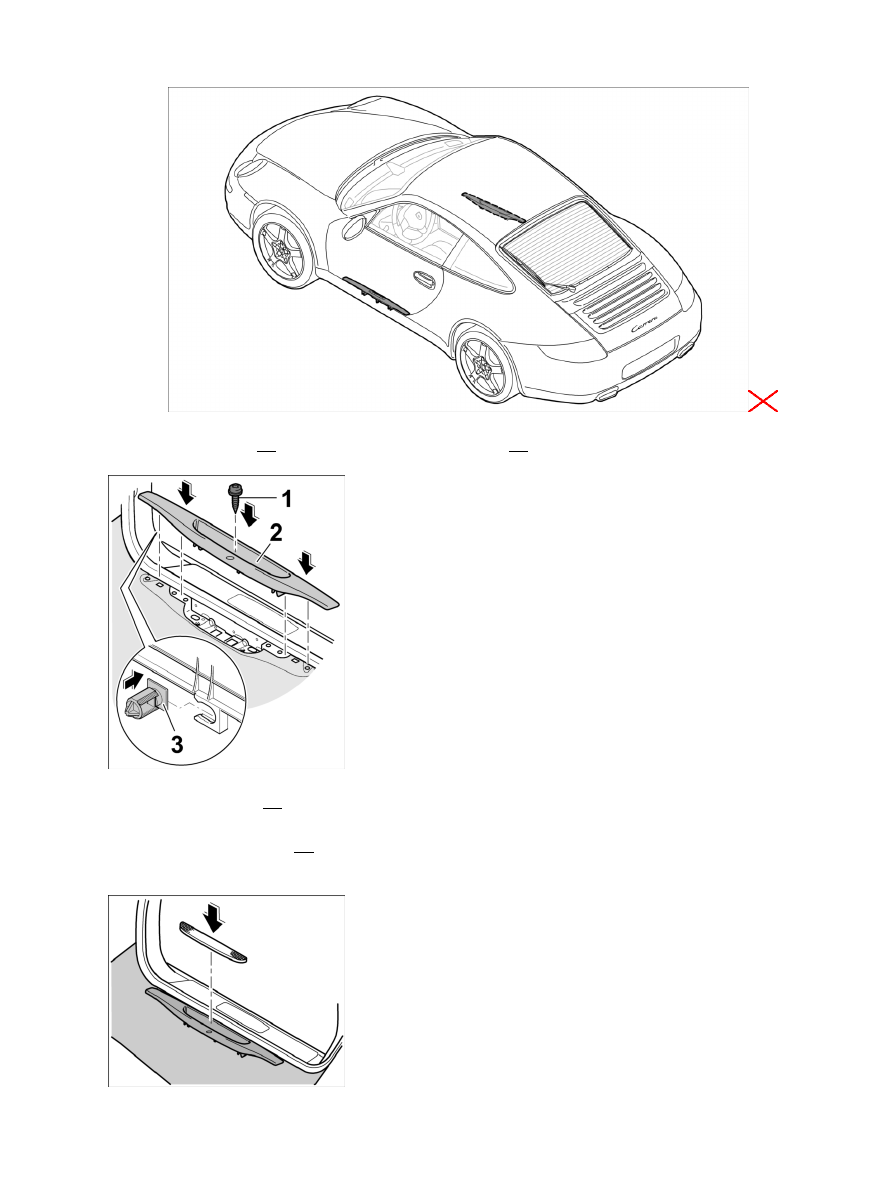

Installing scuff plate

2. Check fixing clips -2- on the underside of the scuff plate -1- , replacing if necessary.

3. Position scuff plate -1- , press in and

engage.

Tightening scuff plate

4. Tighten fastening screws -2- . Tightening torque → Tightening torque: 5 (3.5 ft lb.) Nm +/-0.5 (0.5 ftlb.)

Nm

5. Seal bores of scuff plate -3- with plastic caps -1-

.

Installing inner door sill trim (passenger's side)

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing inner door sill trim (driver's side)

2707

Installation position of scuff plate

1. Check fixing clips -3- on the underside of the scuff plate -2- , replacing if necessary.

Installing scuff plate

2. Position scuff plate -2- , press in and

engage.

3. Tighten fastening screw -1- . Tightening torque → Tightening torque: 2.5 (2.0 ftlb.) Nm +/-0.5 (0.5 ftlb.)

Nm

Diagnostic system: reading out fault memory and activating systems

Installing inner door sill trim (passenger's side)

2708
