Porshe 911 (997). Manual - part 633

Installing trim panel for mirror triangle

Installation Location:

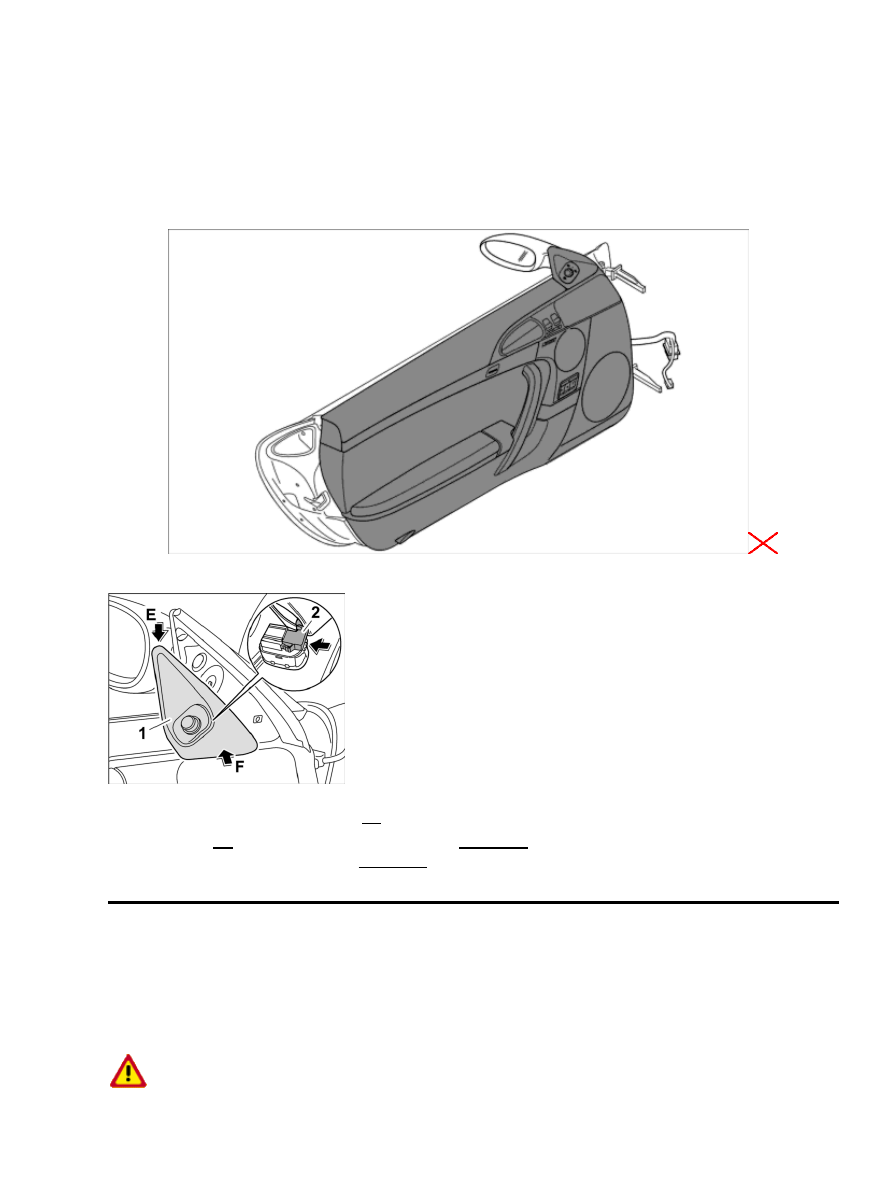

Overview, door trim panel

Installing trim panel for mirror triangle

1. Press in electrical plug connection -2- until it engages audibly.

2. Hook cover -1- into the door triangle from above -arrow E- and press into the fastening clips on the

underside until it engages audibly -arrow F- .

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
