Porshe 911 (997). Manual - part 615

Removing sill cover

4. Pull out sill cover -1- , beginning at the rear, from the fixing clips -2- .

Checking fixing clips and clamps

5. Check fastening clips -1- , and replace if necessary.

6. Check clamps -2- on the vehicle underbody , and replace if

necessary.

Disassembling and assembling sill cover

Disassembling sill cover

Diagnostic system: reading out fault memory and activating systems

Disassembling and assembling sill cover

2617

1. Disassembling sill cover

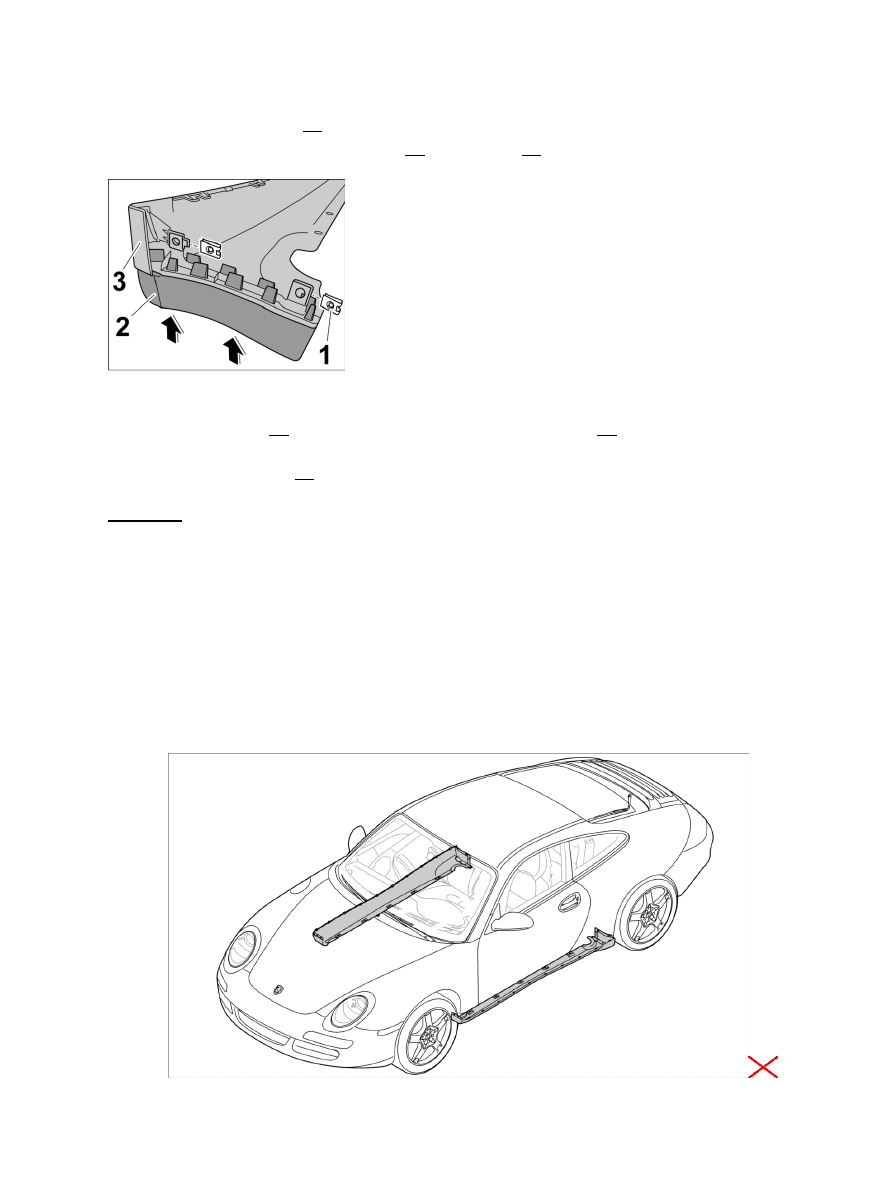

1.1. Press out fastening nuts -1- .

1.2. Insert a screwdriver between rubber lip -2- and sill cover -3- and remove rubber tab.

Assembling sill cover

2. Assembling sill cover

2.1. Position rubber lip -2- and pull the rubber tabs through the sill cover -3-

.

2.2. Press in fastening nuts -1- .

Installing sill cover

Installing sill cover

Installation Location:

Installation position of sill cover

Diagnostic system: reading out fault memory and activating systems

 Installing sill cover

2618

Installing clamps and fixing clips

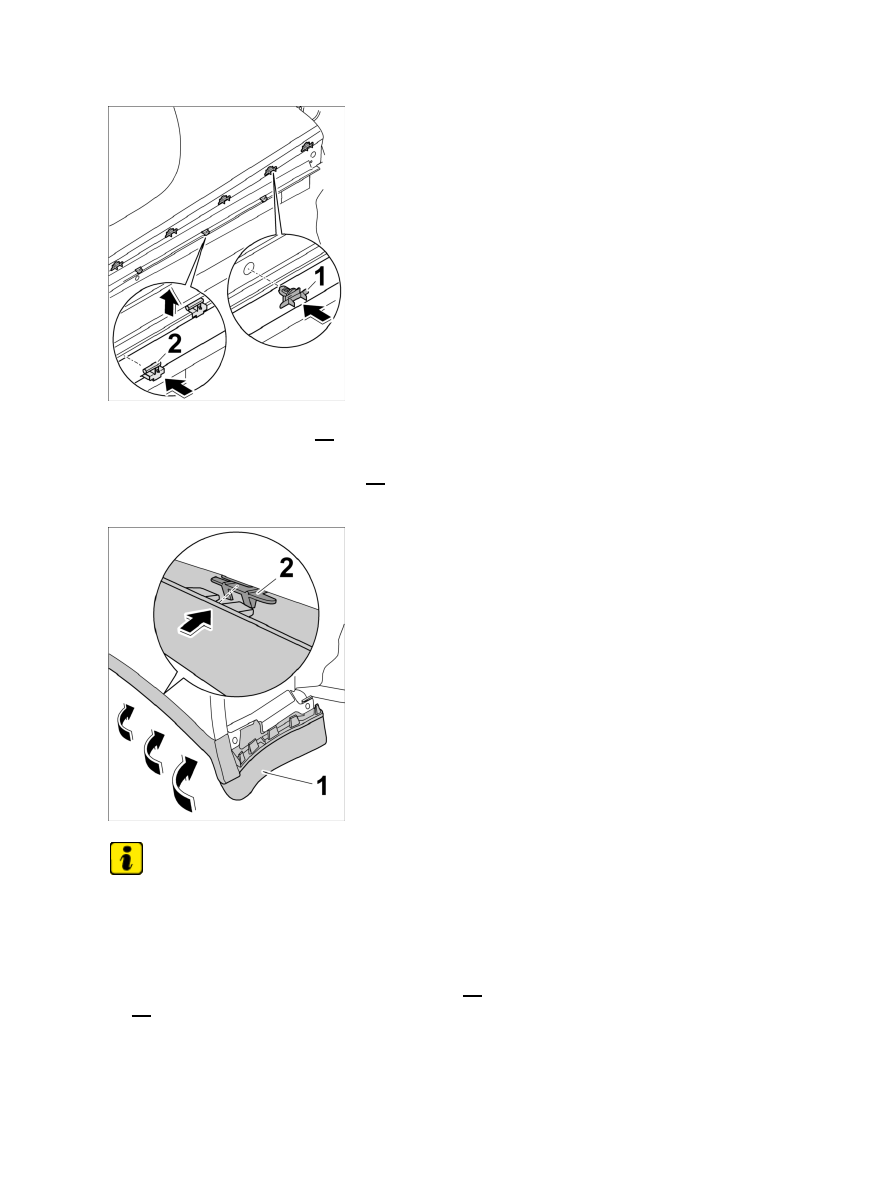

1. Align clamps (six per side) -2- on the vehicle underbody with the sill cover and press in onto the

edge of the door sill.

2. Press in fixing clips (nine per side) -1- until they

engage.

Installing sill cover

Note

When inserting the sill cover, make sure the overlap is correct.

•

Engage hook on front sill cover with side panel.

•

3. With the help of a second person, insert sill cover -1- , beginning at the rear, and press into the fixing clips

-2-

 .

Diagnostic system: reading out fault memory and activating systems

Installing sill cover

2619

Fastening bottom of sill cover

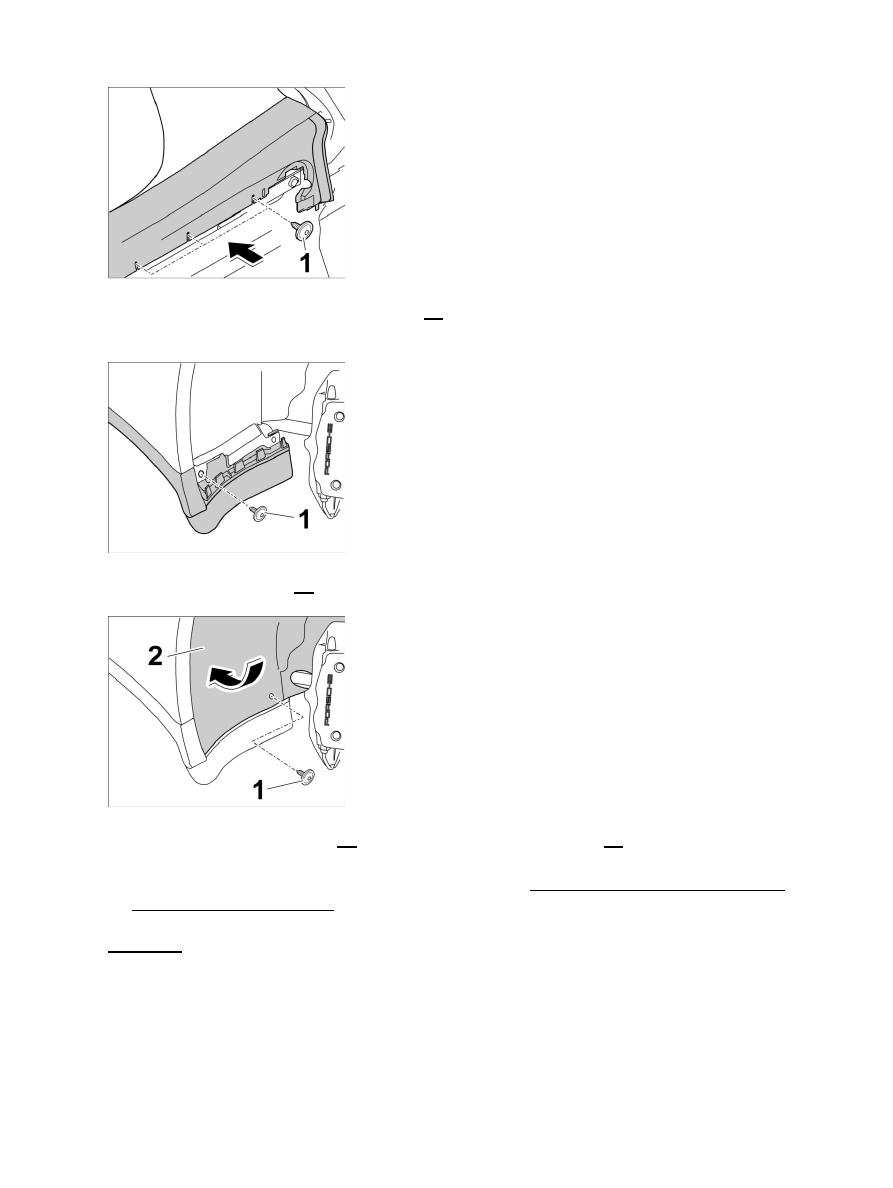

4. Tighten sill cover with the fastening screws -1- in the clamps on the vehicle underbody. →

Tightening torque: 2 (1.5 ftlb.) Nm +/-20 %

Fastening rear of sill cover

5. Tighten fastening screw -1- . → Tightening torque: 2 (1.5 ftlb.) Nm +/-20 %

Fastening rear wheel housing liner

6. Align rear wheel housing liner -2- and tighten with the fastening screw -1- . → Tightening torque:

2 (1.5 ftlb.) Nm +/-20 %

7. Check gap dimensions of sill cover, and adjust if necessary. → 663119 Removing and installing sill

cover - chapter on "Adjusting"

Gap dimensions of sill cover

Diagnostic system: reading out fault memory and activating systems

 Gap dimensions of sill cover

2620
