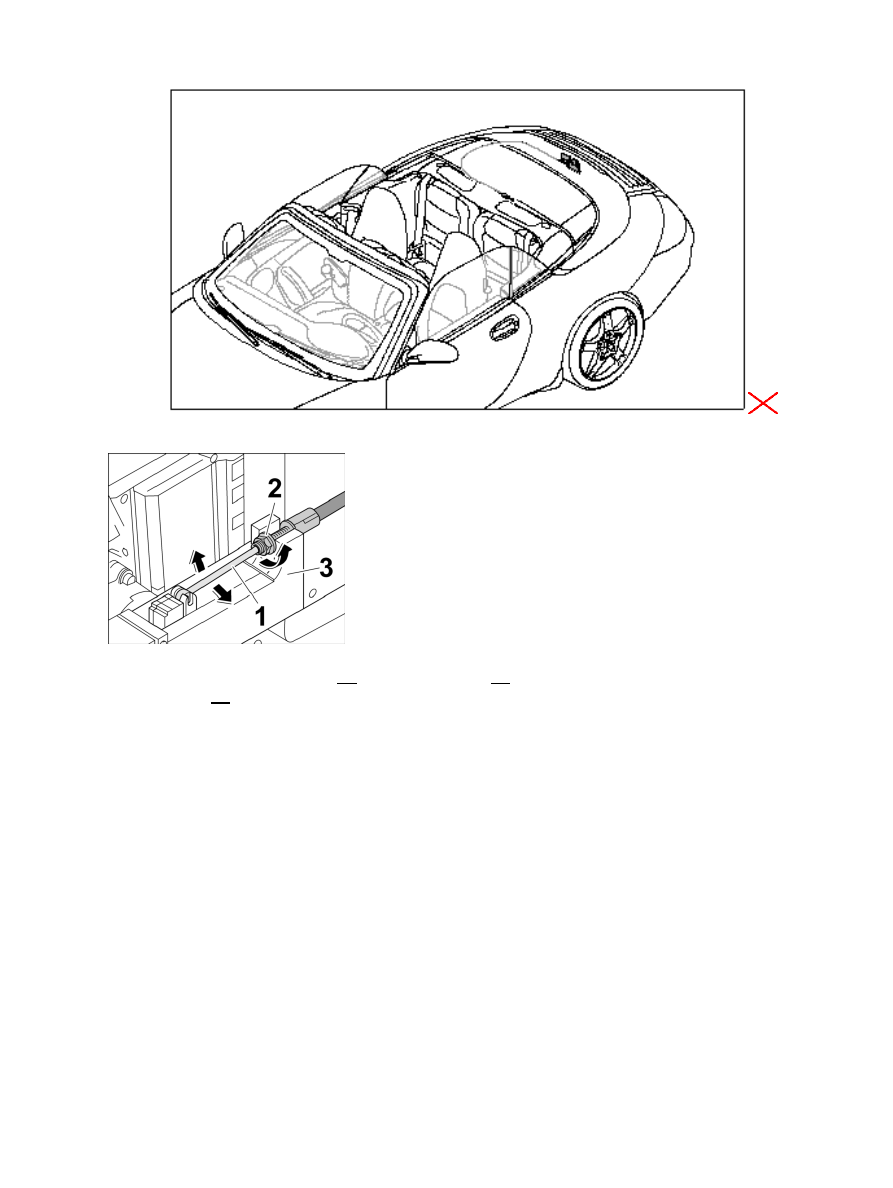

Installation location for locking hook cable

Disengaging cable for locking hook

1. Loosen cable for locking hook -1- on the hexagon nut -2- and swivel the nipple from the driving

mechanism -3- upwards and pull out.

Removing convertible-top compartment lid drive gear

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Disengaging cable for locking hook

2293

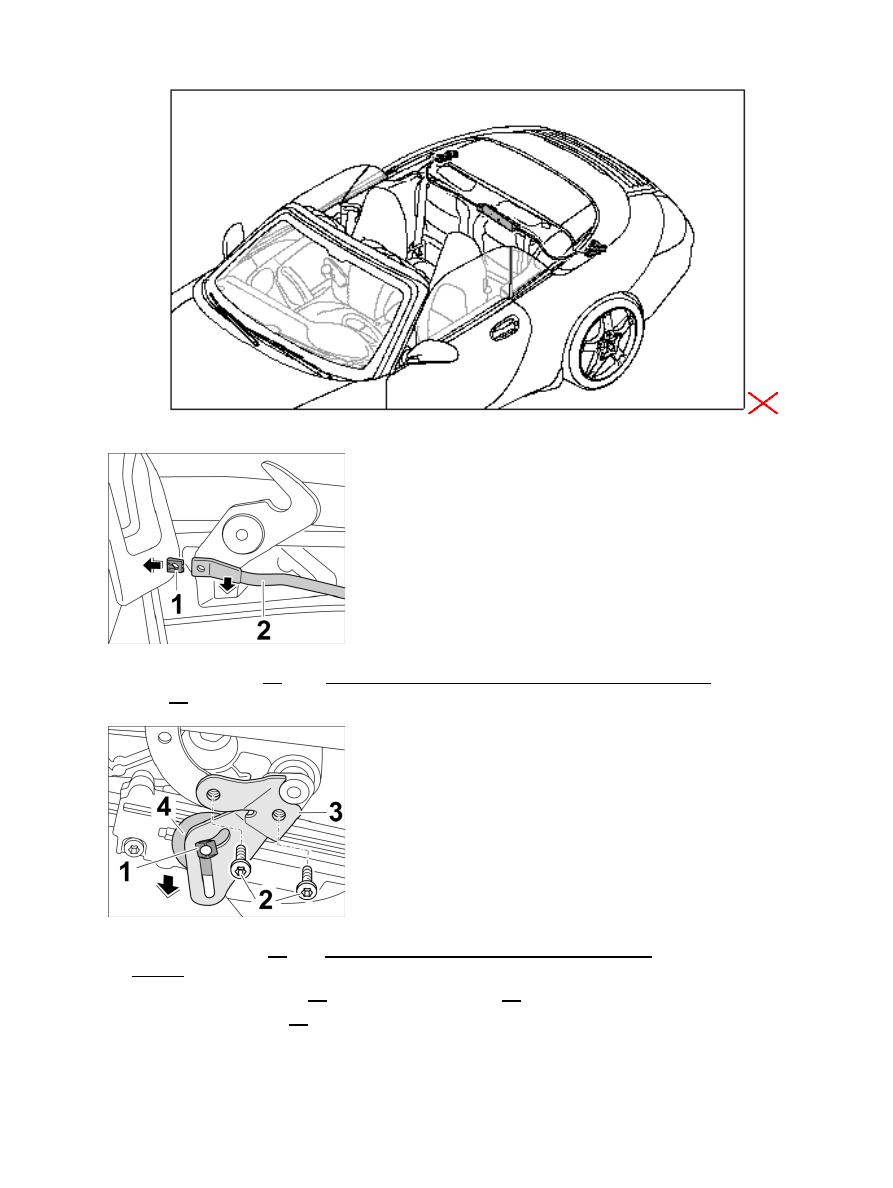

Installation location of transmission for convertible-top compartment lid drive

Disengaging lever

1. Remove fixing clip -1- using assembly tool for System Springfix pin circlips NR.131 and take off

lever -2- .

Removing deflector rail

2. Press out fixing clip -1- with assembly tool for System Springfix pin circlips

NR.131

.

3. Unscrew fastening screws -2- and remove deflector rail -3- .

4. Remove plastic washer -4- .

Diagnostic system: reading out fault memory and activating systems

Removing convertible-top compartment lid drive gear

2294

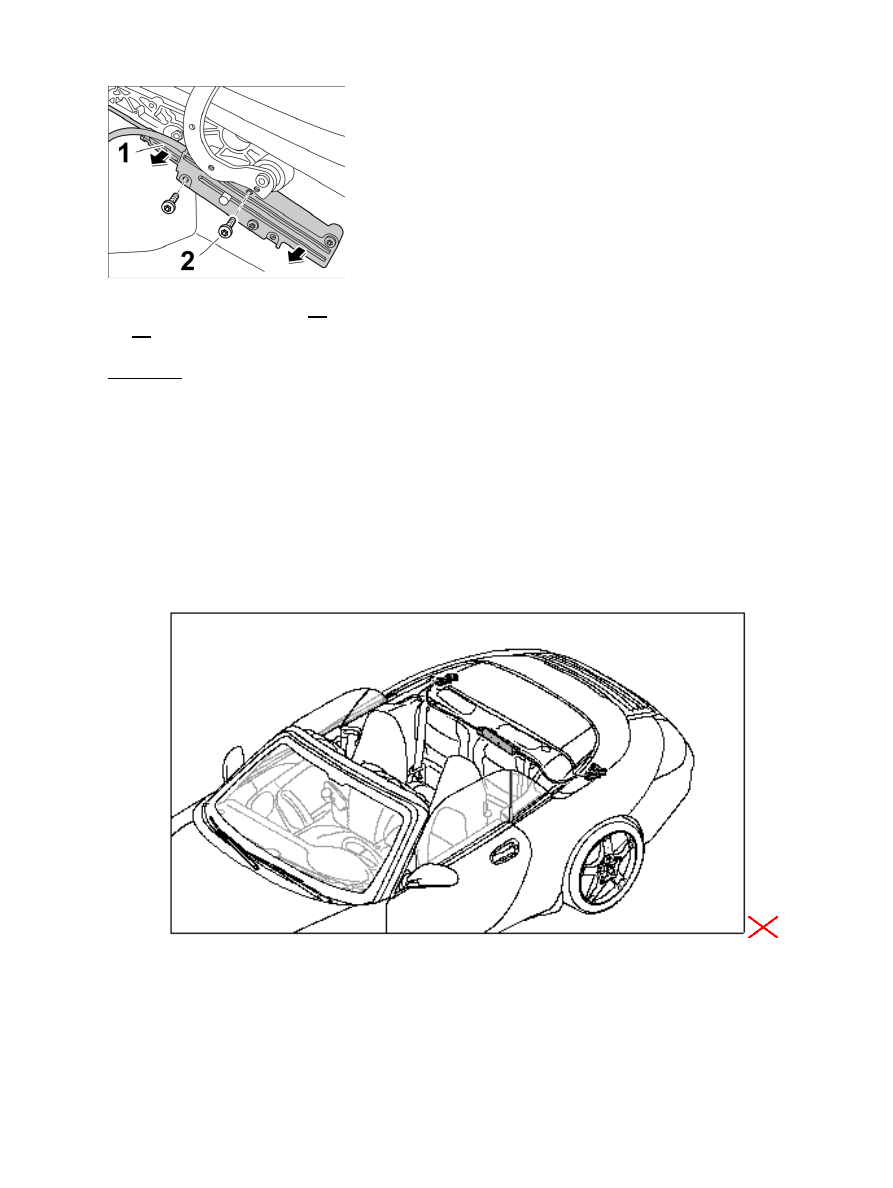

Loosening driving mechanism

5. Unscrew fastening screws -2- and remove driving mechanism

-1-

 .

Installing convertible-top compartment lid drive gear

Installing convertible-top compartment lid drive gear

Installation Location:

Installation location of transmission for convertible-top compartment lid drive

Diagnostic system: reading out fault memory and activating systems

 Installing convertible-top compartment lid drive gear

2295

Installing driving mechanism

1. Position driving mechanism -1- in the centre on the hinge and screw down the positioning bolts -2- .

Tightening torque → Tightening torque: 7 ftlb.

Installing deflector rail

2. Push in plastic washer -4- .

3. Position deflector rail -3- on hinge and secure with fastening screws -2- . Tightening torque → Tightening

torque: 7 ftlb.

4. Press in fixing clip -1- .

Engaging lever

5. Position lever -2- on locking hook and clip into fastening clip -1- .

Engaging cable for locking hook

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing convertible-top compartment lid drive gear

2296
