Fitting front clamping rail

9. Fit front sewn-on clamping rail at front left and right of roof frame 1.

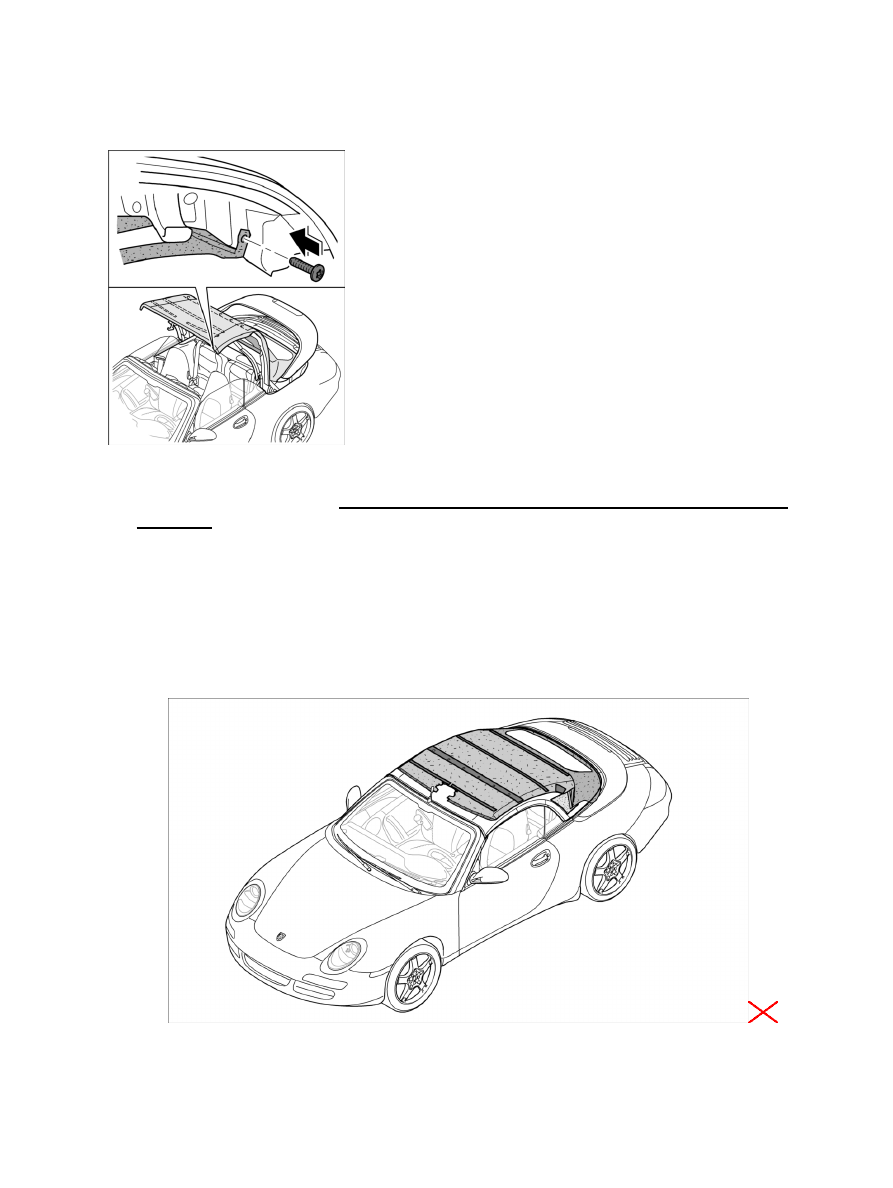

Tightening front clamping rail

10. Tighten connection left and right with fastening screws.

11. Installing convertible top lock → 611919 Removing and installing convertible top lock - chapter on

"Installing"

12. End convertible top service position.

Installing convertible-top inner lining at rear

Installation Location:

Installation position of convertible-top inner lining

Diagnostic system: reading out fault memory and activating systems

Installing convertible-top inner lining at rear

2177

Convertible-top inner lining connection to the rear window

1. Lift the metal clips using a plastic spatula -A- and insert a small screwdriver under the metal clips

-B-

 . Insert the connection piping -1- of the convertible-top inner lining underneath the metal clips

-C-

 . Ensure that the clearance cuts of the convertible-top inner lining -D- are positioned at the

electric connection of the rear window.

2. Knock the metal clips with a plastic hammer. Make sure that the metal clips engage in the frame

cut-outs.

Convertible-top inner lining connection to the tension bow

3. Press the convertible-top inner lining connection into the groove of the

tension bow.

Diagnostic system: reading out fault memory and activating systems

Installing convertible-top inner lining at rear

2178

Installing brace

4. Insert brace -1- into fabric pocket of convertible-top inner lining -2- . First insert brace into

tension bow at rear -Arrow A- , then bend it -Arrow B- and insert it at front -Arrow C- .

Installing brace

5. Position brace -3- under convertible- top inner lining -2- and secure to main folding top bow with

fastening screw -1- .

Closing Velcro fastener

6. Close Velcro fastener of tension bow.

Diagnostic system: reading out fault memory and activating systems

Installing convertible-top inner lining at rear

2179

Pressing on snap fastener

7. Press on snap fastener.

Closing zip fastener

8. Close zip between convertible- top inner lining at rear and the main folding top bow connection.

9. Close Velcro fastener of convertible-top inner lining on left and right sides.

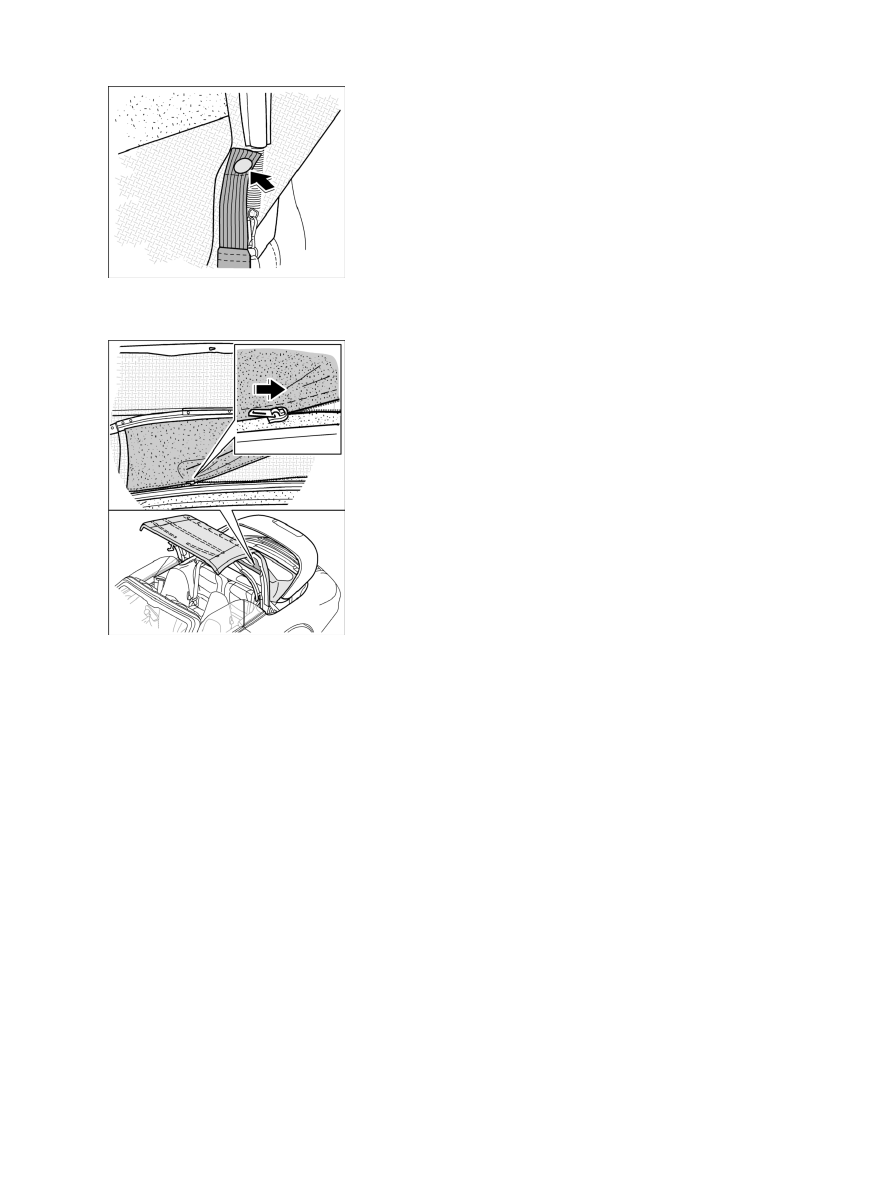

Installing convertible-top inner lining at sides

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing convertible-top inner lining at sides

2180
