Porshe 911 (997). Manual - part 481

- Preliminary work
- Removing frame for sliding roof
- Installing frame for sliding roof
- Subsequent work

Preliminary work

Preliminary work

Remove headliner. → 708419 Removing and installing headliner - section on "Removing"

Removing frame for sliding roof

Removing frame for sliding roof

Installation Location:

Installation position for sliding roof frame

2081

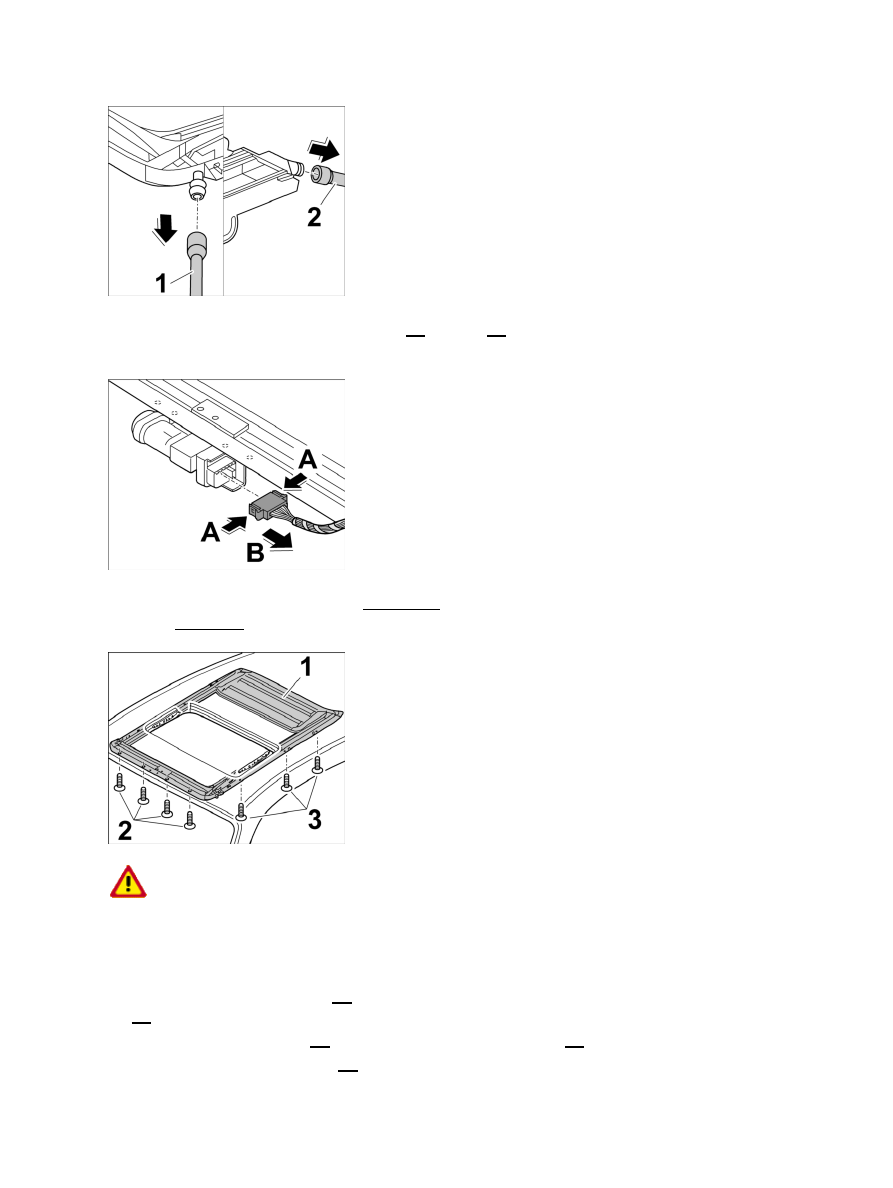

Pulling off water drain hoses

1. Disconnect water drain hoses at the front -1- and rear -2- from the water drain brackets of the frame for

the sunroof.

Disconnecting plug connection for sunroof motor

2. Press in locking tabs on both sides -arrows A- and pull off the electric plug connection for the sunroof

motor -arrow B- .

Loosening sliding roof frame

ATTENTION

Danger of damage to the seats during the removal of the sliding roof frame!

→ During removal of the sliding roof frame, move both seats to the rear and tilt the backrests to the rear.

3. Unscrew the fastening screws -2- at the front of the sliding roof frame

-1-

 .

4. Undo the fastening screws -3- from the frame for the sliding roof -1- at the sides.

5. Remove the sliding roof frame -1- with an assistant and pull it out of the passenger compartment through

the door aperture.

Diagnostic system: reading out fault memory and activating systems

Removing frame for sliding roof

2082

Installing frame for sliding roof

Installing frame for sliding roof

Installation Location:

Installation position for sliding roof frame

1. Insert sliding roof frame -1- with an assistant into the passenger compartment through the door

aperture and position at the screw-mounting points.

Securing frame for sliding roof

2. Position the fastening screw -3- of the sliding roof frame at the side and tighten by

hand.

3. Position the fastening screws -2- on the sliding roof frame at the front and tighten by

hand.

4.

Diagnostic system: reading out fault memory and activating systems

 Installing frame for sliding roof

2083

Align sliding roof frame -1- accordingly and tighten fastening screws -1, 2- . Tightening torque →
Tightening torque: 9.7 (7 ftlb.) Nm → Tightening torque: 9.7 (7 ftlb.) Nm

Connecting plug connection for sunroof motor

5. Connect electric plug connection for sunroof motor -arrow A- . The locking tabs must engage on both

sides when the connection is made.

Pushing on water drain hose

6. Push the water drain hoses at the front -1- and rear -2- onto the water drain brackets of the frame for the

sliding roof.

Subsequent work

Subsequent work

1. Install headliner. → 708419 Removing and installing headliner - section on

"Installing"

2. Re-teach motor for sunroof. → 601419 Removing and installing motor for sunroof - section on

"Information"

997110, 997111, 997120, 997121, 997410, 997411, 997430, 997431

Diagnostic system: reading out fault memory and activating systems

Installing frame for sliding roof

2084
