Locking lock actuation

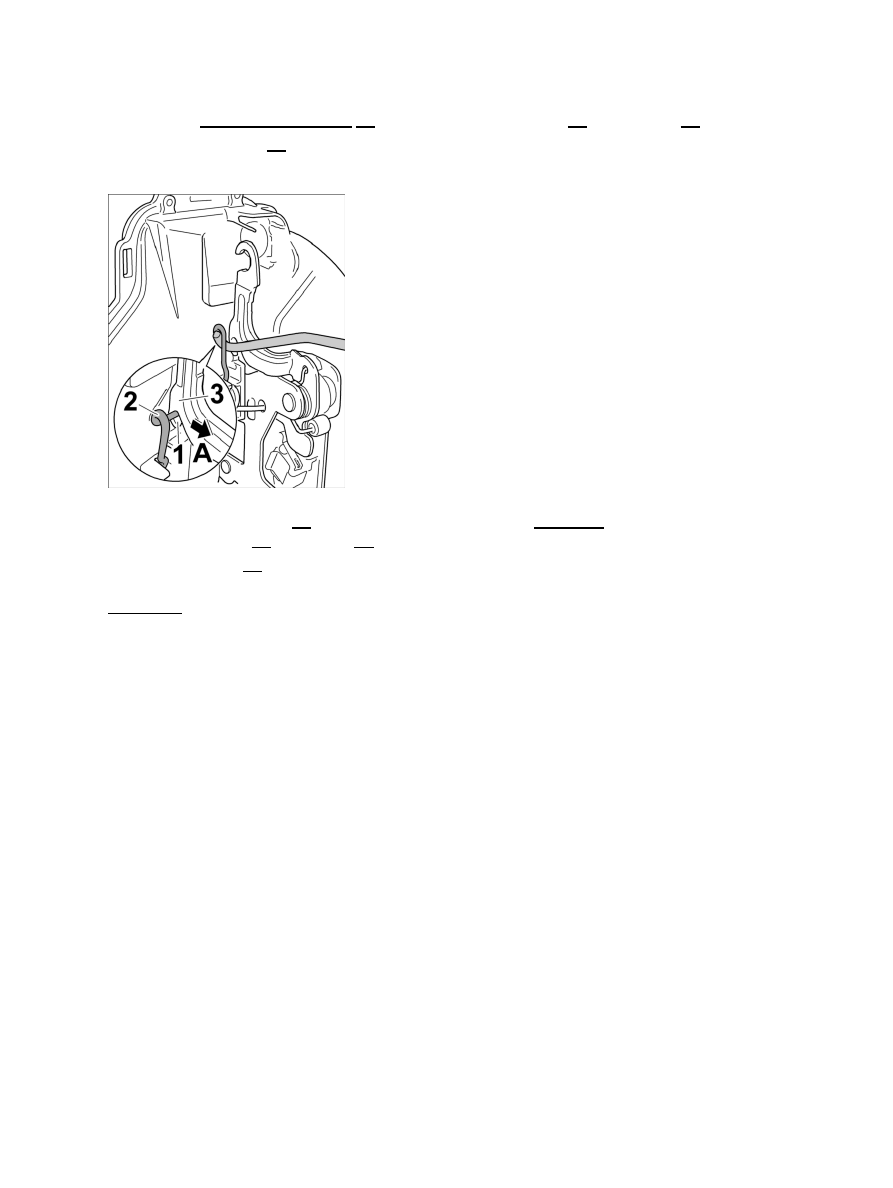

1. Guide the assembly tool T10118 -1- between the securing spring -2- and the lever -3- .

2. The securing spring -2- hooks on to the tool with a rotary

movement.

Lock actuation locked

3. Pull the securing spring -2- towards the outside of the door ( -arrow A- ) until the spring engages audibly

in the locking lug -1- of the lever -3- .

4. Unhook the tool -1- and remove it.

Installing door lock

Fitting the bowden cable

Installation Location:

Diagnostic system: reading out fault memory and activating systems

 Installing door lock

1953

Main illustration for removing and installing door lock

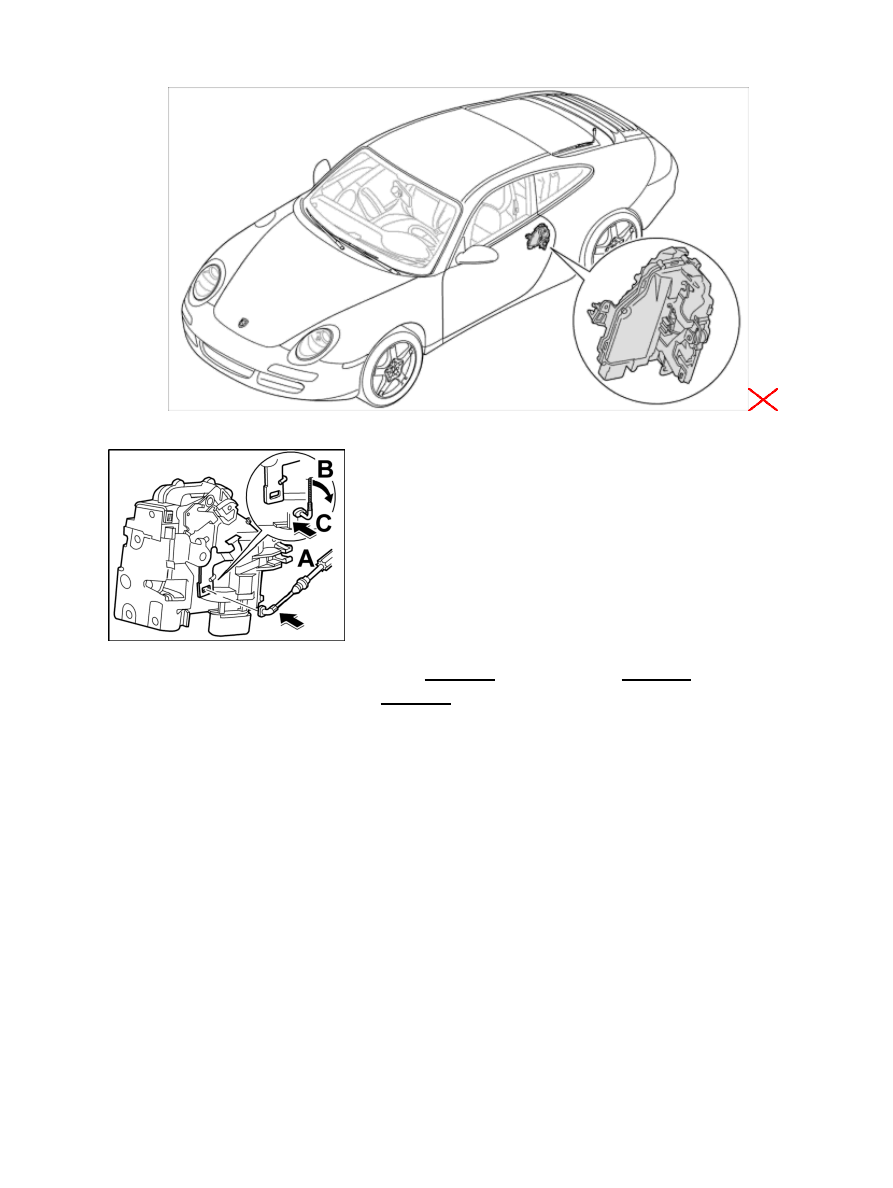

Fitting the bowden cable

1. Insert bowden cable into the actuating lever -arrow C- and swivel by 90° -arrow B- .

2. Clip bowden cable into the door lock -arrow A- .

Installing door lock

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Fitting the bowden cable

1954

Main illustration for removing and installing door lock

Note

To prevent a malfunction in the closing system, make sure that the closing cylinder shaft is fitted
correctly in the door lock.

•

Installing door lock

1. Insert door lock -2- into the door and secure with the fastening screws -1- . Tightening torque → Final

tightening: 18 (13) Nm (ftlb.) +2 (1.5) Nm (ftlb.)

Fit connection piece

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing door lock

1955

Overview, removing and installing door handle

Fitting connection piece

1. Insert the connection piece -1- into the actuating shaft -2- without play.

2. Push out the sliding piece -3- until it can be heard to

engage.

3. Actuate the handle to ensure that the handle and door lock function without play.

Subsequent work

Diagnostic system: reading out fault memory and activating systems

Fit connection piece
