Porshe 911 (997). Manual - part 298

- Notes
- Bleeding the brake system

Notes

Note

Observe brake-fluid quality! Use only new DOT 4 brake fluid!

•

The Super DOT 4 brake fluid must be changed every two years!

•

This brake fluid is available under the following part numbers: Container quantity 1 litre =
000.043.203.66 Container quantity 30 litres = 000.043.203.67

•

Bleeding the brake system

Procedure for bleeding

1st. Step: Bleed brakes in the normal way (in combination with bleeding device at the brake fluid reservoir
and 2.0 bar pressure) (primary circuit).
2nd. Step: In addition, use the Piwis Tester to bleed the brakes (secondary circuit). Only necessary if the
hydraulic unit has been replaced and, after bleeding in the normal way (primary circuit), the brake pedal travel
is excessive.

1. Step: Bleeding (primary circuit)

Note

Always bleed both bleeder valves on brake caliper!

•

Bleed the outer bleeder valve first!

•

1349

Note

If the pedal travel is too long or the pedal feels too soft when applied, carry out bleeding again.
Operate (pump) the brake pedal at the same time. A second person is required for this.

•

Also carry out this procedure if the brake hydraulic system was largely empty.

•

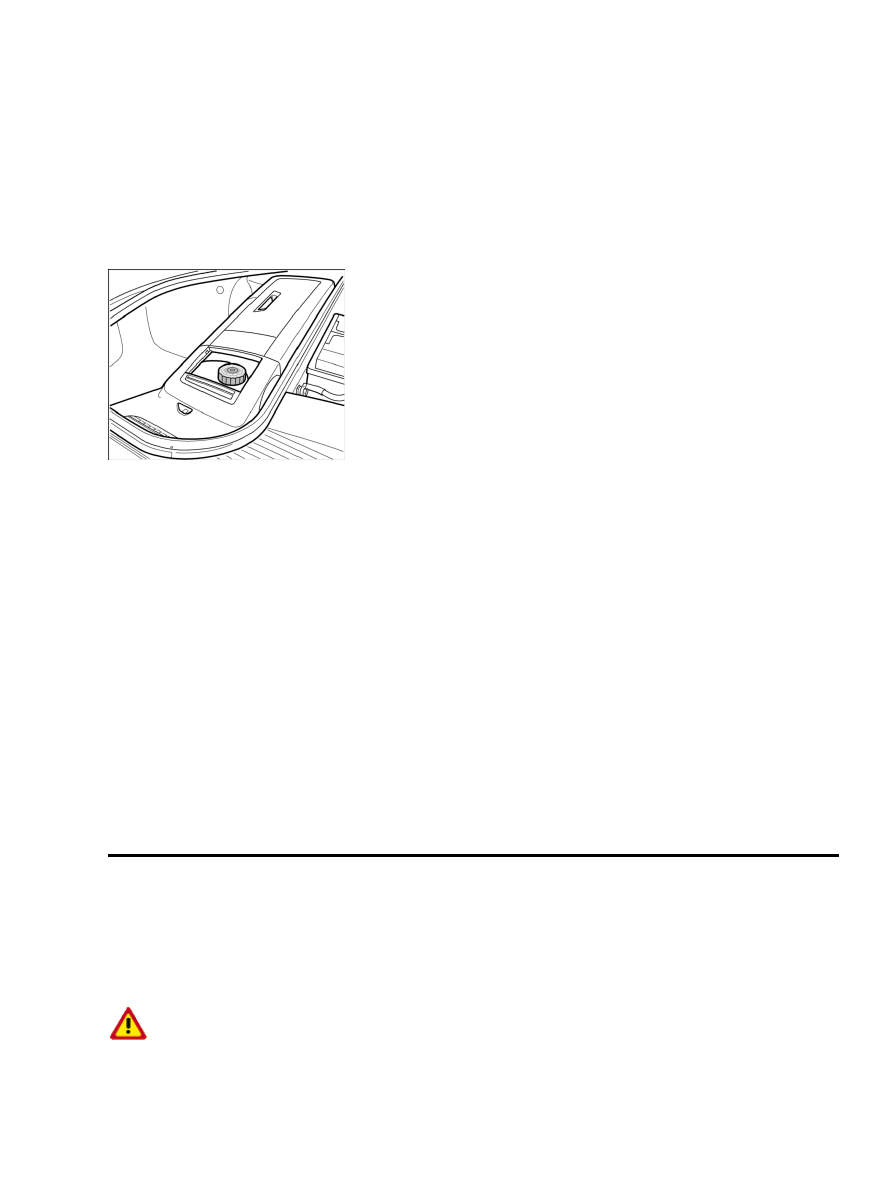

Cover over brake fluid reservoir

1. Disengage and remove cover over brake fluid reservoir -B- .

2. Open expansion tank.

Bleeding brakes

3. Connect a bleeding device to the brake fluid reservoir. Switch on the bleeding device. Bleeding

pressure is approx. 2.0 bar.

4. Continue the bleeding procedure at the brake calipers. Do so in the following sequence: rear right/rear

left/front right/front left. Bleed the outer bleeder valve first.

5. Use a transparent hose and a collecting bottle to check the escaping brake fluid is clean and free of air

bubbles and to determine the amount of brake fluid used.

6. Open each bleeder valve until clear, bubble-free brake fluid emerges.

7. Tighten the bleeder valves to the stipulated tightening torque and remove the bleeder hoses.

8. Generate vacuum in brake booster by starting engine. Check brake-pedal travel and pedal

feel.

Check the brake system for residual air by the amount of brake pedal travel. Repeat the bleeding procedure if
necessary. Operate (pump) the brake pedal at the same time as described below. This will remove the
remaining air bubbles from the primary circuit.

Diagnostic system: reading out fault memory and activating systems

1. Step: Bleeding (primary circuit)

1350

Open the rear right bleeder valves, then fully rapidly depress the brake pedal hard several times. Hold
the brake pedal for 2 to 3 seconds after each depression, then release slowly. Continue bleeding until
the brake fluid emerging into the collection bottle is free of bubbles and foam.

•

Repeat this procedure in the sequence rear left/front right/front left.

•

9. If necessary, continue bleeding the secondary circuit (using the Piwis Tester). Only necessary if the

hydraulic unit has been replaced and, after bleeding in the normal way (primary circuit), the brake
pedal travel is excessive.

Brake fluid level

10. Remove bleeding device from brake fluid reservoir and screw cap on. The brake fluid level in the brake

fluid reservoir must be between the MIN and MAX markings once the vehicle has been filled and bled.
Adjust the brake fluid level if necessary.

2nd Step: Bleeding (secondary circuit)

Bleeding of the secondary circuit is only necessary if the hydraulic unit has been replaced and, after bleeding
in the normal way (primary circuit), the brake pedal travel is excessive.
First bleed brakes as usual (primary circuit). Only then can you carry out bleeding of the secondary circuit
with the Piwis Tester. The process is menu-driven. You must observe the specified sequence rear left, front
left, front right, rear right.
To bleed the secondary circuit, the bleeding device remains connected to the brake fluid reservoir. Bleeding
pressure is approx. 2.0 bar.
Throughout the entire bleeding process, the brake pedal must be operated cyclically (hold depressed for 2 to 3
seconds, then release slowly). After operating pedal for the last time, hold the brake pedal down and close
bleeder valve.
