Windscreen to windscreen frame

Location

Explanation

Type

Basic
value

Tolerance 1 Tolerance 2

Windscreen to windscreen
frame

Only lowered Gap dimension

A

2 mm

Cowl panel frame to wing

Location

Explanation

Type

Basic value Tolerance 1 Tolerance

2

Cowl panel frame to
wing

Continuous
transition

Gap dimension A

3 mm

+/-1 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body centre

4669

Door window to side window

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Door window to side
window

Door window lowered by
max. 1 mm

Gap dimension
A

7 mm

+/-1 mm

Diagram - body rear gap dimensions

Gap dimensions, body rear

Note

Set gap dimensions on the lids, doors and covers, or accessories in accordance with the gap
specifications.

•

Given a clearance in the opening that is too great or too small, the movable body or the accessories
must be centred accordingly.

•

Ensure that the gaps do not taper or do not narrow at local points.

•

The given values are guidelines which should be observed as far as possible.

•

The guidelines apply to repair and assembly work.

•

Use star gauges to measure the gap dimensions, Star gauges for body gap dimensions NR.127-1

•

Diagnostic system: reading out fault memory and activating systems

 Diagram - body rear gap dimensions

4670

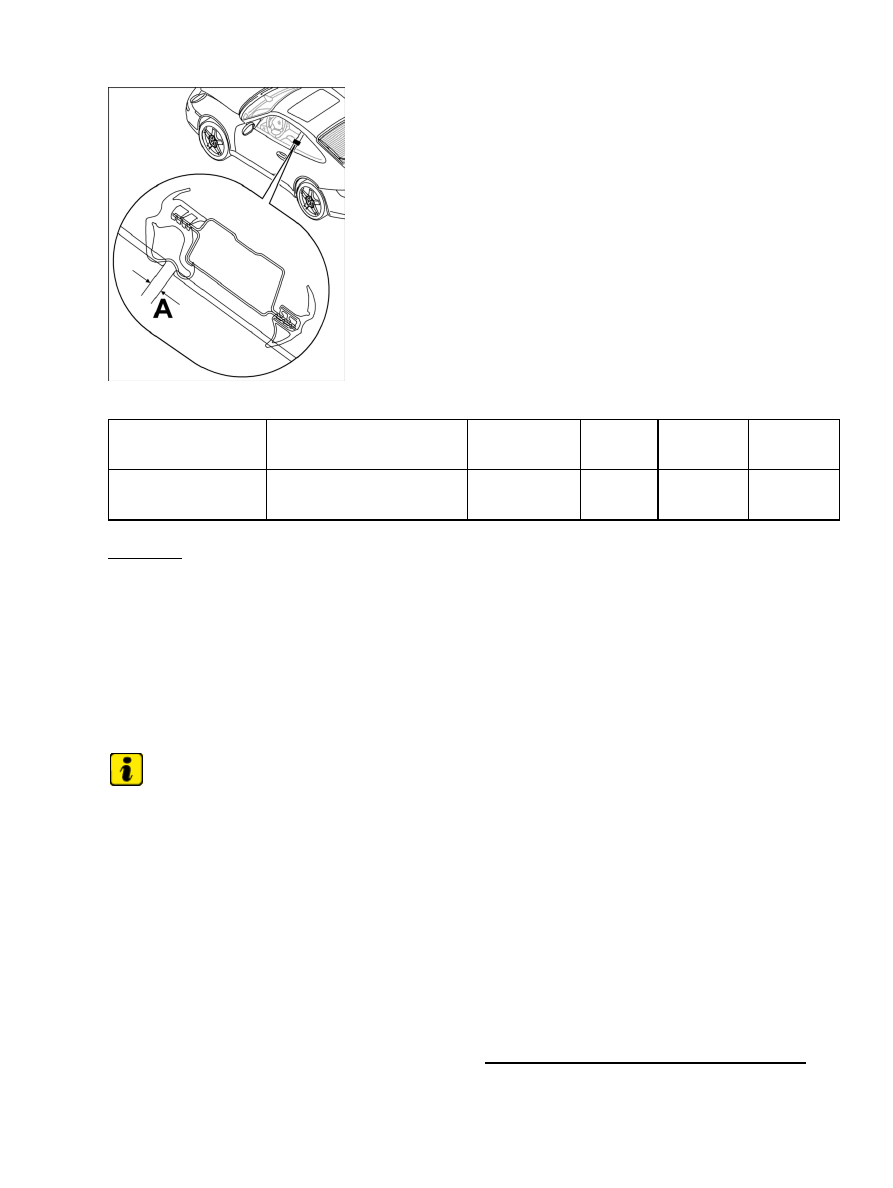

Tail light to outer side panel

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Tail light to outer side panel

Gap dimension A

4 mm

+/-1.5 mm

Tail light to outer side panel

Gap dimension B

3.5 mm

+/-2 mm

Tail light to centre side panel

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Tail light to centre side
panel

Gap dimension
A

3 mm

+/-0.8 mm

Tail light to centre side
panel

Tail light only
lowered

Gap dimension
B

0.8 mm

-1 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body rear

4671

Rear apron to tail light

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Rear apron to tail light

Gap dimension A

4 mm

+/-1.5 mm

Tail light to rear lid

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Tail light to rear lid

Determine gap

Gap dimension A

4.9 mm

+/-1 mm

Tail light to rear lid

Only lowered

Gap dimension B

0.4 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body rear

4672
