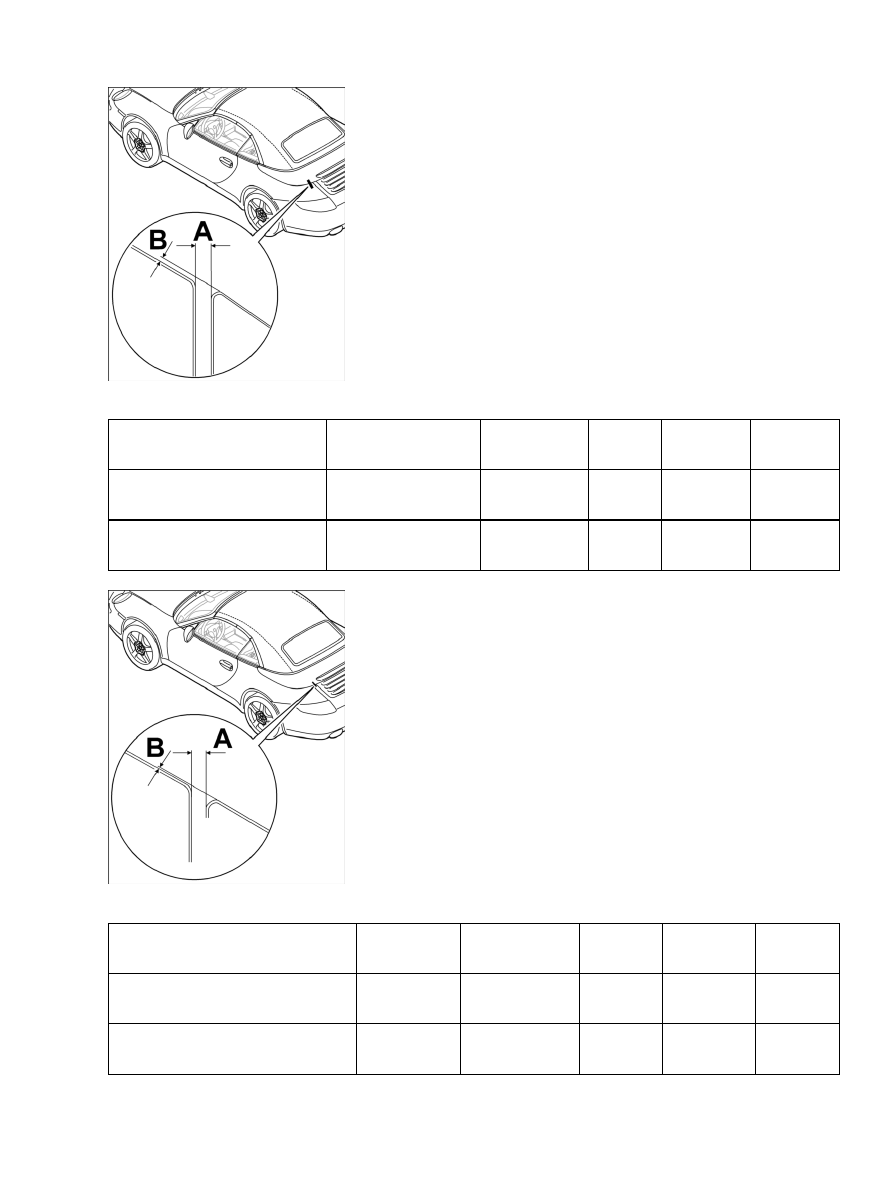

Convertible-top compartment lid to side panel

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Convertible-top compartment
lid to side panel

Continuous seam
joining line

Gap
dimension A

4 mm

+/-1 mm

Convertible-top compartment lid to side panel

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Convertible-top compartment
lid to side panel

Continuous seam
joining line

Gap
dimension A

4 mm

+/-1 mm

Diagnostic system: reading out fault memory and activating systems

Convertible-top gap dimensions

4625

Convertible-top compartment lid to side panel

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Convertible-top compartment
lid to side panel

Continuous seam
joining line

Gap
dimension A

5 mm

+/-1 mm

Convertible-top compartment
lid to side panel

Only lowered

Gap
dimension B

1.5 mm

Convertible-top compartment lid to rear lid

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Convertible-top compartment lid to
rear lid

Gap dimension
A

5 mm

+/-1 mm

Convertible-top compartment lid to
rear lid

Only lowered Gap dimension

B

0.4 mm

Diagnostic system: reading out fault memory and activating systems

Convertible-top gap dimensions

4626

Convertible-top compartment lid to spoiler top section

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Convertible-top compartment lid to
spoiler top section

Gap dimension
A

4 mm

+/-1 mm

Convertible-top compartment lid to
spoiler top section

Only lowered Gap dimension

B

0.3 mm

Convertible-top compartment lid to spoiler top section

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Convertible-top compartment lid to
spoiler top section

Gap dimension
A

4 mm

+/-1 mm

Diagnostic system: reading out fault memory and activating systems

Convertible-top gap dimensions

4627

Convertible top to convertible-top compartment lid

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Convertible-top compartment lid
to spoiler top section

Continuous seam
joining line

Gap
dimension A

1 mm

+4 mm

Gap dimensions, hardtop

Note

Set gap dimensions on the lids, doors and covers, or accessories in accordance with the gap
specifications.

•

Given a clearance in the opening that is too great or too small, the movable body or the accessories
must be centred accordingly.

•

Ensure that the gaps do not taper or do not narrow at local points.

•

The given values are guidelines which should be observed as far as possible.

•

The guidelines apply to repair and assembly work.

•

Use star gauges to measure the gap dimensions, Star gauges for body gap dimensions NR.127-1

•

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, hardtop
