Porshe 911 (997). Manual - part 1105

Separating glass as far as P1

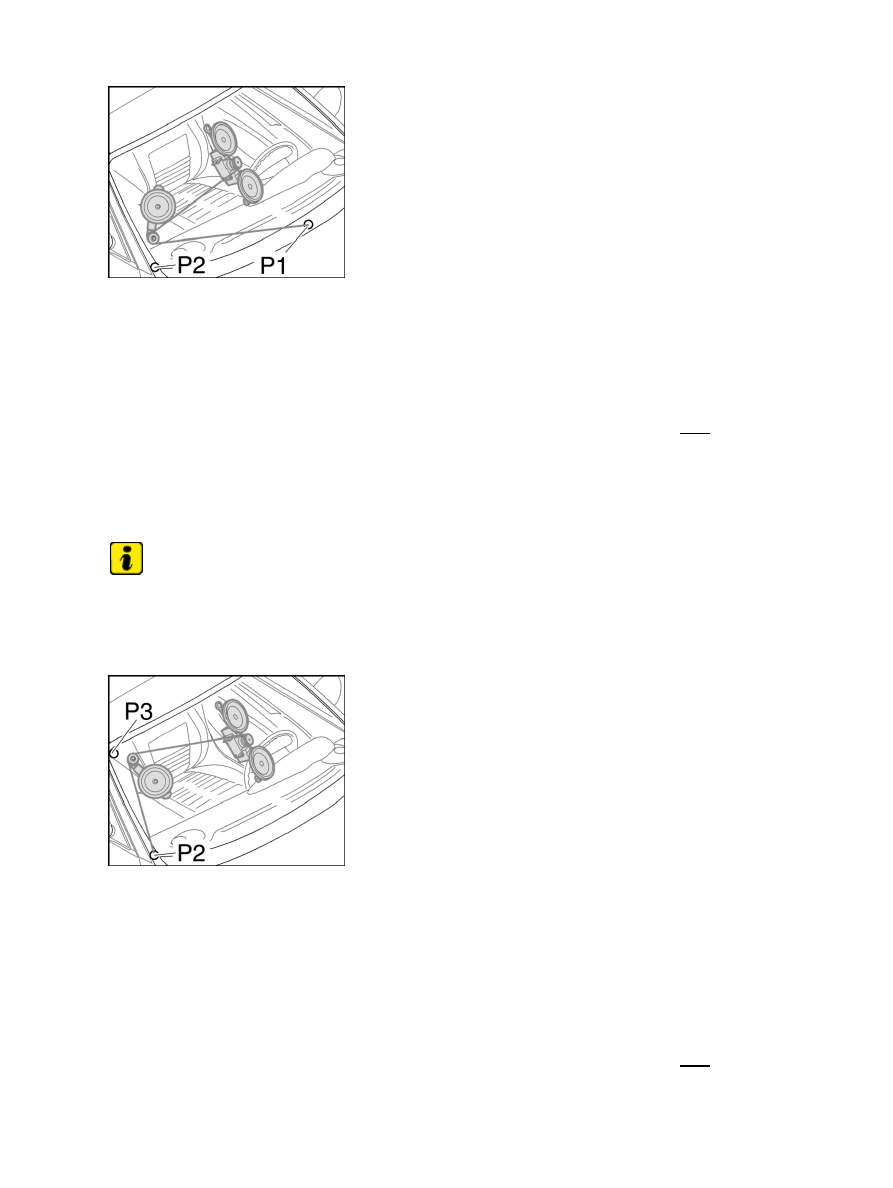

1. Separate glass by spooling the cutting thread on the spooling device as far as point -P1- .

Repositioning spooling device

Repositioning spooling device

1. Release spooling

device.

2. Release the lower fastening intake on the spooling device.

3. Pull cutting thread through onto the other side of the fastening intake.

4. Fix fastening intake onto the glass by moving the actuating lever.

Separating glass as far as P2

Note

The fastening force can be increased by moistening the fastening intake.

•

Diagnostic system: reading out fault memory and activating systems

Separating glass as far as P1

4577

Separating glass as far as P2

1. Position deflection roller in the lower right corner.

2. Press deflection roller with fastening intake firmly against the glass.

3. Fix fastening intake onto the glass by moving the actuating lever.

4. Pass cutting thread over the deflection roller onto the spooling device.

5. Separate glass by spooling the cutting thread on the spooling device as far as point -P2- .

Separating glass as far as P3

Note

The fastening force can be increased by moistening the fastening intake.

•

Separating glass as far as P3

1. Release spooling

device.

2. Position deflection roller in the upper right corner.

3. Press deflection roller with fastening intake firmly against the glass.

4. Fix fastening intake onto the glass by moving the actuating lever.

5. Pass cutting thread over the deflection roller onto the spooling device.

6. Separate glass by spooling the cutting thread on the spooling device as far as point -P3- .

Diagnostic system: reading out fault memory and activating systems

Separating glass as far as P2

4578

Repositioning spooling device

Repositioning spooling device

1. Release spooling

device.

2. Release the upper fastening intake on the spooling device.

3. Pull cutting thread through onto the other side of the fastening intake.

4. Fix fastening intake onto the glass by moving the actuating lever.

Separating glass as far as P4

Note

The fastening force can be increased by moistening the fastening intake.

•

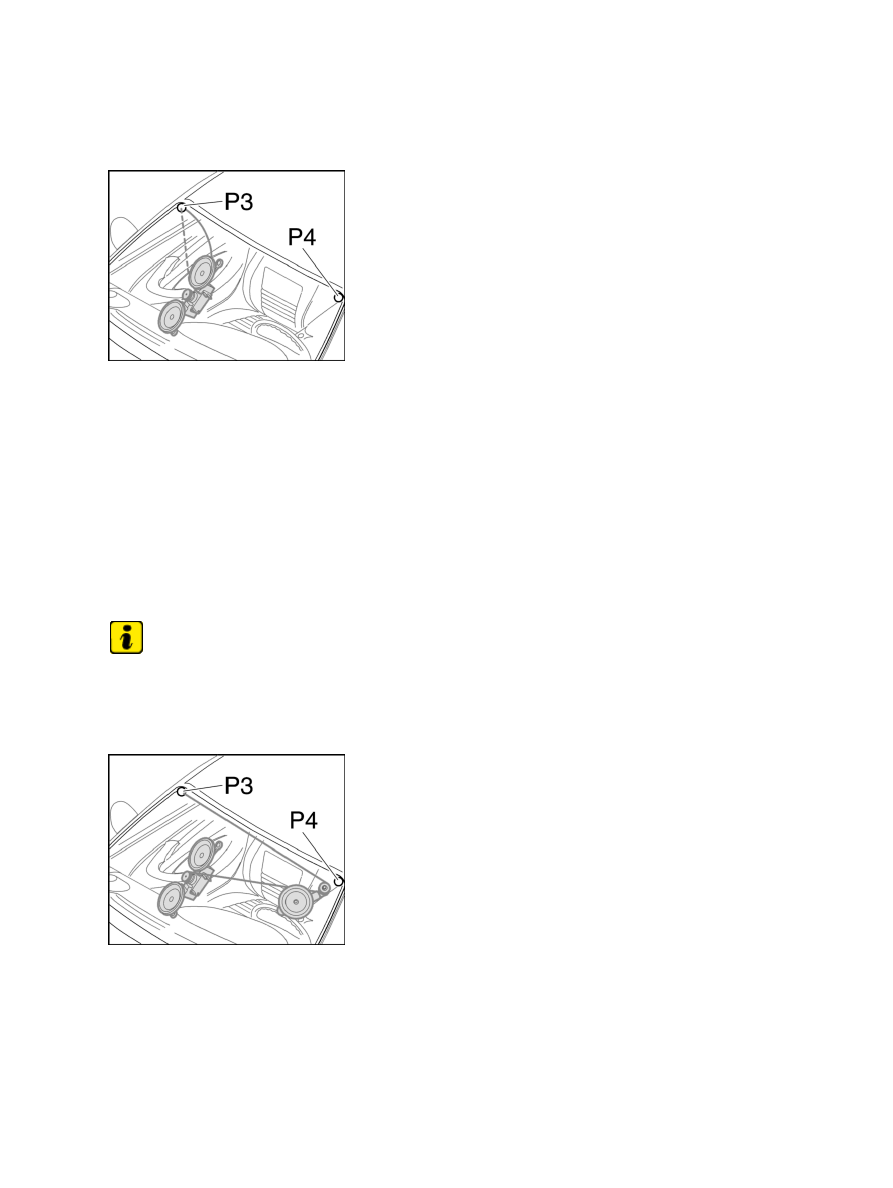

Separating glass as far as P4

1. Position deflection roller in the upper left

corner.

2. Press deflection roller with fastening intake firmly against the glass.

3. Fix fastening intake onto the glass by moving the actuating lever.

4. Pass cutting thread over the deflection roller onto the spooling device.

Diagnostic system: reading out fault memory and activating systems

Repositioning spooling device

4579

5. Separate glass by spooling the cutting thread on the spooling device as far as point -P4- using the guide

rails.

Separating glass as far as P5

Note

The fastening force can be increased by moistening the fastening intake.

•

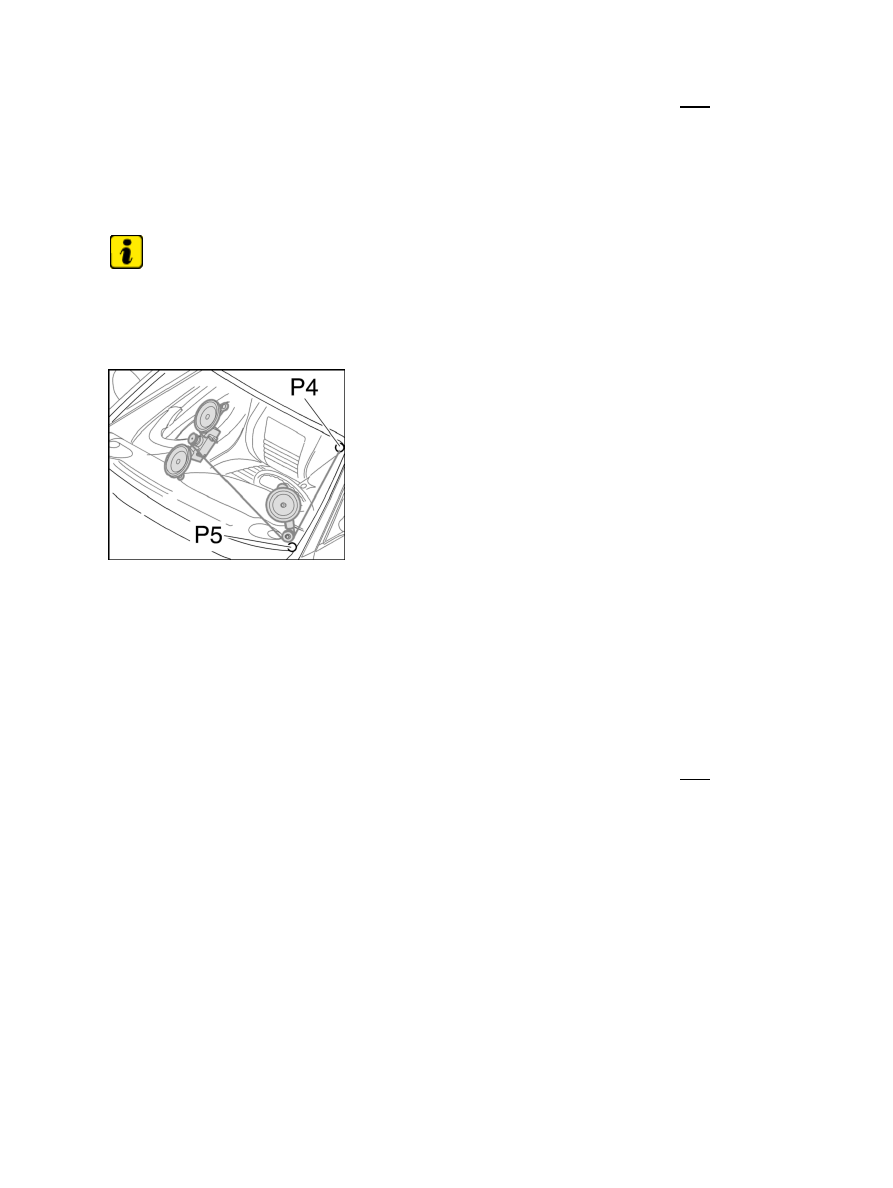

Separating glass as far as P5

1. Release spooling

device.

2. Position deflection roller in the lower left

corner.

3. Press deflection roller with fastening intake firmly against the glass.

4. Fix fastening intake onto the glass by moving the actuating lever.

5. Pass cutting thread over the deflection roller onto the spooling device.

6. Separate glass by spooling the cutting thread on the spooling device as far as point -P5- .

7. Remove the windscreen.

Cutting power when removing glass with cutting thread

Diagnostic system: reading out fault memory and activating systems

Separating glass as far as P4
