Iran Khodro Dena. Service Manual - part 7

102

4

Brake

This vehicle is equipped with four-wheel disk

brakes system. Front wheel are equipped

with coolant disk brakes and back wheel with

filled disk brakes. Brake booster is two-circuit

hydraulic and will adjust pedal force when the

vehicle is running to increase speed.

Brake oil

The brake oil may decrease due to erosion

of brakes. In case of considerable brake

oil shortage, you shall refer to authorized

workshop.

Brake oils shall be replaced completely

every two years.

In moist climates, the brake oil shall be

replaced every 20000 kilometers.

CAUTION

Brake oil will damage the painted

surfaces,  if  so,  first  clean  it  with

a cloth, then wash it with special

shampoos and water.

WARNING

- The brake oil are highly toxic and

shall be kept in sealed cans away

from reach of children. In case

of easting, immediately refer to a

clinic.

- Avoid contacting brake oil with your

s kin and eyes, if so, immediately

wash it and refer to a clinic.

- Keep eyes to prevent pouring brake

oil on the hot engine, it is highly

flammable.

- Take care not to power off the engine

in high slopes.

Checking up brake oil

In order to prevent dust going into the

tank, first clean the door then open it up,

then fill the tank up to MAX point.

Never allowed the brake oil to be less

than MIN point, only make use of fresh

oils in sealed cans and make sure the

reliability of its brand because bad oils will

have severely damaging impacts on the

brake system.

Never pour oil more than MAX point in

the tank.

Only make use of standards and reliable

brake oils and packages approved by

ISACO.

ENGINE COMPARTMENT

103

4

CAUTION

Hydraulic oil will damage the painted

surfaces, if so, first clean it with a cloth,

then wash it with special shampoos

and water.

WARNING

Hydraulic oil is severely toxic, so keep it in

sealed cans away from reach of children.

If so, immediately refer to a clinic.

Hydraulic steering wheel

In case of appropriate functioning, the

hydraulic steering wheel will not need

or a bit amount of hydraulic oil. Unusual

shortage of oil shall be referred to

workshop. If the oil is less than the pointed

amount, first fill it then start the engine.

In case of oil shortage, never start the

engine because the hydraulic equipment

will be damaged. If you saw the oil

leakage is very slow, you will be able to fill

it and go to a workshop.

Consider the oil level every week in this

time, power off the engine and allow it

to get cooled and front wheel shall be in

straight direction.

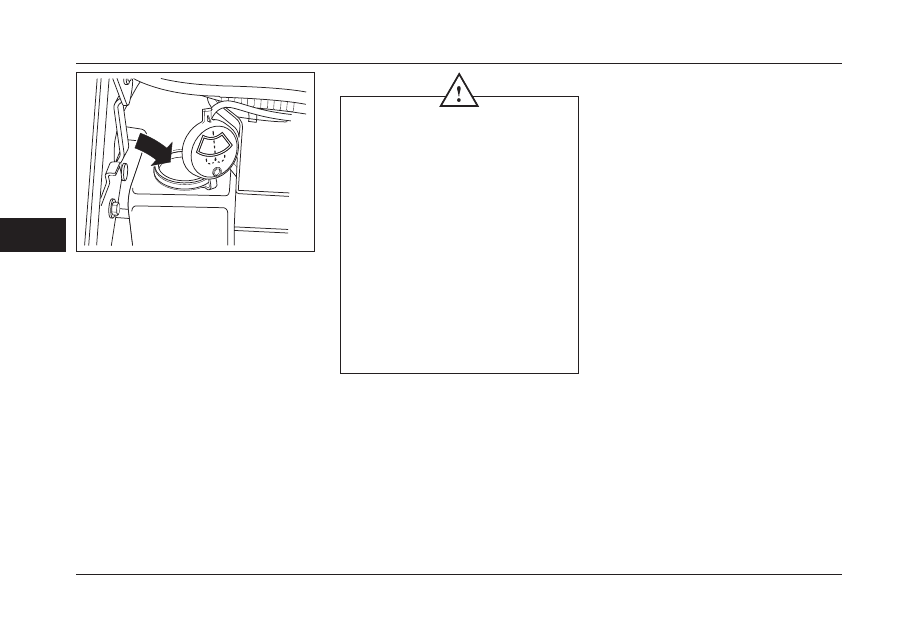

Checking up the hydraulic oil level

Clean  the cap then release it slowly, and

clean its rode with a clean cloth. Then put

it and again release it to consider the oil

level.

If it is less than pointed amount, fill it and

close the cap.

Never pour extra oil in the tank.

Use only hydraulic steering wheel oil and

brands approved by ISACO.

In case of contacting hydraulic oil with

skin or eyes, immediately wash the

location but take care because it is highly

flammable.

ENGINE COMPARTMENT

104

4

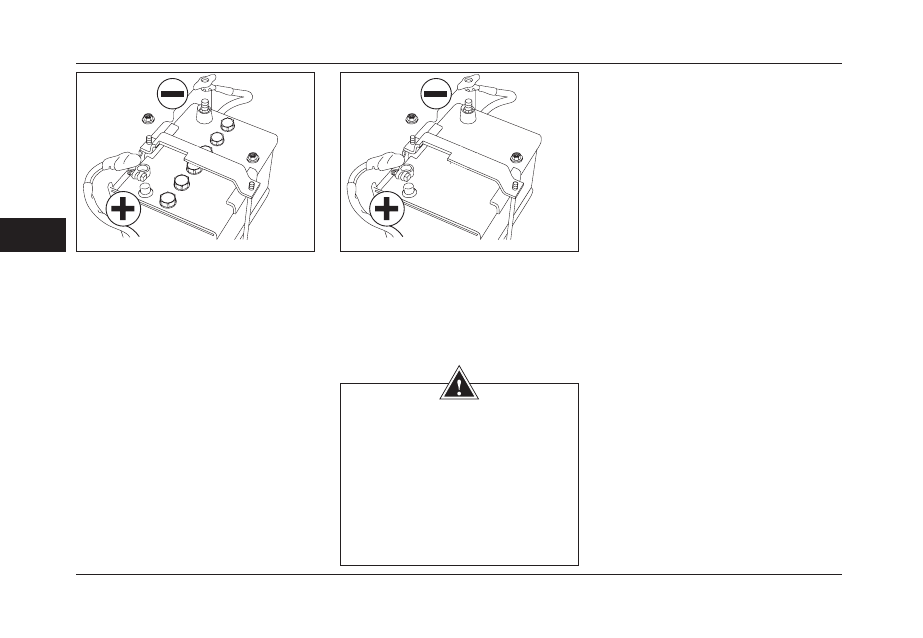

LMF Battery

Serviceable starts battery



Your vehicle is equipped with LMF, whose

water level shall be checked up.

Battery service and maintenance

- Keep the above side as clean and dry.

- Keep the terminals and connections as

clean, tight and greased.

- Clean the water & acid poured location

with water and soda

Electrolyte level must be checked every 45 days

in hot seasons and every 3 months in other

seasons.

If your vehicle is equipped with LMF battery *

if installed on your vehicle *

WARNINGS

- The existing hydrogen in the battery is highly

flammable.

- Never keep used batteries at home and get it

to special workshops.

- In case the battery voltage is less than 10.5

volts, it shall be replaced.

- In case the battery voltage is between 10.5 to

12.4 volts, it shall be recharged.

- Avoid keeping the electric tools ON, when the

engine is powered off.

LMF & sealed Battery *

Sealed Maintenance Free

Your vehicle is equipped with a SMF

which does not need special cares.

In case of voltage shortage, pay

attention to the following tips:

1.Check the alternator belt to b tight

enough and check its erosion issues.

2.Wires, ignition wire failures, with

appropriate diagonal position.

3.Avoid unnecessary starts in -18 degree

centigrade.

Battery's common issues:

- Electrolytes shortage which consists

50% of errors due to heat and over

charge. (in case of SMF battery)

- Keeping the lamps turned on which may

cause discharge

- Incompatibility of replaced battery with

the initial one.

- Alternator belt failures

- Battery terminals loosing

- Making use of urban water instead of

distilled water.

- Corrosion

- Freezing

ENGINE COMPARTMENT

105

4

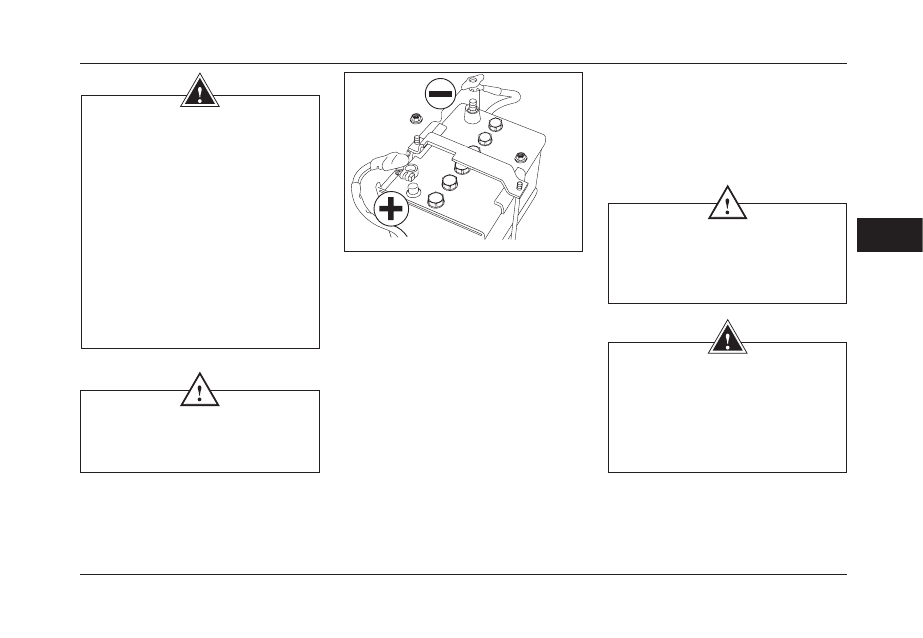

Dismantling battery

First turn off the alarm system and make

sure than the switch is off, then release

negative terminal (-) and then positive

terminal (+), if you wanted to install it

again,  first  positive  and  then  negative

terminals shall be installed.

Avoid contacting battery terminals with

metal body of the vehicle. To dismantle

the  battery,  first  open  up  its  hook  then

release the battery, to install it again, first

close the hooks and clamps, then fix the

battery.

CAUTIONS

In case of resting for more than 6 days, the
vehicle shall be started and  kept powered on for
one hour.

CAUTIONS

- Never charge the battery when it is installed on

your vehicle because of electric failures.

- The level of battery water and acid shall be

checked up each month and filled if necessary.

WARNINGS

The battery acid is highly toxic and corrosive,
pay attention to the following tips in case of its
leakage:
In case of pouring on clothes, immediately take off
clothes and wash it, then refer to a clinic.
In case of its contact with eyes, immediately wash
it then refer to the physician.
Negligence in medical actions may be result in
death.
The battery under charges will release hydrogen
explosive gas, hence, put away ignition and fire
from around it.
Put out all our jewelry when working in the hood
in order to avoid firing and blazing. Never allow
contact of battery terminals with metal tools.

WARNINGS

Never charge the batteries which may be frozen.
Put away fire and ignition from around the battery
when it is charging, because of hydrogen gas.
After charging the battery and before its installing,
wait for one hour so as to allow flammable gases
to be released.

Battery replacing

Always make use of original batteries

whose type and size are appropriate.

Other types may have other details which

may not be compatible with your vehicle

and cause firing.

ENGINE COMPARTMENT

106

4

Filling glass washer tank

Check up the level of glass washer

tank level weekly. Fill the tank with a

combination of water and a reliable

washer to ensure its cleaning factor. First

mix the water and a washer then pour

it into the tank. Always observe the tips

inserted on the washer.

CAUTION

- Never make use of a combination of

water and anti-freezing liquid because

it will damage the color of vehicle.

- Never contact high-pressure water

tools in car wash workshops with

the locks because of erosion

considerations.

- Make sure that the wipers are not

frozen in cold climate due to danger

of motor warm up.

- When you feel the wipers function

decreased, please replace them with

new ones. Approximately every year.

ENGINE COMPARTMENT

107

4

Releasing the snow wipers

Pull up the snow arms and rotate it up to

90 degree.

1. Press down its hook to release the

wiper.

2. press the snow wipers inside in order to

release it from the arm them easily open

it.

Installing the snow wipers

Replace the snow wipers one by one, so

you can see the other one and make a

pattern for its installation

Grease, silicon adhesives and

oil combinations will damage the

performance of snow wipers. Wash the

snow wipers with warm water and soap

and always check them up.

ENGINE COMPARTMENT

108

4

WASHING AND CAR CARE

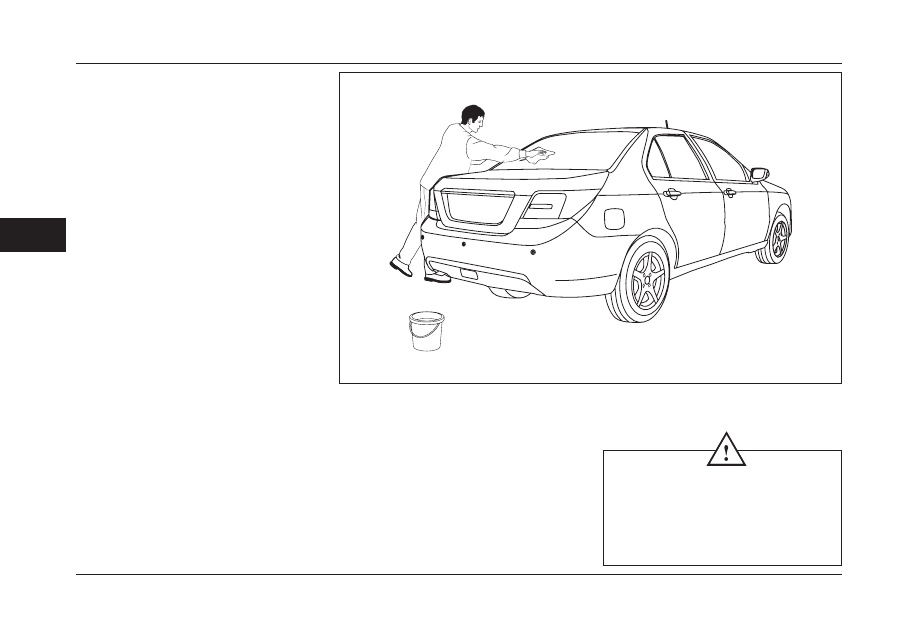

Cleaning the vehicle's body

Pay attention to the following tips in order

to keep the color's quality:

- Never use of hot water to wash your car

- Make use of damp cloth to clean the

dust and fogs from the body.

- Never use cloth washing powder or dish

washing liquid to clean your car.

- Never wash the car on direct sunlight in

hot climates.

- Never pour direct water to door locks,

rubbers and brakes equipment when

washing your car.

- Never put footrests on the vehicle's body

to wash or dry it.

- Drying footrests on the vehicle's body

will damage the color of vehicle.

- Make use of water to clean all dust first,

then try to clean it with special washers

is order to avoid crashing the color of

your vehicles, after cleaning clearly, try

to dry the body with a special cloth.

Cleaning beneath the vehicle's body

Try to periodically clean the beneath of

vehicle's body especially in winters and

specially beneath the tires.

CAUTION

High  pressure  of  water  will  inflict

damages on rubber tools, hence; never

pour water with a high pressure on

sensitive places.

Try to make use of following materials

to clean the vehicle's body

- Automobile shampoo

- Shining wax

- Tar spot cleaner

- Glass washer

- Rubber sealing protective

- Rings and aluminum rings cleaner

109

4

WASHING AND CAR CARE

CAUTION

- Installation of extra equipment

Only make use of standard and determined equipment which are compatible with your

vehicle in order to avoid decreasing the safety of vehicle.

- Electric and electrical equipment

Any  modification  on  vehicle's  electric  circuit  shall  be  performed  only  by  authorized

workshops because only one false connection may result in sever electrical failures or it

tools attached to it. When you are trying to install different electric equipment, make sure

that it is protected by a fuse, then make sure appropriate place of fuse and its voltage.

Vehicle equipment maintenance

Clean the dusts before cleaning inside of

the vehicle.

Plastics parts:

First clean these parts with special

cleaners then wash them with a damp

cloth. Never shine the dashboard

because of safety considerations due to

light reflection.

Floor mat

You can make use of home cleaners

like carpet shampoo. Try to dry them in

shadow to avoid damaging their color.

Hands-free mobile microphone and

lever of cruise control *

It is enough to clean it with a dry cloth.

Never use hard materials to clean them.

*if installed on your vehicle

110

4

Cleaning tar spots

Make use of alcohol to clear the tar spots

on the body. Then wash the place clearly

with water and soap in order to eliminate

the alcohol material.

Protection of vehicle's body

Always analyze the body's color after

washing

Try to repair the crashed parts of the color

with a special paint color. Try to paint the

vehicle in two steps, and this action shall

be done before waxing and polishing

the body. Repairing big areas of color

damage shall be done according to the

manufacturer's manual, Or, the guarantee

of the vehicle will be canceled, you can

also call authorized workshops to make

sure of it.

Polishing the body color

Sometimes, the following polishes are to

be used for the vehicle's body:

- Corrosive smooth spots to clear the

spots on the body without any damage

to the color

- Filler materials to eliminate or restore the

crashes on the body

- A wax to create protective cover between

the color and external materials.

Snow wipers

Try to wash the wipers with warm water

and soap. Never use white alcohol or

gasoline cleaners.

Windows and mirrors

Try to clean the windows and glasses with

washers.

Windshield:

Always clean the windshield especially

after car wash and before installing new

snow wipers.

Back windows:

Try to clean its internal parts with cloths

smoothly so as not damage heater

elements.

Making use of corrosive washers will

damage the heater elements.

Mirrors:

Wash the mirrors with water and soap.

Make use of plastic tools to eliminate ice.

Notice:

Never make use of corrosive washers

and/or metal tools.

Cleaning Internal set of the vehicle

Seats:

Make use of standard materials to clean

the seats.

Dashboard:

Dashboard is resistant against sunlight,

heat and cold, so try not to use covers on

it.

Make use of standards washers to clean

the dashboard.

WASHING AND CAR CARE

111

4

Qualitative recommendations in car

wash process

1.It is advised that you wash your car

every week in normal climate conditions.

2.Try to wash your vehicle in shadow.

3.Pay attention to take action for car

wash thirty minutes after powering off the

engine.

4.Never make use of hard or blading

objects or tools in car wash because

these will damage on the body and the

color. Also never make use of hot water

for washing the vehicle. Just warm water

is enough. Then after drying the vehicle,

try to make use of standards polishes and

shiners for your vehicle.

5.Never force on the foot place or the car

body when washing or drying the vehicle.

You can also make use of cotton clothes

for drying the body.

6.Try  to  wash  first  the  tires,  because

the brake dusts are so corrosive and

their remaining on the washing cloth

will damage the vehicle's color. Also in

case of using aluminum rings and metal

plates, You shall make use of a soft and

clean cloth soaked in a mix of water and

soap. This is to be mentioned  that the

rings surfaces are so sensitive just like

the vehicle body, so sever chemical will

damage on them. Also making use of

detergent and corrosive materials will

crash them; shiners are also used to

shine them not washing them.

7. Maximum standard water temperature

is advised as 60 degrees centigrade,

maximum pressure 4 to 5 bars and

distance of nozzle and washing place

about 10 cm and angle of pouring water

about 25 degree.

You can take a look at the following picture

for more information on the angle of water

pouring or spraying in a car wash process

8. Characteristics of appropriate washers

to wash the vehicle:

Its PH shall be 7 to 9.

Try to make use of high quality lubricants

to protect the shiny surfaces from

crashes. It is advised to make use of

liquid cleaners.

Try not to make use of cleaners which

remain some sports on the vehicle after

its drying.

Try to make use of shiners in order to

protect the shininess and rapid dryness.

9. Rotating brushes used in some car

wash workshops are not advised for

washing the vehicle with metallic colors.

10. In case of seeing any spot including

birds wastes and trees gums, it is advised

to wash them immediately due to their

penetration potential to the vehicle's color.

11. Dry the leaked water to the boot and

internal parts of the vehicle after doing the

car wash.

WASHING AND CAR CARE

112

4

Natural leather maintenance *

Natural leathers need a special care for

the maintenance of beauties and stability.

Try to dry them in case of pouring any

spot of food or liquids. Never make use of

blowers to dry the leathers. Never make

use of dish washing liquids, detergents,

and soap, solvents, polish and corrosive

cleaners to wash the vehicle's leather.

You shall only make use of special leather

cleaners; these materials will clean the

spots without remaining any spot on the

leather.

You can test the performance of cleaners

in small areas out of vision, and then use

them for other leather parts.

Cleaning the leather surface shall be

done every several months. First clean

the dusts from the surface e of leather.

Then use cleaners from the surface in a

rotating move of hands.

Smelling the leathers surface is natural in

first months of buying the vehicle. In case

of parking the vehicle in a private and safe

parking, you can put one of the windows

a bit open.

Avoid direct sunlight on leather parts.

Never make use of any wax for leather

parts, because they will result in absorbing

dust on the surface.

The leather cover shall be cleaned by a

damp cloth and a cotton cloth soaked in

shampoo is very effective.

You can refer to IRAN KHODRO

authorized workshops in order to restore

the leather surfaces with small corrosions.

Maintenance of clothes used in

internal decorations

These kinds of clothes just like the other

ones need special care for maintenance

and stability; so, you shall clean any spots

including those of foods, drinks, alcohols

with a sponge and shampoo from the

clothes. Never make use of dish washing

liquids or polishes especially corrosive

ones on the clothes.

CAUTION

Try to clean any kind of spot(s) from

the clothes by carpet shampoo and

sponge.

WASHING AND CAR CARE

113

TECHNICAL SERVICES

5

*If equipped

WHEELS REPLACING  .......................................... 114-117

AUTO TOWING  ...................................................... 118-119

BATTERY SERVICE AND MAINTENANCE  ....... 120-122

FUSES  .................................................................... 123-128

LAMPS REPLACING  ............................................ 129-136

114

5

Spare tire and its tools

Pull  up  the  floor  mat  of  hood  and  push

the related clamp in order to tight to the

special hole on the edge of mirror.

WARNING

- The jack shall be used for replacing

the spare tire, never make use of

it for repairs and accessing some

parts.

- In case of taking too long, refer

to IRAN KHODRO authorized

workshops in order for inspecting

the spare tire, then to be sure of its

performance.

Spare tire

Open up the fastening belt of spare tire

and warning triangle, put up the tools box,

and release the spare tire.

Warning triangle

When stopping due to failure or any

emergency, the warning triangle shall

be installed at 50 to 100 meters behind

the vehicle. If an embossed area or a hill

prevents behind driver's vision, put it in

another appropriate place.

Tools:

1. Wheel wrench

2. Jack wrench

3. Jack

The tools box prevents the boot mat to

sink. Fix the sealing belt tightly in order to

prevent tools from moving.

For some models, there designed special

other tools herein tools box.

CHANGING WHEELS

115

5

WARNING

Always select a far place to replace

the wheel in order for safety

consideration, far the passengers

away from vehicle and start repairing.

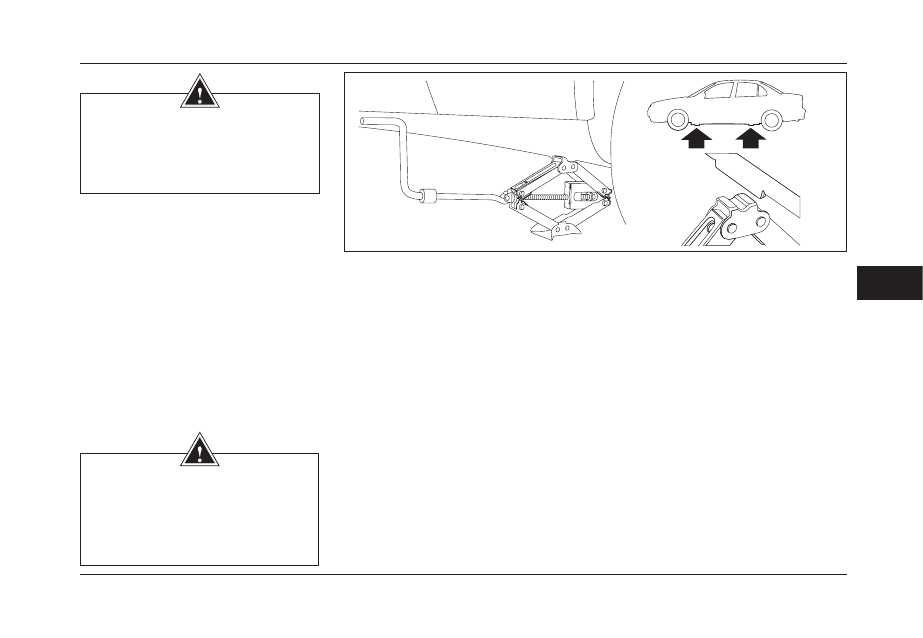

Place of jack beneath the vehicle

Install the jack in one of the four points

showed in the image near to the wheel to

be replaced.

- Make sure that the jack is placed in a flat

horizontal manner.

- Never make use of jack when any

passenger is seat on the vehicle.

- Make sure that the front wheels are

straight, then pull up the handbrake and

put the gear into 1.

WARNING

Never repair the beneath the vehicle

when it is pulled up ONLY by the jack.

The jack is designed just for replacing

a flat tire.

Putting the jack beneath the vehicle

1.Loose four tire screws with

abovementioned wrench.

2.Install the wheel wrench to the jack

wrench and put its tail hook on the jack

hole, rotate the wrench clockwise to pull

up the vehicle.

3.Pull up the vehicle from earth until it

goes up enough.

4.Loose four other screws and put out the

wheel.

Insert the spare wheel.

- Fasten all four screws.

- Tight the screws in a cross manner.

- Put the tools into their box and into their

appropriate place in the boot. Then

fasten its belt.

- Repair the flat tire as soon as possible

and put it into its appropriate place.

CHANGING WHEELS

116

5

CHANGING WHEELS

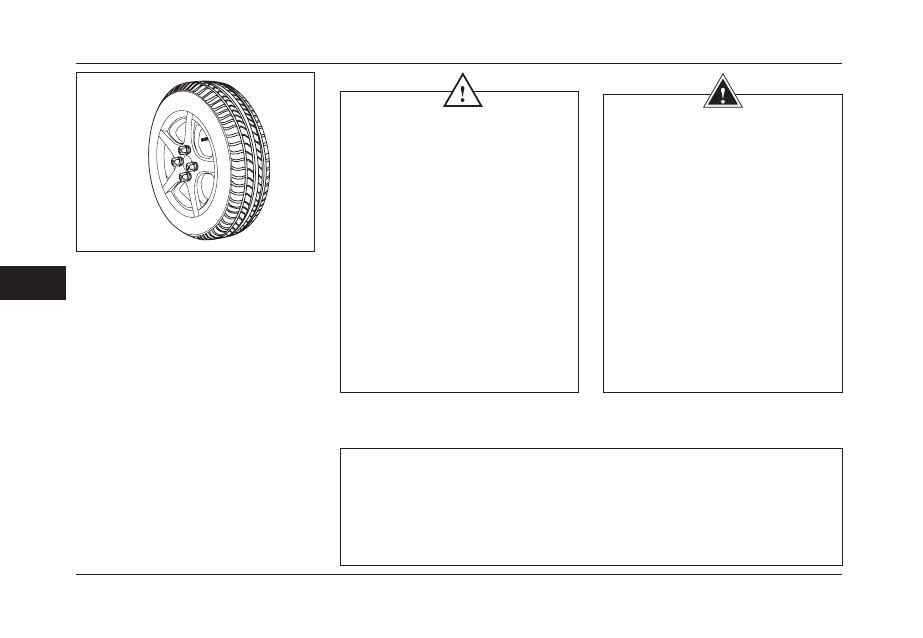

Releasing aluminum sport ring

The steps of replacing aluminum sport

ring is just like metal ring, just the step of

releasing hubcap shall be omitted.

WARNINGS

After replacing the wheel, always

check up the air pressure and make

sure the good fastening of screws.

-  Replace  the  flat  tire  as  soon  as

possible, the flat tire shall be surely

analyzed by an expert.

-  Always  park  your  vehicle  is  a  flat

surface not in slippery surfaces, and

make use of a jack holder. Turn on

the flashers. Pull up the handbrake

and never put the gear in N mode.

Try to far other passengers away

from the vehicle then do your

operation.

CAUTION

- Low air pressure will cause in early

erosion and unusual warming of tires,

and also lots of safety issues.

- Bad performance in the roads

- Risk of exploding or erosion of tires

rubber

- The air pressure depends on the

weight and speed of vehicle. Adjust

the air pressure according to the

conditions.

- Pay attention that inappropriate

fastening of air valve will cause in air

release.

- Always make use of an air valve just

like the initial one and fasten it tightly.

CAUTION

In the vehicles equipped with aluminum rings:

- Four screws are provided in tools box which shall be used for replacing the steel spare

tire.

- The fifth tire is deemed as a spare tire which shall be used in replace of flat tires.

117

5

CHANGING WHEELS

Tires erosion indicator

The tires prepared for the vehicle are

equipped with some erosion indicators.

When the tires are worn way, these indicator

crowns will remain only in 1.6 mm and this

shows that the tires may be replaced.

Tires air pressure

Tires air shall be adjusted every month

when the tires are cool. Tires low air

pressure will make it hot and reduce the

useful life of tires. High air pressure will

also have negative impacts on the vehicle's

convenience.

WARNINGS

- Flat or worn out tires are so

dangerous so avoid driving with

such tires.

- Always make use of radial tires with

the same design, and avoid using

cross designed tires.

-  Never  drive  your  vehicle  with  flat

or work out tires which air is not

adjusted. Flat tires will have erosion

soon, which will cause fuel increase

and reduction of steering wheel

functioning.

Tires size

The size of tires are inserted in a phrase

on the wall of tire like this 185/65 R15,

185 is the width of tire in mm, 65 is the

ratio of heights to width in mm, R shows

the design of radial and 15 shows the ring

diagonal characteristic.

Tires rotating in the vehicle

In front differential vehicles, the erosion

of front tires is more than back tires due

to existence of brake force, running force,

and steering wheel forces. Hence, the

tires shall be replacing every 10000 km

based on above plan.

Tires maintenance

Always drive your vehicle based on

details of your tires.

And always analyze their crown and side

walls in order to check up any possible

failure.

Getting flat

The  flat  tire  shall  be  immediately

released from the vehicle and put under

consideration, in order to prevent more

possible damages to the tires, its repair

shall be done by skilled experts. The

repairs shall be done only by experts who

are responsible for its quality.
