Iran Khodro Dena. Service Manual - part 1

5

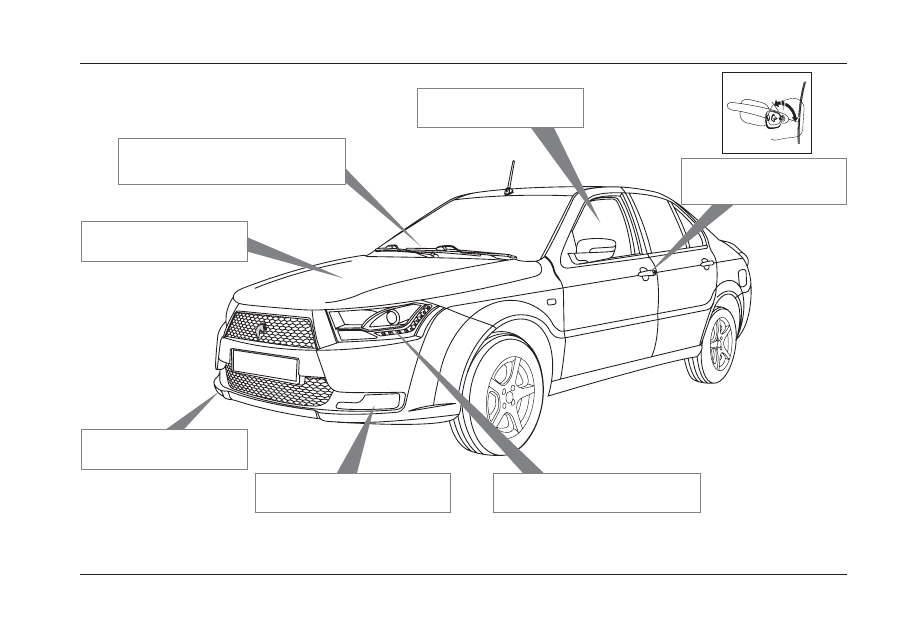

PICTORIAL LIST

Front fog lamps ...................... 86

Front fog lamps replacement . .

129

Central Lock .................... 60

Ignition switch



.................



79

Headlights ..................................... 85

Headlights replacement   ........ 128

Auto towing .................... 119

Engine compartment ...... 99

Windows lifter keys ......... 49

Snow wipers .................... 87

snow wipers blades replacement 107

6

ABS  .................................. 90

Wheels replacement  .... 114

Taillights Replacement  ................ 131

Fuel Consumption   ....................... 142

Fuel Consumption Reduction  ........ 80

Fuel Cap  ............................................ 83

Rear Obstacle Warning System .....

 82

Rear Fog Lights Replacement .....

 131

Trunk Opening .............. 60

Mirrors  ........................ 47- 48

Auto towing .................. 118

PICTORIAL LIST

7

Engine Compartment

Engine’s Technical Information  ... 139

Fuel Consumption  ........................ 142

Hydraulic Brake Oil  ....... 102

Hydraulic Steering Wheel  ...103

Engine Compartment Fuse

Box ............................... 125

Battery  ........................... 104

Engine Oil Measuring Rod .......... 100

Engine Oil  ...................... 100

Cooling System  ............ 101

Automobile License Plate .... 138

Glass Washing Liquid Tank ... 106

PICTORIAL LIST

8

9

YOUR VEHICLE AT A GLANCE

1

CONTROLLERS ................................................. 10-11

KEYS ......................................................................... 12

WINDOWS REGULATOR KEYS .......................... 13

ELECTRIC MIRRORS ............................................. 14

IMMOBILIZER SYSTEM ........................................ 15

INDICATOR  LEVER AND SNOW WIPER .............16

SEATS........................................................................ 17

HEATING AND VENTILATION ............................ 18

PRETENSION  SEAT BELT ................................... 19

AIR BAG .................................................................. 20

TRUNK ACCESS .................................................... 21

CHILD SAFETY LOCKS ..................................... 21

STEERING WHEEL ANGLE ADJUSTMENT .... 22

ENGINE COMPARTMENT OPEN/CLOSE ........... 22

TYPE OF FUEL ..................................................... 23

HANDS FREE MOBILE .......................................... 24

INTELLIGENT SPEED CONTROL (CRUISE

CONTROL) .............................................................. 24

*If equipped

10

1

YOUR VEHICLE AT A GLANCE

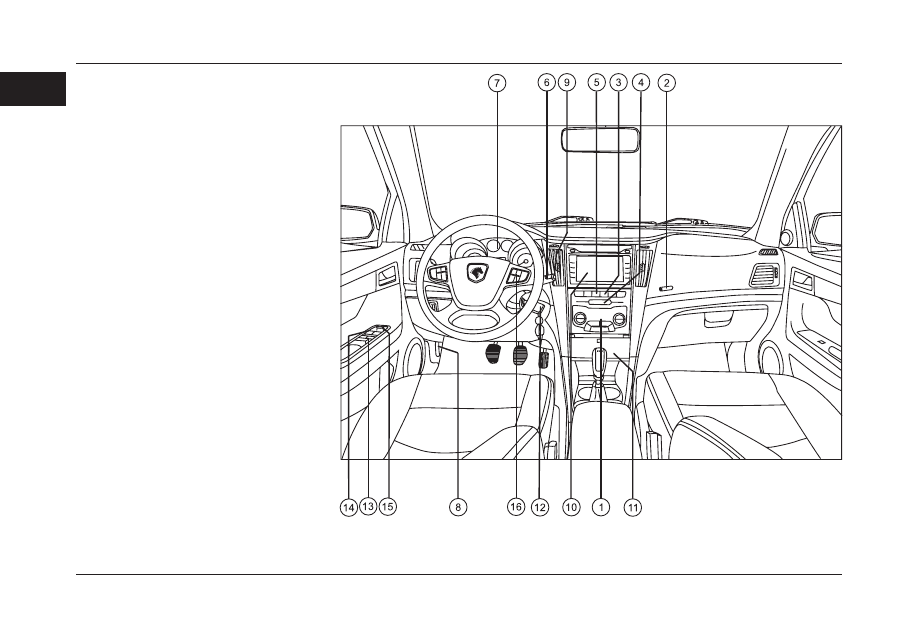

CONTROLS:

1. Automatic Air Conditioning System

2. Passenger Air Bag

3. Trunk Opener Key

4. Flasher Key

5. Central Lock Key

6. Glass Washer and Snow Wiper Keys

7. Dashboard Digital Display

8. Engine Door Lever

9. Air Vents

10. Radio / CD

11. Ashtray and Lighter

12. Ignition Switch

13. Rear Windows Locker Keys

14. Windows Regulator Keys

15. Side Mirrors Adjustment

16. Audio Equipment instrument panel on

the Steering Wheel

11

1

YOUR VEHICLE AT A GLANCE

CONTROLS:

1.Gear Level

2.Passenger Air Bag Inactivating Keys

3.Indicator and Horn Lever

4.Air Vents

5.Hand Brake

6.Driver’s Air Bag

7.Steering Wheel Adjustment Lever

8.Headlights Height Adjustment

12

1

YOUR VEHICLE AT A GLANCE

Key set:

The following keys will be delivered to

you:

1. Two radio remote switches equipped

with trunk opener key

2. Key ID plate

WARNING

Keep the remote control or its batters out

of reach of children, because

Eating the batteries will be result in

death. Refer to a treatment center in

case of eating batteries.

NOTE:

There is possibility of breakage for

internal parts of the remote controller

in case of severe impact and

subsequently not functioning of the

anti-theft system (immobilizer).

There inserted a number on this plate

which will be needed in case you want to

replace your key. Hence, keep it in a safe

place outside your vehicle.

Locking/unlocking via Remote Control

Keep the remote control on your vehicle’s

side

Press button 1 to unlock

Press button 2 to lock

Press button 3 to open the hood

13

1

YOUR VEHICLE AT A GLANCE

ELECTRICAL WINDOWS LIFTER:

1) DRIVER’S ELECTRICAL WINDOWS

LIFER

MANUAL MODE:

Press or pull the key briefly. As soon as

the application of pressure on the key

ceases, the window will stop.

- AUTOMATIC MODE:

By pressing or pulling the key once, the

window will open or close completely.

lofting the windows are possible when the

engine is on and lowering them is possible

in all different positions of ignition switch.

2) Passenger’s electric window switch

3) Left back seat electric window switch

4) Right back seat electric window switch

5) Back seats electric window lock switch

When the driver locks the back seat

windows

by this key, the relevant windows will not

function

GLASSES KEY

Each passenger is able to open/close his/

her side windows by means of this key.

AUTOMATIC UNLOCKING THE

WINDOWS *

This system causes all windows to be

checked and to be lifted up  if any one of

them are in low position,when all doors

are locked through remote controller.

The doors are locked with one time

pressing the lock button on t he remote

control, and the second pressing on

the same keys, the glasses will be

lifted Automatically  as per the following

respect:

The driver glass, passenger glass , rear

left  and right window.

This security system makes it free of risk of

forgetting the lifting windows and causes

the driver leave the car comfortably.

14

1

YOUR VEHICLE AT A GLANCE

Electrical mirror adjustment

Turn the key no.1 towards the left  or right.

Then adjust the mirror towards up, down,

left or right  by pressing the key no.1

1

Electrical folding mirrors

These mirrors will be closed without any

need to press any key, When the switch is

off and the doors are locked,  the mirrors

will be closed by pressing of the lock

key with in 10 seconds open the mirror

; it's just sufficient to press open key on

remote controller.

If the vehicle is off;then the mirrors are

locked and unlocked by the remote

controller.

Folding mirrors are locked and unlocked

by keys on the doors panel;if the ignition

switch is on.

WARNING

Never try to fold the mirrors by hand

in order to avoid damaging their

electric folding motor.

15

1

YOUR VEHICLE AT A GLANCE

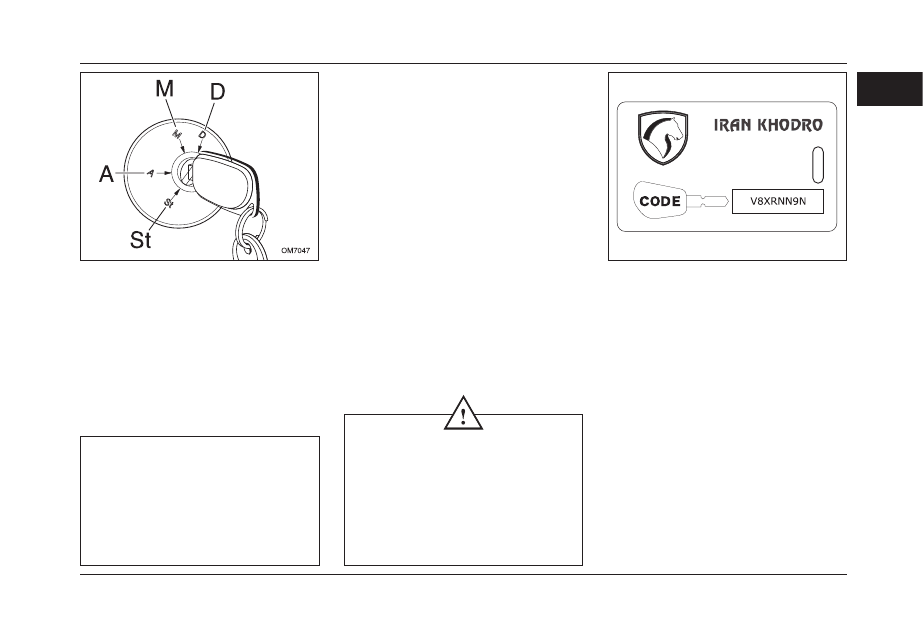

Ignition Switch

Four different status is defined for ignition

switch:

ST

Off, the switch is off.

A

The switch is on, but only



electrical accessories function.

M

Ignition switch is on

D

Ignition switch is on (start)

WARNING

-Do not move the vehicle before

engine warm up.

-Do not start the engine in closed

space.

-Do not change the steering wheel

lock system.

Steering wheel lock

Turn the steering wheel smoothly while

turning the key before starting the engine,

if necessary.

It is advised to push the clutch while you

are trying to start in order to make starting

operation easier for the vehicle.

Vehicles anti-theft security system

(immobilizer)

This system checks up the engine's

electrical system by seconds after engine

is off, so that turning the engine on will not

be at all possible unless by original keys.

Copying the key blade is not enough to

make it possible to turn on the engine. You

shall refer to authorized branch offices to

prepare the appropriate keys.

CAUTION

There is possibility of breakage for

internal parts of the remote controller

in case of severe impact and

subsequently not functioning of the

immobilizer.

16

1

YOUR VEHICLE AT A GLANCE

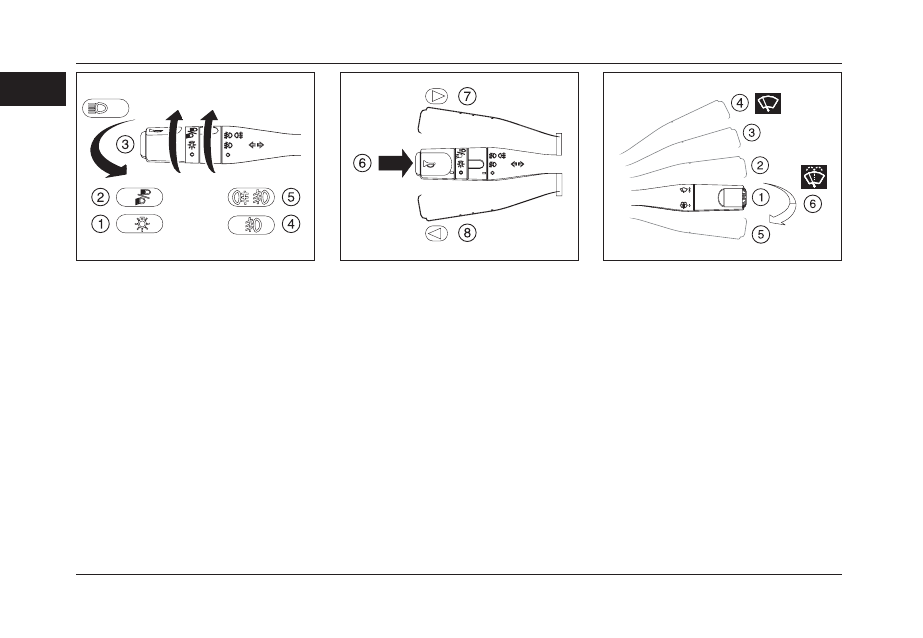

Lights lever, indicator and horn lever

1. Dipped head lamp, tail lights and

dashboard display

2. Front beam light

3. Front headlight

4. Front fog light

5. Front/back fog lights

6. Horn

7. Right indicator signal light

8. left indicator signal light

Snow wipers and glass washer

1. Off

2. Timer snow wiper

3. Slow snow wiper

4. Rapid snow wiper

5. Single cycle wiping

6. Glass washer (just pull the lever

towards driver)

17

1

YOUR VEHICLE AT A GLANCE

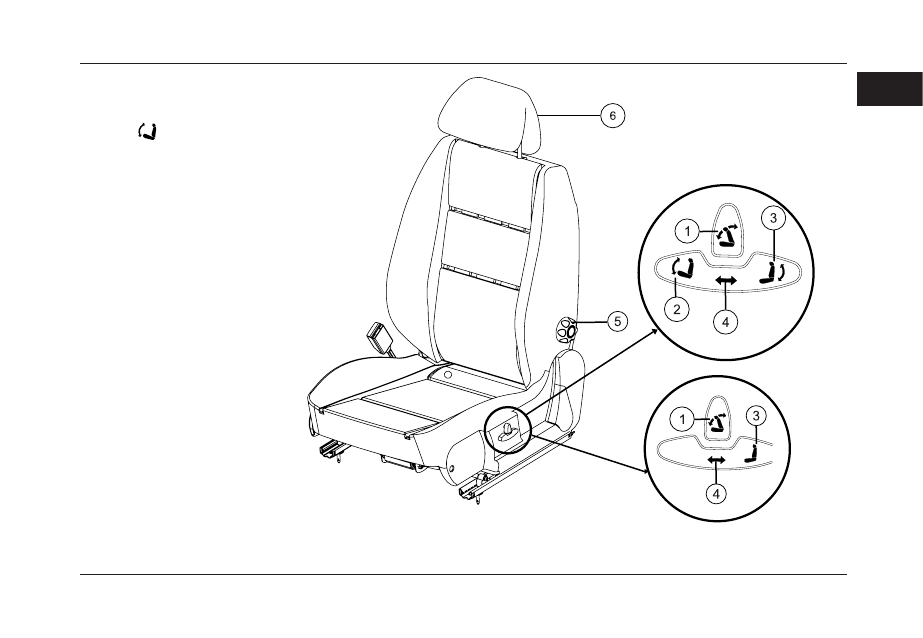

Electric seat:

1. Seat’s back angle adjustment key

2. Seat’s floor angle adjustment key *

The icon   is visible ,if your vehicle is

equipped.

3. Seat’s height adjustment key

4. Seat’s rail adjustment key

5. Seat’s lumbar adjustment key *

6. The head rest is capable of the followings:

- Adjusting the height.

- Rotation on forwards and backwards.

- Getting opened and on forward and

being closed backwards in some

models only. *

*If your vehicle is equipped

18

1

YOUR VEHICLE AT A GLANCE

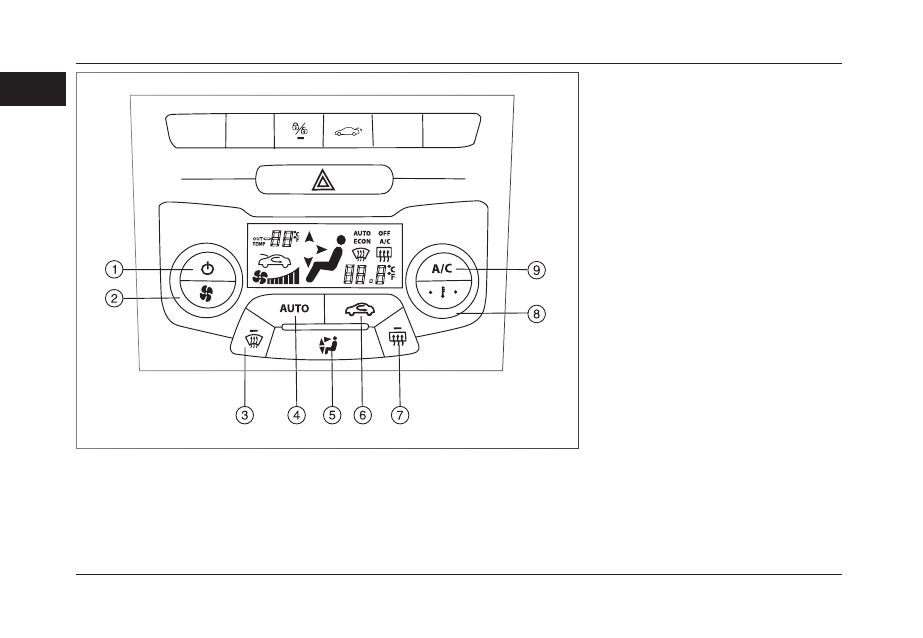

Automatic ventilation

1. Air vent turn on/off

2. Turning the volume to decrease/

increase fan speed

3. Turning on windshield heater

4. Automatic adjustment of vent system

5. Selection of air vent direction

6. Control of air entrance resources

7. Turning on rear glass heater

8. Turning the volume to decrease/

increate the temperature

9. Turning on the cooler

19

1

YOUR VEHICLE AT A GLANCE

Pretension seat belt

The seat belts and airbag systems will

function only in case of severe collision

from front side. Actually, they are not

designed to alleviate the collisions from

back, side, overturn and light accidents.

The pretension system of seat belt

operated just once, in this case, i.e. when

the air bag operates, you shall replace the

seat belt through referring to an authorized

branch office of IRAN KHODRO CO.

Seat belts force reducers:

This mechanism is designed to reduce

the forces of seal belt to the passenger’s

chest.

Caution

Please fasten the seat belts as tight as

enough to ensure its operation. The

pretension system of seat belts will operate

in proportionate to the force and direction

of clash simultaneously with the air bags.

In case each of above operations fails or

system failure, the warning light of air bags

will turn on.

In order to ensure more safety, always keep

the front seat belts as fasten, hence, the air

bags will have the best performance.

20

1

YOUR VEHICLE AT A GLANCE

WARNING

In case of one operation of the airbag

system, all of its components shall be

replaced by authorized IRAN KHODRO's

experts.

Please always keep the front seat belts as

closed in order to best operation of airbag

system.

AIRBAG

If your vehicle is equipped with AIRBAG,

this modern system owns airbag module

in addition to seat belt for safety purposes.

When ignition switch is ON, the airbag

indicator light appears on screen.

This  light  will  flash  for  six  times  and

disappears, if not, this shows an error in

airbag system and/or seat belt's pretension,

which you'd better to refer IRAN KHODRO

authorized office in order to eliminate this

error as soon as possible.

Front passenger's AIRBAG

A key is designed on dashboard side

direction in order to inactivate this system.

1.Turning this switch clockwise, you will

be able to inactivate this airbag.

2.In cash this switch in ON, avoid installing

baby seat on front's seat.

3.In case of any accident resulting this

airbag's operation, severe damages may

be inflicted on your child.
