Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 229

65-

136 15153

T6-1300-197-50

pump and motor assembly, complete

1

As Req’d

65-1

136 15054

T6-1300-197-51

motor, 12-volt

1

“

65-2

136 15206

T6-1300-197-52

pump assembly

1

“

65-3

136 15581

T6-1300-197-53

shaft seal

1

“

65-4

136 15611

T6-1300-197-148

relief valve kit, hydraulic pump

1

“

65-5

136 15574

T6-1300-197-77

check valve kit, hydraulic pump

1

“

65-6

136 21929

T6-1300-197-86

o-ring, 5/8" i.d. (note 1)

1

“

65-7

136 15043

T6-1300-197-76

stud, pump housing

3

“

65-8

—— ----------------

5/16-24NF

locknut

3

“

65-

136 15456

T6-1300-197-170

master seal kit, hydraulic power unit (note 1)

1

“

65-

----- ----------------

T6-1300-1972

Lift Assembly

1

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

1. Master seal kit T6-1300-197-170 includes 5/8-inch I.D. O-ring T6-1300-197-86 (item 6) and various other

seals used in the lifting ram and electro-hydraulic control unit.

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 230

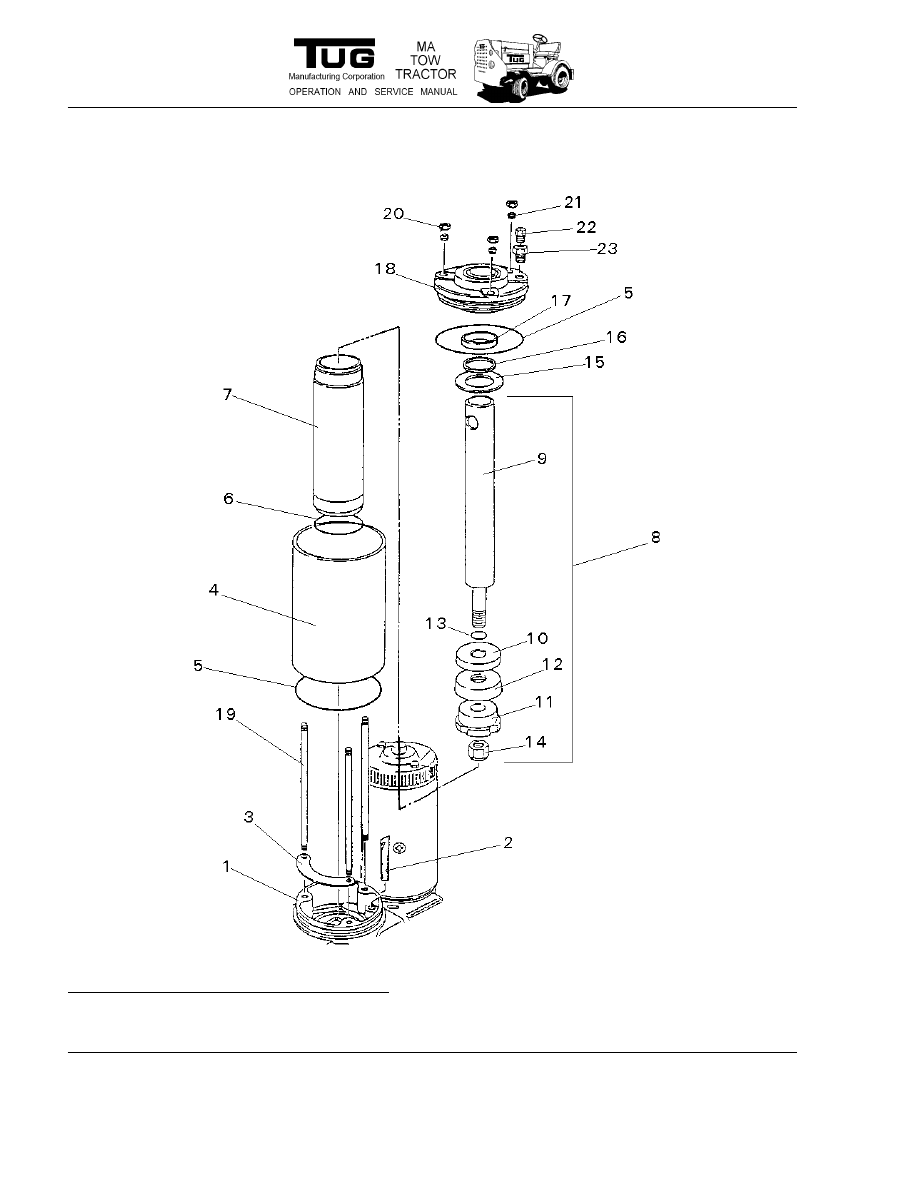

Figure 66: Snow Plow Lifting Ram Assembly

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 231

66-1

136 15573

T6-1300-197-73

base and strainer assembly

1

As Req’d

66-2

136 15326

T6-1300-197-74

strainer

1

“

66-3

136 15621

T6-1300-197-131

baffle

1

“

66-4

136 15045

T6-1300-197-54

cylinder tank

1

“

66-5

136 15131

T6-1300-197-55

o-ring, 3-1/2" i.d. (note 1)

2

“

66-6

136 15163

T6-1300-197-56

o-ring, 1-15/16" i.d.   (note 1)

1

“

66-7

136 15207

T6-1300-197-64

cylinder, lifting ram

1

“

66-8

136 15535

T6-1300-197-66

lifting ram assembly

1

“

66-9

136 15208

T6-1300-197-66A

lifting ram

1

“

66-10

136 15158

T6-1300-197-67

piston, lifting ram

1

“

66-11

136 15219

T6-1300-197-68

piston follower, lifting ram

1

“

66-12

136 15162

T6-1300-197-69

packing cup, lifting ram (note 1)

1

“

66-13

136 15125

T6-1300-197-70

o-ring, 7/16" i.d. (note 1)

1

“

66-14 —— ----------------

1/2-13NC

locknut

1

“

66-15

136 15209

T6-1300-197-65

washer

1

“

66-16

136 15198

T6-1300-197-57

o-ring, 1-1/8 i.d. (note 1)

1

“

66-17

136 15199

T6-1300-197-61

sleeve

1

“

66-18

136 15194

T6-1300-197-58

cover and seal assembly

1

“

66-19

136 15042

T6-1300-197-75

stud, ram assembly

3

“

66-20 —— ----------------

5/16-24NF

locknut

3

“

66-21

136 21929

T6-1300-197-87

washer, nylite, 5/16"  (note 1)

3

“

66-22

136 21806

T6-1300-197-63

relief valve (note 2)

1

“

66-23

136 21805

T6-1300-197-62

reducer, 1/4"-1/8" (note 2)

1

“

66-

136 O8473

T6-1300-197-63A

relief valve kit (note 2)

1

“

Fig &

Co Vendor Part

Tug Part Number

             Description

Qty

 Effective

Ind#

de Number

1. Master seal kit T6-1300-197-170 includes items 5, 6, 12, 13, 16 and 21, as well as various other seals

used in the hydraulic pump and electro-hydraulic control unit.

2. Relief valve kit T6-1300-197-63A includes relief valve T6-1300-197-63 (item 22) and 1/4-inch to 1/8-inch

reducer T6-1300-197-62 (item 23).

Chapter 4: Illustrated Parts List

Jan.  1997

Section  4-2

  p. 232

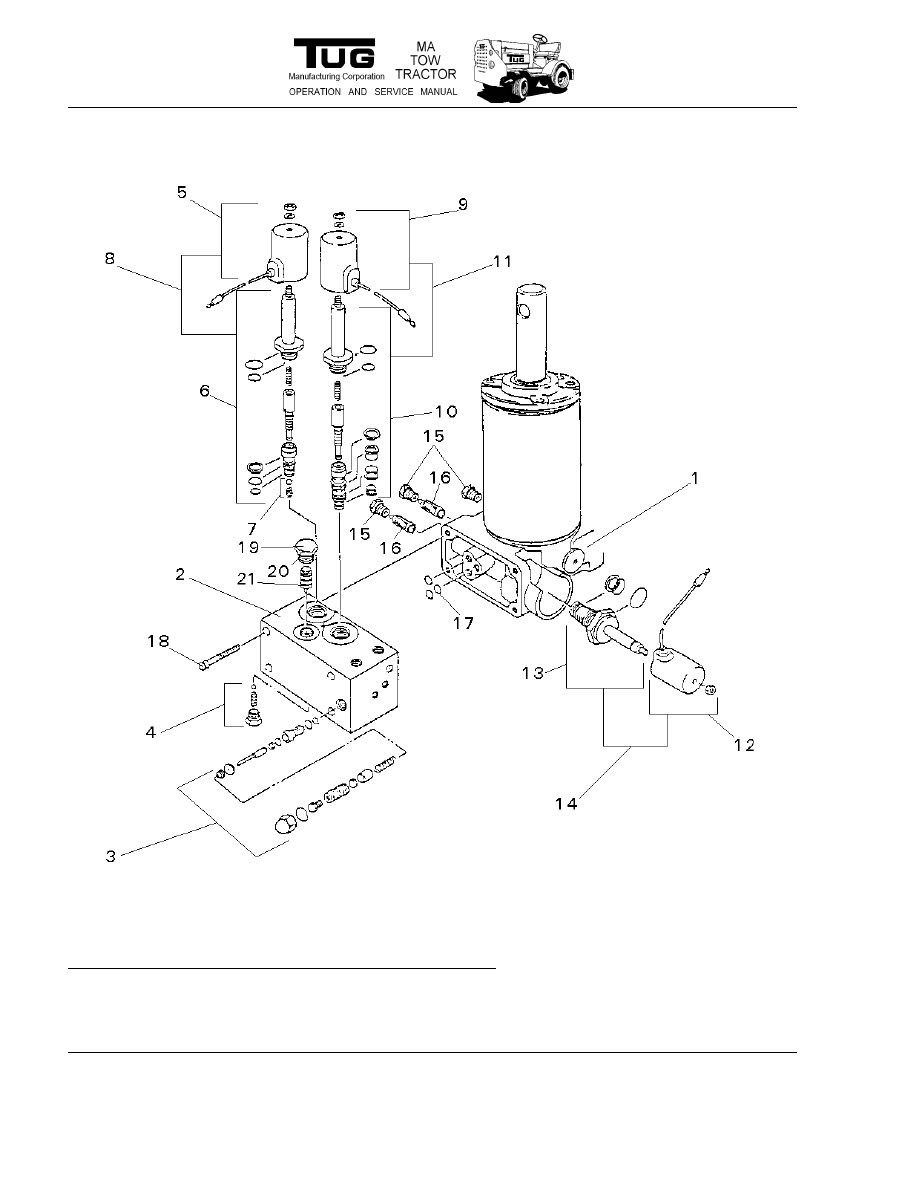

Figure 67: Snow Plow Electro-Hydraulic Controls Assembly
