Model MA TOW Tractor. Manual - part 67
Chapter 4: Illustrated Parts List
Jan. 1997
Section 4-2
p. 153

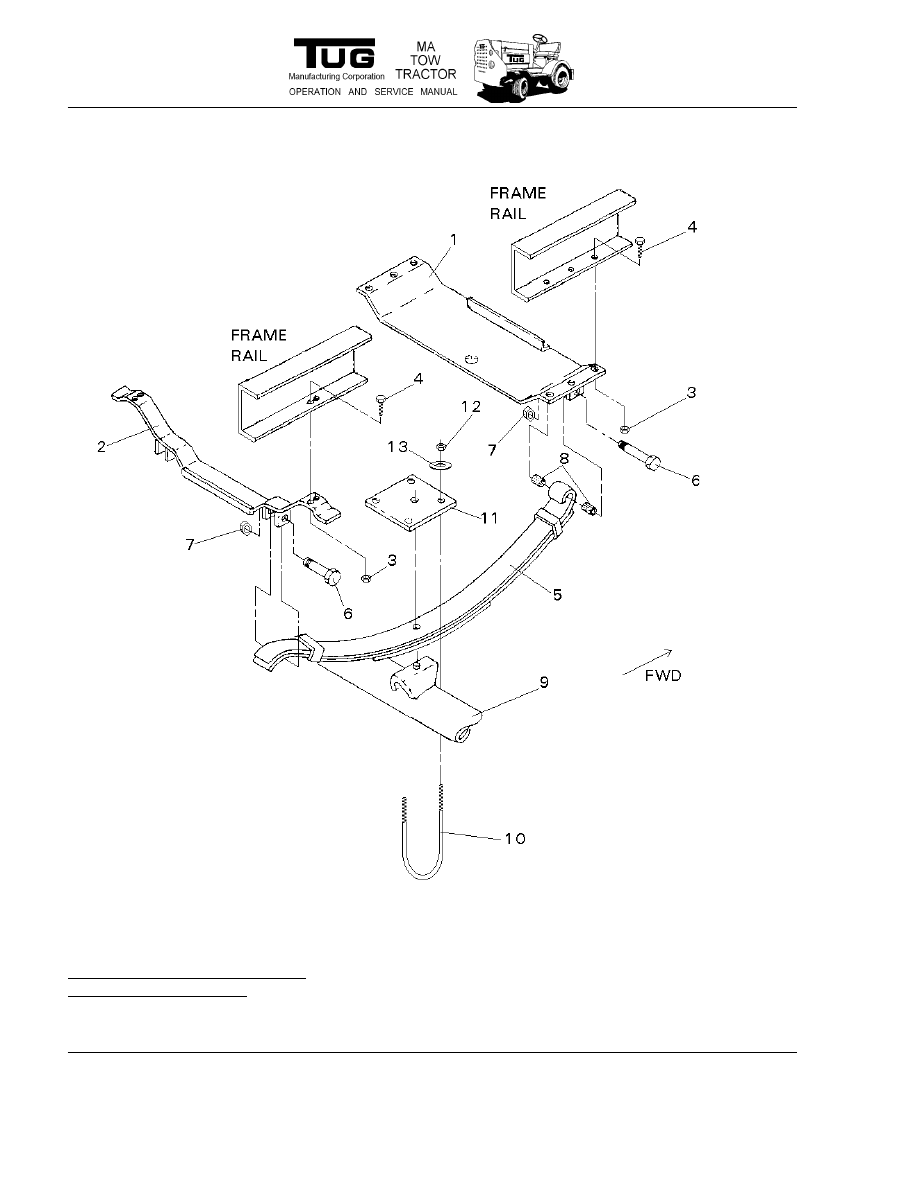

42-1
----- ----------------
T6-4007-103
PLATE ASSEMBLY, FRONT SPRING MOUNT
1
001-020
----- ----------------
T6-4007-113
PLATE ASSEMBLY, FRONT SPRING MOUNT
1
021-134
42-2
62 SF2836-12
T6-4007-115
BUSHING, FLANGED
12
001-134
42-3
----- ----------------
3/8-16NC
LOCKNUT
10
"
42-4
----- ----------------
3/8-16NCX1-1/4"
HEX HEAD BOLT
10
"
42-5
----- ----------------
T6-4009-101
SPRING ASSEMBLY
2
"
42-6
357 B1040/SN105
T6-4009-103
Pin and Nut Assembly (w/ grease fitting hole)4
"
42-7
----- ----------------
T6-4008-103
Front Spring Rear Bracket, RH
1
001-020
----- ----------------
T6-4008-104
Front Spring Rear Bracket, RH
1
021-134
42-
----- ----------------
T6-4008-113
Front Spring Rear Bracket, LH
1
001-020
----- ----------------
T6-4008-114
Front Spring Rear Bracket, LH
1
021-134
42-8
----- ----------------
T6-4008-105
STRAP ASSEMBLY
4
001-134
42-9
----- ----------------
T6-4008-109
Pin and Nut Assembly (w/o grease fitting hole)
2
"
42-10
----- ----------------
7/8
flat washer
12
"
42-11
----- ----------------
1/8x1-1/4"
cotter pin
6
"
42-12
79 81511
-----------------
grease fitting
6
"
42-13
171 fae951nx29
T6-3001-101
steer axle, rockwell
1
001 & Up
42-14
----- ----------------
T6-3000-109
u-bolt
4
"
42-15
----- ----------------
T6-3000-105
plate, steer axle
2
"
42-16
----- ----------------
1/2-20nf
locknut
8
"
42-17
----- ----------------
1/2
flat washer
8
"
Fig &
Co Vendor Part
Tug Part Number
Description
Qty
Effective
Ind#
de Number
