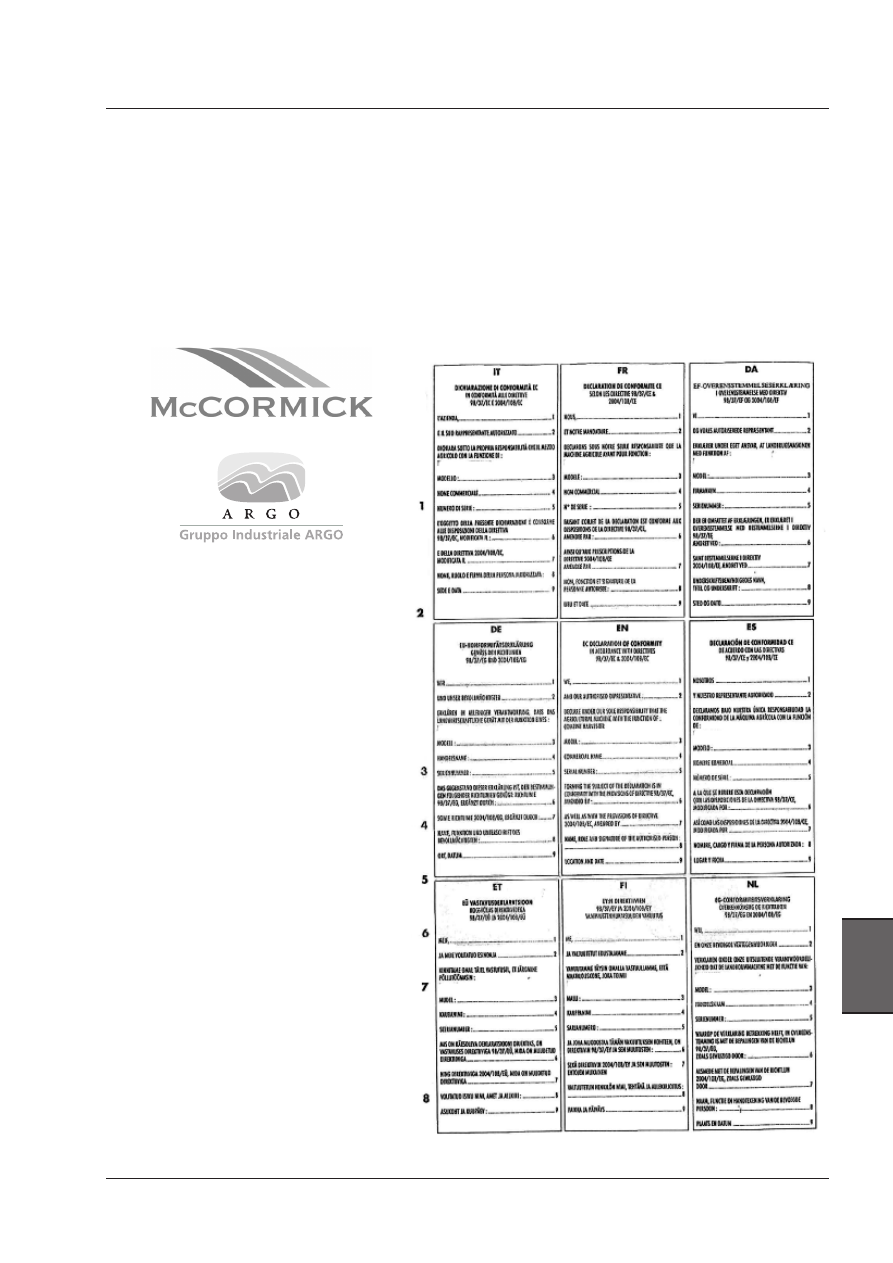

The following picture is a fac-simile copy of such CE Declaration of Conformity.

Technical specifications

252

Model

Front kg

Rear kg

Total kg

X60.20

3800

5300

7800

X60.30

3800

5300

7800

X60.40

3800

5300

7800

X60.50

3800

5300

7800

Weights

 [4.2.h]

Maximum weight declared by the manufacturer for road circulation

IMPORTANT: DO NOT exceed the maximum load capacity of the tyres on your tractor. See Loads and Inflation Pressures
recommended by tyre manufacturers.

IMPORTANT: DO NOT exceed the local legal limitations of the axle loads and the total weight on the road.

Maximum permitted tractor operating weight

The MAXIMUM PERMITTED TRACTOR OPERATING WEIGHT includes the tractor, tractor equipment and ballast.

The MAXIMUM PERMITTED AXLE OPERATING WEIGHT includes the tractor, tractor equipment, ballast and three-point
hitch mounted equipment.

Issue of authorization

To install any type of mounted or semi-mounted equipment not provided for by road traffic laws, it is mandatory to
request the express written authorization of the vehicle manufacturer.
We insist at any rate on our recommendation to mount always exclusively CE marked equipment complying with the
Machinery Directive 2006/42/EC.

IT IS RECOMMENDED to use the tractor always with a load on front axle over 25% or not under 55% of the total weight.

CAUTION:  Refer to licensing documents issued by the
Ministry of Transport to know data relating to max.
vertical and horizontal loads on tow hooks and max.
trailer weights.

CAUTION: Use exclusively the provided hooks to tow
the machine.

Technical specifications

253

9

DET

AIL

B

SCALE

1:2

ENGINE

AXIS

12

HOLES

M16

WORKING

THREAD

25

MM

DET

AIL

SCALE

1:5

SECTION

A

-A

SCALE

1:4

FRONT

INTERFLANGE

1887

SCALE

1:4

F

O

R

E

V

E

N

T

U

A

L

U

S

E

O

F

T

H

E

S

E

H

O

LE

S,

IN

ST

A

LL

T

H

E

FR

O

N

T

LO

A

D

ER

O

VER

THE

PLA

TFORM

SUPPOR

TS

12

HOLES

DIAMETER

14.5

TRACT

OR AXIS

2450

WHEELBASE

SCALE

1:4

8

STUDS

6

STUDS

REAR

INTERFLANGE

1656

12

HOLES

M14

X

33

VIEW

FROM

C

SCALE

1:5

SECTION

X

-X

PAR

TIAL

6 HOLES

BUSHINGS M20

INTERFLANGE 627

=

=

6 HOLES

BUSHINGS M20

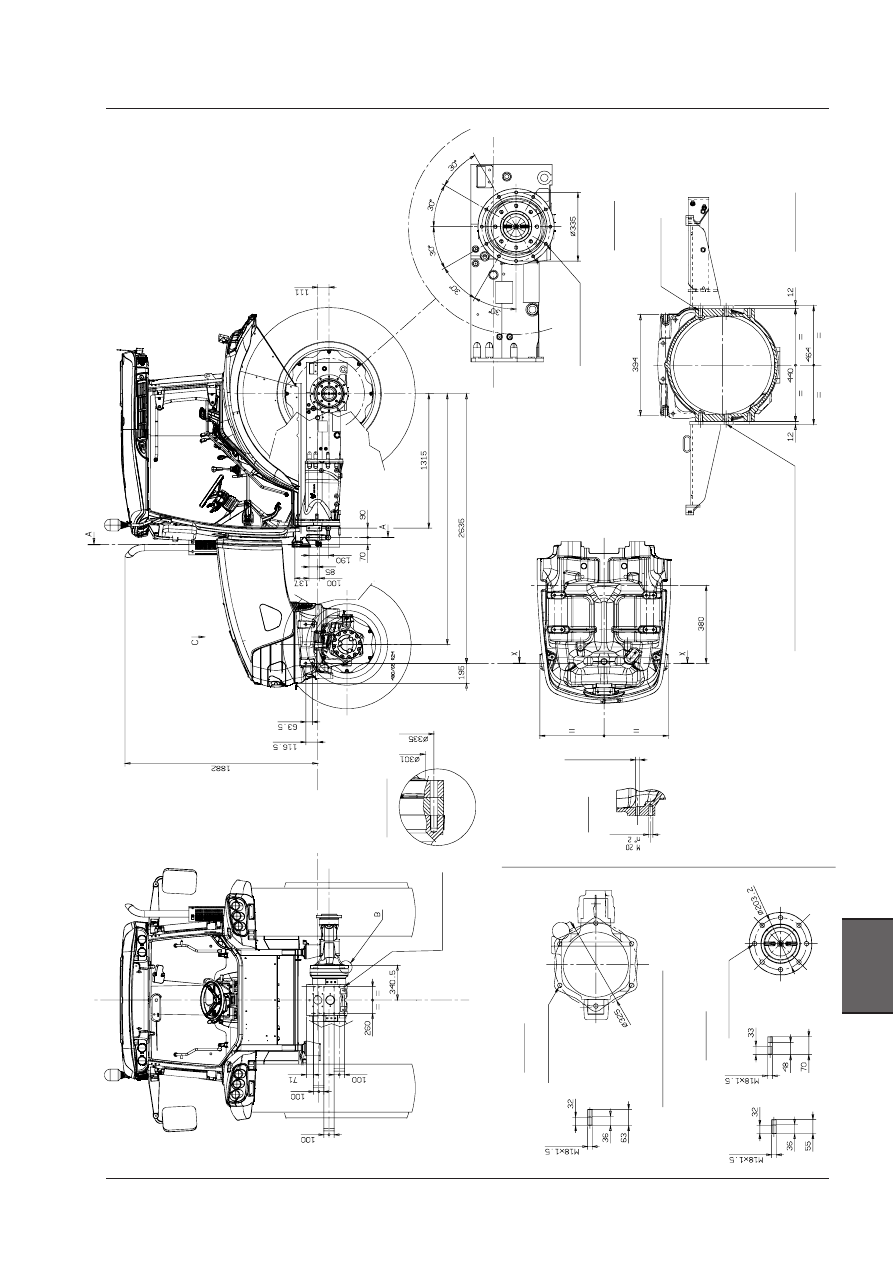

Implement attachment points

 [4.5.1.2]
