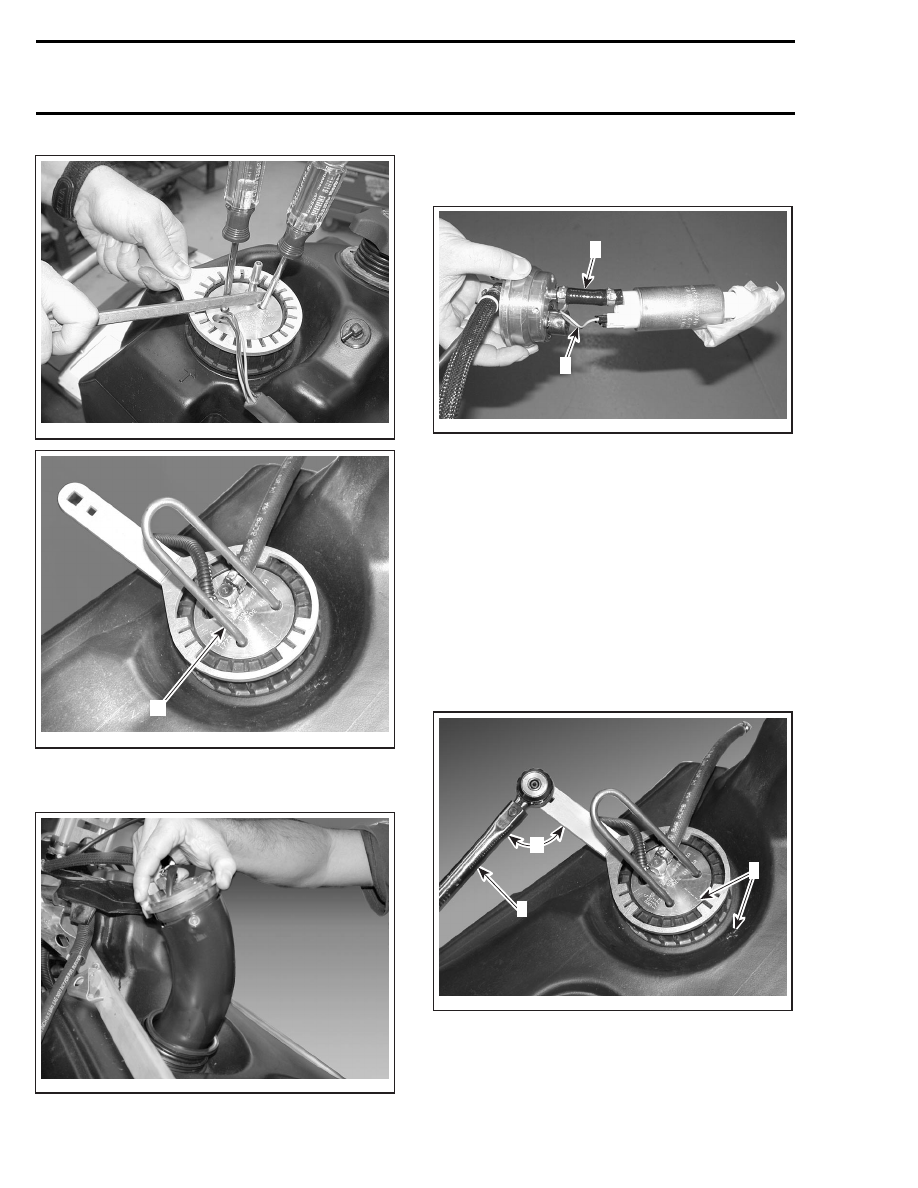

Section 06 ENGINE MANAGEMENT (SDI) A32I11A A32I19A 1 1. Bent rod Remove fuel pump assembly. A33C5TA Disconnect pump electric connector. Disconnect hose from pump. A33C5PB 2 1 1. Electrical connect Installation For installation, reverse the removal process but Install a new gasket. Align the arrow on fuel pump assembly with the Install a torque wrench perpendicularly (90°) to fu- A32I1BA 2 A 1 1. Arrows A. 90° 260 mmr2005-081 |
