Section 03 ENGINES

Subsection 03 (ENGINE REMOVAL AND INSTALLATION)

A33C4AA

1

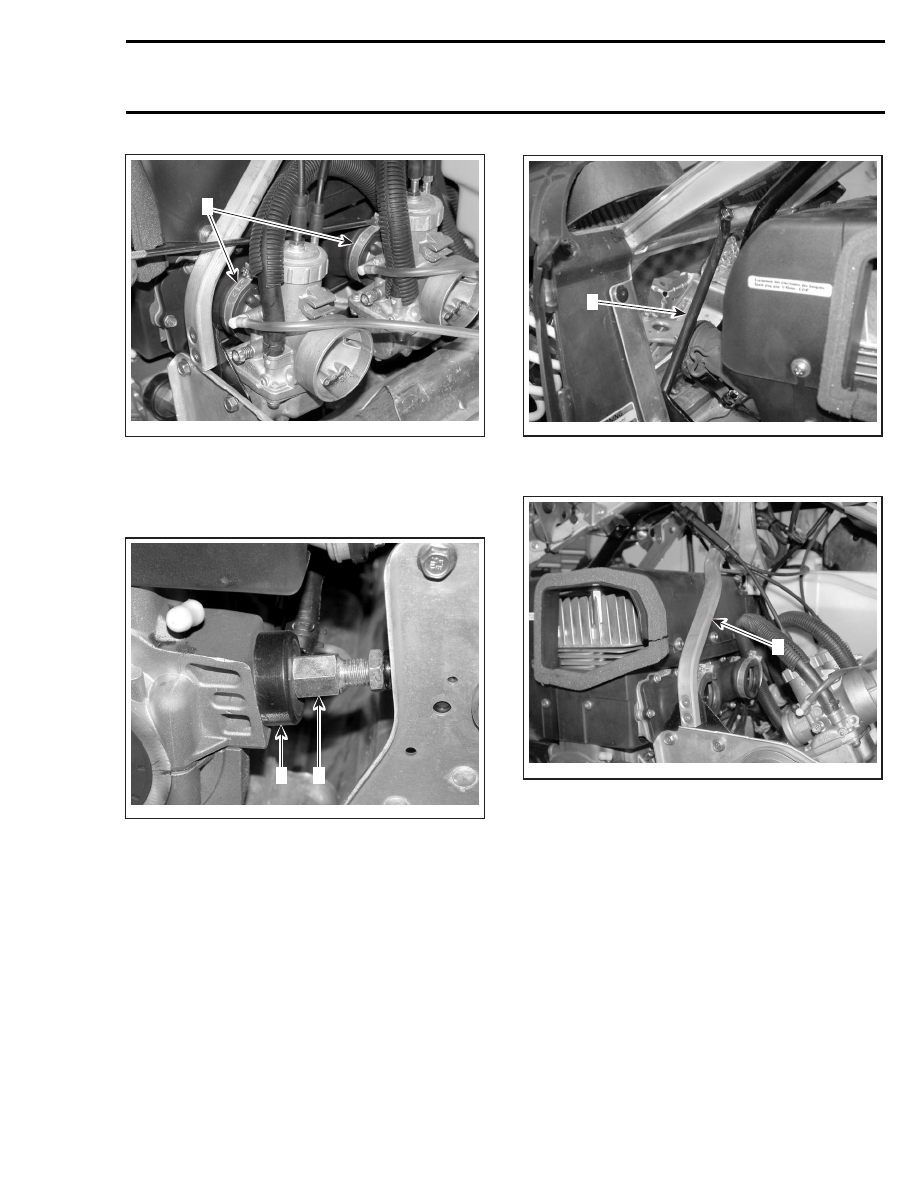

1. Carburetor clamps

Unscrew and remove the engine stopper. Do
not remove rubber end no. 8 only, unscrew the
screwed rod no. 9 completely.

A33C4BA

1

2

1. Rubber end
2. Screwed rod

Remove the impulse line from crankcase.

Disconnect the spark plug cables.

Remove front brace.

A33C4CA

1

1. Front brace

Unscrew the rear brace.

A33C4DA

1

1. Rear brace

Remove the cylinder cowl no. 10.

mmr2005-070

61

Section 03 ENGINES
Subsection 03 (ENGINE REMOVAL AND INSTALLATION)

A33C4EA

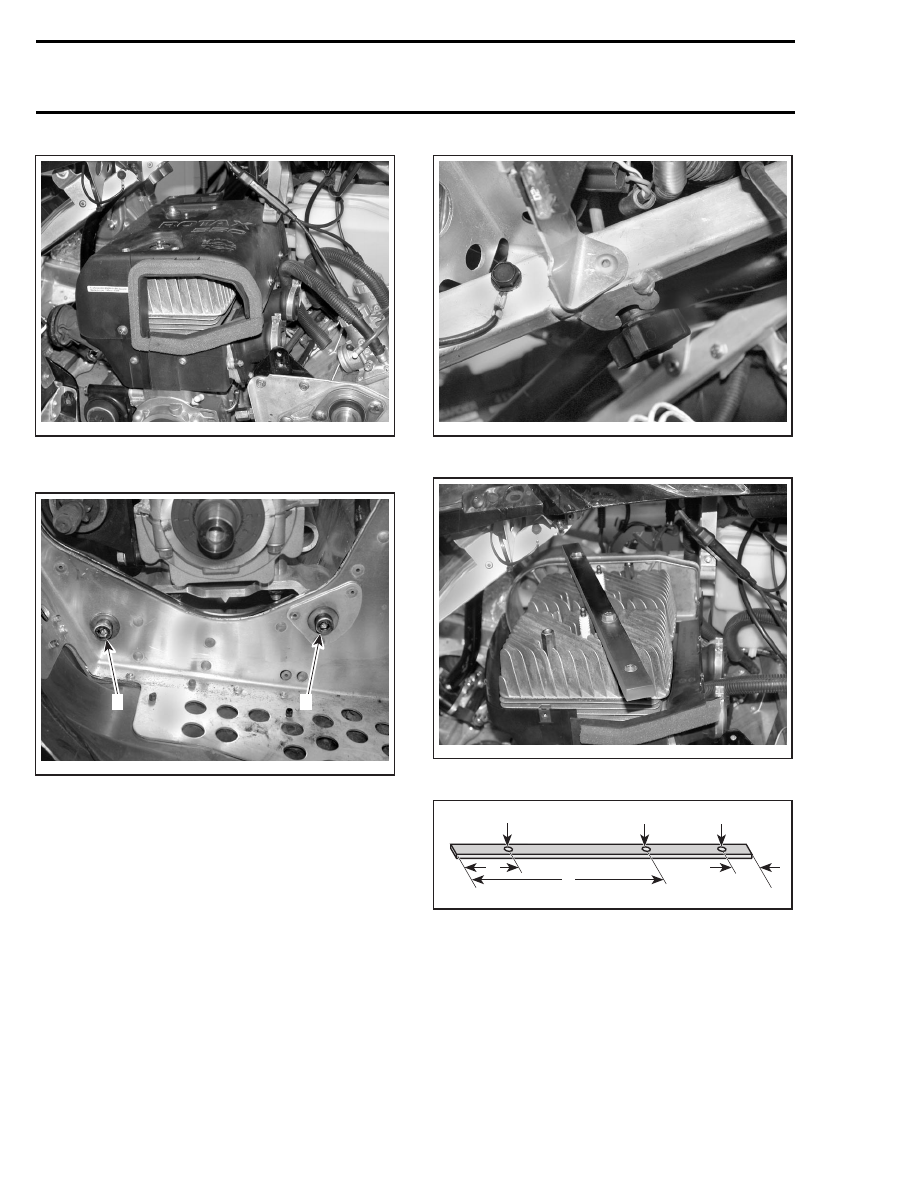

Remove the engine support bolts no. 11 and
no. 12.

A33C4FA

1

2

1. Rear engine support bolt
2. Front engine support bolt

Remove headlamp adjusting knob from its sup-
port.

A33C4GA

Install the homemade lifting tool.

A33C4HA

Use the following illustration to make the tool.

A33B0TB

C

D

D

D

B

A

FLAT BAR 152 X 25.4 X 13 MM (16 X 1 X 1/2 IN)

A. 51 mm (2 in)
B. 260 mm (10–1/4 in)
C. 38 mm (1–1/2 in)
D. Diameter: 13 mm (1/2 in)

Lift up the engine.

Unscrew the nuts no. 13 retaining engine support
no. 14 to engine.

62

mmr2005-070

Section 03 ENGINES

Subsection 03 (ENGINE REMOVAL AND INSTALLATION)

A33C4IA

Remove the support from engine and lower it in
frame.

Remove engine from vehicle.

INSPECTION

Check if engine support no. 14 is cracked, bent or
otherwise damaged. Replace if necessary.

Check rubber mounts no. 15 on engine support.
Replace them if brittle, cracked or otherwise dam-
aged.

INSTALLATION

To install engine in vehicle, reverse the removal
procedure. However, pay attention to the follow-
ing.

Install engine support under engine then torque
engine support nuts to 35 N•m (26 lbf•ft).

Before installing engine support bolts , apply Loc-
tite 243 (blue) (P/N 293 800 060) as shown in the
following illustration.

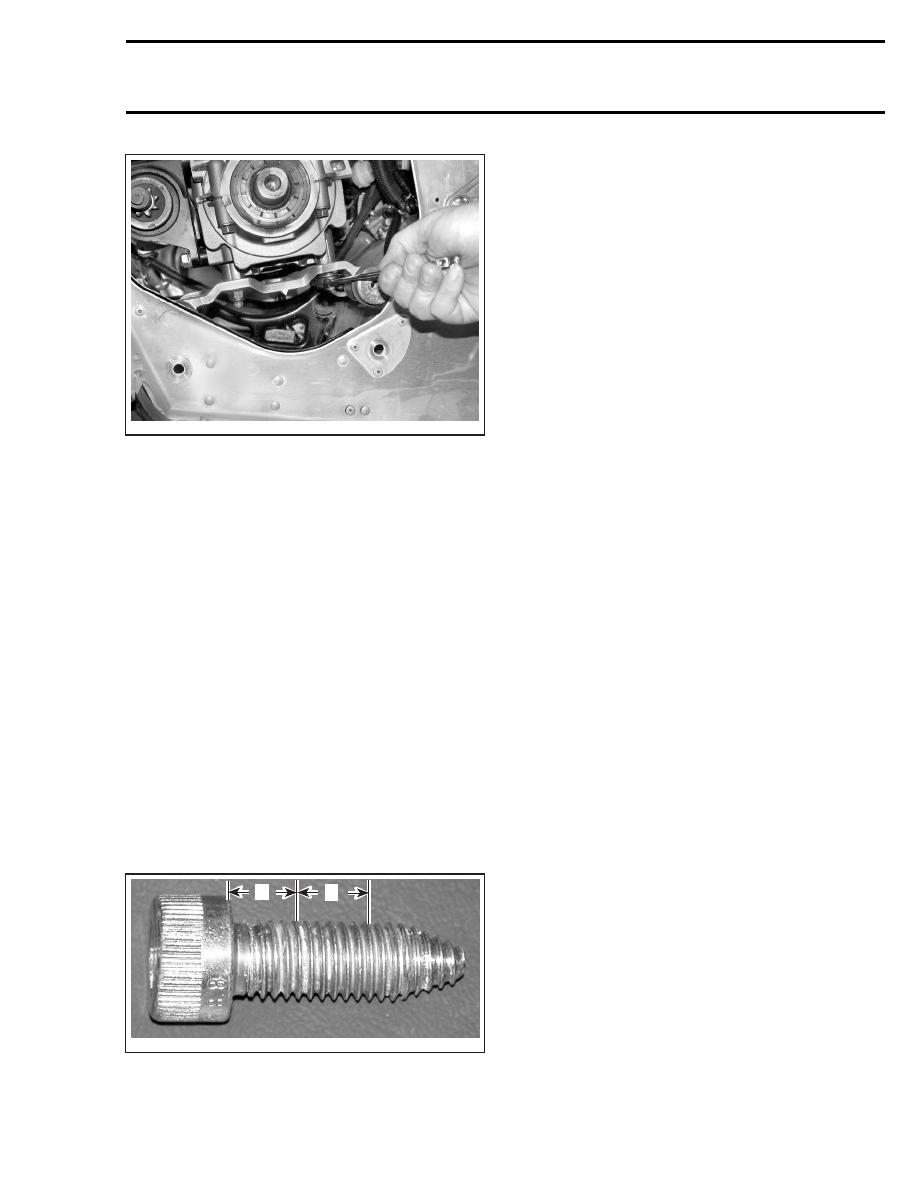

A33C2IA

A

B

A. Do not apply Loctite in this area, ± 10 mm (.39 in)
B. Loctite area, ± 8 mm (.31 in)

Torque engine support bolts to 48 N•m (35 lbf•ft).

Hand torque engine stopper no. 9 then torque its
nut no. 16 to 50 N•m (37 lbf•ft).

Reinstall all removed parts by using the appropri-
ate component/system reinstallation procedures
described in this shop.

mmr2005-070

63

Section 03 ENGINES
Subsection 03 (ENGINE REMOVAL AND INSTALLATION)

Liquid-Cooled Engines

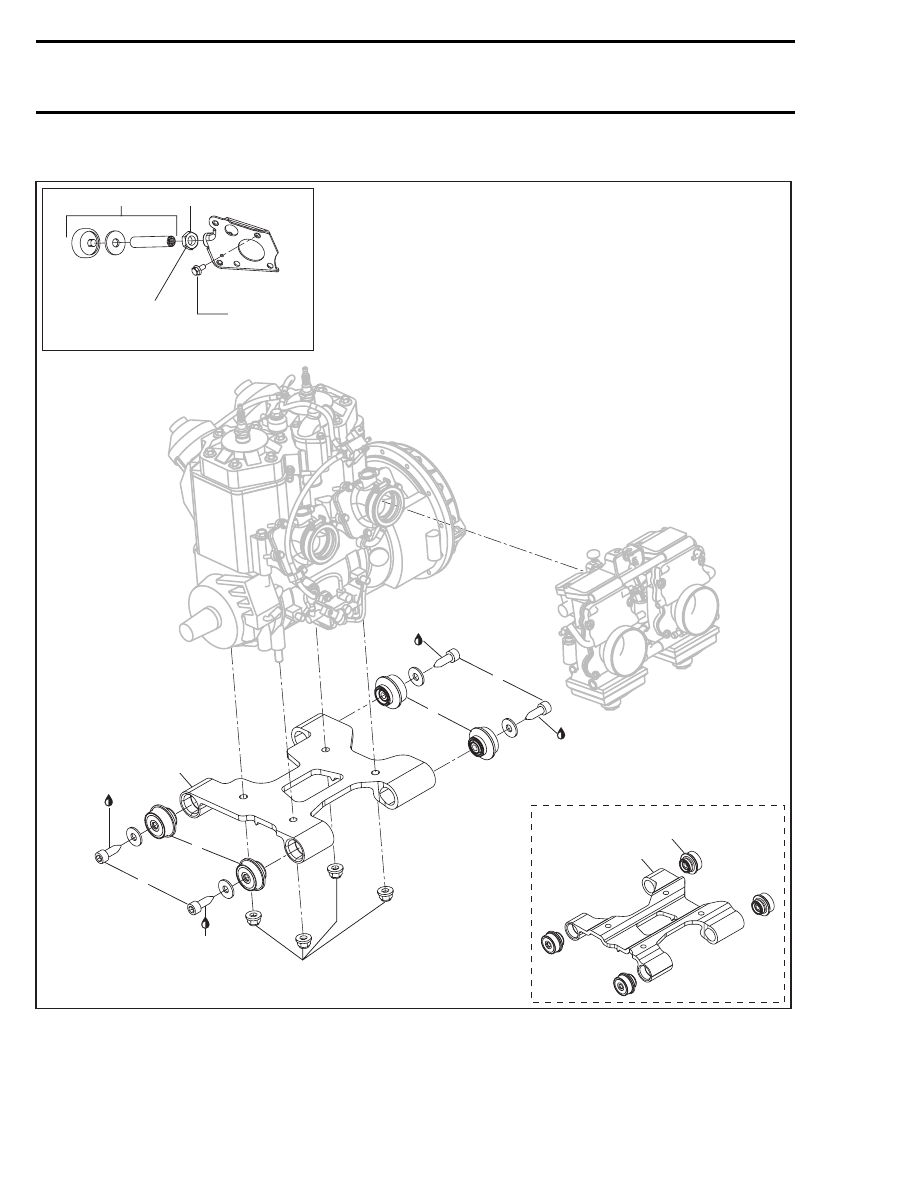

A33C4JS

Loctite

243

1

3

Loctite

243

35 N•m

(26 lbf•ft)

4

48 N•m

(35 lbf•ft)

5

4

593 engines

1

Loctite 243

Loctite 243

48 N•m

(35 lbf•ft)

50 N•m

(37 lbf•ft)

7.5 N•m

(66 lbf•in)

2

6

5

5

64

mmr2005-070
