ADJUSTING REAR ARM COUPLER
(Groove Style)

„NOTE: The couplers are installed in the 2-groove
position at production.

The rear arm coupler provides advantages over the

standard suspension.

First, with the coupler system, ski lift under accelera-

tion is greatly reduced which provides improved han-

dling. Second, when riding through rough terrain, the

rear suspension arm receives some needed assistance

from the front arm shock and spring. This happens as

the rear arm is fully collapsed and locked up by the

coupler blocks. The front arm then starts to collapse

the shocks and spring which assist the rear springs.

The result is a smoother ride for the operator.

Each of the coupler blocks has four positions (notched

grooves on the outside surface of the block). When

changing the block position, change both to the same

groove number. To make coupler adjustment, follow

the procedure below.

1. Using a 9/16-in. wrench, loosen the two cap

screws that secure the coupler blocks to the inside

of the suspension rails.

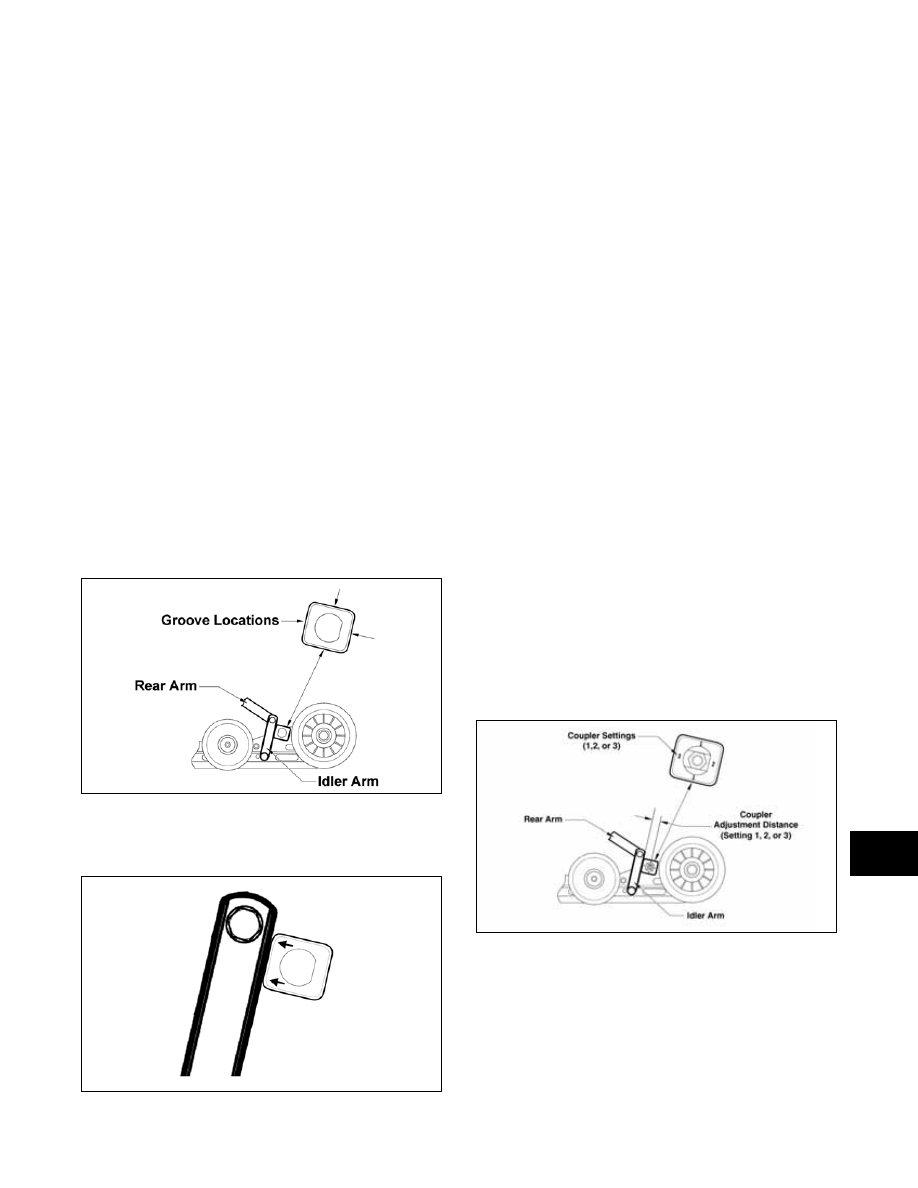

2. Rotate the coupler blocks to the desired position

making sure both are set the same.

738-230B

„NOTE: When setting the block, the chosen groove
position must be directed toward the idler arm.

738-230C

3. Place a 4-in. block of wood under the rear of the

suspension just in front of the rear idler wheels.

This will assist in collapsing the suspension.

4. Collapse the rear suspension until the rear arm is

firmly against the coupler blocks. This will align

the two blocks squarely with the arm. While in this

position, tighten the two cap screws securing the

blocks.

ADJUSTING REAR ARM COUPLER
(Number Style)

The rear arm coupler provides advantages over the

standard suspension.

First, with the coupler system, ski lift under acceleration

is greatly reduced which provides improved handling.

Second, when riding through rough terrain, the rear sus-

pension arm receives some needed assistance from the

front arm shock and spring. This happens as the rear

arm is fully collapsed and locked up by the coupler

blocks. The front arm then starts to collapse the shocks

and spring which assist the rear springs. The result is a

smoother ride for the operator.

If additional coupler action is desired, the coupler

blocks can be set to the number 2 or 3 position. Each

of the coupler blocks has three positions numbered on

the inside surface of the block. When changing the

block position, change both to the same number. To

make the coupler adjustment, follow the procedure

below.

1. Using an 8 mm Allen-wrench, loosen the two cap

screws that secure the coupler blocks to the inside

of the suspension rails.

2. Rotate the coupler blocks to the desired position

making sure both are set the same.

738-230A

3. Place a 4-in. block of wood under the rear of the

suspension just in front of the rear idler wheels.

This will assist in collapsing the suspension.

4. Collapse the rear suspension until the rear arm is

firmly against the coupler blocks. This will align

the two blocks squarely with the arm. While in this

position, tighten the two cap screws securely.

9-6

Suspension Mounting Location Chart

„NOTE: The Rear Arm Mounting Position refers to where the rear arm mounts into the tunnel. The Rear
Arm To Rail Position refers to where the lower portion of the rear arm mounts between the slide rails.

* w/Torque Sensing Link

Torque Specifications

* w/Blue Loctite #243

MODEL

TRACK LENGTH

& LUG HEIGHT

FRONT ARM

 MOUNTING

POSITION

REAR ARM

 MOUNTING

POSITION

REAR ARM

TO RAIL

POSITION

SHOCK

LINK ROD

LENGTH

Bearcat 570 Model*

15" x 156" x 1.00"

Upper

Above Running Board No Adjustment

12.600 in. (320.04 mm)

Crossfire Models*

15" x 136" x 1.25"

Upper

Above Running Board No Adjustment

12.200 in. (309.88 mm)

Panther Models*

15" x 136" x 1.00"

Upper

Below Running Board No Adjustment

12.200 in. (309.88 mm)

Z 370 Models*

15" x 121" x .750"

Upper

Above Running Board Second Hole Back 11.750 in. (298.45 mm)

Z 570 Models*

15" x 121" x .850"

Upper

Above Running Board Second Hole Back 11.750 in. (298.45 mm)

F-Series Models*

13.5" x 128" x 1.00"

Upper (Slider Axle) Below Running Board No Adjustment

11.750 in. (298.45 mm)

M6 Model

15" x 141" x 2.25"
15" x 153" x 2.25"

Upper

Below Running Board No Adjustment

11.750 in. (298.45 mm)

M8/M1000 Models

15" x 141" x 2.25"
15" x 153" x 2.25"
15" x 162" x 2.25"

Upper

Below Running Board No Adjustment

11.750 in. (298.45 mm)

ITEM

TORQUE

ITEM

TORQUE

End Cap

ft-lb
kg-m

7
1.0

Front Inner Idler Wheel Assy
(Bearcat/Panther/Z)

ft-lb
kg-m

40
5.5

Wear Strip/Rail

ft-lb
kg-m

5
0.7

Front Rail Support/Rail*
(Crossfire/F-Series/M-Series)

ft-lb
kg-m

30
4.2

Idler Wheel/Mounting Block
(Upper/Lower)

ft-lb
kg-m

34
4.7

Front Arm/Mounting Bracket
(Bearcat/Panther/Z)

ft-lb
kg-m

40
5.5

Spring Slide Block/Rail

ft-lb
kg-m

34
4.7

Front Arm/Mounting Bracket
(Crossfire)

ft-lb
kg-m

34
4.7

Pivot Idler/Idler Arm

ft-lb
kg-m

18
2.5

Limiter Strap

ft-lb
kg-m

10
1.4

Rear Arm/Rail

ft-lb
kg-m

40
5.5

Rail Support/Rail*
(Bearcat/Panther/Z)

ft-lb
kg-m

50
6.9

Rear Arm/Idler Arm*
(Bearcat/M-Series/Panther/Z)

ft-lb
kg-m

45
6.2

Rear Arm/Idler Arm
(Crossfire/F-Series/M-Series)

ft-lb
kg-m

34
4.7

Rear Axle/Idler Wheel*

ft-lb
kg-m

50
6.9

Track Adjuster Bracket/Rail

ft-lb
kg-m

10
1.4

Rear Axle/Idler Wheel (F-Series)

ft-lb
kg-m

40
5.5

Rear Arm Limiter/Rail*

ft-lb
kg-m

50
6.9

Front Arm Mounting Bracket/Rail
(Bearcat/Crossfire/Panther/Z)

ft-lb
kg-m

30
4.2

Front Arm Shock Axle/Rail

ft-lb
kg-m

40
5.5

Front Arm/Rail (F-Series)

ft-lb
kg-m

30
4.2

Front Shock Pivot Axle

ft-lb
kg-m

40
5.5

Front Arm/Rail
(M-Series)

ft-lb
kg-m

50
6.9

9-7

9

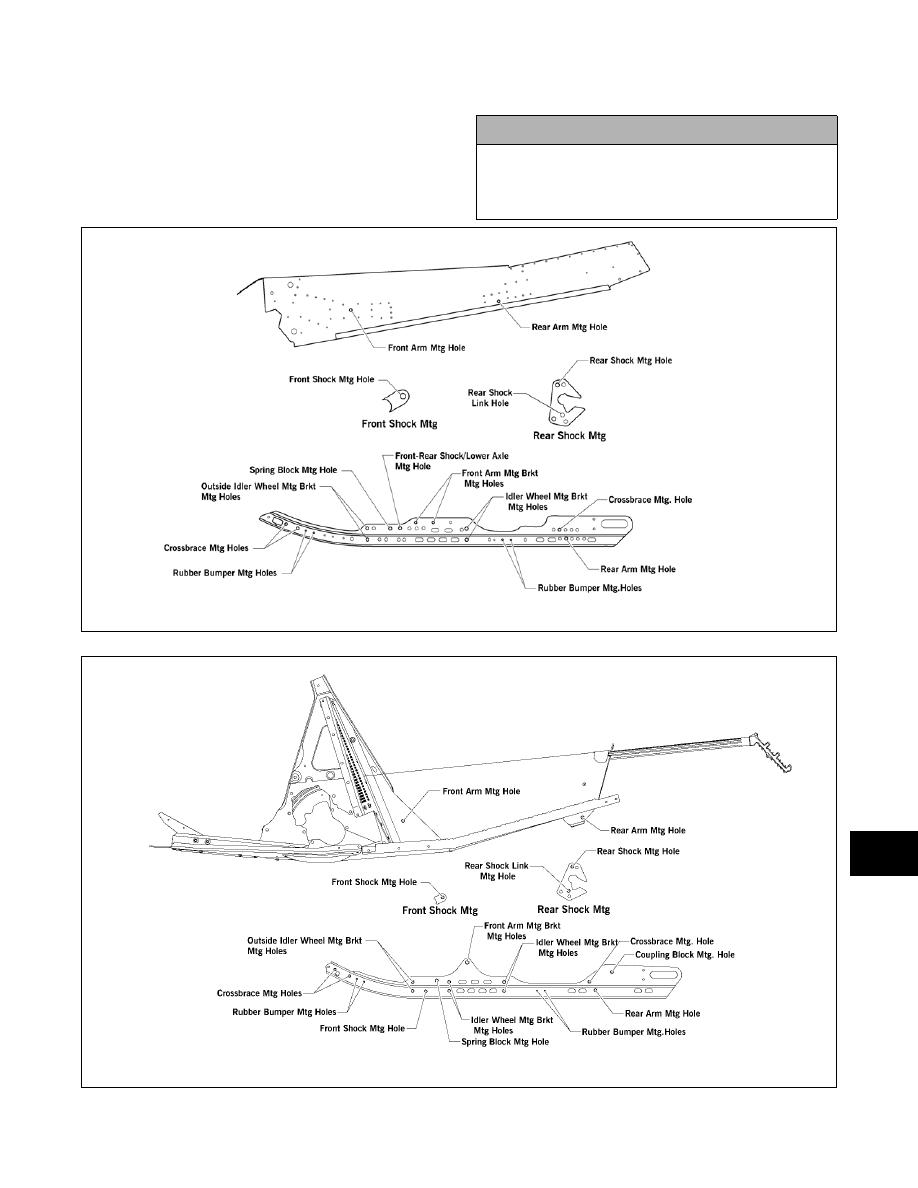

Chassis and Skid Frame Mounting Locations

The suspensions have several possible mounting loca-

tions in the slide rails and tunnel. However, it is rec-

ommended by Arctic Cat Inc. that when disassembling

and assembling the suspension, all stock mounting

locations be used as shown in the following illustra-

tions.

739-214A

0742-140

! CAUTION

It is extremely important that all stock mounting
locations be used. If any alterations to the skid
frame are made, shock absorber and suspension
damage may occur.

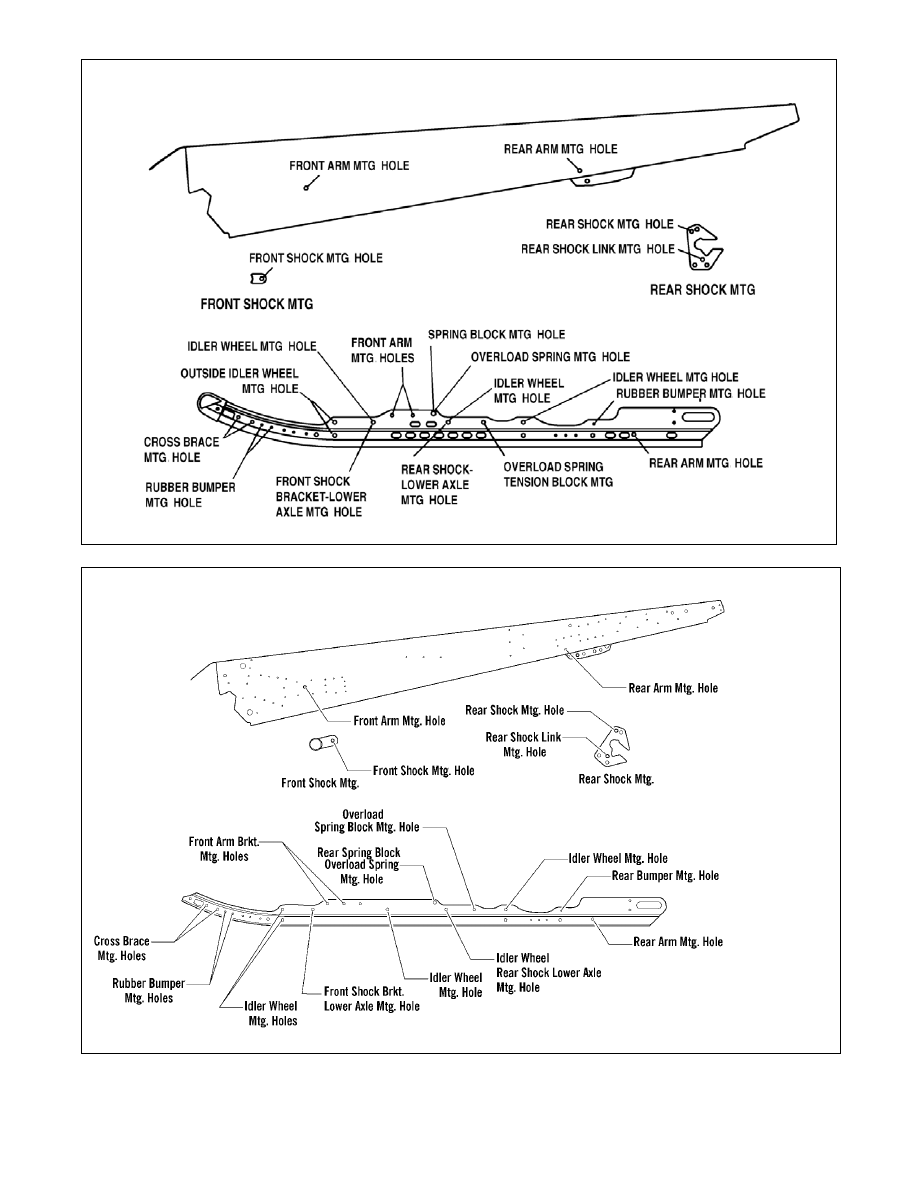

Z 370/570 Models

F-Series Models

9-8

735-315A

0739-989

Panther Models

Bearcat 570
