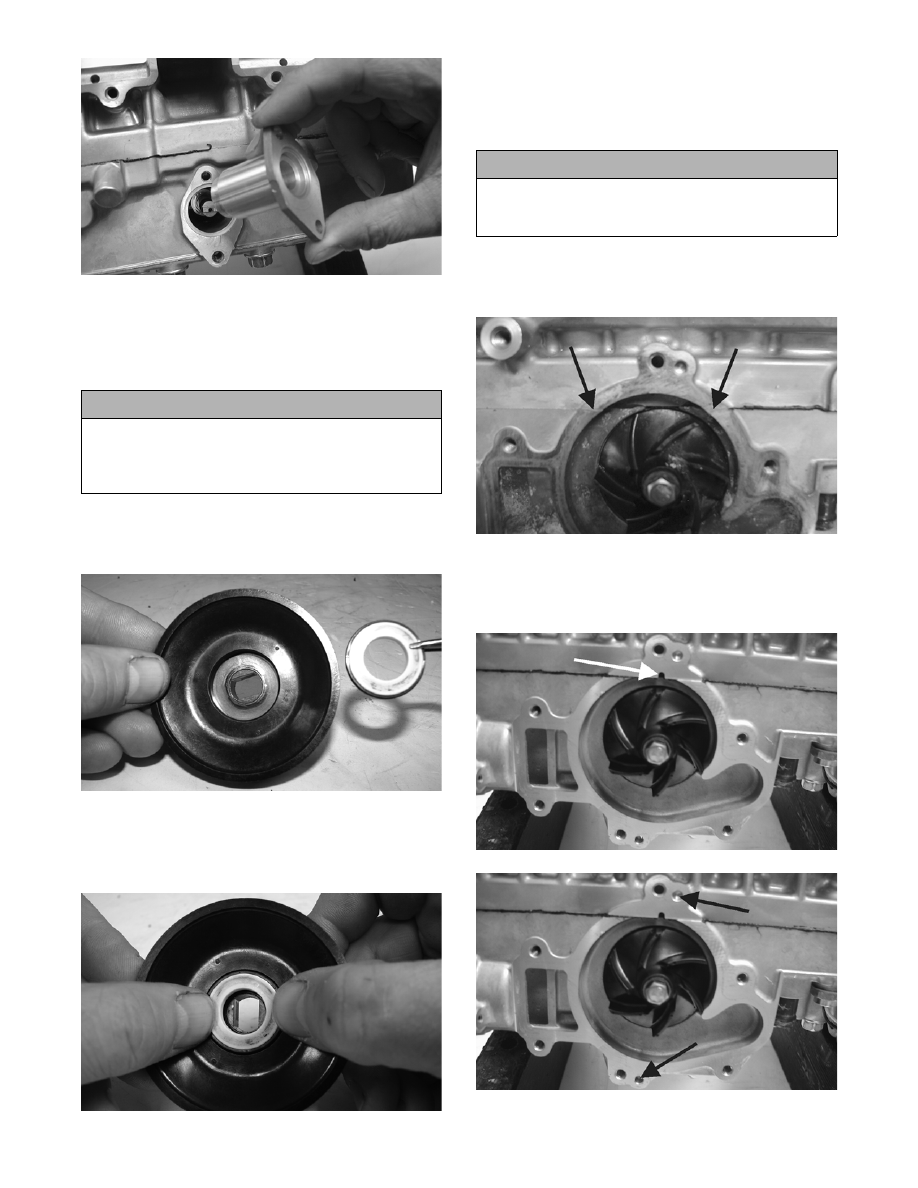

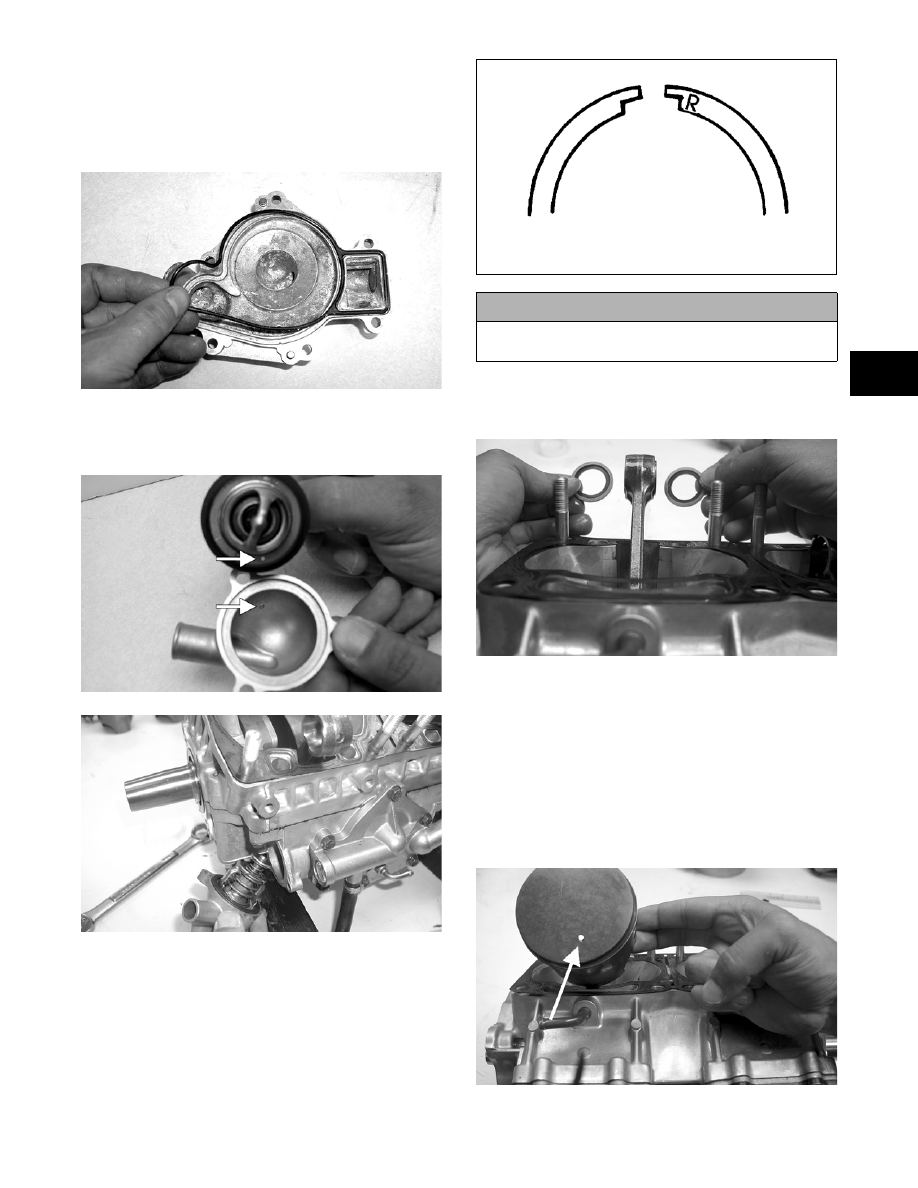

2-78 FC082 16. Install the O-ring and the oil-injection pump mak- ing sure the pump shaft slot and pump driven gear shaft align. Secure with two screws (coated with blue Loctite #243). Tighten the two screws to specifications. 17. Position the ceramic/rubber seal into the back side of the water pump impeller with the ceramic face of the seal directed out. CM168 18. Using both thumbs, press the seal into position making sure its marked side is positioned towards the rubber seal cup; then apply a thin coat of grease to the seal outer surface. CM169 19. Place the impeller into position and secure with a cap screw and washer. Be sure the rubber side of the washer is directed toward the impeller. Apply blue Loctite #243 to the threads of the cap screw and tighten to specifications. 20. Apply high-temperature sealant to the crankcase/ water pump cover seam; then install the dowel pins into the crankcase. FC133A NOTE: It is important to not get sealant into the FC072B FC072A ! CAUTION Be sure the oil-injection pump/water pump drive- ! CAUTION The rubber side of the washer, which secures the |
