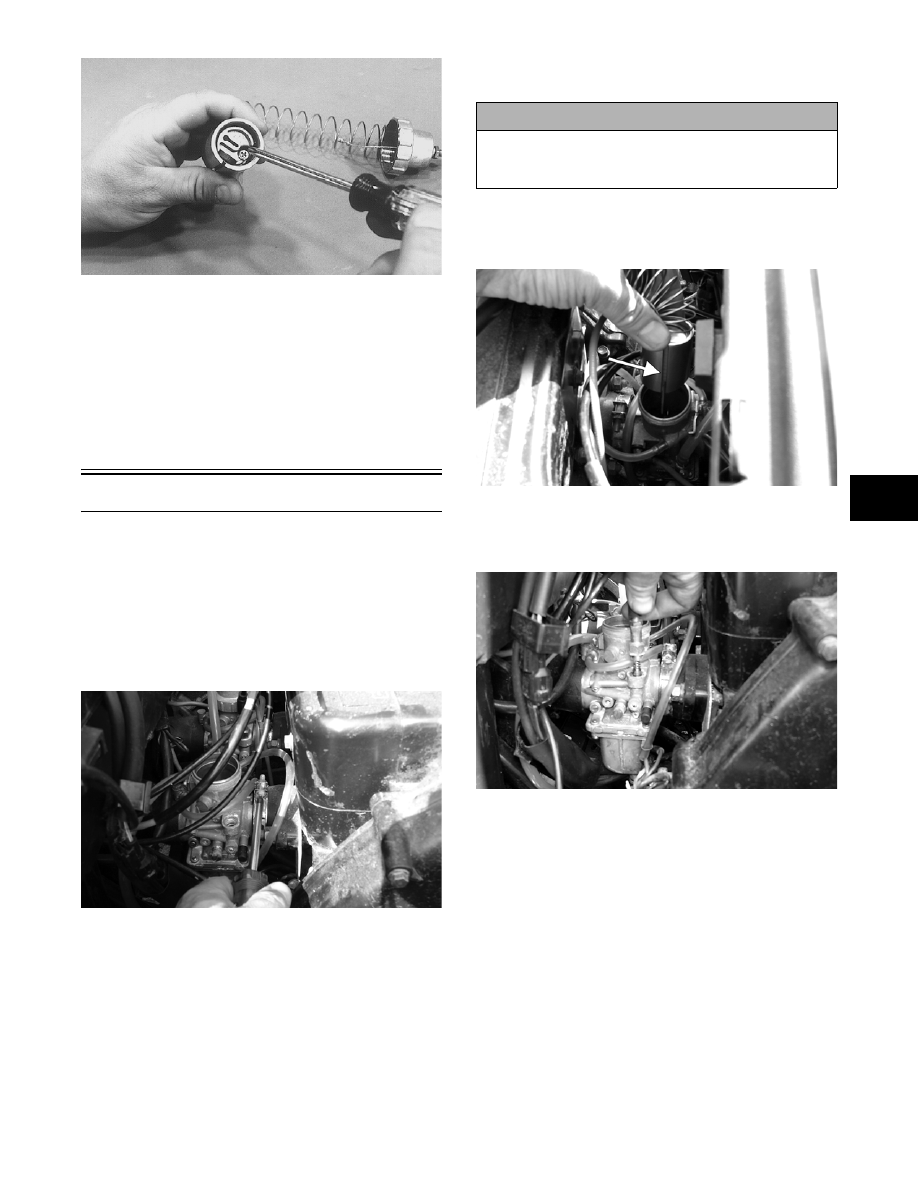

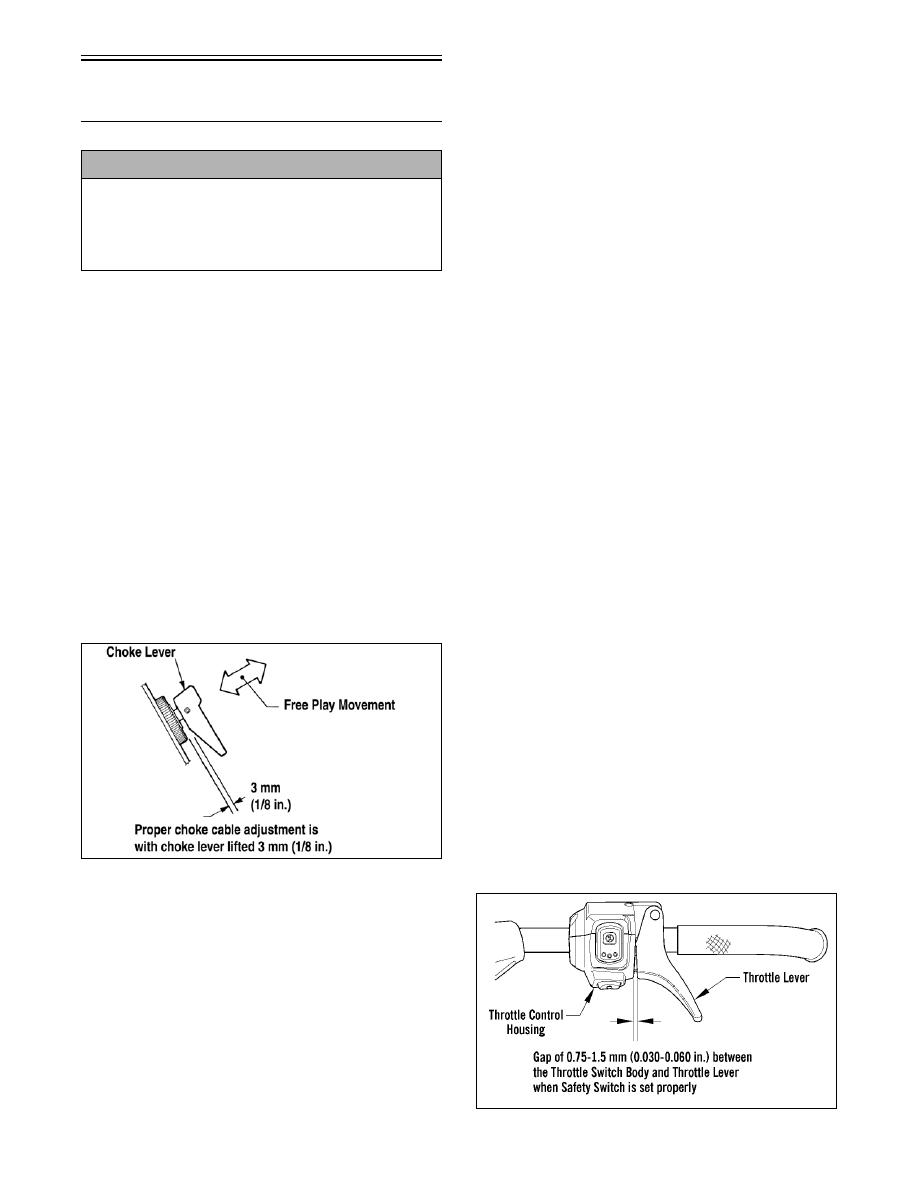

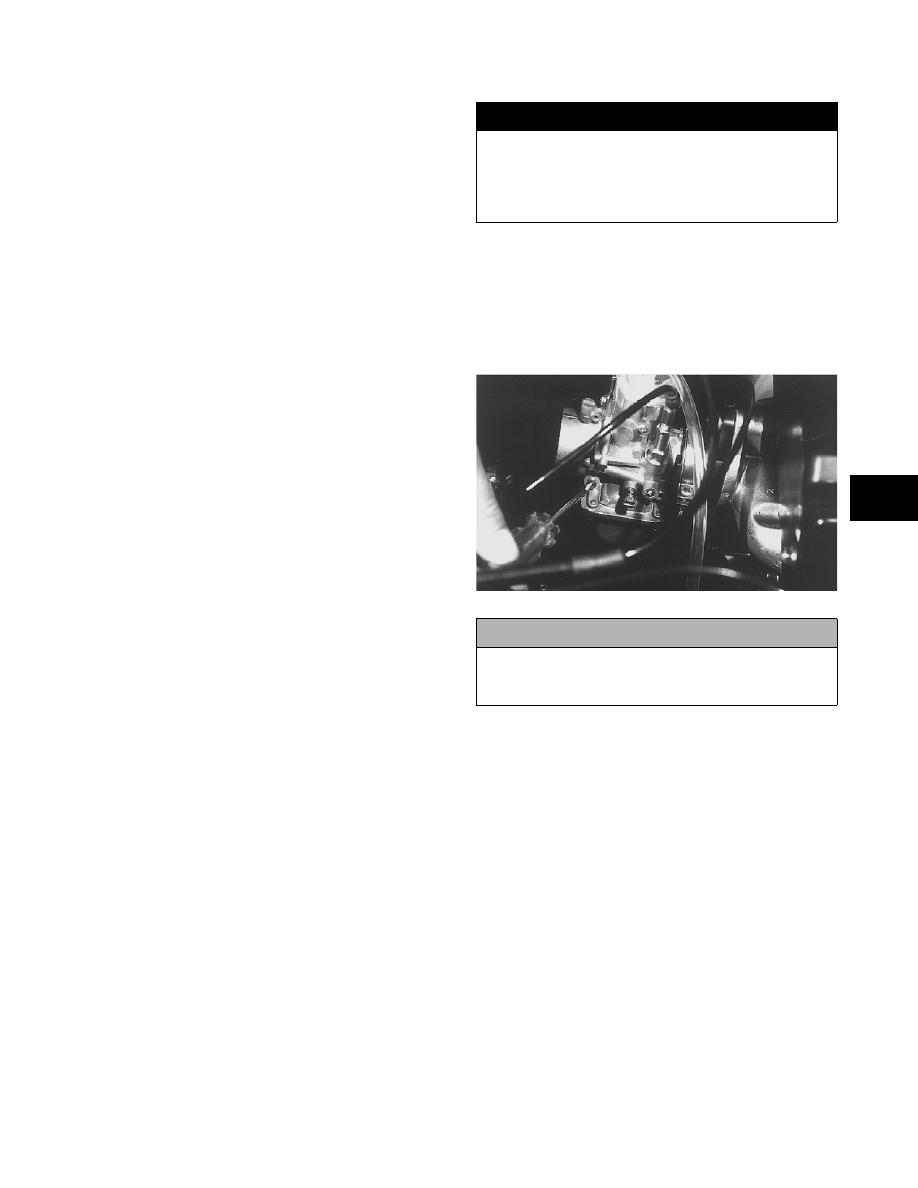

4-8 CM051 6. Place the float arm into position and secure with the pin. CM050A 7. Check the float arm height. Using a calipers, mea- sure the distance from the gasket surface to the top of the float arm (with the carburetor inverted). If measurement is not within specifications, adjust by bending the actuating tab. AH046 8. Place the O-ring and drain plug into position and secure; then place the floats into position making sure the word UP is properly positioned. Press the caps onto the float towers. B344 9. Place the gasket and float chamber into position and secure with the four screws and lock washers making sure the hose plates are properly posi- tioned on the two front screws. Install the vent hoses. AH137 10. Place the E-clip into position on the jet needle. From the bottom of the jet needle, slide the E-clip washer up against the E-clip. Place the jet needle into the piston valve. NOTE: Place the E-clip in the proper position as 725-266C 11. On the 570 cc, place the cable retainer into the pis- ton valve and secure with the Phillips-head screw. On the 370 cc, place the spring and plate over the throttle cable and compress the spring. Guide the cable end down into the cable retainer slot and slide the cable end to the center of the piston valve. Release the spring and retainer plate to lock the cable in position. FLOAT ARM HEIGHT VM-32/34 22-24 mm (0.86-0.94 in.) |
