Snowmobile Arctic Cat (2008 year). Manual - part 12
1-43
1

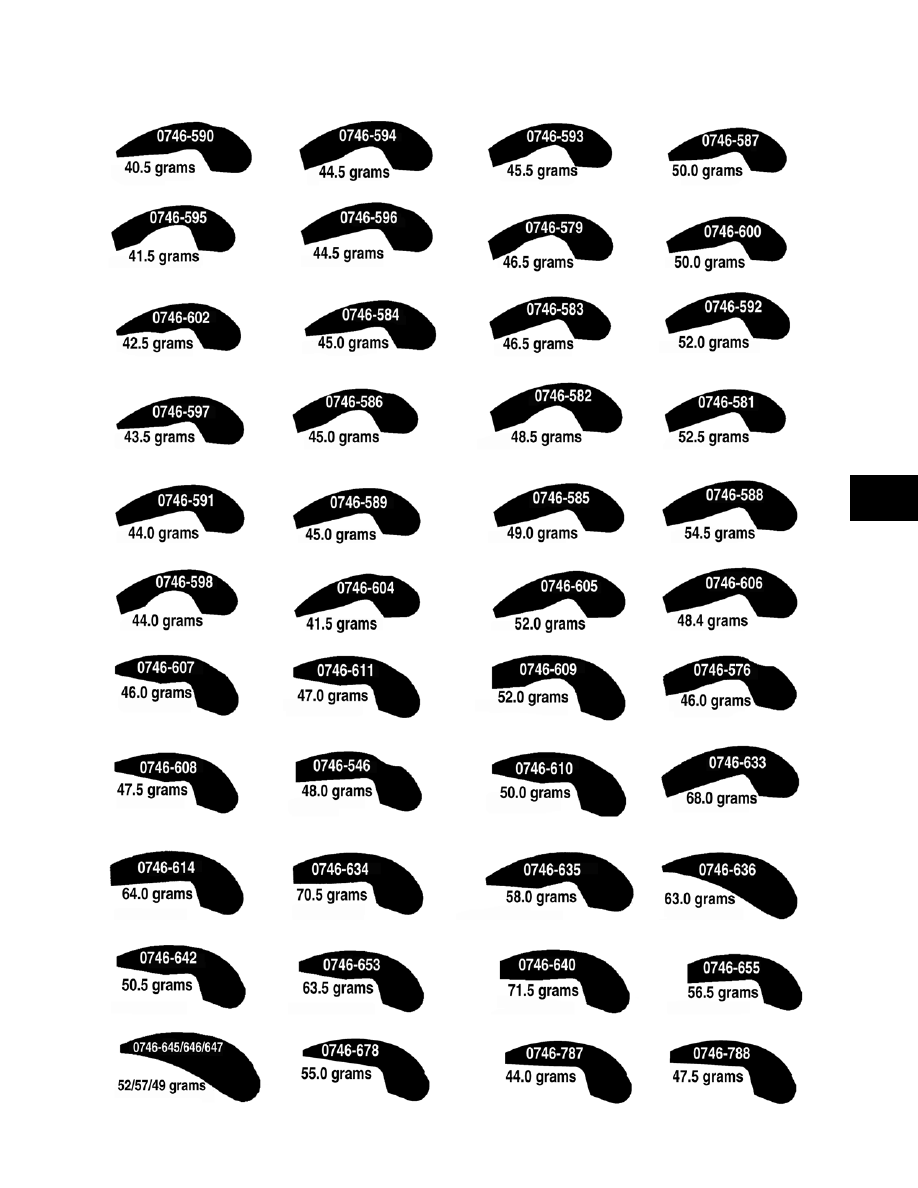

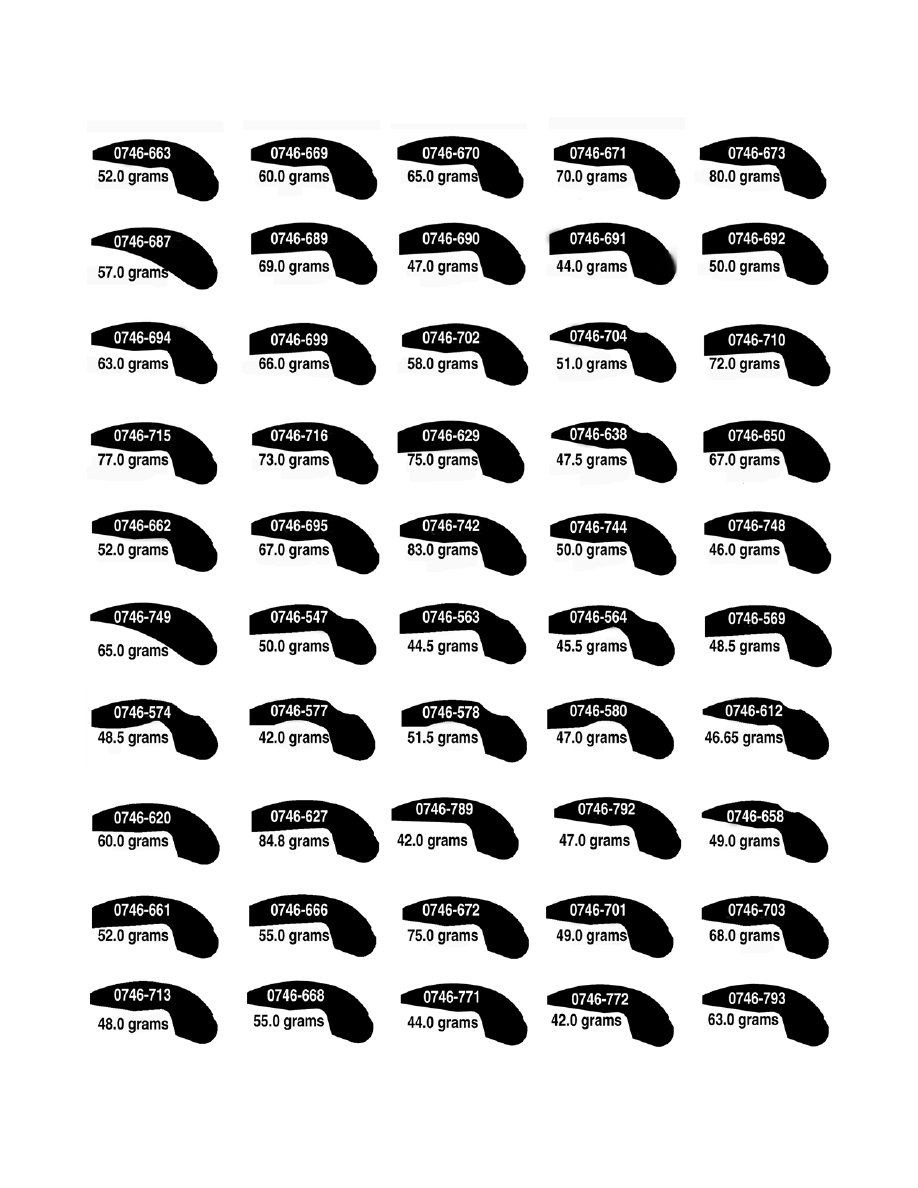

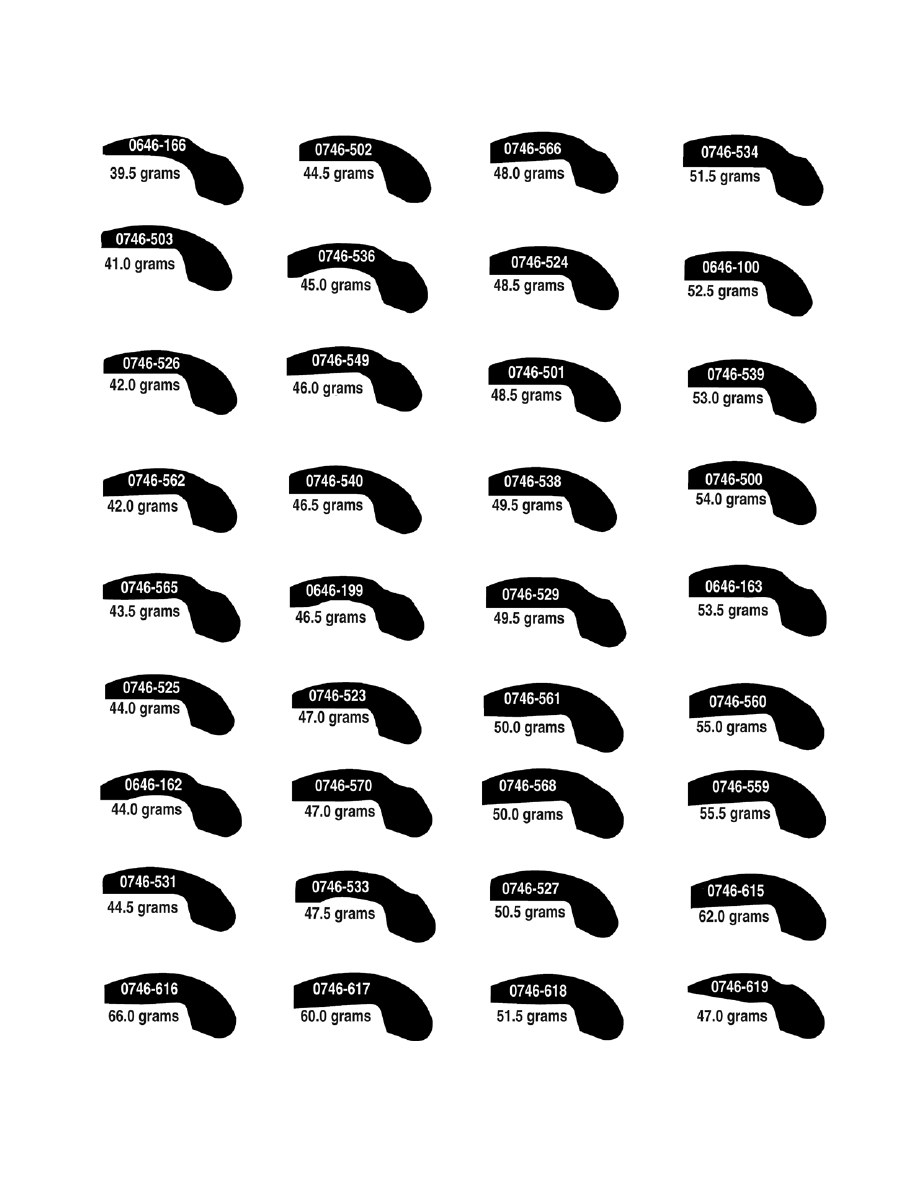

Arctic Cat Cam Arms
* Notched Cam Arm
** w/Set Screw
ARCTIC CAT DRIVE CLUTCH CAM ARMS
p/n
Grams
p/n
Grams
0646-100
52.5
0746-569
48.5
0646-162
44.0
0746-570
47.0
0646-163
53.5
0746-574
48.5
0646-166
39.5
0746-576
46.0
0646-199
46.5
0746-577
42.0
0746-500
54.0
0746-578
51.5
0746-501
48.5
0746-579
46.5
0746-502
44.5
0746-580
47.0
0746-503
41.0
0746-581
52.5
0746-523
47.0
0746-582
48.5
0746-524
48.5
0746-583
46.5
0746-525
44.0
0746-584
45.0
0746-526
42.0
0746-585
49.0
0746-527
50.5
0746-586
45.0*
0746-529
49.5*
0746-587
50.0
0746-531
44.5
0746-588
54.5
0746-533
47.5*
0746-589
45.0
0746-534
51.5*
0746-590
40.5*
0746-536
45.0*
0746-591
44.0
0746-538
49.5
0746-592
52.0
0746-539
53.0
0746-593
45.5
0746-540
46.5
0746-594
44.5
0746-546
48.0
0746-595
41.5
0746-547
50.0
0746-596
44.5
0746-549
46.0
0746-597
43.5
0746-559
55.5
0746-598
44.0
0746-560
55.0
0746-600
50.0
0746-561
50.0
0746-602
42.5
0746-562
42.0
0746-604
41.5
0746-563
44.5
0746-605
52.0
0746-564
45.5
0746-606
48.4
0746-565
43.5
0746-607
46.0
0746-566
48.0
0746-608
47.5
0746-568
50.0
0746-609
52.0
ARCTIC CAT DRIVE CLUTCH CAM ARMS
p/n
Grams
p/n
Grams
0746-610
50.0
0746-671
70.0**
0746-611
47.0
0746-672
75.0
0746-612
46.65
0746-673
80.0**
0746-614
64.0
0746-676
70.0**
0746-615
62.0
0746-687
57.0**
0746-616
66.0
0746-689
69.0**
0746-617
60.0
0746-690
47.0**
0746-618
51.5
0746-691
44.0**
0746-619
47.0
0746-692
50.0**
0746-620
60.0
0746-694
63.0**
0746-627
84.8**
0746-695
67.0**
0746-629
75.0**
0746-699
66.0**
0746-633
68.0
0746-701
49.0**
0746-634
70.5
0746-702
58.0**
0746-635
58.0
0746-703
68.0**
0746-636
63.0
0746-704
51.0**
0746-638
47.5
0746-708
51.0**
0746-640
71.5
0746-710
72.0**
0746-642
50.5
0746-713
48.0**
0746-645
52.0
0746-715
77.0**
0746-646
57.0
0746-716
73.0**
0746-647
49.0
0746-742
83.5**
0746-650
67.0
0746-744
50.0**
0746-653
63.5
0746-748
46.0**
0746-655
56.5
0746-749
65.0**
0746-658
49.0
0746-771
44.0**
0746-661
52.0**
0746-772
42.0**
0746-662
52.0**
0746-786
63.0**
0746-663
52.0**
0746-787
44.0**
0746-666
55.0**
0746-788
47.5**
0746-668
55.0**
0746-789
42.0**
0746-669
60.0**
0746-792
47.0**
0746-670
65.0**
0746-793
63.0**
