8-76
AF462D

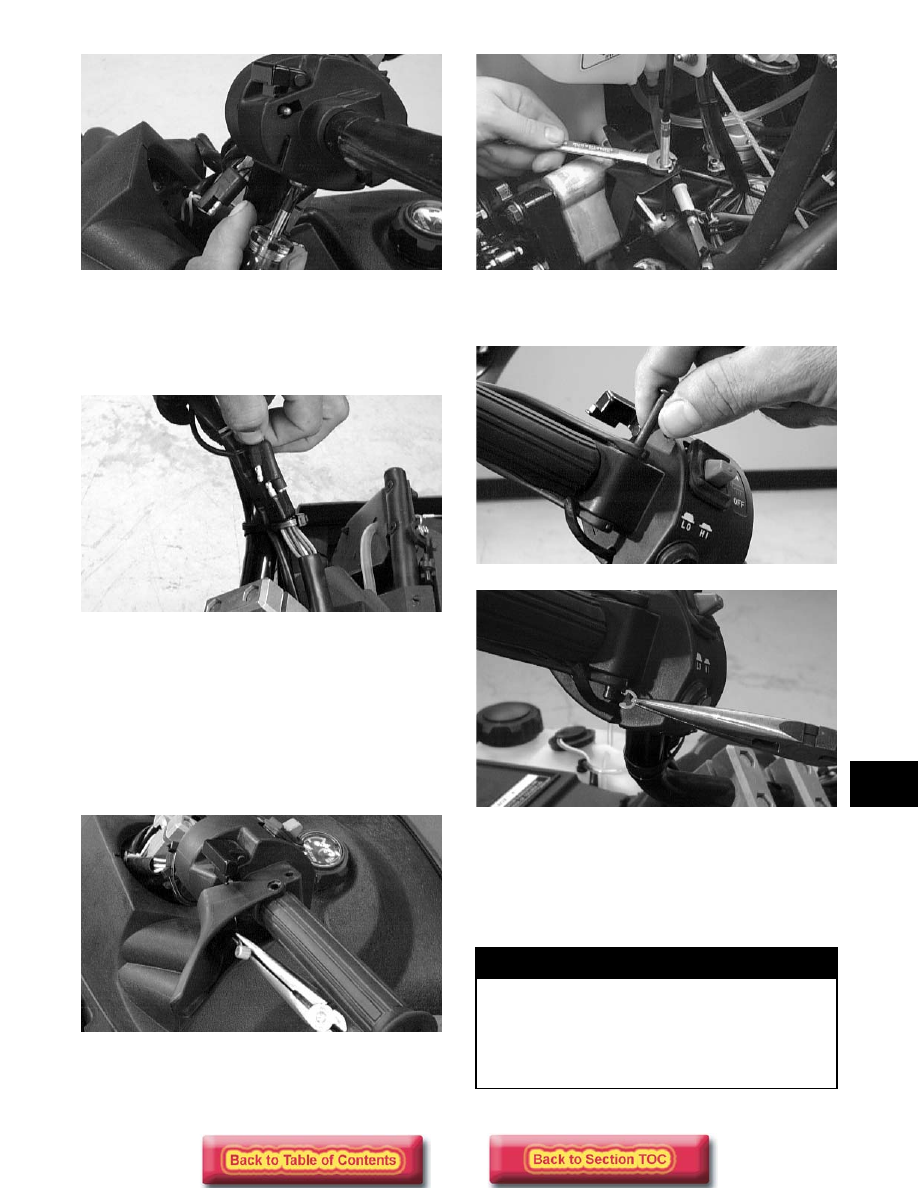

4. Disconnect the brake cable from the seat in the
brake lever and remove the lever; then slide the
brake cable free of the brake control.
AL140D
5. Remove the brake lever from the brake control
housing.
6. Remove the four screws securing the console; then
raise the console to gain access to the main wiring
harness.
7. Disconnect the brake control wiring harness from
the main wiring harness.
AL141D
8. Cut the cable ties holding the wiring harnesses and
cables to the steering post noting their locations
for installing purposes.
9. Using a sharp knife, cut the grip off the handlebar;
then using a solvent, clean adhesive from the
handlebar.
10. Remove the machine screw securing the brake
control to the handlebar; then slide the brake
control off the handlebar.
AL143D

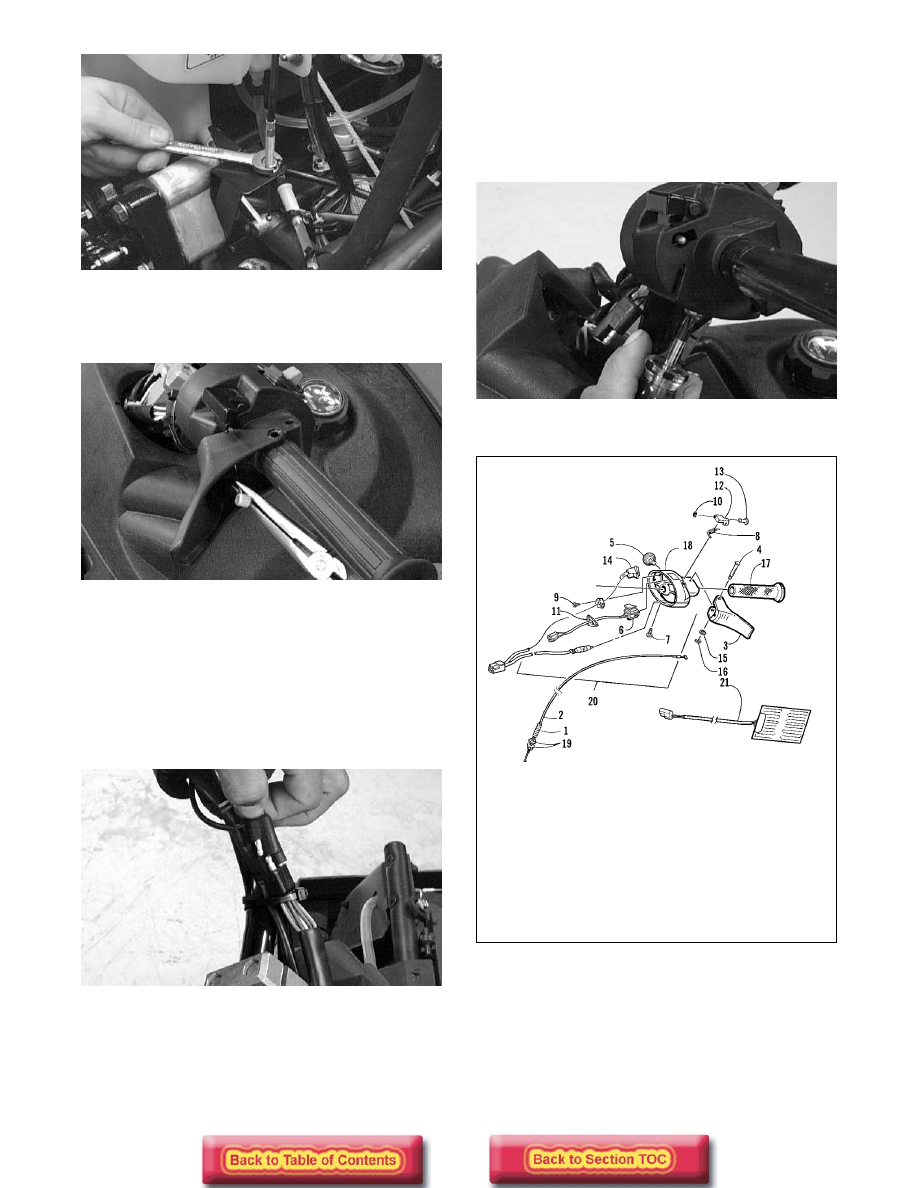

ASSEMBLING AND INSTALLING
735-820A
1. Slide the brake control onto the handlebar and
secure with the machine screw.
Key
1. Spring
2. Brake Cable
3. Brake Lever
4. Axle
5. Knob
6. Handwarmer Control
7. Machine Screw
8. Spring
9. Self-Tapping Screw
10. Retaining Ring
11. Cover Plate
12. Actuator
13. Pin
14. Dimmer Switch
15. Washer
16. Retaining Ring
17. Grip
18. Housing
19. Flange Nut
20. Brake Control Assy
21. Handwarmer Element
