6-8

NOTES

6-9

6

Wiring Diagram Index

(Main and Hood)

This chart is designed to direct the technician to the
appropriate Main Harness Wiring Diagram and Hood
Harness Wiring Diagram. Select the snowmobile from
the chart to determine the correct diagram.

Snowmobile Models

Main
Harness

Hood
Harness

Snowmobile Models

Main
Harness

Hood
Harness

Bearcat 570

R

I

Pantera 550

G

II

Firecat 500/500 Sno Pro

B

III

Pantera 600 EFI

K

II

Firecat 600/600 Sno Pro

B

III

Pantera 800 EFI

L

II

Firecat 600 EFI (EB)

K

II

Panther 370

M

I

Firecat 600 EFI EXT

C

III

Panther 570

N

I

Firecat 600 EFI/600 EFI Sno Pro

C

III

Sabercat 500/500 LX

S/T

III

Firecat 700/700 Sno Pro

P

III

Sabercat 600/600 LX

P/U

III

Firecat 700 EFI EXT

C

III

Sabercat 600 EFI EXT

V

IV

Firecat 700 EFI/700 EFI Sno Pro

C

III

Sabercat 600 EFI/600 EFI LX

C/V

III/IV

King Cat 900

J

V

Sabercat 700 EFI/700 EFI LX

C/V

III/IV

Mountain Cat 570

O

V

Sabercat 700 EFI EXT

V

IV

Mountain Cat 600 EFI

E

V

Z 370/370 LX

A/H

I

Mountain Cat 800 EFI

F

V

Z 440 LX

I

I

Mountain Cat 900

J

V

Z 570 /570 LX

D/N

I

Mountain Cat 900 EFI

Q

V

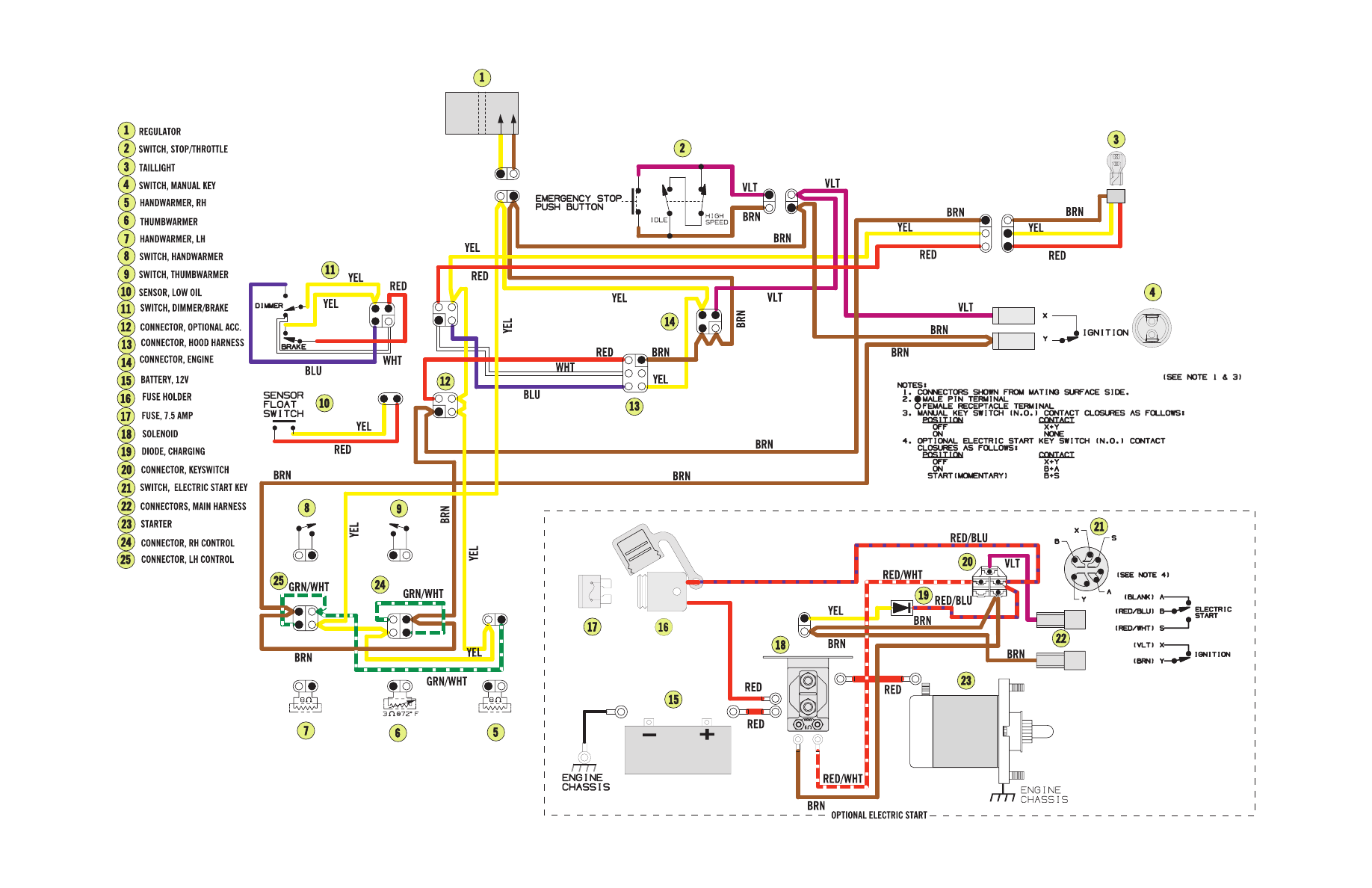

Harness A

(p/n 0686-507)

Z 370

0737-326

6-10

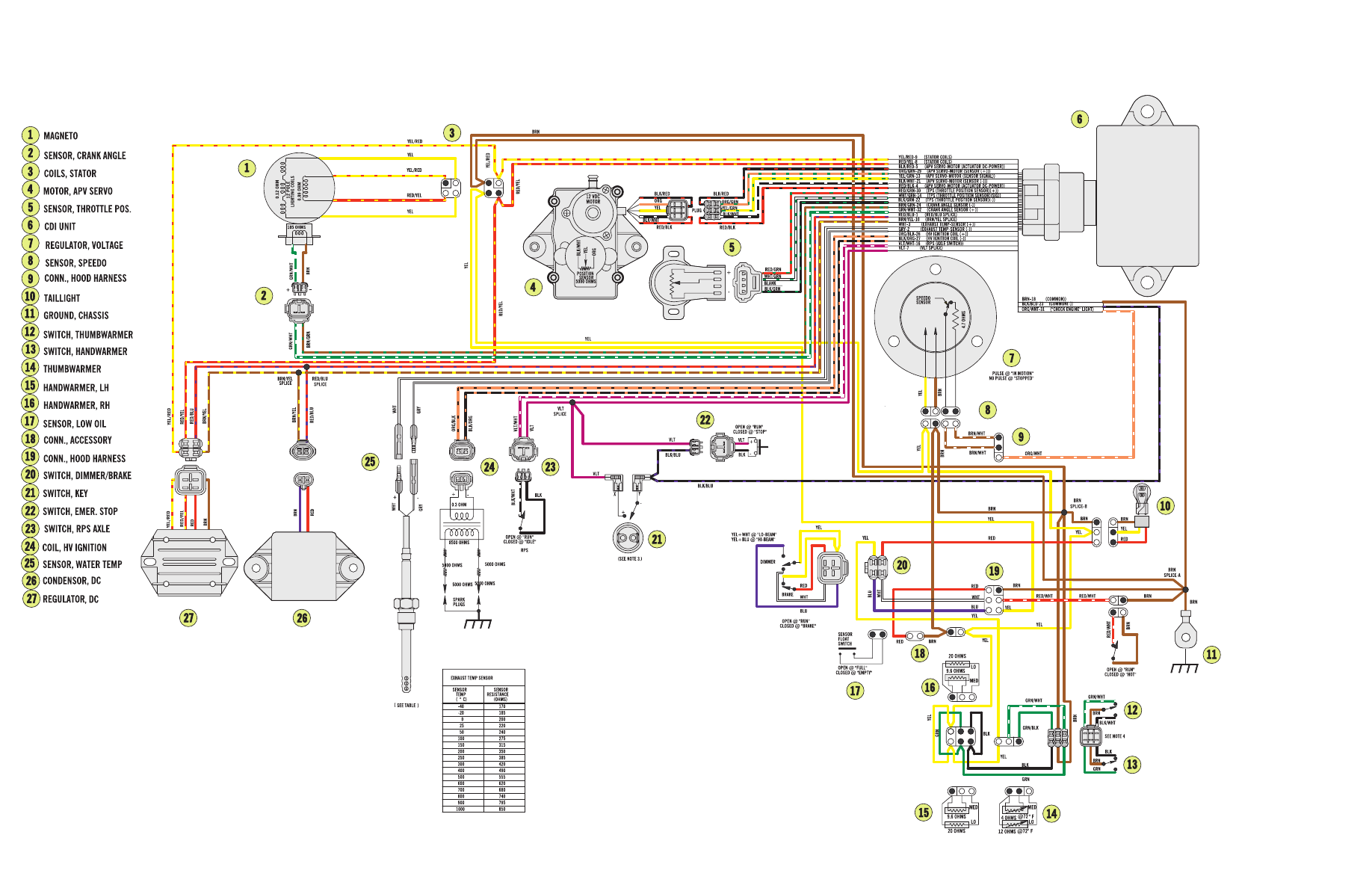

Harness B

(p/n 0686-951)

Firecat 500/500 Sno Pro

Firecat 600/600 Sno Pro

0739-106

6-11
