5-55

5

NOTES

5-56

2002 Wiring Diagram

Index

(Ignition)

This chart is designed to direct the technician to the

appropriate Ignition Harness Wiring Diagram. Select

the snowmobile model from the chart to determine the

correct diagram.

Snowmobile Models

Ignition Harness

Bearcat W/T

B

Mountain Cat 500

H

Mountain Cat 570

A

Mountain Cat 600 EFI/600
EFI LE

G

Mountain Cat 800/800 LE

I

Mountain Cat 800 EFI/800
EFI LE

K

Mountain Cat 1000

E

Pantera 550

B

Pantera 600 EFI

G

Pantera 800 EFI

K

Panther 440

D

Panther 570 esr/570 r

A

Thundercat

E

Z 370/370 es

D

Z 440/440 es

B

Snowmobile Models

Ignition Harness

Z 570/570 esr

A

Z 570 SS

A

ZL 500

H

ZL 550/550 esr

B

ZL 600 EFI/600 EFI esr

G

ZL 600 EFI SS

G

ZL 800 EFI esr

K

ZL 800 EFI SS

K

ZR 120

J

ZR 500

H

ZR 500/500 LE/500 CC

H

ZR 600

F

ZR 600 EFI/600 EFI CC

G

ZR 800/800 CC

I

ZR 800 EFI/800 EFI CC

K

ZRT 600

C

0737-378

5-57

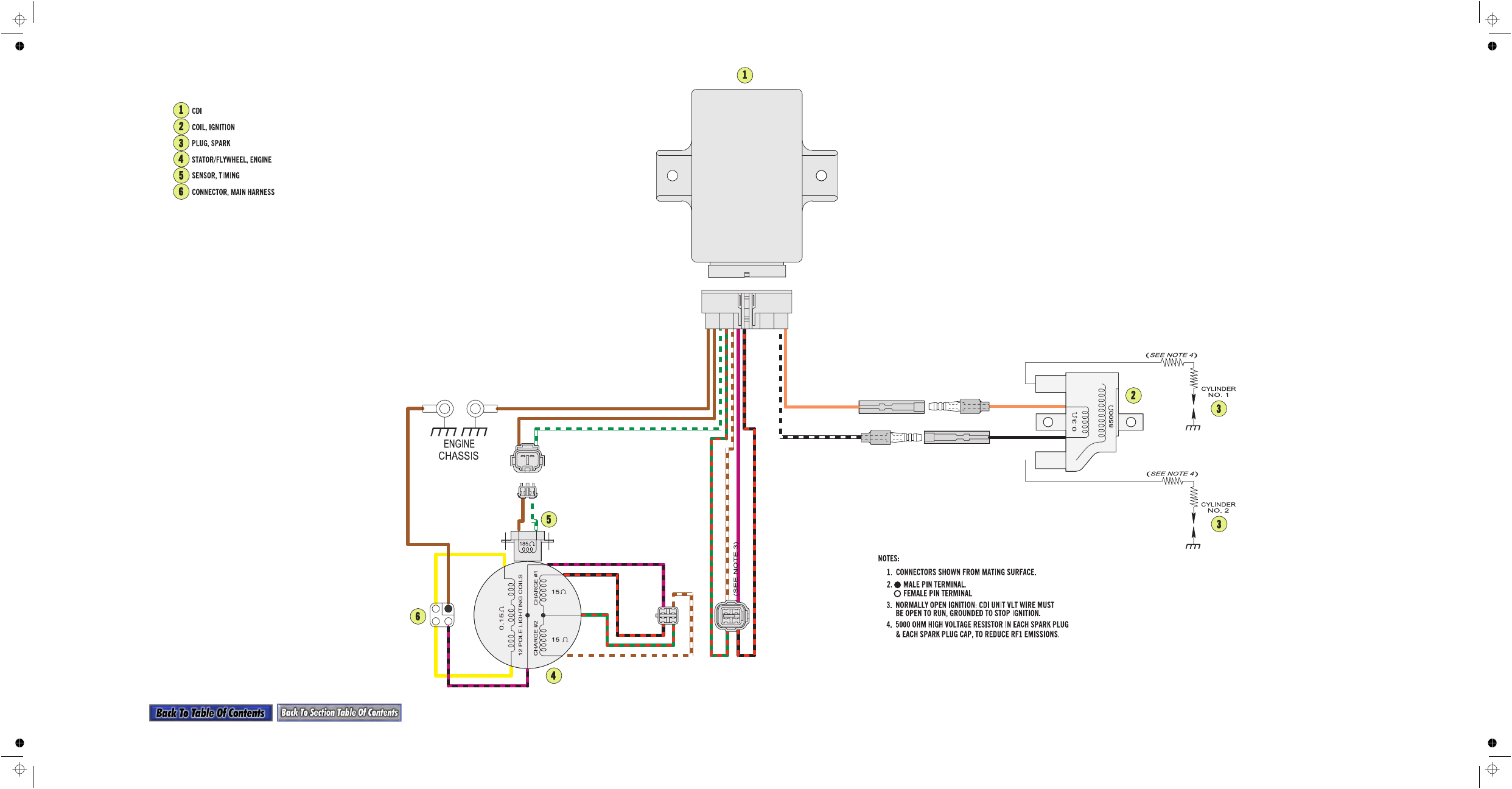

Harness A

0737-410

5-58

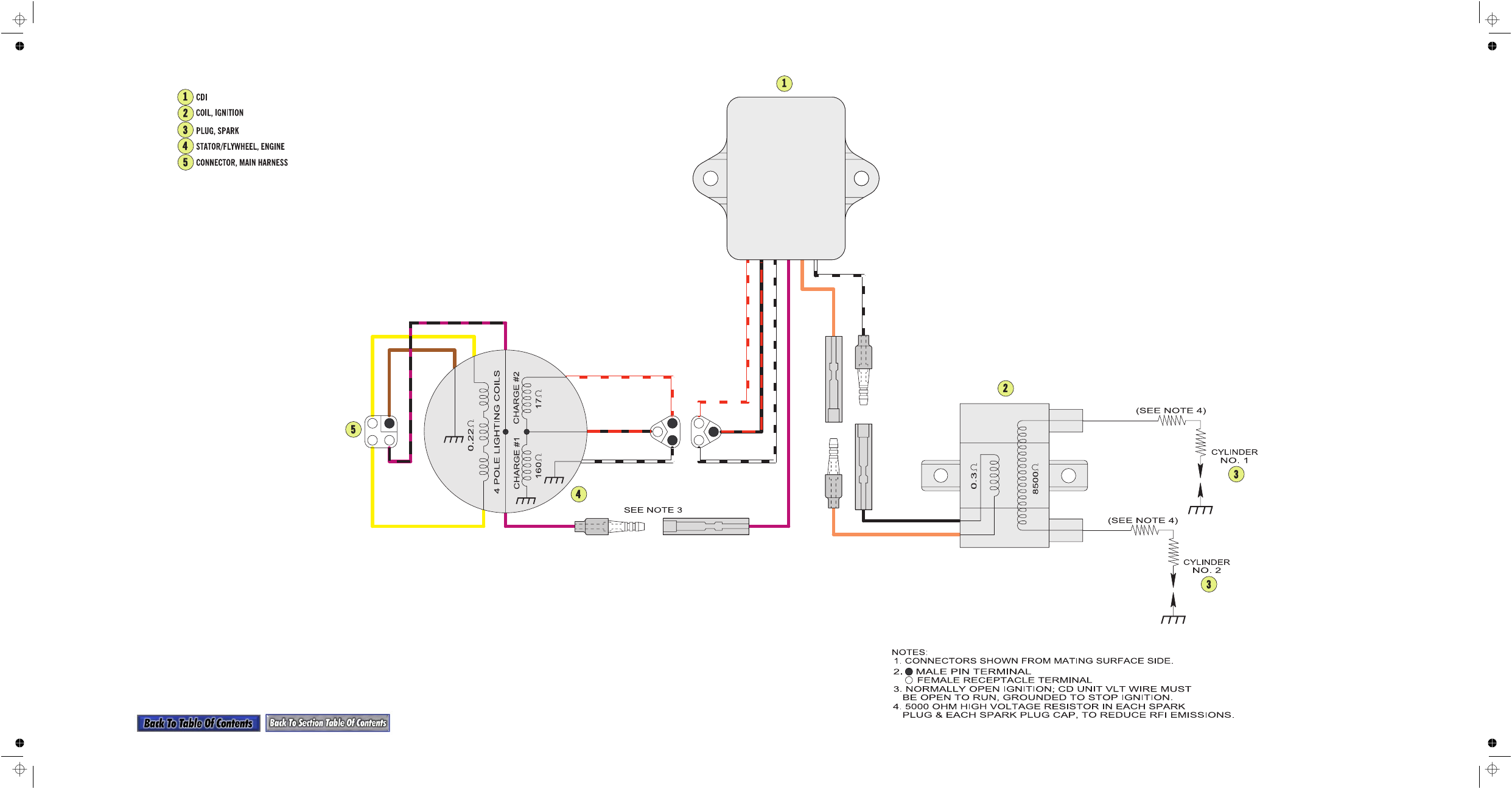

Harness B
