Servicing Symbols

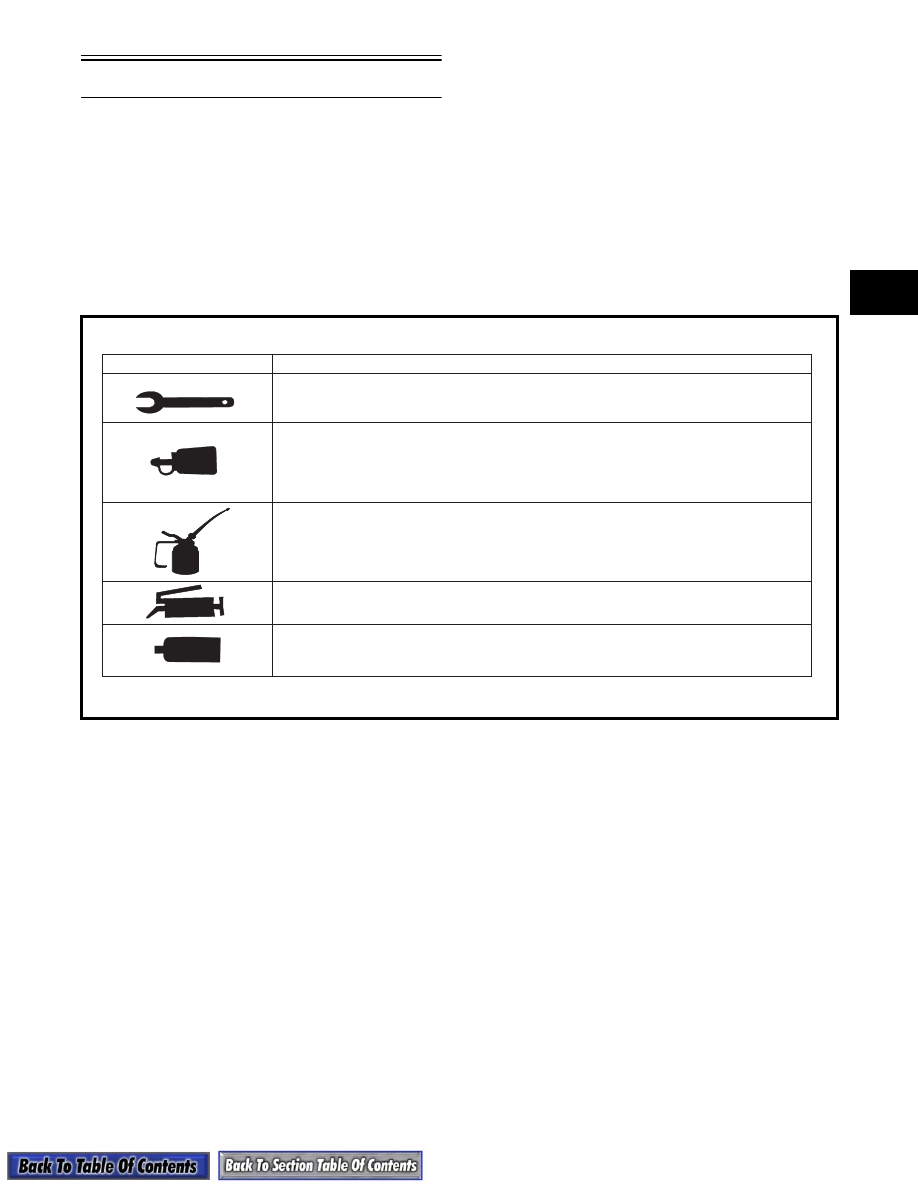

Listed in the table below are symbols indicating special

instructions and other important information necessary

for proper servicing. Please note the definition for each

symbol. These symbols are used throughout this two-vol-

ume set.

SYMBOL

DESCRIPTION

Torque control required

242 - apply blue Loctite #242 (p/n 1639-815)
243 - apply blue Loctite #243 (p/n 1639-413)
270 - apply green Loctite #270 (p/n 1639-817)
271 - apply red Loctite #271 (p/n 1639-820)
609 - apply green Loctite #609 (p/n 1639-821)

Lubricate with Arctic Cat 50:1 Injection Oil (p/n 0636-286)
Lubricate with Arctic Cat Extreme 50:1 Injection Oil (p/n 0639-112)

Lubricate with Arctic Cat Low-Temp Grease (p/n 0636-593)

3B - Three Bond Sealant (p/n 0636-070)
HT - High-Temp Sealant (p/n 0636-069)
AS - Anti-Seize Thread Compound (p/n 0678-146)

1-12

NOTES

2-1

SECTION 2 — ENGINE

TABLE OF

CONTENTS

2-2

Engine

This engine servicing section has been organized into

sub-sections which show a progression for the com-

plete servicing of the Arctic Cat engine. For consis-

tency purposes, this section shows a complete and

thorough progression; however, for efficiency it may

be preferable to remove the engine as a complete

assembly, to remove and disassemble only those com-

ponents which need to be addressed, and to service

only those components. Also, some components may

vary from model to model. The technician should use

discretion and sound judgment.

NOTE: Some illustrations and photographs used

in this section are used for clarity purposes only
and are not designed to depict actual conditions.

Removing Engine

Table of Contents

120 cc Model........................................................... 2-2
Twin F/C Models...................................................... 2-3
500/600/800 cc Twin Models................................... 2-5
550 cc Models ......................................................... 2-7
Triple Models ........................................................... 2-9

Removing Engine

(120 cc Model)

NOTE: The drive chain must be removed in order

to remove the engine (see Drive Chain and Sprock-
ets sub-section in Section 8).

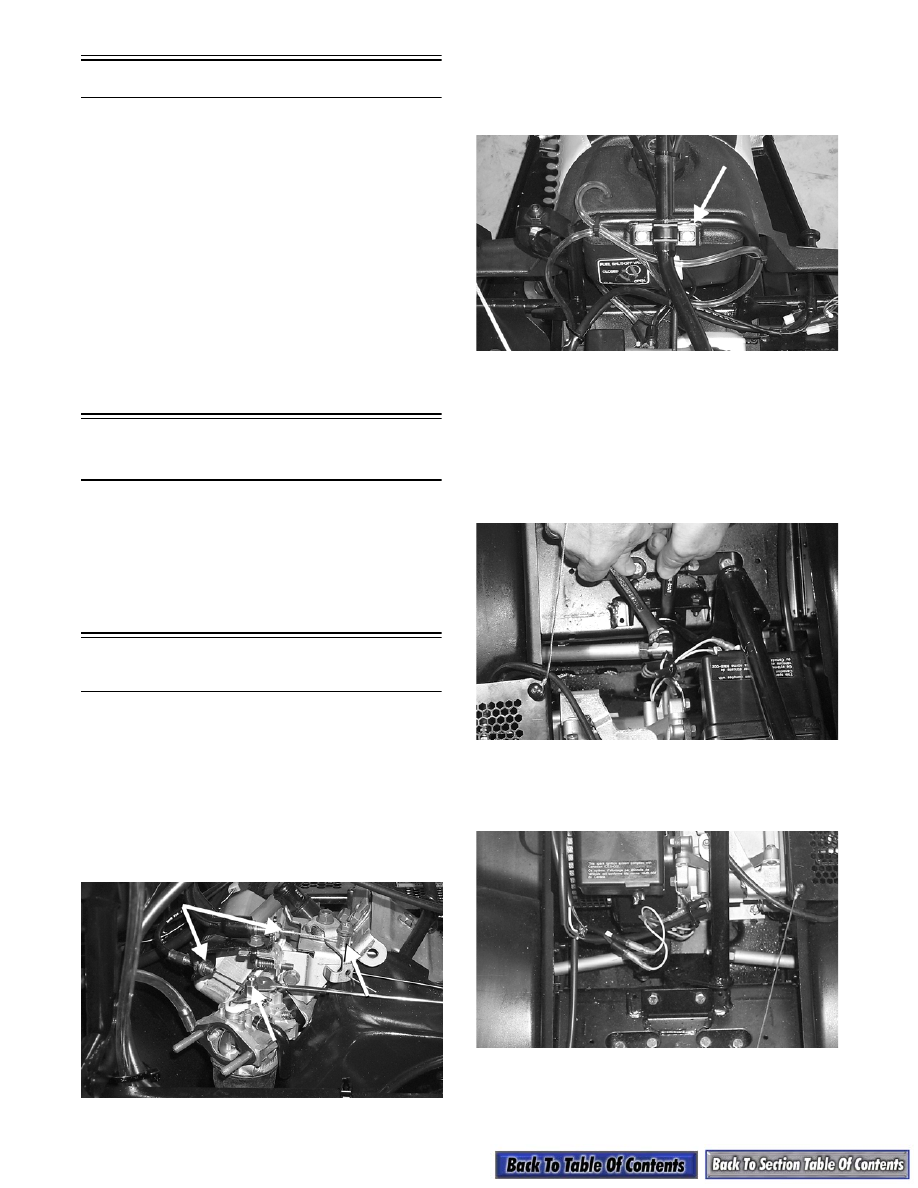

1. Disconnect the choke and throttle cables from the

carburetor; then on each cable, loosen the

adjustment jam nut closest to the carburetor and

remove the cables from the bracket. Route the

cables out of the way.

A046A

2. Remove the two cap screws securing the steering

post to the steering post support. Account for two

bearing halves, two lock nuts, and a bearing

retainer.

A023A

3. Pull the steering post up and back and then out of

the lower steering post bearing.

4. Remove the two lock nuts securing the tie rods to

the steering post; then remove the tie rods from the

steering post. Place the steering post out of the

way on the right-hand side of the engine

compartment.

A024

5. Cut the cable tie; then disconnect all wires (a total

of four) at the front of the engine. Route them out

of the way.

A047

6. Turn the gas tank shut-off valve to the CLOSED

position.
