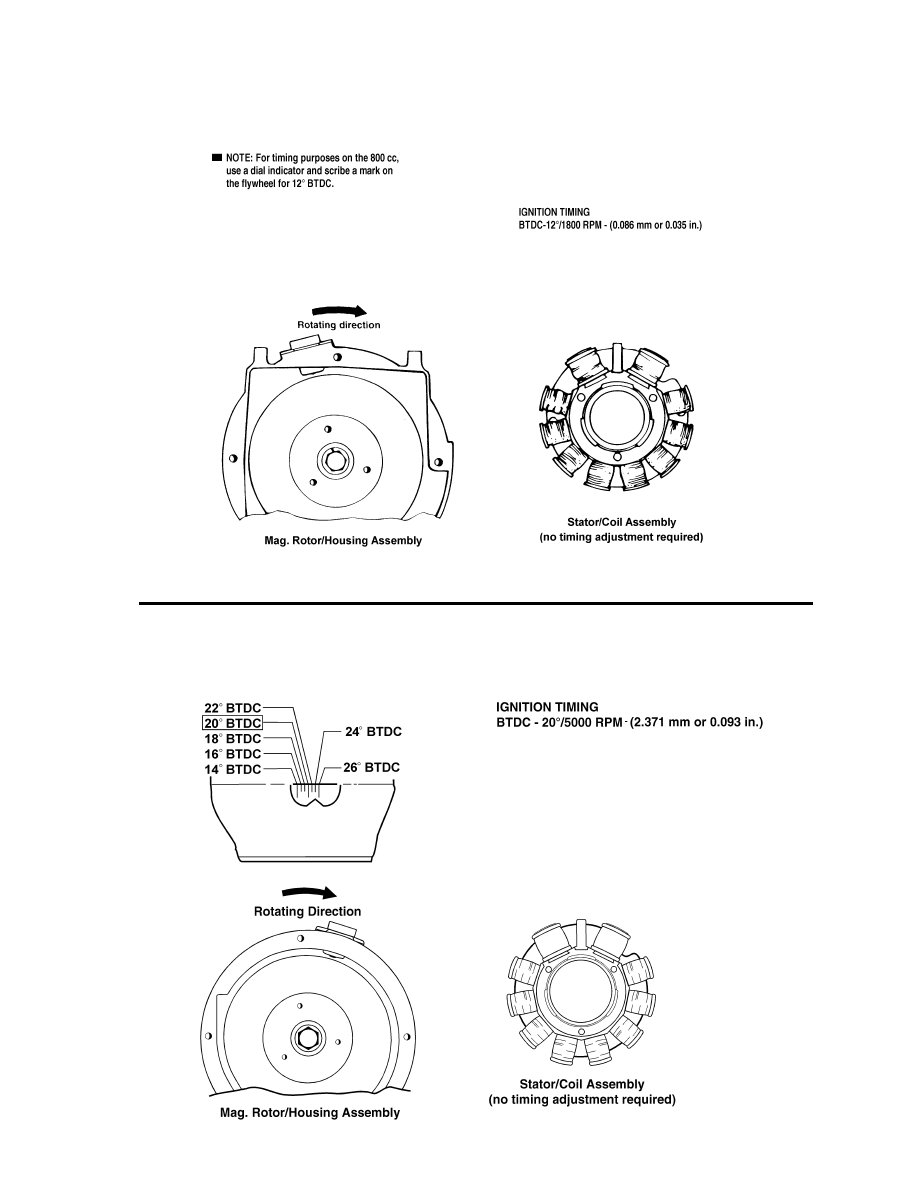

800 cc

731-248F

600 cc EFI

0734-460

5-58

Mag. Rotor/housing assembly

Stator/coil assembly
(no timing adjustment required)

Rotating direction

0.7

22 BTDC
20 BTDC
18 BTDC
16 BTDC
14 BTDC

24 BTDC

26 BTDC

IGNITION TIMING
BTDC - 24°/3250 RPM - (3.390 mm or 0.133 in.)

600 cc (Twin - Carbureted)

733-584B

Mag. Rotor/Housing Assembly

Stator/Coil Assembly

(no timing adjustment required)

Rotating Direction

0.7

25 BTDC
23 BTDC
21 BTDC
19 BTDC
17 BTDC

27 BTDC

29 BTDC

IGNITION TIMING
BTDC - 27°/4000 RPM - (4.625 mm or 0.182 in.)

700 cc

0734-491

5

5-59

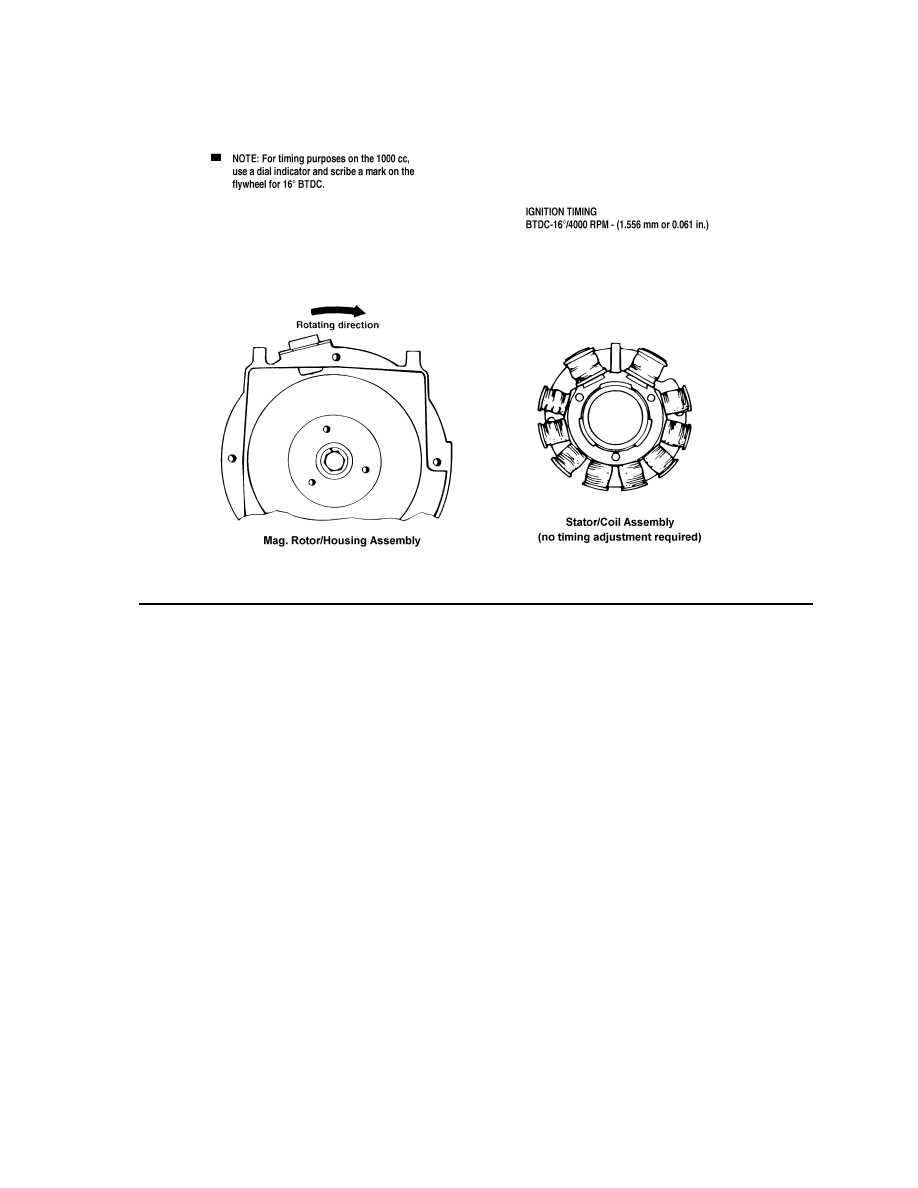

1000 cc

731-248G

5-60

2000 Wiring

Diagram Index

(Ignition)

This chart is designed to direct the technician to the
appropriate Ignition Harness Wiring Diagram. Select
the snowmobile model from the chart to determine the
correct diagram.

Snowmobile Models

Ignition Harness

Bearcat 340

A

Bearcat 440 I

A

Bearcat 440 II

A

Bearcat W/T

B

Pantera 580 EFI

C

Pantera 1000

G

Panther 340

A

Panther 440

A

Panther 550

B

Powder Special 500 EFI

C

Powder Special 500 EFI LE

C

Powder Special 600

I

Powder Special 600 LE

I

Powder Special 600 EFI

J

Powder Special 600 EFI LE

J

Powder Special 700

H

Powder Special 700 LE

H

Thundercat

G

Thundercat M/C

G

Triple Touring 600

D

Snowmobile Models

Ignition Harness

Z 370

B

Z 440

B

ZL 440

E

ZL 500

F

ZL 500 EFI

C

ZL 550

B

ZL 580 EFI

C

ZL 600

I

ZL 600 EFI

J

ZL 700

H

ZR 500

F

ZR 500 EFI

C

ZR 600

I

ZR 600 EFI

J

ZR 600 EFI LE (Clicker)

J

ZR 600 EFI LE (Reverse)

J

ZR 700

H

ZR 700 LE (Clicker)

H

ZR 700 LE (Reverse)

H

ZRT 600

D

ZRT 800

G

5
