CAUTION:

Do not shift from “FWD” to “REV” or from “REV” to
“FWD” while the snowmobile is moving. Otherwise,
the drive system could be damaged.

NOTE:

The reverse buzzer beeps while the shift lever is in
reverse.

2. Release the parking brake by moving the parking

brake lever to the right.

3. Press the throttle lever slowly to move the snowmo-

bile.

4. Turn the handlebar in the desired direction.
5. Squeeze the brake lever to stop the snowmobile.
6. Apply the parking brake by moving the parking brake

lever to the left.

ESU00136

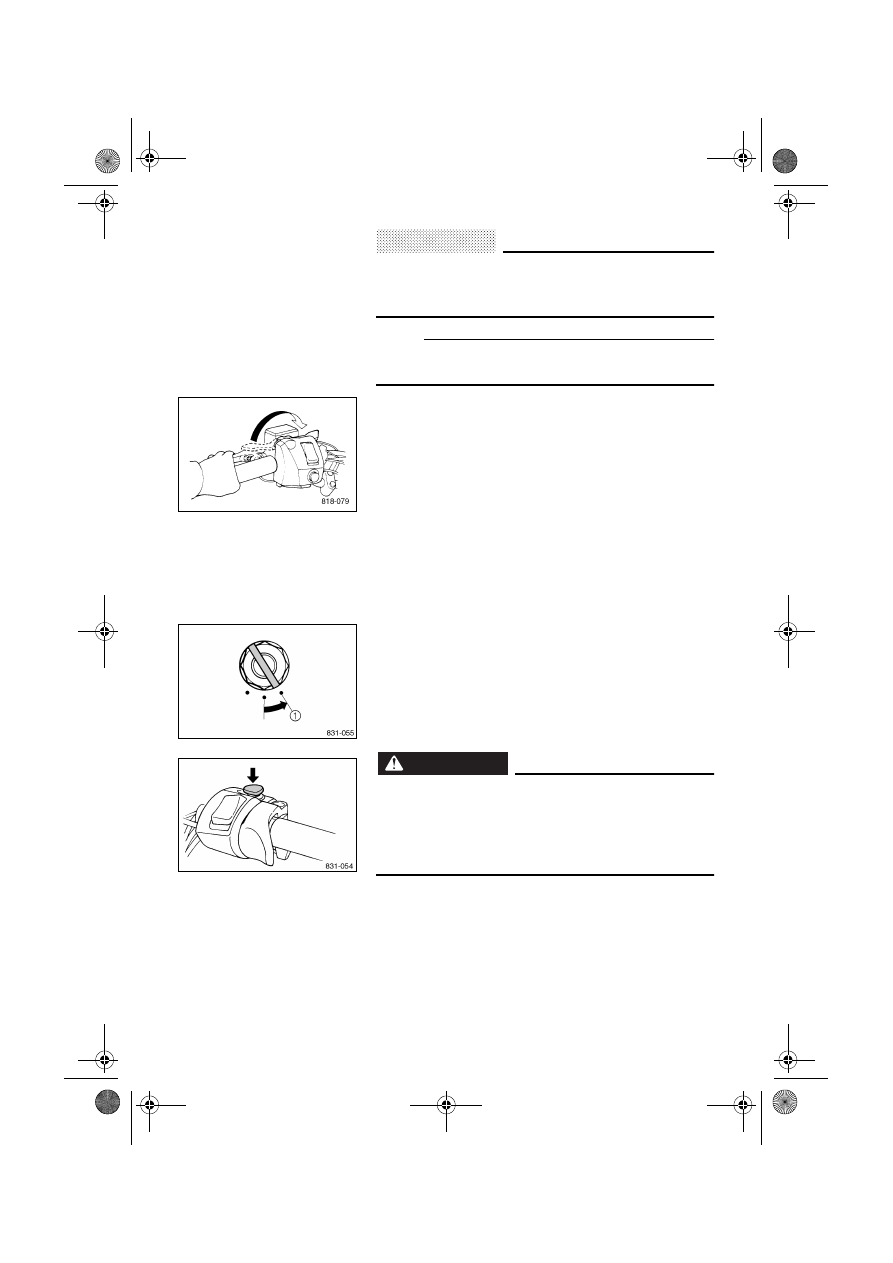

Stopping the engine

Turn the main switch to the “OFF” position to stop the
engine.

1 “OFF”

WARNING

●

Push down the engine stop switch to stop the
engine in an emergency.

●

Make sure that the key is removed from the main
switch whenever the operator leaves the snow-
mobile, to prevent accidental starting.

7-11

ESU00367

Transporting

When transporting your snowmobile on a trailer or in a
truck, observe the following recommendations to help
protect it from damage:

●

Make sure that the fuel level in the fuel tank is lower
than the bottom of the carburetors. Otherwise, the
vibration and bumps from the road surface could
make it possible for fuel to flow through the carbure-
tors into the cylinders. This can result in “hydrostatic
lock,” a condition where the engine cannot rotate
because of fuel accumulated in the engine. Severe
engine damage can result from hydrostatic lock.
When possible, the fuel tank should be empty during
transportation, especially if the trip takes longer than
30 minutes.

●

If transporting the snowmobile in an open trailer or
truck, put a tight fitting cover on the snowmobile. A
cover specifically designed for your snowmobile is
best. This will help keep foreign objects out of the
cooling vents in the shroud, and also help protect the
snowmobile against damage from debris on the road.

●

If transporting the snowmobile in an open trailer or
truck in areas where road salt is used, coat metal
suspension surfaces lightly with oil or another pro-
tectant. This will help protect against corrosion. Be
sure to clean the snowmobile when you get to your
destination to remove any corrosive salts.

8-1

ESU00139

PERIODIC MAINTENANCE

ESU00140

Periodic maintenance chart

Regular maintenance is most important for best performance and safe operation.

CD-01E

Item

Remarks

Pre-

operation

check

(Daily)

Initial

1 month

800 km

(500 mi)

(40 hr)

Every

Page

Seasonally

3,200 km

(2,000 mi)

(160 hr)

Spark plugs

Check condition.
Adjust gap and clean.
Replace if necessary.

●

8-4–8-5

∗ Valve clearance

Check clearance.
Adjust clearance when engine
is cold.

Every 40,000 km (25,000 mi)

8-10

Engine oil

Check oil level.

●

6-2–6-3

∗ Replace.

●

∗ Engine oil filter

cartridge

Replace.

●

Every
20,000 km
(12,000 mi)

Fuel

Check fuel level.

●

6-1–6-2

∗ Fuel filter

Check condition.
Replace if necessary.

●

∗ Fuel line

Check fuel hose for cracks or
damage.
Replace if necessary.

●

Engine coolant

Check coolant level.

●

6-4,

8-13–8-14

∗ Air bleed the cooling system

if necessary.

●

8-13

Carburetor

Check throttle lever operation.

●

5-2, 6-5

∗ Adjust the jets.

Whenever operating condition
(elevation/temperature) is changed.

Engine stop switch

Check operation.
∗ Repair if necessary.

●

5-10

Throttle override
system (T.O.R.S.)

Check operation.
∗ Repair if necessary.

●

5-3, 6-5

Throttle lever

Check operation.
∗ Repair if necessary.

●

5-2, 6-5

∗ Exhaust system

Check for leakage.
Tighten or replace gasket if
necessary.

●

∗ Decarbonization

More frequently if necessary.

●

∗ It is recommended that these items be serviced by a Yamaha dealer.

8-2

Drive guard

Check for cracks, bends or
damage.
∗ Replace if necessary.

●

5-12, 6-7

V-belt

Check for wear and damage.
Replace if necessary.

●

6-7,

8-15–8-17

Drive track and idler
wheels

Check deflection, and for wear
and damage.
∗ Adjust/replace if necessary.

●

6-8,

8-26–8-28

Slide runners

Check for wear and damage.

●

6-8

∗ Replace if necessary.

●

Brake and parking
brake

Check operation and fluid
leakage.

●

5-10–5-11,

6-6–6-7

8-19–8-20

∗ Adjust free play and/or re-

place pads if necessary.

●

∗ Replace brake fluid.

See NOTE on page 8-3.

8-20

∗ Disc brake

installation

Check for slight free play.
Lubricate shaft with specified
grease as required.

Every
1,600 km
(1,000 mi)

Drive chain oil

Check oil level.

●

8-17–8-18

∗ Replace.

●

Drive chain

Check deflection.
∗ Adjust if necessary.

Initial at 500 km (300 mi) and every
800 km (500 mi) thereafter.

8-18

Skis and ski runners

Check for wear and damage.

●

6-9

∗ Replace if necessary.

●

Steering system

Check operation.

●

6-9

∗ Adjust toe-out if necessary.

●

Strap (RX10M/RX10MS)

Check for damage.
∗ Replace if necessary.

●

Lights

Check operation.
Replace bulbs if necessary.

●

6-9, 8-31

Item

Remarks

Pre-

operation

check

(Daily)

Initial

1 month

800 km

(500 mi)

(40 hr)

Every

Page

Seasonally

3,200 km

(2,000 mi)

(160 hr)

∗ It is recommended that these items be serviced by a Yamaha dealer.
