Snowmobile Yamaha Phazer PZ50W, PZ50GTW, PZ50FXW, PZ50MW, PZ50VTW, PZ50MPW. Manual - part 76





8-16

+

ELEC

ELECTRICAL STARTING SYSTEM

Inspection

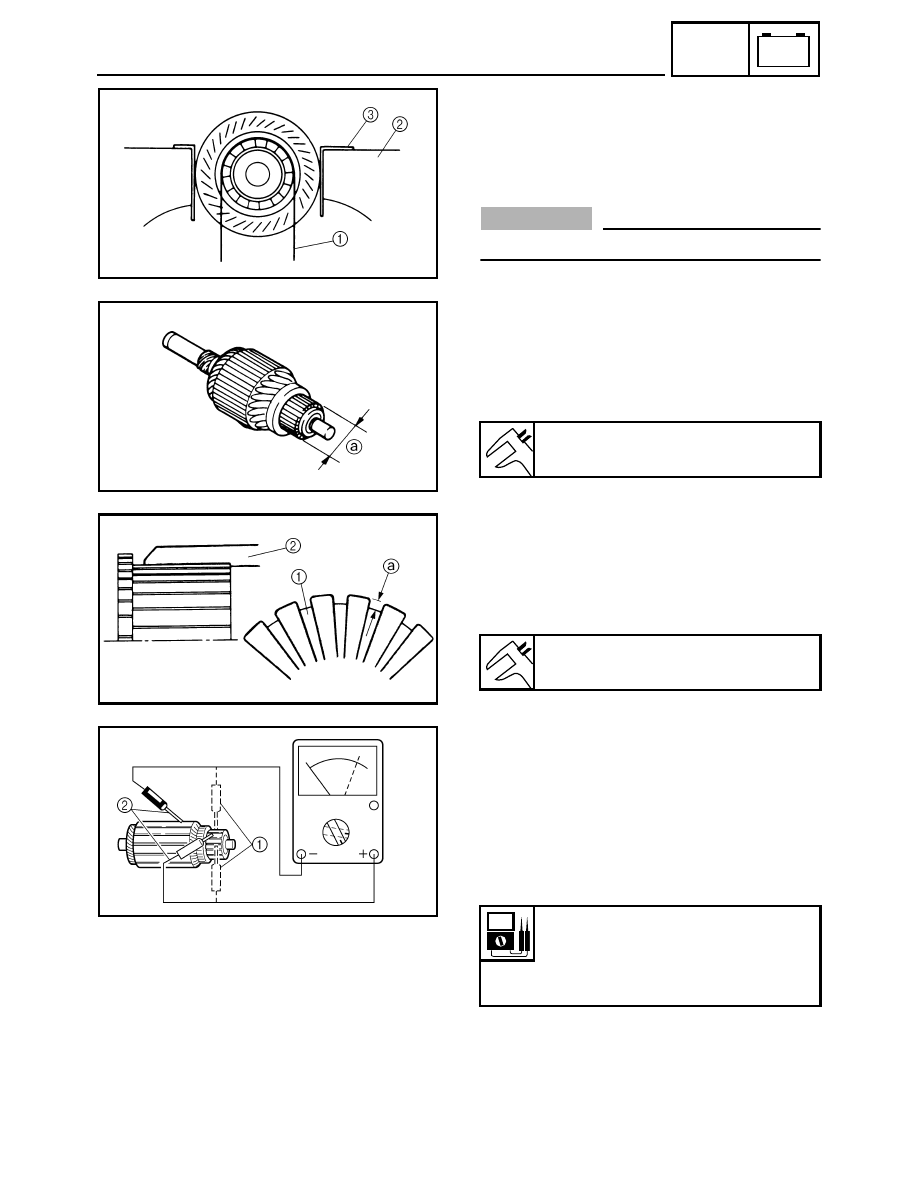

1. Inspect:

• Commutator (outer surface)

Dirty

→ Clean with #600 grit sandpaper 1.

Hold the armature in a vise 2 and copper or
aluminium plate 3.

CAUTION:

Lightly grip the armature with a vise.

2. Measure:

• Commutator diameter

Measure the diameter

a of the commutator at

points where the brush comes in contact.
Out of specification

→ Replace the starter

motor.

Commutator diameter wear limit:

23.5 mm (0.93 in)

3. Measure:

• Mica undercut (insulation depth)

(between commutator segments)
Out of specification

→ Scrape mica 1 to

proper limits.
Use a hacksaw blade 2 that is ground to fit.

Mica undercut:

1.5 mm (0.06 in)

4. Measure:

• Armature coil resistance

(insulation/continuity)
Defect(s)

→ Replace the starter motor.

Inspecting steps:

• Connect the pocket tester for the continuity

check 1 and the insulation check 2.

• Measure the armature coil resistances.

• If the resistance is incorrect, replace the starter

motor.

Armature coil resistance:

Continuity check:

0.009 ~ 0.011

 at 20 °C (68 °F)

Insulation check:

More than 100 k

 at 20 °C (68 °F)

8-17

+

ELEC

ELECTRICAL STARTING SYSTEM

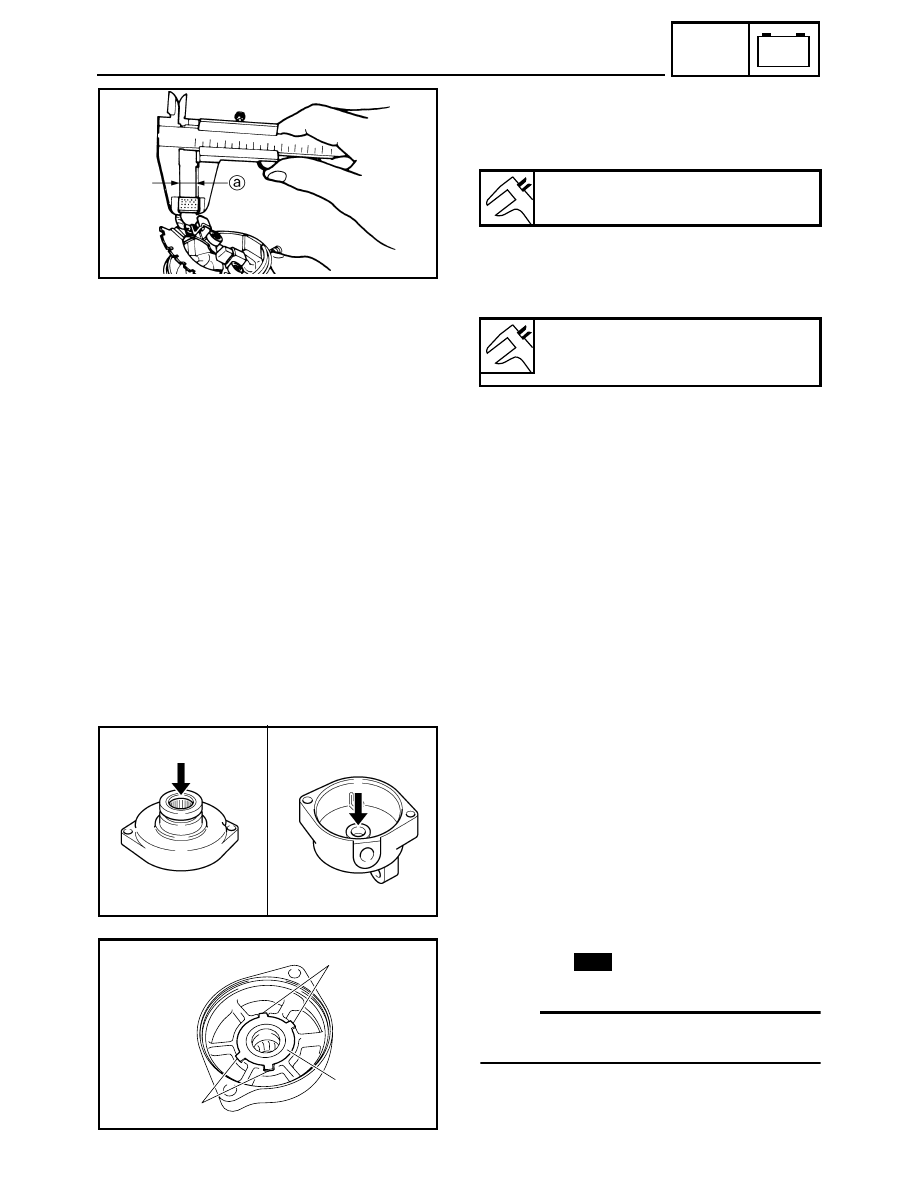

5. Measure:

• Brush length

Out of specification

→ Replace the starter

motor.

6. Measure:

• Brush spring pressure

Fatigue/out of specification

→ Replace as a

set.

7. Check:

• Bearing
• Oil seal
• Bushing

Damage/wear

→ Replace the defective

part(s).

Brush length wear limit:

3.65 mm (0.14 in)

Brush spring pressure:

5.28 ~ 7.92 N
(538 ~ 808 g, 19.01 ~ 28.51 oz)

Assembly
Reverse the “Disassembly” procedure.
Note the following points.

1. Before installing the front bracket and rear

bracket, apply bearing grease to the bearing
and bushing of the front bracket and rear
bracket.

2. Install:

• Oil seal
• Lock washer 1

NOTE:

Align the projection

a on the lock washer 1 with

the slot in the front bracket.

1

a

a

New

8-18

+

ELEC

3. Install:

• O-rings
• Rear bracket 1
• Starter motor yoke 2
• Front bracket 3

NOTE:

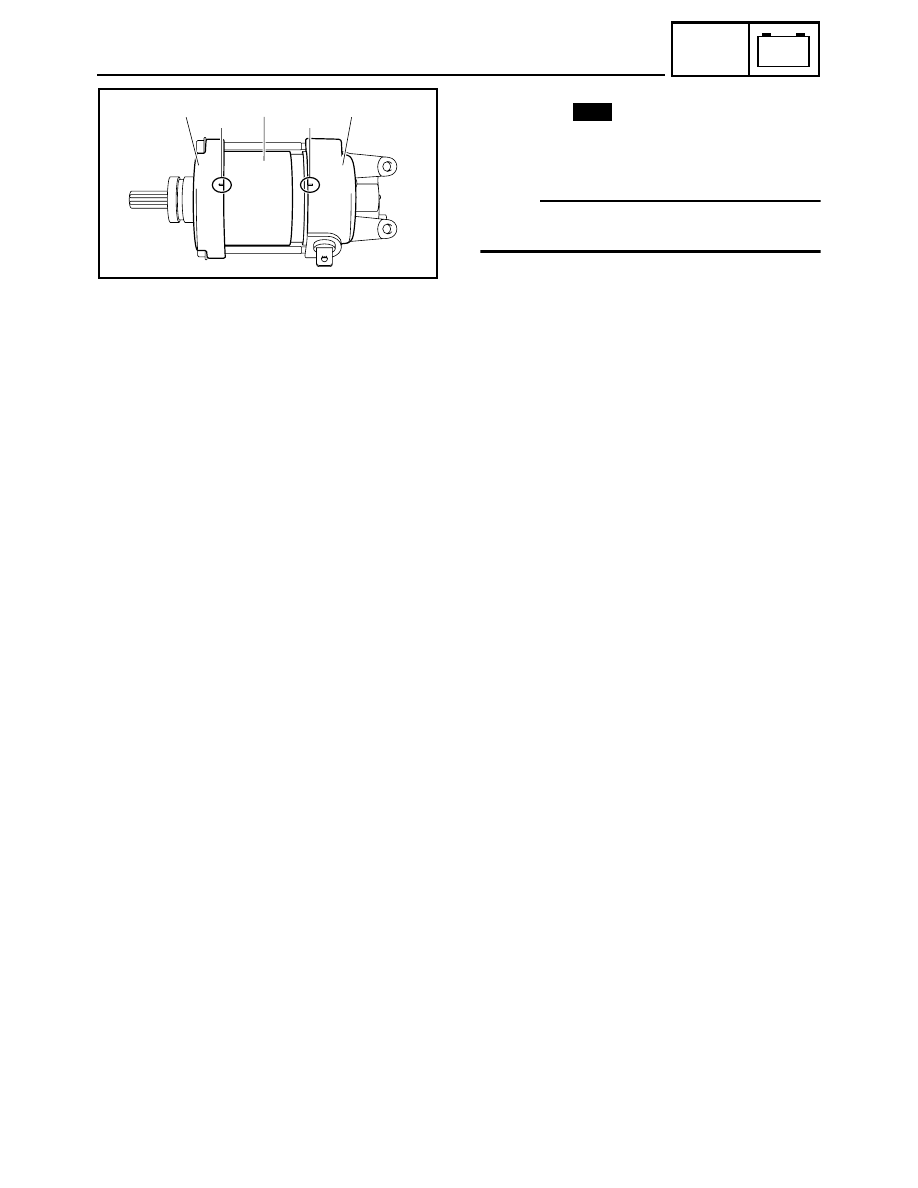

Align the match mark

a on the rear bracket with

the match mark

b on the front bracket.

1

3

2

b

a

New

ELECTRICAL STARTING SYSTEM

8-19

+

ELEC

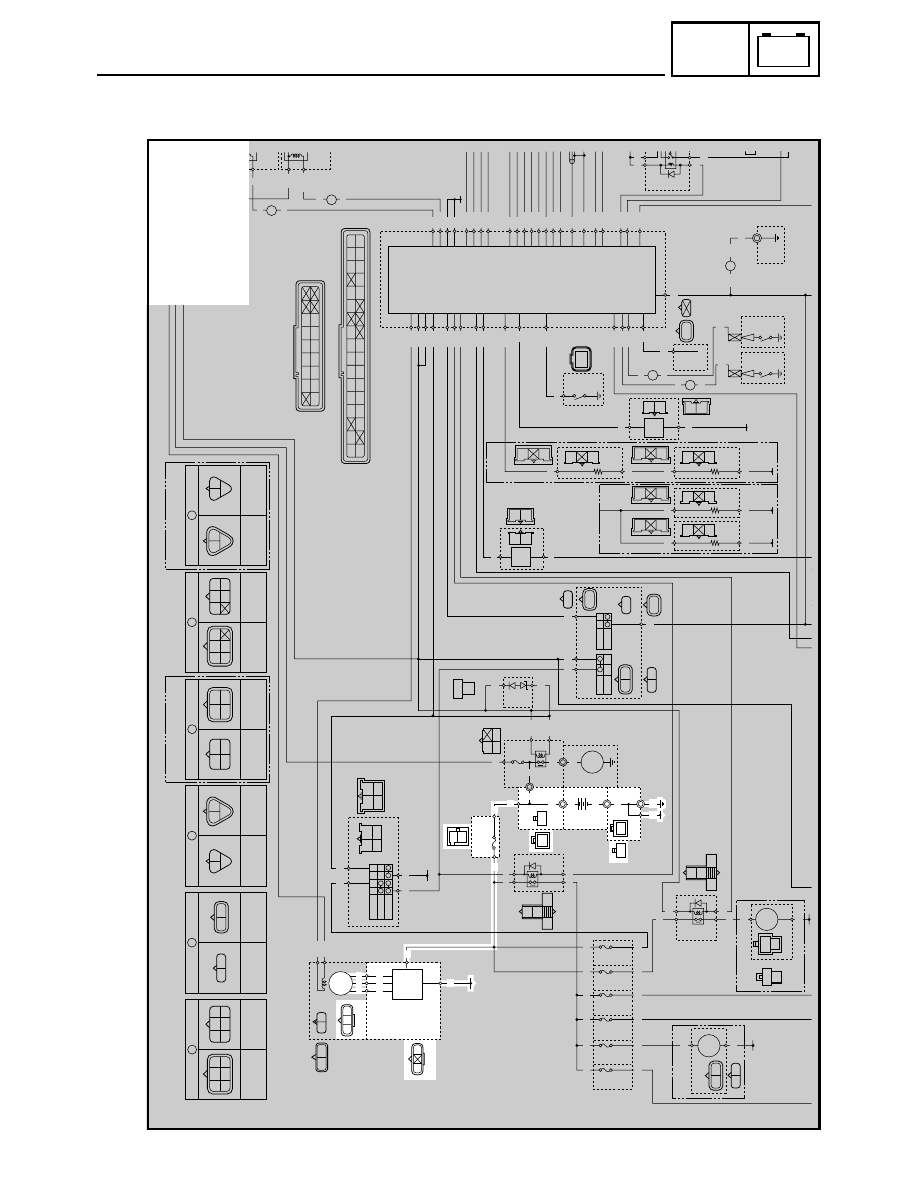

CHARGING SYSTEM

CHARGING SYSTEM

CIRC

UIT D
