8-4

–

+

ELEC

IGNITION SYSTEM

TROUBLESHOOTING

Check the main fuse and ignition fuse.
Refer to “FUSE INSPECTION” in CHAPTER 2.

Check the battery.
Refer to “BATTERY INSPECTION” in CHAPTER 2.

Check the spark plug gap.
Refer to “SPARK PLUGS” in CHAPTER 2.

Check the ignition spark gap.

Check the ignition coil resistance.

Check the crankshaft position sensor.

Check the engine stop switch, throttle switch and
main switch.

Check the throttle position sensor.
Refer to “THROTTLE BODY” in CHAPTER 7.

Check the ignition system’s wiring.
Refer to “CIRCUIT DIAGRAM”.

Correct the connection and/or ECU.

NO SPARK OR WEAK SPARK.

OK

FAULTY

Replace the main fuse and/or ignition fuse.

OK

OUT OF SPECIFICATION

Replace and/or charge the battery.
Refer to “BATTERY INSPECTION” in CHAPTER
2.

OK

OUT OF SPECIFICATION

Repair or replace the spark plug.
Refer to “SPARK PLUGS” in CHAPTER 2.

OK

OUT OF SPECIFICATION

Replace the ignition coil.

OK

OUT OF SPECIFICATION

Replace the ignition coil.

OK

OUT OF SPECIFICATION

Replace the stator coil assembly.

OK

FAULTY

Replace the right handlebar switch, and/or main
switch.

OK

FAULTY

Replace the throttle position sensor.

OK

FAULTY

Properly connect or repair the ignition system’s
wiring.

8-5

–

+

ELEC

IGNITION SYSTEM

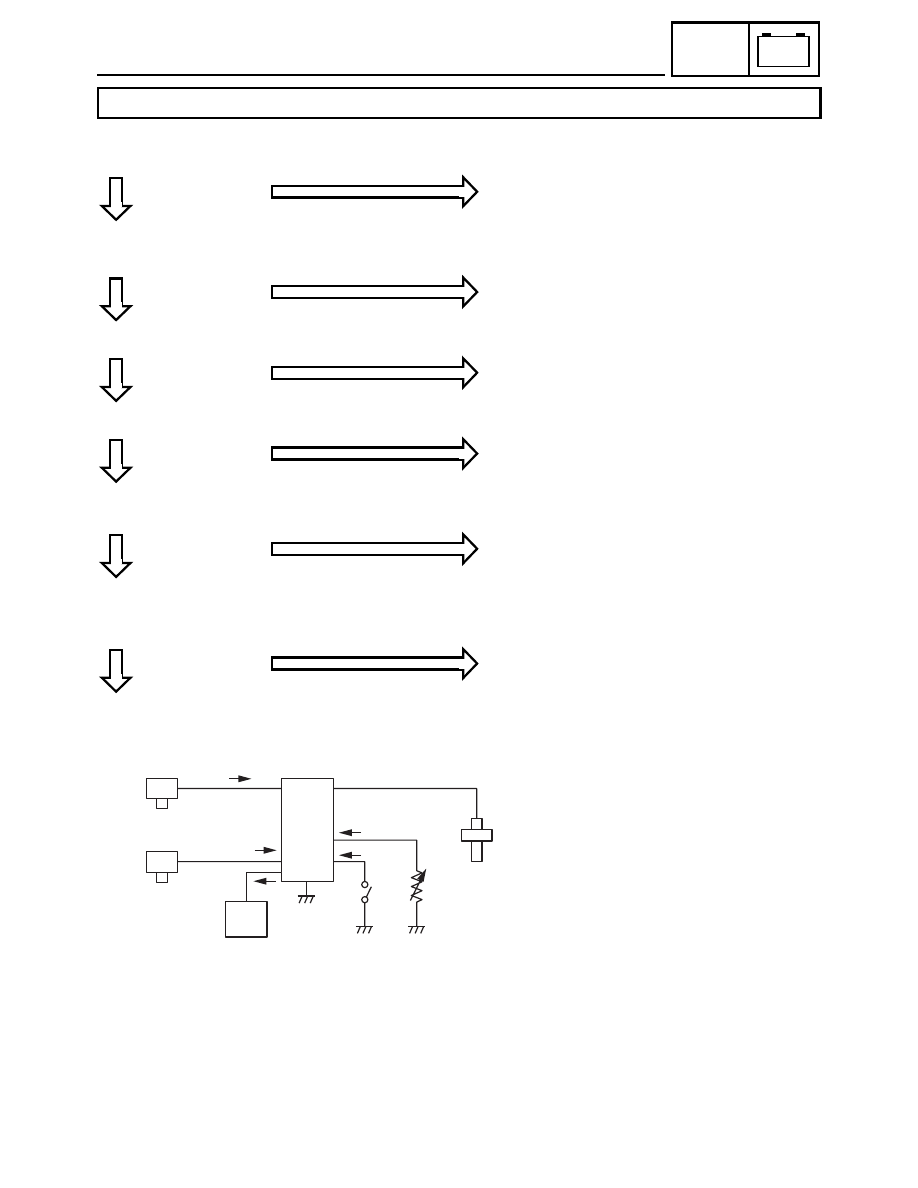

Is self-diagnosis code 15, 16, or 42 displayed?

Has throttle body icing occurred or is foreign
material stuck in the throttle body?

Is the throttle switch malfunctioning?

Is the throttle cable free play out of specification?

Was the engine revved with the V-belt removed?

Is the throttle position sensor, speedometer unit, or
speed sensor installed incorrectly?

Correct the connection and/or replace the
speedometer unit and/or ECU.

T.O.R.S. OPERATES.

NO

YES

Check the affected item(s).

NO

YES

Perform throttle body maintenance.

NO

YES

Repair or replace the throttle switch.

NO

YES

Adjust the throttle cable free play.
Refer to “THROTTLE CABLE FREE PLAY
ADJUSTMENT” in CHAPTER 2.

NO

YES

When the engine is revved with the V-belt
removed, the speed sensor is diagnosed as mal-
functioning and T.O.R.S. operates.

NO

YES

Install correctly.

1

2

3

4

5

6

7

9

8

1 Crankshaft position sensor
2 Engine speed
3 ECU (engine control unit)
4 Ignition
5 Throttle position sensor
6 Throttle switch
7 Speed
8 Speed sensor
9 Speedometer unit

8-6

–

+

ELEC

IGNITION SYSTEM

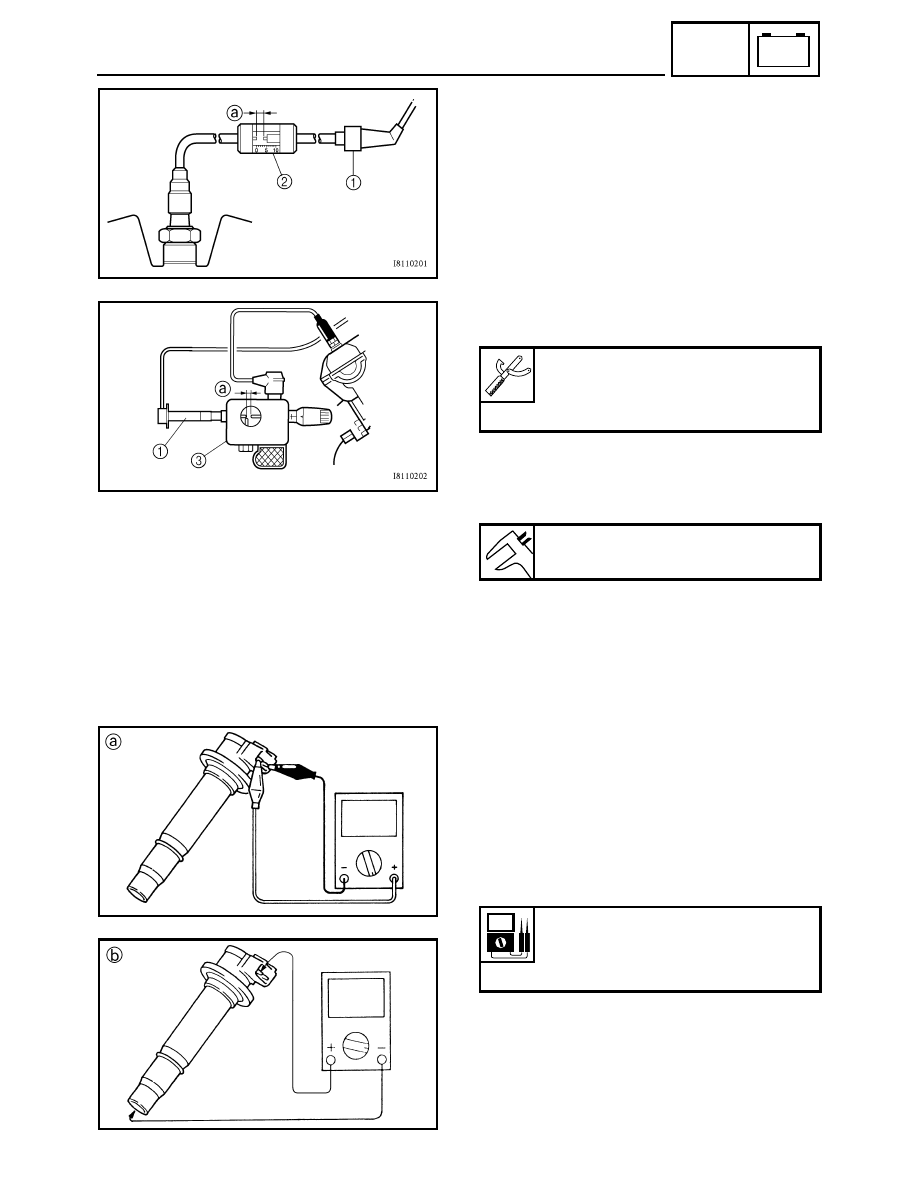

IGNITION SPARK GAP

1. Remove:

• Ignition coil

2. Measure:

• Ignition spark gap

Out of specification

→ Replace the ignition

coil.

Measurement steps:

• Disconnect the ignition coil 1 from the spark

plug.

• Connect the dynamic spark tester 2 or ignition

checker 3.

• Measure the ignition spark gap

a.

• Crank the engine by turning the main switch to

start and gradually increase the spark gap until
a misfire occurs.

È For USA/Canada
É For Europe

Dynamic spark tester:

YM-34487

Ignition checker:

90890-06754

Ignition spark gap:

6.0 mm (0.24 in)

È

É

IGNITION COIL

1. Disconnect:

• Ignition coil coupler

2. Connect:

• Pocket tester

3. Measure:

• Primary coil resistance

a

• Secondary coil resistance

b

Out of specification

→ Replace.

Primary coil resistance:

1.19 ~ 1.61

Ω at 20 °C (68 °F)

Secondary coil resistance:

8.5 ~ 11.5 k

Ω at 20 °C (68 °F)

8-7

–

+

ELEC

IGNITION SYSTEM

CRANKSHAFT POSITION SENSOR

1. Disconnect:

• Crankshaft position sensor coupler

2. Connect:

• Pocket tester

(to the crankshaft position sensor coupler)

3. Measure:

• Crankshaft position sensor resistance

Out of specification

→ Replace.

Crankshaft position sensor resis-
tance:

189 ~ 231

Ω at 20 °C (68 °F)

(Gray – Black)
