SECONDARY SHAFT AND REVERSE GEAR CASE

SECONDARY SHAFT AND REVERSE GEAR CASE

PZ50GT/PZ50FX/PZ50M/PZ50VT/PZ50MP

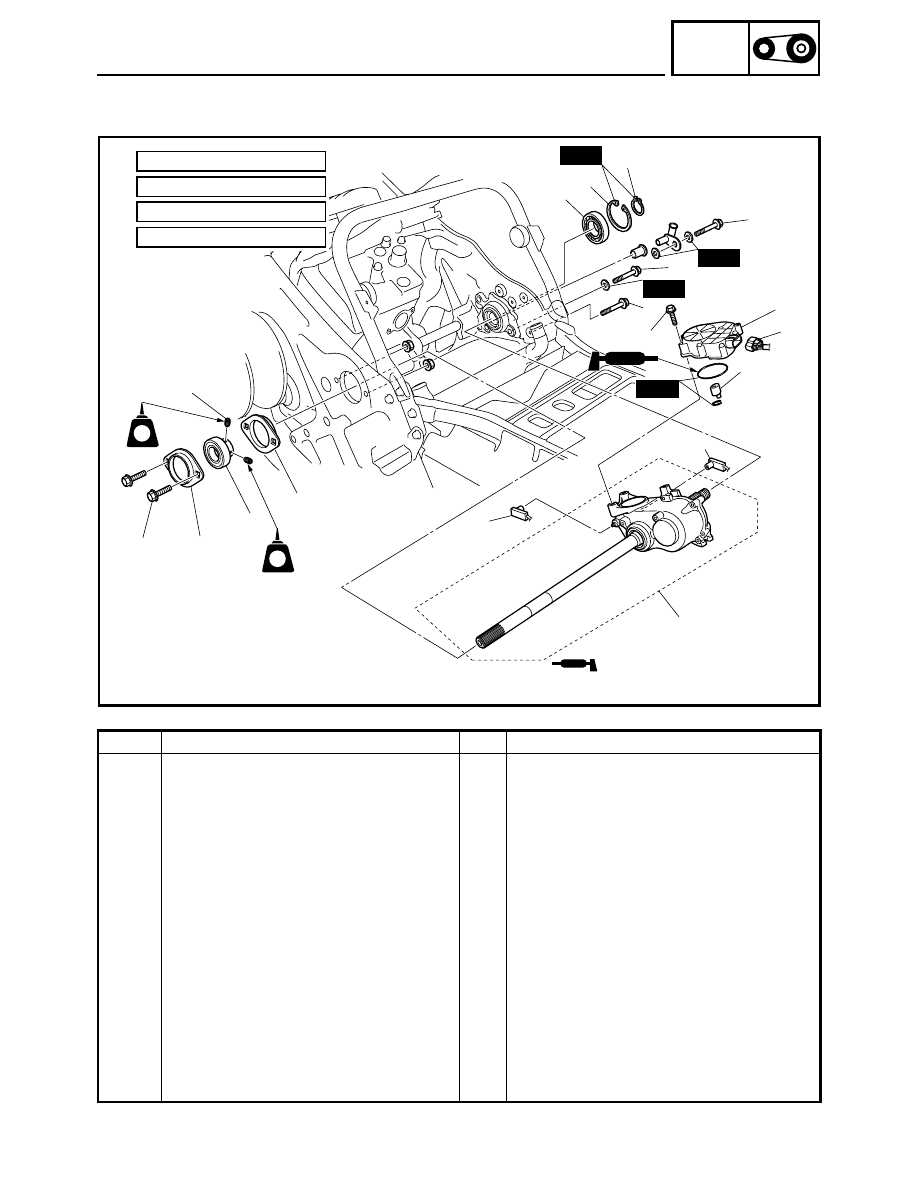

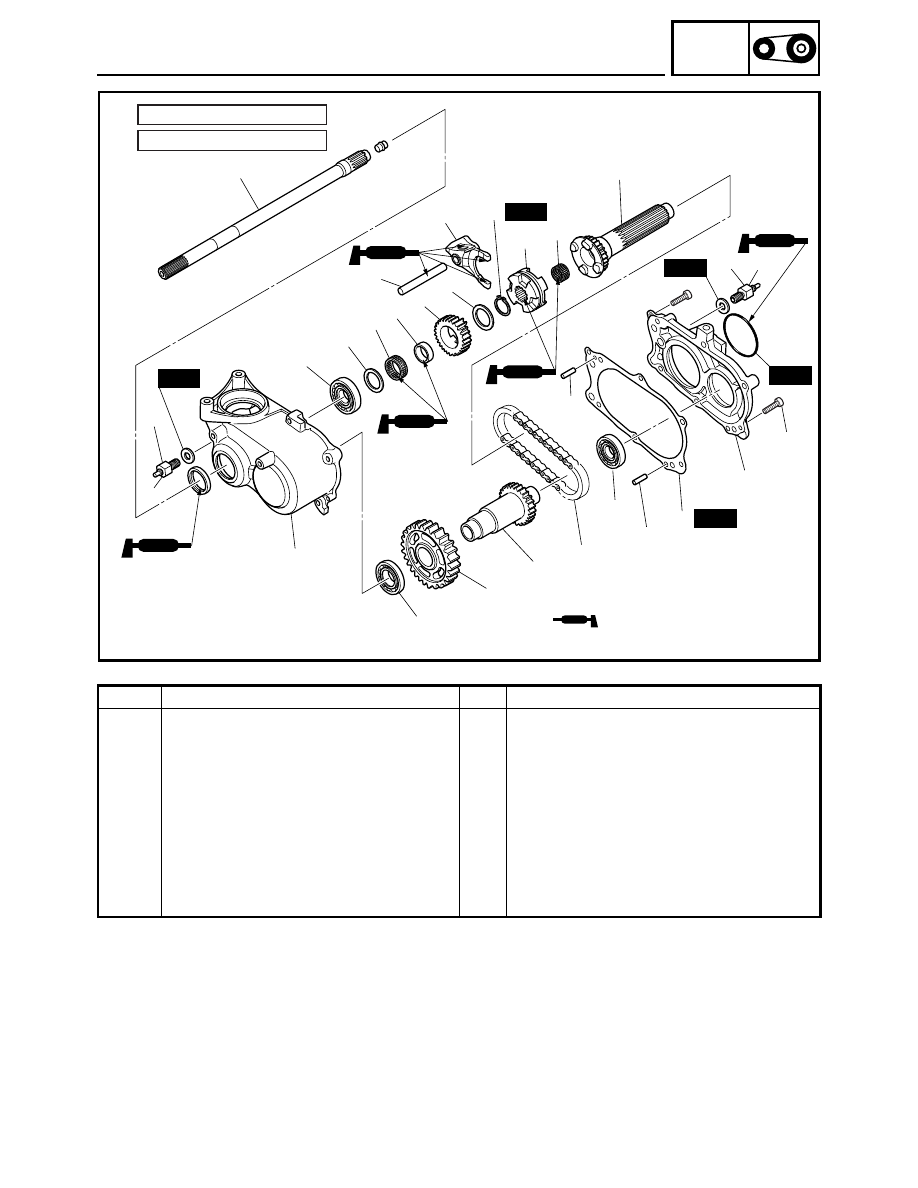

Order

Job name/Part name

Q’ty

Remarks

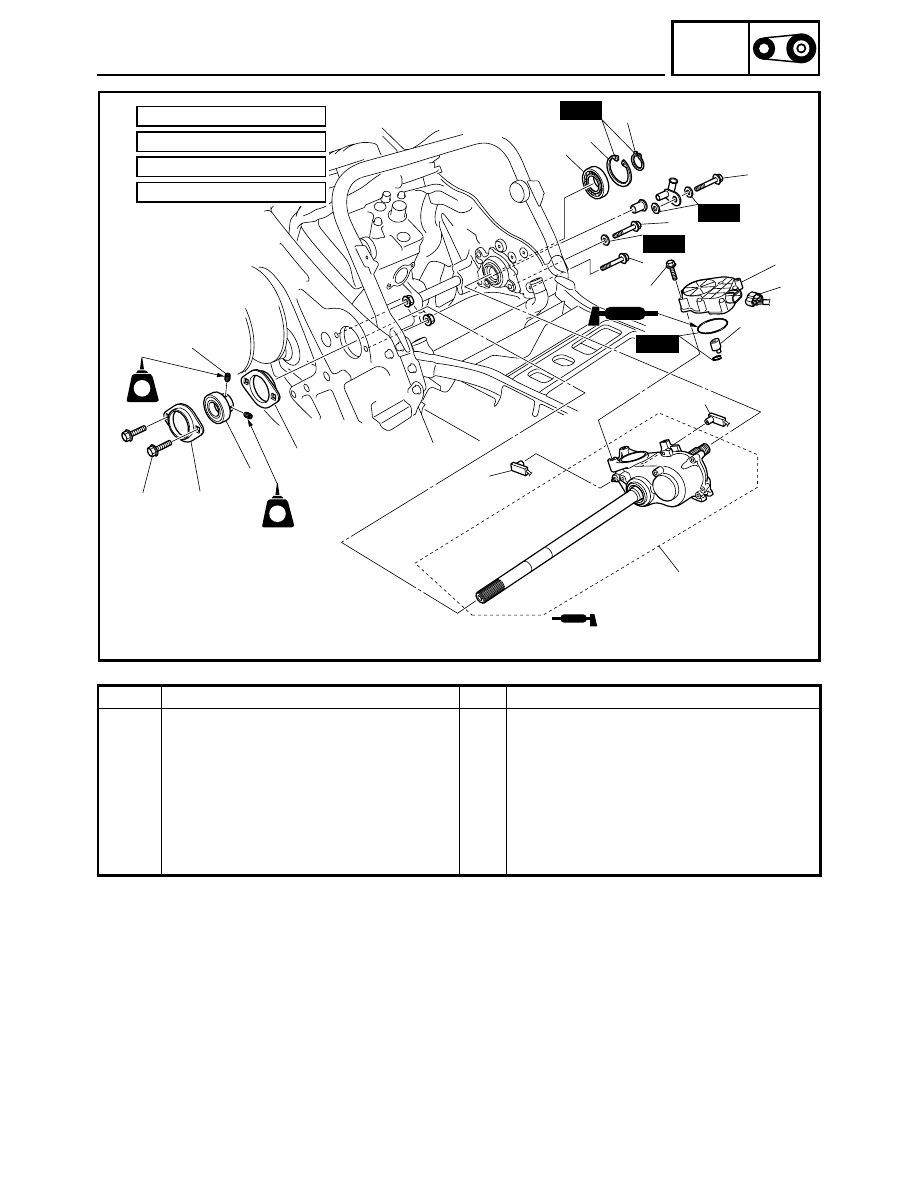

Secondary shaft and reverse gear case
removal

Remove the parts in the order listed below.

Secondary sheave assembly

Refer to “SECONDARY SHEAVE”.

Drive chain

Refer to “DRIVE CHAIN”.

Fuel tank

Refer to “SEAT AND FUEL TANK” in CHAP-
TER 5. (PZ50GT/PZ50FX/PZ50M)
Refer to “RIDER SEAT AND FUEL TANK” in
CHAPTER 5. (PZ50VT/PZ50MP)

Coolant reservoir/radiator outlet pipe 2

Refer to “RADIATOR AND HEAT
EXCHANGER” in CHAPTER 6.

Exhaust pipe joint lower cover

Refer to “EXHAUST PIPE AND MUFFLER” in
CHAPTER 5.

1

Bearing holder

2

2

Bearing

1

3

Circlip

1

4

Gear motor coupler

1

Disconnect.

5

Reverse position switch connector

1

Disconnect.

3

(3)

11

10

7

6

4

9

1

1

5

8

2

Ê

É

É

É

È

Ë

New

New

New

New

LT

LT

(4)

17 Nm (1.7 m

•

 kg, 12 ft

•

 lb)

10 Nm (1.0 m

•

 kg, 7.2 ft

•

 lb)

9 Nm (0.9 m

•

 kg, 6.5 ft

•

 lb)

24 Nm (2.4 m

•

 kg, 17 ft

•

 lb)

È:
É:
Ê:
Ë:

: 1 ESSO beacon 325 grease

or Aeroshell grease #7A

4-24

POWR

TR

Order

Job name/Part name

Q’ty

Remarks

6

Drive position switch connector

1

Disconnect.

7

Gear motor

1

8

Shift arm

1

9

Secondary shaft assembly

1

10

Circlip

1

11

Bearing

1

For installation, reverse the removal proce-
dure.

3

(3)

11

10

7

6

4

9

1

1

5

8

2

Ê

É

É

É

È

Ë

New

New

New

New

LT

LT

(4)

17 Nm (1.7 m

•

 kg, 12 ft

•

 lb)

10 Nm (1.0 m

•

 kg, 7.2 ft

•

 lb)

9 Nm (0.9 m

•

 kg, 6.5 ft

•

 lb)

24 Nm (2.4 m

•

 kg, 17 ft

•

 lb)

È:
É:
Ê:
Ë:

: 1 ESSO beacon 325 grease

or Aeroshell grease #7A

SECONDARY SHAFT AND REVERSE GEAR CASE

4-25

POWR

TR

SECONDARY SHAFT AND REVERSE GEAR CASE

Order

Job name/Part name

Q’ty

Remarks

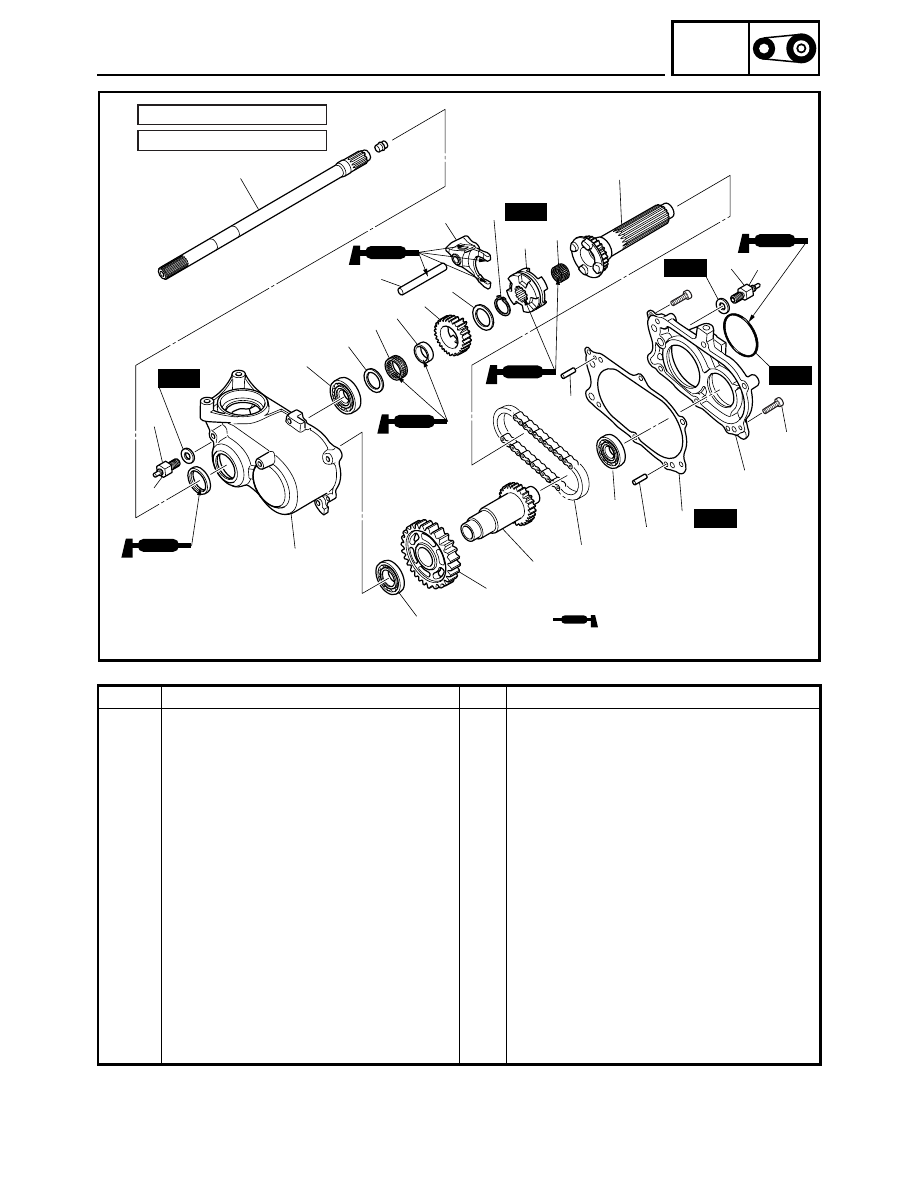

Secondary shaft and reverse gear case
disassembly

Remove the parts in the order listed below.

1

Drive position switch

1

2 Reverse

position

switch

1

3

Right reverse gear case

1

4 Gasket

1

5 Dowel

pin

2

6 Middle

shaft

1

7 Counter

axle

1

8 Chain

1

9 Reverse

driven

gear

1

0

Shift fork

1

A

Dog gear

1

B

Shift fork guide bar

1

C

Circlip

1

D

Washer

2

E

Reverse drive gear

1

I

B

0

K

D

G

F

E

D

C

A

M

6

5

5

8

4

3

1

J

7

9

L

H

2

É

6 Nm (0.6 m

•

 kg, 4.3 ft

•

 lb)

È:

17 Nm (1.7 m

•

 kg, 12 ft

•

 lb)

É:

New

New

New

New

New

È

É

: 1 ESSO beacon 325 grease

or Aeroshell grease #7A

4-26

POWR

TR

SECONDARY SHAFT AND REVERSE GEAR CASE

Order

Job name/Part name

Q’ty

Remarks

F Collar

1

G Bearing

1

H

Left reverse gear case

1

I Secondary

shaft

1

J Bearing

1

K Bearing

1

L Bearing

1

M Bearing

1

For assembly, reverse the disassembly pro-
cedure.

I

B

0

K

D

G

F

E

D

C

A

M

6

5

5

8

4

3

1

J

7

9

L

H

2

É

6 Nm (0.6 m

•

 kg, 4.3 ft

•

 lb)

È:

17 Nm (1.7 m

•

 kg, 12 ft

•

 lb)

É:

New

New

New

New

New

È

É

: 1 ESSO beacon 325 grease

or Aeroshell grease #7A
