9-9
SPEC
Throttle body:
Type
× Quantity
41EIDW
× 2
Manufacturer
MIKUNI
I.D. mark
8GL1 00
Throttle valve
(Th.V)
818-41005-100 (
θ = 10°)
Throttle cable free play
3.0 ~ 4.0 mm (0.12 ~ 0.16 in)
Engine idle speed
1,450 ~ 1,550 r/min
Fuel pump:
Type
Electrical
Model/Manufacturer
8GL/DENSO
Oil filter:
Oil filter type
Cartridge (paper)
Bypass valve opening pressure
78 ~ 118 kPa (0.78 ~ 1.18 kg/cm
2
, 11.1 ~ 16.8 psi)

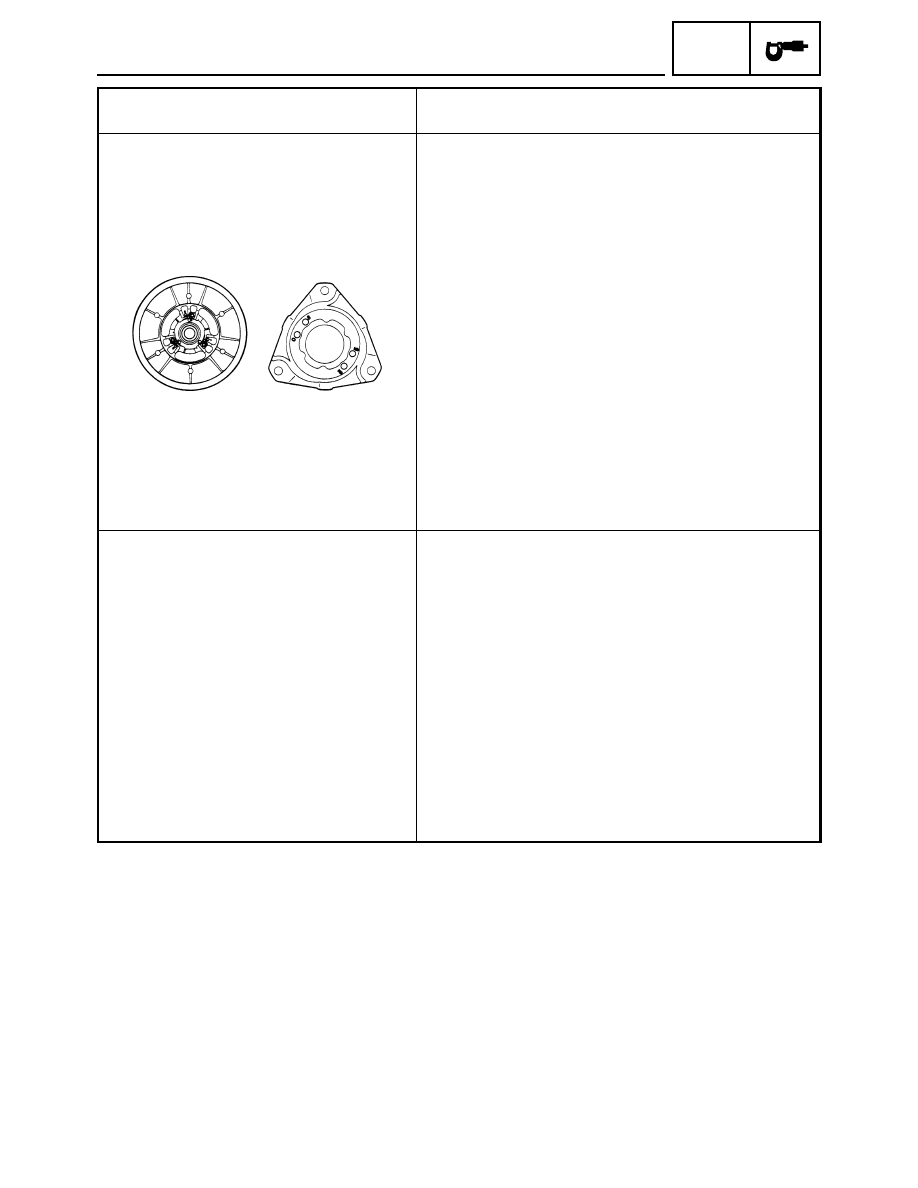

Oil pump:
Oil pump type
Trochoidal
Inner-rotor-to-outer-rotor-tip clearance
0.090 ~ 0.150 mm (0.0035 ~ 0.0059 in)
Outer-rotor-to-oil-pump-housing clearance
0.030 ~ 0.080 mm (0.0012 ~ 0.0032 in)
Relief valve operating pressure
440 ~ 560 kPa (4.40 ~ 5.60 kg/cm
2
, 63.8 ~ 81.2 psi)
Oil pressure (hot)
50.0 kPa (0.50 kg/cm
2
, 7.3 psi) at 1,400 r/min
Cooling system:
Radiator cap opening pressure
107.9 ~ 137.3 kPa (1.08 ~ 1.37 kg/cm
2
, 15.3 ~ 19.5 psi)
Thermostat opening temperature
69.0 ~ 73.0 °C (156.2 ~ 163.4 °F)
Valve lift
8.0 mm/85.0 °C (0.31 in/185.0 °F)
Water pump type
Single-suction centrifugal pump (Impeller type)
Coolant type
High-quality ethylene glycol antifreeze containing corrosion
inhibitors
Coolant mixing ratio (coolant: water)
3 : 2 (60% : 40%)
Capacity
3.40 L (2.99 Imp qt, 3.59 US qt)
(FX10/FX10RT/FX10RTR/FX10RTRA)
4.70 L (4.14 Imp qt, 4.97 US qt)
(FX10MT/FX10MTR/FX10MTRA)
Max. impeller shaft tilt
0.15 mm (0.0059 in)
Model
FX10/FX10RT/FX10RTR/FX10RTRA/FX10MT/FX10MTR/
FX10MTRA
