Snowmobile Yamaha FX10X, FX10RTX, FX10RTRX, FX10RTRAX, FX10MTX, FX10MTRX, FX10MTRAX. Manual - part 71

7-14

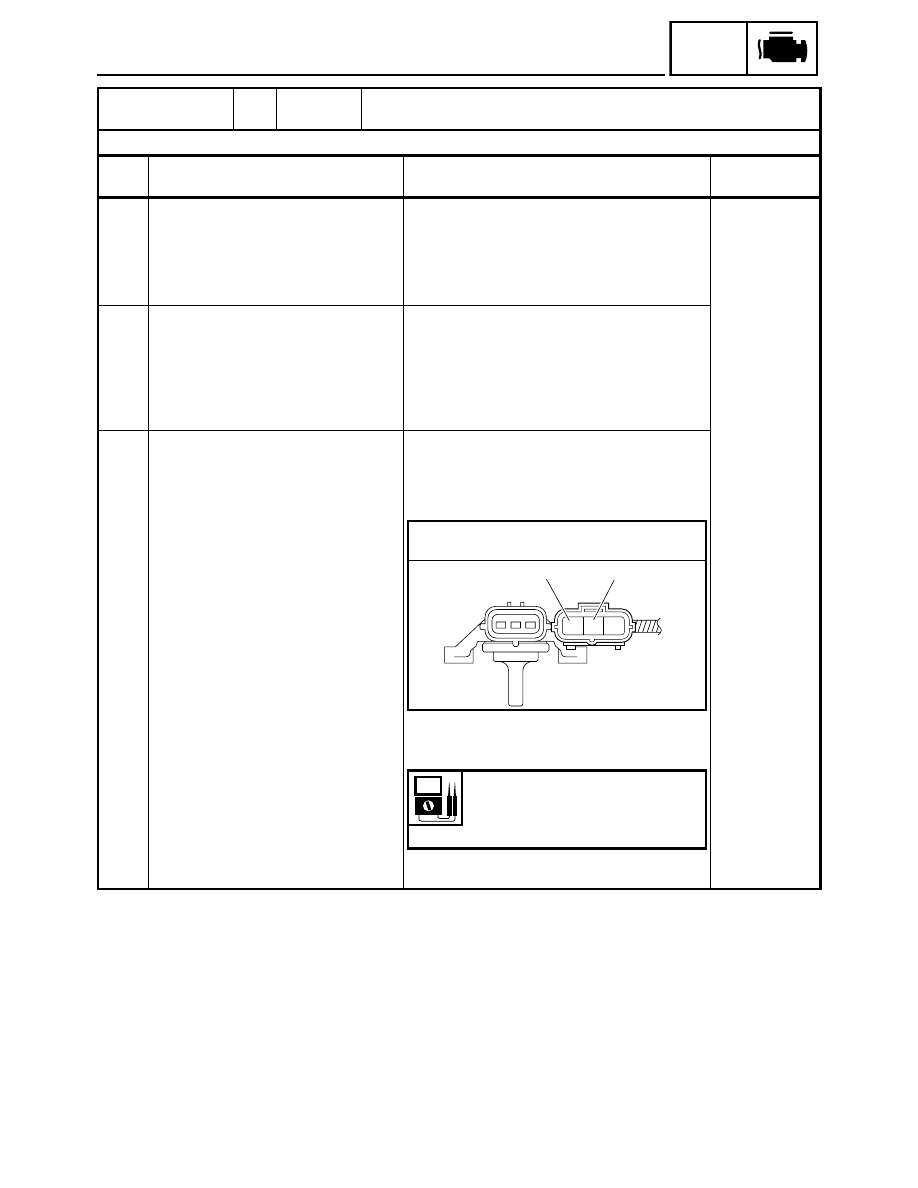

FI

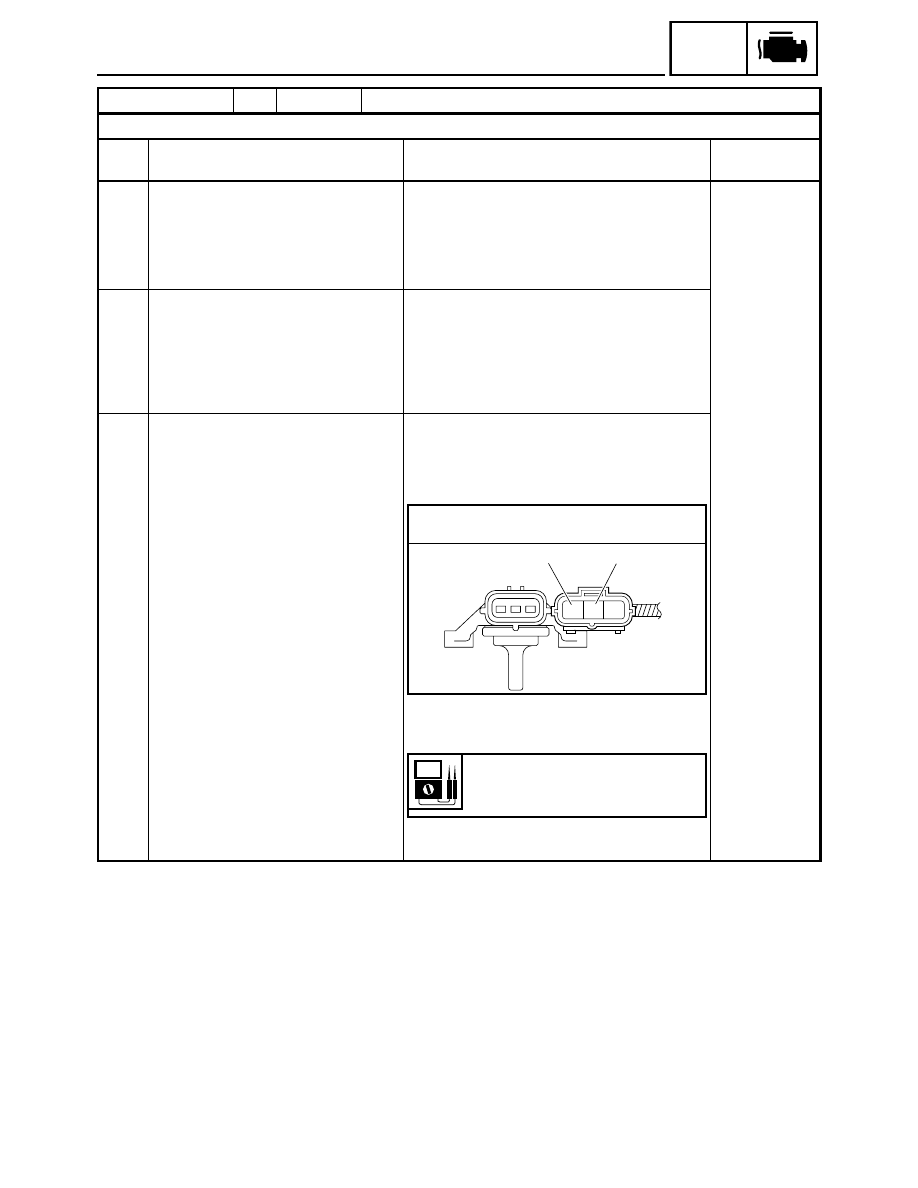

FUEL INJECTION SYSTEM

Fault code No.

13

Symptom

Intake air pressure sensor 1 (cylinders #1, #2, and #3): open or short circuit
detected.

 Diagnostic code No. 03 (intake air pressure sensor 1 (cylinders #1, #2, and #3))

Order

Item/components and probable cause

Check or maintenance job

Reinstatement
method

1

Connections

Intake air pressure sensor 1 (cylin-
ders #1, #2, and #3) coupler
Wire harness ECU coupler
Fuel injection system sub-wire har-
ness coupler

Check the couplers for any pins that may have
pulled out.
Check the locking condition of the couplers.
If there is a malfunction, repair it and connect the
coupler securely.

Setting the
engine stop
switch to “RUN”
and turning the
main switch on.

2

Open or short circuit in wire harness
and/or fuel injection system sub-wire
harness.

Repair or replace if there is an open or short cir-
cuit.
Between the intake air pressure sensor 1 (cylin-
ders #1, #2, and #3) coupler and ECU coupler.

Pink/White – Pink/White
Black/Blue – Black/Blue
Blue – Blue

3

Defective intake air pressure sensor 1
(cylinders #1, #2, and #3).

Execute the diagnostic mode (code No. 03).
Replace if defective.
1. Connect the pocket tester (DC 20 V) to the

intake air pressure sensor 1 (cylinders #1, #2,
and #3) coupler terminals as shown.

2. Turn the main switch on.
3. Measure the intake air pressure sensor 1 (cyl-

inders #1, #2, and #3) output voltage.

4. Is the intake air pressure sensor 1 (cylinders

#1, #2, and #3) OK?

Positive tester probe

→ Pink/White 1

Negative tester probe

→ Black/Blue 2

L

P/W B/L

1

2

Intake air pressure sensor 1 (cylin-
ders #1, #2, and #3) output volt-
age:

3.75 ~ 4.25 V

7-15

FI

FUEL INJECTION SYSTEM

Fault code No.

14

Symptom

Intake air pressure sensor 1 (cylinders #1, #2, and #3): hose system mal-
function (clogged or detached hose).

Diagnostic code No. 03 (intake air pressure sensor 1 (cylinders #1, #2, and #3))

Order

Item/components and probable cause

Check or maintenance job

Reinstatement
method

1

Intake air pressure sensor 1 (cylinders
#1, #2, and #3) hoses are detached,
clogged, kinked, or pinched.

Repair or replace the intake air pressure sensor 1
(cylinders #1, #2, and #3) hoses.

Starting the
engine and
operating it at
idle.

2

Intake air pressure sensor 1 (cylinders
#1, #2, and #3) malfunction at intermedi-
ate electrical potential.

Check and repair the connection.
Replace it if there is a malfunction.

3

Connections
Intake air pressure sensor 1 (cylinders
#1, #2, and #3) coupler
Wire harness ECU coupler

Check the couplers for any pins that may have
pulled out.
Check the locking condition of the couplers.
If there is a malfunction, repair it and connect the
coupler securely.

4

Defective intake air pressure sensor 1
(cylinders #1, #2, and #3).

Execute the diagnostic mode (code No. 03).
Replace if defective.
Refer to “Fault code No. 13”.

Fault code No.

15

Symptom

Throttle position sensor: open or short circuit detected.

Diagnostic code No. 01 (throttle position sensor)

Order

Item/components and probable cause

Check or maintenance job

Reinstatement
method

1

Installed condition of throttle position
sensor.

Check for looseness or pinching.
Check that it is installed in the specified position.
Refer to “THROTTLE BODY”.

Setting the
engine stop
switch to “RUN”
and turning the
main switch on.

2

Connections

Throttle position sensor coupler
Wire harness ECU coupler
Fuel injection system sub-wire har-
ness coupler

Check the couplers for any pins that may have
pulled out.
Check the locking condition of the couplers.
If there is a malfunction, repair it and connect the
coupler securely.

3

Open or short circuit in wire harness
and/or fuel injection system sub-wire
harness.

Repair or replace if there is an open or short cir-
cuit.
Between the throttle position sensor coupler and
ECU coupler.

Black/Blue – Black/Blue
Yellow – Yellow
Blue – Blue

4

Throttle position sensor lead open circuit
output voltage check.

Check for open circuit and replace the throttle
position sensor.

Black/Blue – Yellow

Open circuit item

Output voltage

Ground wire open cir-
cuit

5 V

Output wire open circuit  0 V

Power supply wire
open circuit

0 V

5

Defective throttle position sensor.

Execute the diagnostic mode (code No. 01).
Replace if defective.
Refer to “THROTTLE BODY”.

7-16

FI

FUEL INJECTION SYSTEM

Fault code No.

16

Symptom

Stuck throttle position sensor detected.

Diagnostic code No. 01 (throttle position sensor)

Order

Item/components and probable cause

Check or maintenance job

Reinstatement
method

1

Installed condition of throttle position
sensor.

Check for looseness or pinching.
Check that it is installed in the specified position.
Refer to “THROTTLE BODY”.

Starting the
engine, operat-
ing it at idle, and
then racing it.

2

Defective throttle position sensor.

Execute the diagnostic mode (code No. 01).
Replace if defective.
Refer to “THROTTLE BODY”.

Fault code No.

21

Symptom

Coolant temperature sensor: open or short circuit detected.

Diagnostic code No. 06 (coolant temperature sensor)

Order

Item/components and probable cause

Check or maintenance job

Reinstatement
method

1

Connections

Coolant temperature sensor coupler
Wire harness ECU coupler
Coolant temperature sensor sub-lead
coupler

Check the couplers for any pins that may have
pulled out.
Check the locking condition of the couplers.
If there is a malfunction, repair it and connect the
coupler securely.

Setting the
engine stop
switch to “RUN”
and turning the
main switch on.

2

Open or short circuit in wire harness
and/or coolant temperature sensor sub-
lead coupler.

Repair or replace if there is an open or short cir-
cuit.
Between the coolant temperature sensor coupler
and ECU coupler.

Black/Blue – Black/Blue
Green/White – Green/White

3

Defective coolant temperature sensor.

Execute the diagnostic mode (code No. 06).
Replace if defective.
Refer to “SIGNAL SYSTEM” in CHAPTER 8.

Fault code No.

22

Symptom

Intake air temperature sensor: open or short circuit detected.

Diagnostic code No. 05 (intake air temperature sensor)

Order

Item/components and probable cause

Check or maintenance job

Reinstatement
method

1

Connections

Intake air temperature sensor coupler
Wire harness ECU coupler

Check the couplers for any pins that may have
pulled out.
Check the locking condition of the couplers.
If there is a malfunction, repair it and connect the
coupler securely.

Setting the
engine stop
switch to “RUN”
and turning the
main switch on.

2

Open or short circuit in wire harness.

Repair or replace if there is an open or short cir-
cuit.
Between the intake air temperature sensor cou-
pler and ECU coupler.

Black/Blue – Black/Blue
Brown/White – Brown/White

3

Defective intake air temperature sensor.

Execute the diagnostic mode (code No. 05).
Replace if defective.
Refer to “INTAKE AIR TEMPERATURE SEN-
SOR”.

7-17

FI

FUEL INJECTION SYSTEM

Fault code No.

25

Symptom

Intake air pressure sensor 2 (cylinder #1): open or short circuit detected.

Diagnostic code No. 04 (intake air pressure sensor 2 (cylinder #1))

Order

Item/components and probable cause

Check or maintenance job

Reinstatement
method

1

Connections

Intake air pressure sensor 2 (cylinder
#1) coupler
Wire harness ECU coupler
Fuel injection system sub-wire har-
ness coupler

Check the couplers for any pins that may have
pulled out.
Check the locking condition of the couplers.
If there is a malfunction, repair it and connect the
coupler securely.

Setting the
engine stop
switch to “RUN”
and turning the
main switch on.

2

Open or short circuit in wire harness
and/or fuel injection system sub-wire
harness.

Repair or replace if there is an open or short cir-
cuit.
Between the intake air pressure sensor 2 (cylin-
der #1) coupler and ECU coupler.

Pink/Black – Pink/Black
Black/Blue – Black/Blue
Blue – Blue

3

Defective intake air pressure sensor 2
(cylinder #1).

Execute the diagnostic mode (code No. 04).
Replace if defective.
1. Connect the pocket tester (DC 20 V) to the

intake air pressure sensor 2 (cylinder #1) cou-
pler terminals as shown.

2. Turn the main switch on.
3. Measure the intake air pressure sensor 2 (cyl-

inder #1) output voltage.

4. Is the intake air pressure sensor 2 (cylinder

#1) OK?

Positive tester probe

→ Pink/Black 1

Negative tester probe

→ Black/Blue 2

L

P/B B/L

1

2

Intake air pressure sensor 2 (cylin-
der #1) output voltage:

3.75 ~ 4.25 V
