Snowmobile Yamaha FX10X, FX10RTX, FX10RTRX, FX10RTRAX, FX10MTX, FX10MTRX, FX10MTRAX. Manual - part 38

4-41

POWR

TR

BRAKE

INSPECTION

1. Inspect:

• Brake master cylinder 1

Wear/scratches

→ Replace the master cylin-

der assembly.

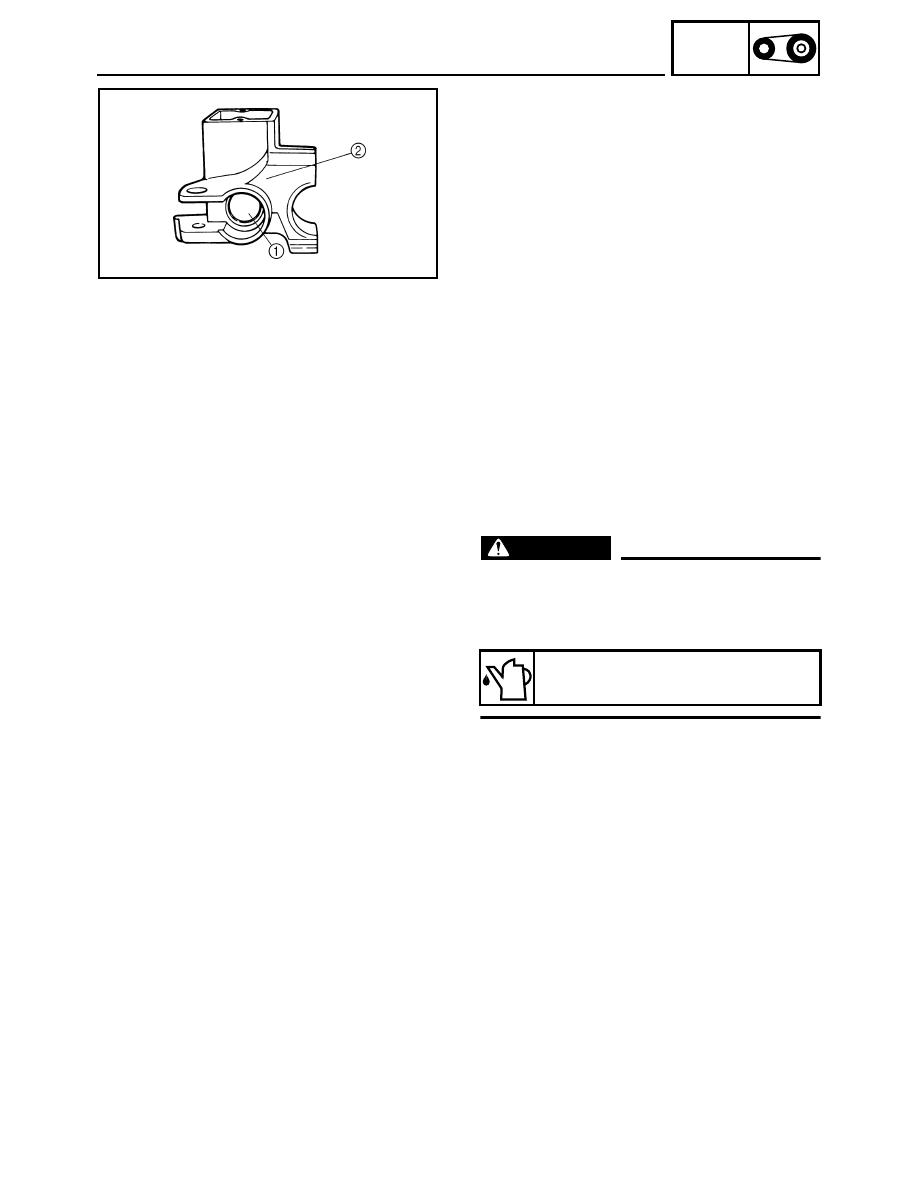

• Brake master cylinder body 2

Cracks/damage

→ Replace.

• Brake fluid delivery passage (master cylinder

body)
Blow out with compressed air.

2. Inspect:

• Brake master cylinder kit

Scratches/wear/damage

→ Replace as a set.

3. Inspect:

• Brake master cylinder reservoir

Cracks/damage

→ Replace.

• Brake master cylinder reservoir diaphragm

Damage/wear

→ Replace.

4. Inspect:

• Brake hose

Cracks/damage/wear

→ Replace.

BRAKE MASTER CYLINDER ASSEMBLY

WARNING

• All internal parts should be cleaned only with

new brake fluid.

• Internal parts should be lubricated with brake

fluid when installed.

Recommended brake fluid:

DOT 4

4-42

POWR

TR

BRAKE

INSTALLATION

1. Install:

• Brake hose

CAUTION:

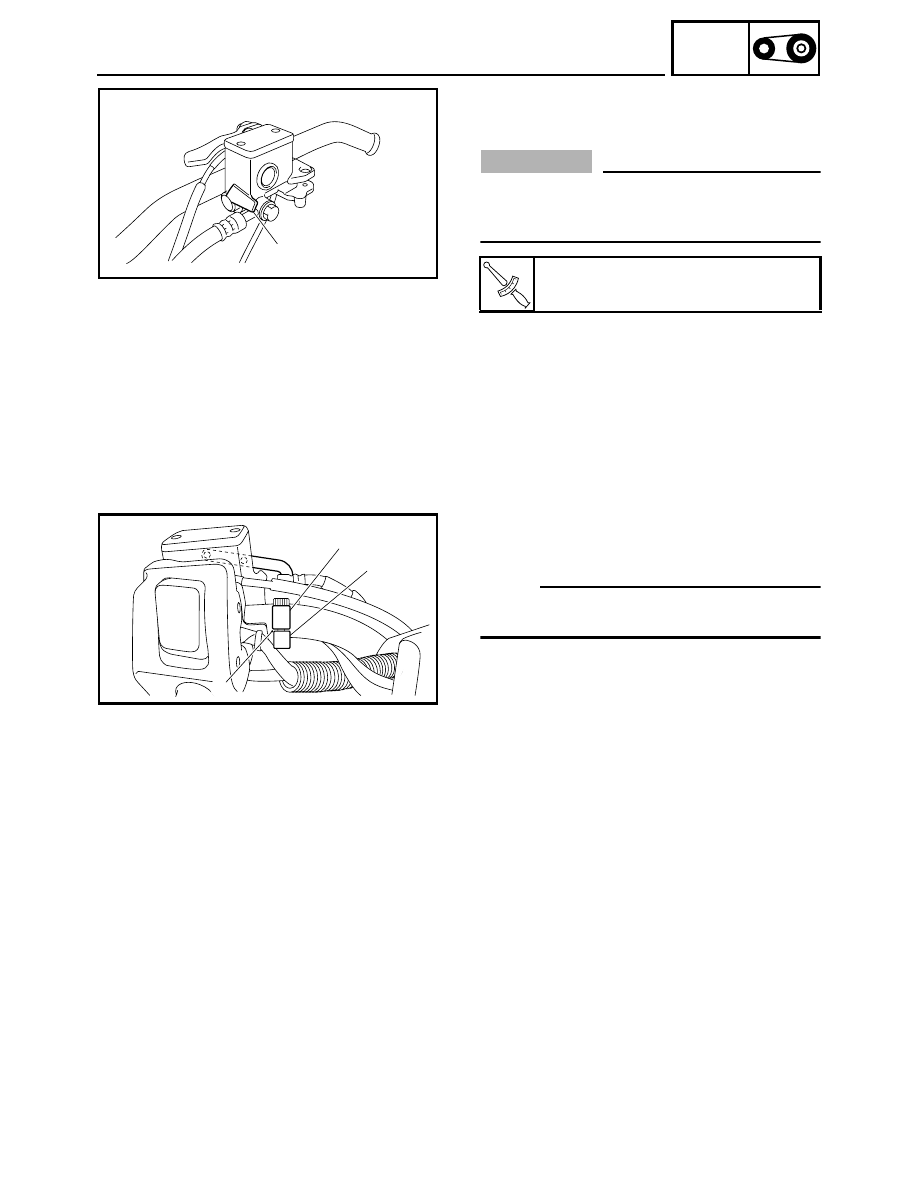

When installing the brake hose onto the brake
master cylinder, make sure that the brake pipe
touches the projection

a as shown.

T



R

.

.

Union bolt (brake hose):

30 Nm (3.0 m · kg, 22 ft · lb)

a

2. Install:

• Left wind deflector bracket 1
• Wind deflector bracket holder 2

NOTE:

Align the end of the wind deflector bracket with the
punch mark

a on the handlebar.

1

2

a

4-43

POWR

TR

SLIDE RAIL SUSPENSION

SLIDE RAIL SUSPENSION

FX10

Order

Job name/Part name

Q’ty

Remarks

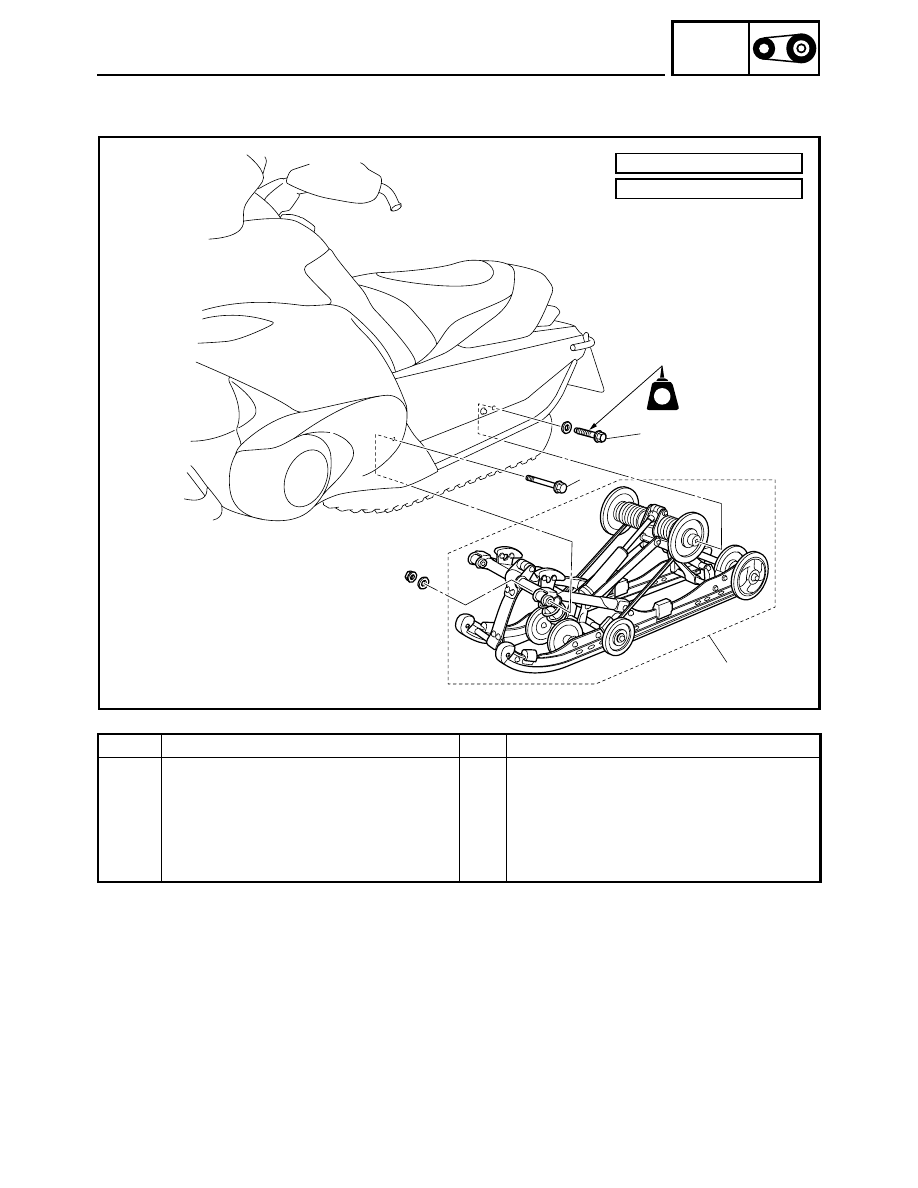

Slide rail suspension removal

Remove the parts in the order listed below.

Rear axle nut

Loosen.

Tension adjuster

Loosen.

1

Slide rail suspension

1

For installation, reverse the removal proce-
dure.

É

È

1

LT

60 Nm (6.0 m

•

 kg, 43 ft

•

 lb)

69 Nm (6.9 m

•

 kg, 50 ft

•

 lb)

È:
É:

4-44

POWR

TR

SLIDE RAIL SUSPENSION

Order

Job name/Part name

Q’ty

Remarks

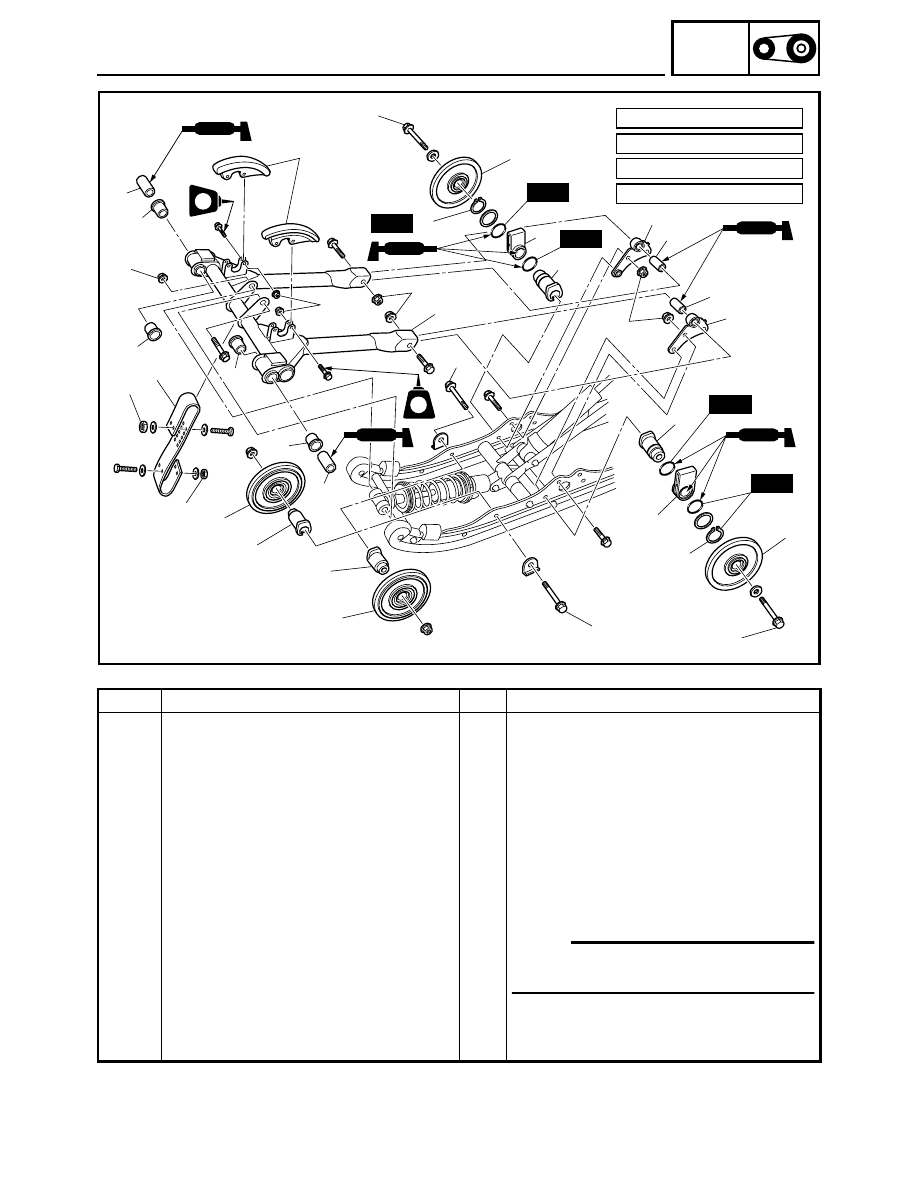

Slide rail suspension disassembly

Remove the parts in the order listed below.

1 Collar

2

2 Bushing

4

3 Stopper

band

1

4

Front pivot arm

1

5 Slide

runner

2

6 Suspension

wheel

2

7 Suspension

wheel

bracket

2

8 Suspension

wheel

2

9 Circlip

2

0 Spring

end

guide

2

NOTE:

Apply grease to the inner surface of each
spring end guide.

A

Spring end guide bracket

2

B

Front pivot arm bracket

2

C Collar

2

8

0

A

B

C

Ë

C

B

Ë

Ë

4

É

5

Ê

Ë

3

2

È

È

6

2

2

1

2

1

6

7

7

Ë

Ë

8

9

9

A

0

LT

New

New

LT

New

New

New

4 Nm (0.4 m

•

 kg, 2.9 ft

•

 lb)

10 Nm (1.0 m

•

 kg, 7.2 ft

•

 lb)

È:
É:

49 Nm (4.9 m

•

 kg, 35 ft

•

 lb)

60 Nm (6.0 m

•

 kg, 43 ft

•

 lb)

Ê:
Ë:
