GEN

INFO

GENERAL INFORMATION

SNOWMOBILE IDENTIFICATION

FRAME SERIAL NUMBER

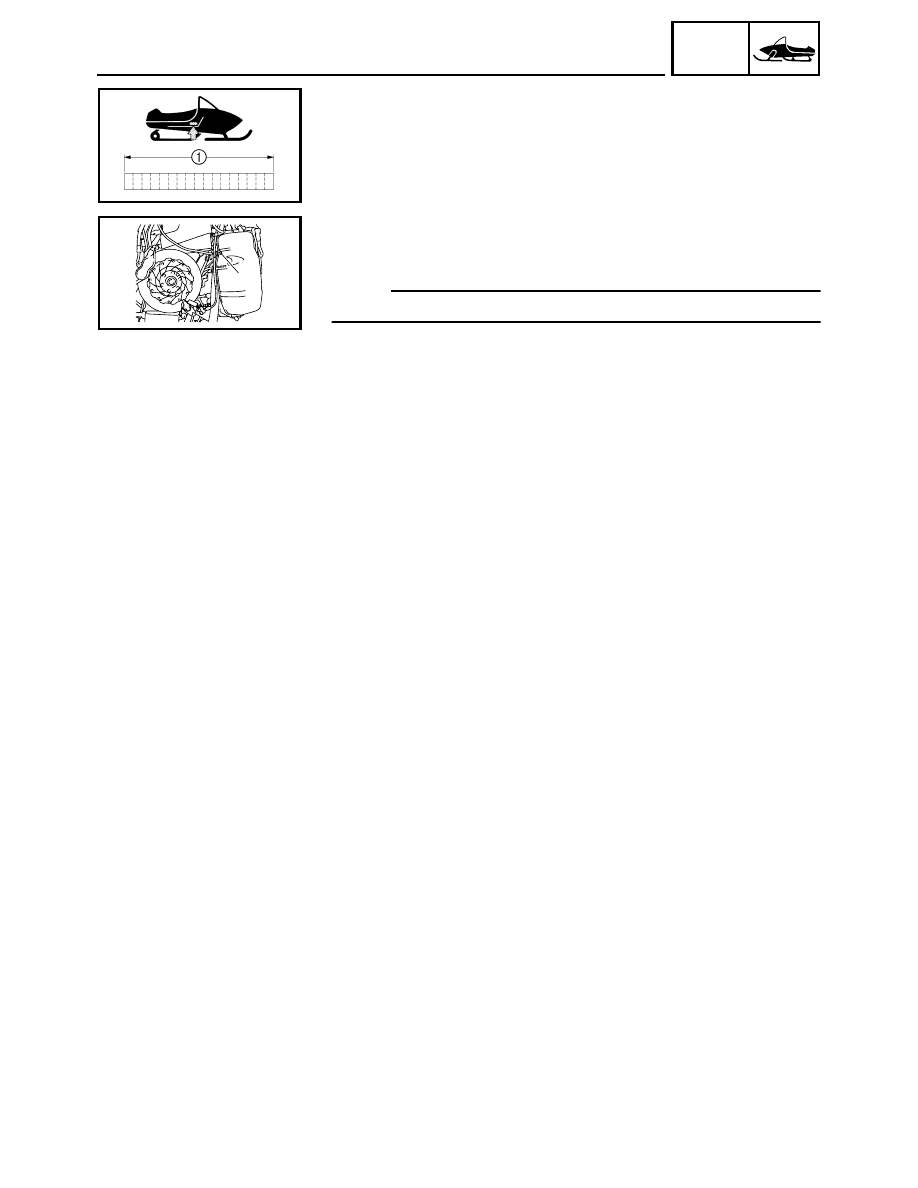

The frame serial number 1 is located on the right-hand side of the frame
(just below the front of the seat).

ENGINE SERIAL NUMBER

The engine serial number 1 is located on the right-hand side of the crank-
case.

NOTE:

Designs and specifications are subject to change without notice.

1

SNOWMOBILE IDENTIFICATION

1-2

GEN

INFO

IMPORTANT INFORMATION

IMPORTANT INFORMATION

PREPARATION FOR REMOVAL AND DISASSEMBLY

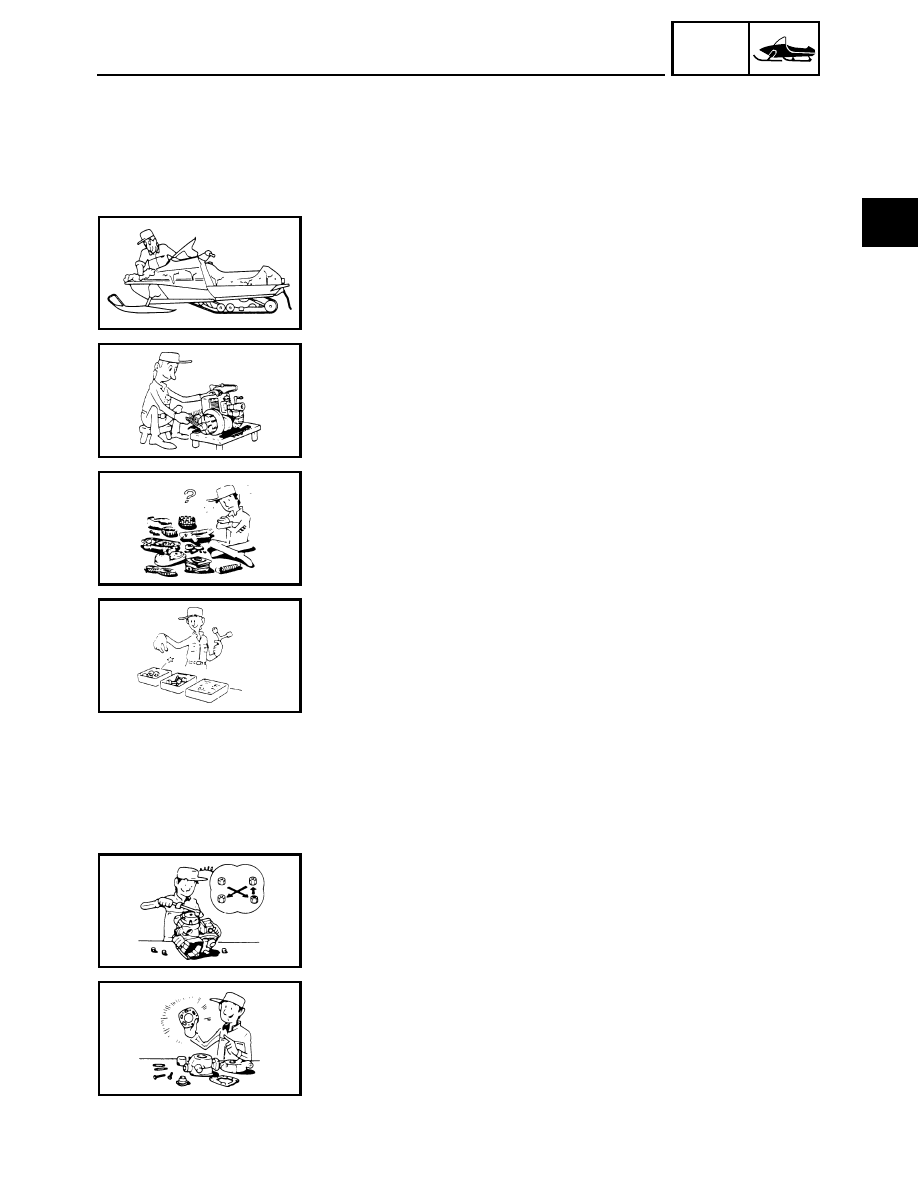

1. Remove all dirt, mud, dust, and foreign material before removal and

disassembly.
While cleaning, take care to protect the electrical parts, such as relays,
switches, motor, resistors, controllers, etc., from high pressure water
splashes.

2. Use proper tools and cleaning equipment.

Refer to “SPECIAL TOOLS”.

3. When disassembling the snowmobile, keep mated parts together. This

includes gears, cylinders, pistons, and other parts that have been
“mated” through normal wear. Mated parts must be reused or replaced
as an assembly.

4. During disassembly of the snowmobile, clean all parts and place them

in trays in the order of disassembly. This will speed up assembly time
and help ensure that all parts are reinstalled correctly.

5. Keep all parts away from any source of fire.

6. Be sure to keep to the tightening torque specifications. When tighten-

ing bolts, nuts, and screws, start with those that have larger diameters,
and proceed from the inside to the outside in a crisscross pattern.

ALL REPLACEMENT PARTS

We recommend using genuine Yamaha parts for all replacements. Use oil
and grease recommended by Yamaha for assembly and adjustments.

1

1-3

GEN

INFO

IMPORTANT INFORMATION

GASKETS, OIL SEALS, AND O-RINGS

1. All gaskets, seals, and O-rings should be replaced when an engine is

overhauled. All gasket surfaces, oil seal lips, and O-rings must be
cleaned.

2. Properly oil all mating parts and bearings during reassembly. Apply

grease to the oil seal lips.

LOCK WASHERS/PLATES AND COTTER PINS

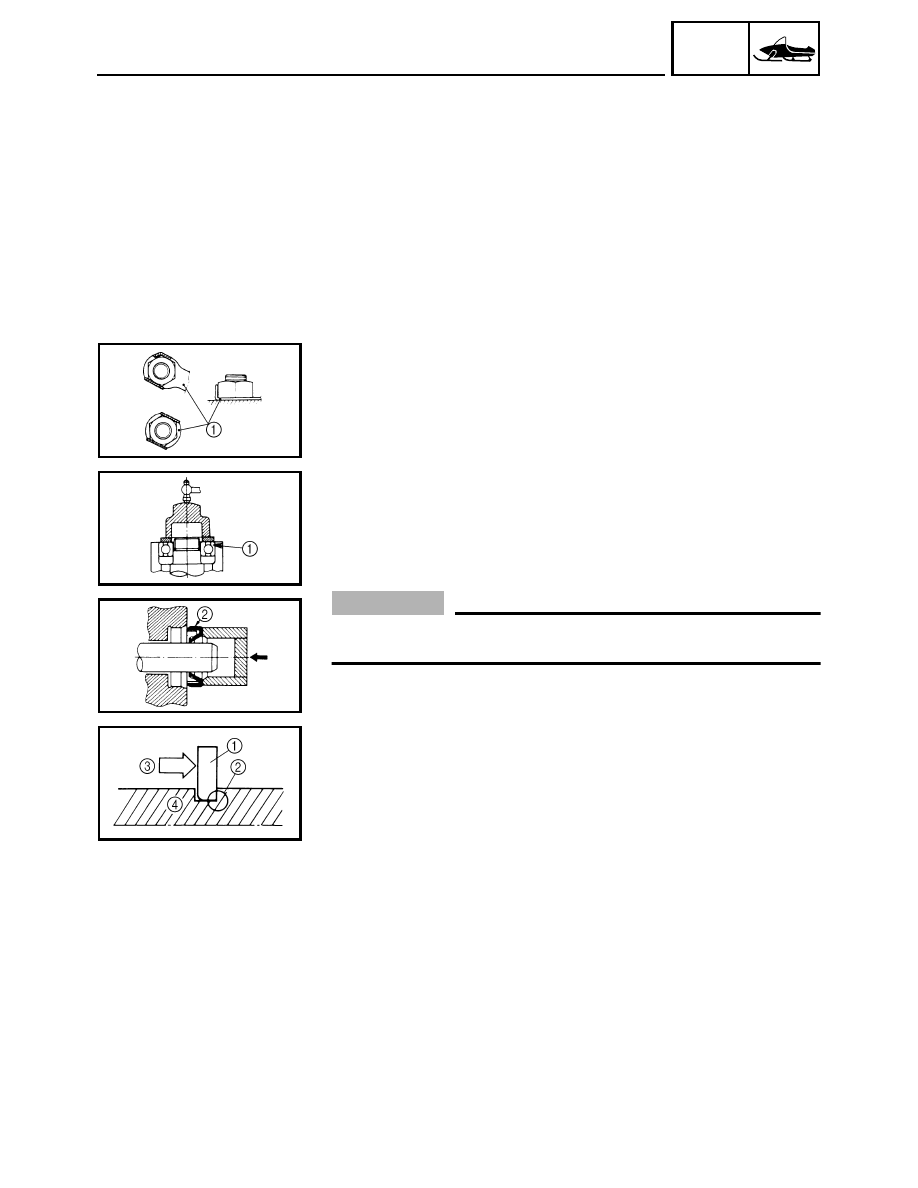

All lock washers/plates 1 and cotter pins must be replaced if they are
removed. Lock tab(s) should be bent along the bolt or nut flat(s) after the
bolt or nut has been properly tightened.

BEARINGS AND OIL SEALS

Install the bearings 1 and oil seals 2 with their manufacturer marks or
numbers facing outwards. (In other words, the stamped letters must be on
the side exposed to view.) When installing oil seals, apply a light coating
of low temperature lithium-soap-based grease to the seal lips. Oil the
bearings liberally when installing.

CAUTION:

Do not use compressed air to spin the bearings dry. This causes
damage to the surface of the bearings.

CIRCLIPS

All circlips should be inspected carefully before reassembly. Always
replace piston pin clips after one use. Replace misshapen circlips. When
installing a circlip 1, make sure that the sharp edged corner 2 is posi-
tioned opposite to the thrust 3 it receives. See the sectional view.

4 Shaft

LOCTITE

®

After installing fasteners that have LOCTITE

®

 applied, wait 24 hours

before using the snowmobile. This will give the LOCTITE

®

  time  to  dry

properly.

1-4

GEN

INFO

SPECIAL TOOLS

SPECIAL TOOLS

Some special tools are necessary for a completely accurate tune-up and
assembly. Using the correct special tool will help prevent damage that can
be caused by the use of improper tools or improvised techniques.

NOTE:

• Be sure to use the correct part number when ordering the tool, since the

part number may differ according to country.

• For USA and Canada, use part number starting with “YB-”, “YM-”, “YU-”

or “YS-”.

• For others, use part number starting with “90890-”.

FOR TUNE UP

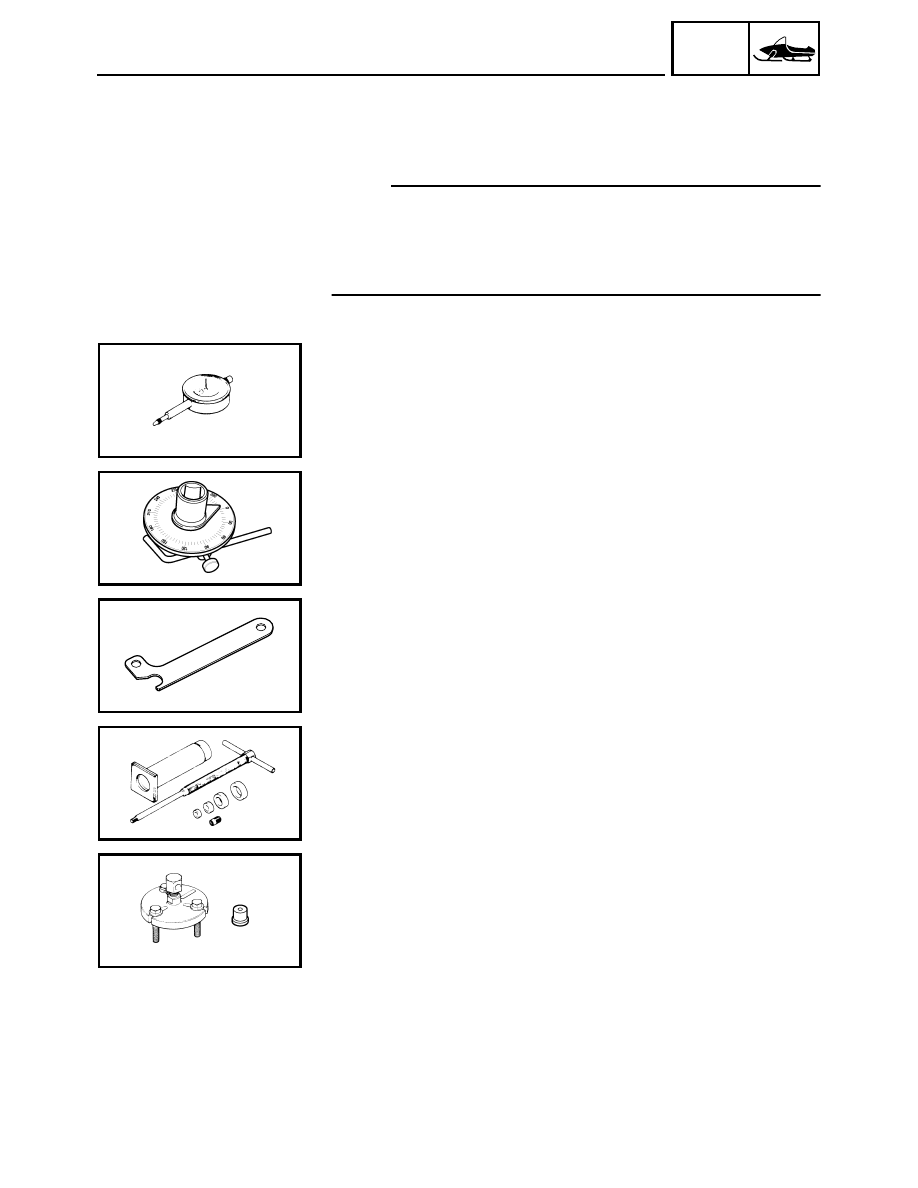

• Dial indicator gauge

P/N: YU-A8428

• Dial gauge

P/N: 90890-03097

This gauge is used for runout measurements.

• Angle gauge

Use goods on the market.

This tool is used to tighten to specified angles.

• Steering linkage alignment plate

P/N: YS-01531

90890-01531

Locks steering column and pivot arm in place while adjusting the steering
linkage for front-end alignment.

FOR ENGINE SERVICE

• Piston pin puller

P/N: YU-01304

• Piston pin puller set

P/N: 90890-01304

This tool is used to remove the piston pin.

• Heavy duty puller

P/N: YU-33270-B

• Flywheel puller

P/N: 90890-01362

• Crankshaft protector

P/N: YM-33282

• Flywheel puller attachment

P/N: 90890-04089

These tools are used to remove the magneto rotor.
