7.18

Shocks

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

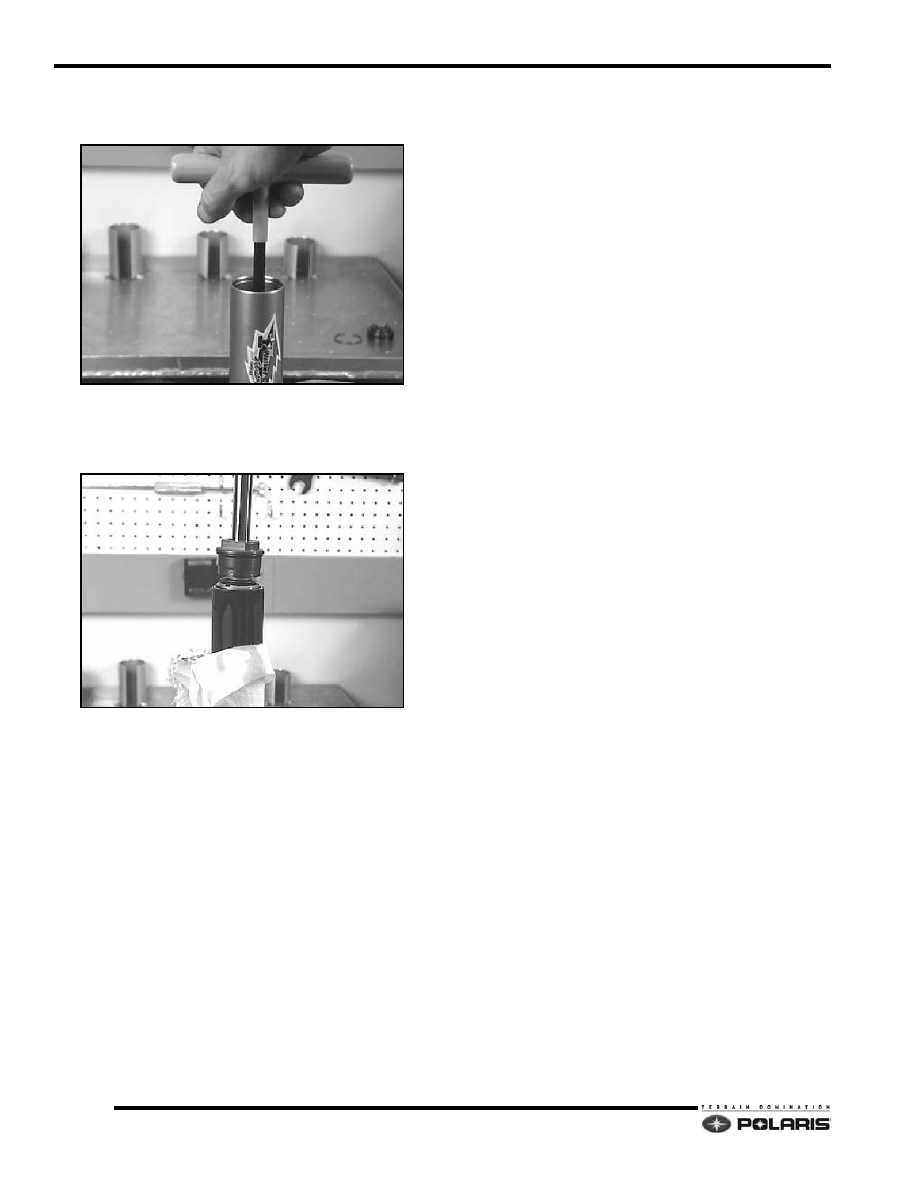

12. Set the IFP so it is approximately 1/8 from the bottom

of the reservoir. Install the bleed screw.

13. With the cylinder head assembly pushed down

against the valve piston, dip the piston assembly in
shock oil.

14. Fill the shock body with oil to the bottom of the threads.

Carefully insert the piston rod and valve assembly into
the cylinder.

• Slightly oscillate the piston rod to allow the piston

to enter the shock body bore as it purges the air
out

• Slight up and down movement may be required to

allow all the air to pass through the piston
assembly.

15. Slowly push the piston rod and assembly into the

shock body until the threads can be engaged.

NOTE:  During installation, some shock oil will over
flow. Wrap a shop cloths around the shock body to
catch any oil overflow.

IMPORTANT: Fast installation of the piston rod and
assembly may displace the internal floating piston
(IFP) from its original position. Performance issues
will be a result if the IFP is not in its specified position.

16. Tighten the cylinder head onto the shock body.

17. Verify the IFP is set at the specified depth. If not, verify

there is oil on top of the IFP, then open the bleed
screw.

18. Set the IFP to specification, then close the bleed

screw.

19. Pour out any remaining shock oil from the reservoir.

20. Install the cap making sure the o-ring does not flip-

over. Install the snap ring.

21. Charge the shock to the specified pressure.

22. Clean the shock of all oil reside and check for any

leaks.

23. Install button screw onto the reservoir cap.

7.19

Shocks

7

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

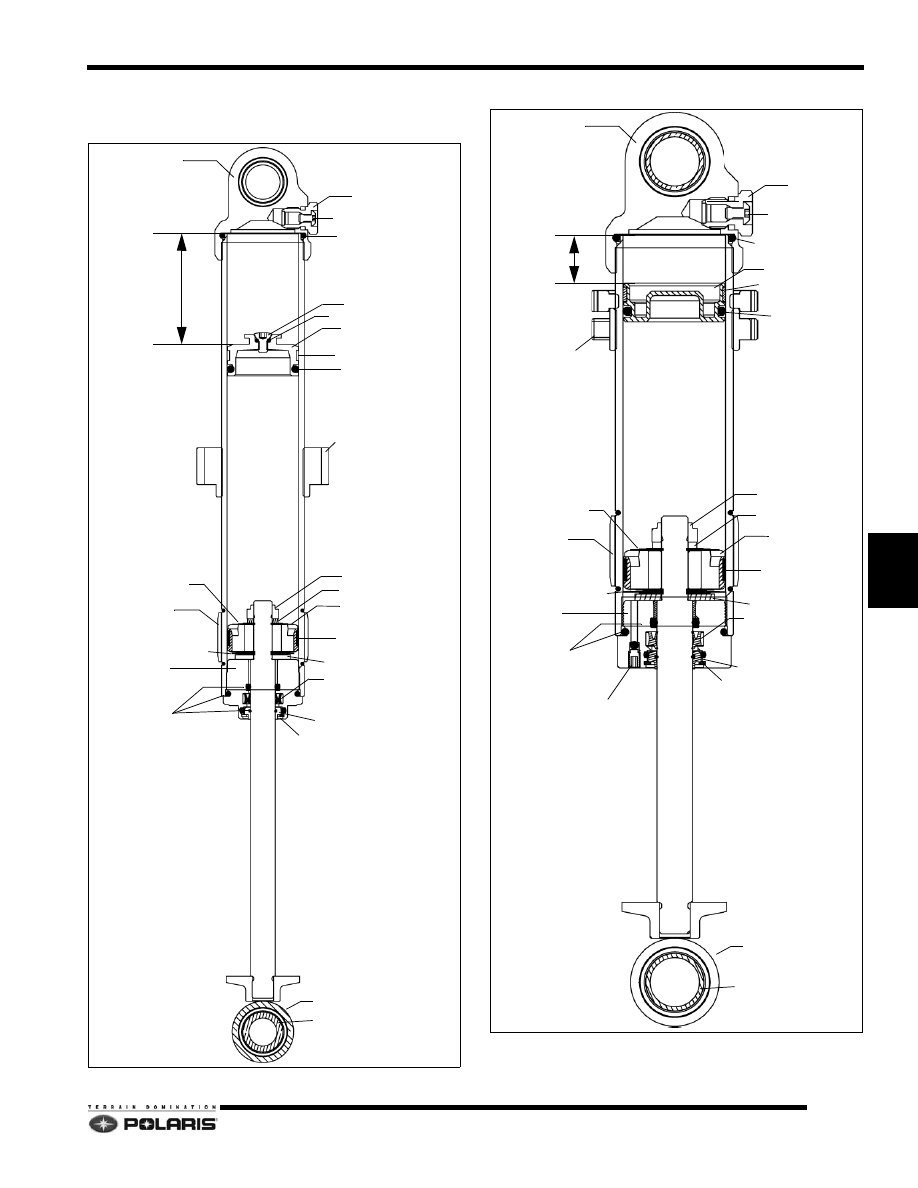

FOX IFP Monotube Shock Disassembly

Shock Components (IFP Air Bleed)

Shock Components (Bearing Air Bleed)

SHOCK ROD

IF

P DEP

T

H

O-RINGS

WEARBAND

IFP

BLEED SCREW

O-RING

BLEED SCREW

FILL PORT

SPRING RETAINER

PISTON

WEARBAND

BODY CAP

O-RING

LOCK NUT

BACKUP PLATE

BEARING

WIPER

ICE SCRAPER

RETAINER

EYELET

BUSHING

REBOUND STACK

COMPRESSION STACK

TOP OUT PLATE

SPRING GUIDE

O-RING

SHOCK ROD

IF

P DEP

T

H

O-RINGS

WEARBAND

IFP

O-RING

BLEED SCREW

FILL PORT

SPRING RETAINER

PISTON

WEARBAND

BODY CAP

O-RING

LOCK NUT

BACKUP PLATE

BEARING

WIPER

ICE SCRAPER

RETAINER

EYELET

BUSHING

REBOUND STACK

COMPRESSION STACK

TOP OUT PLATE

SPRING GUIDE

AIR VALVE/SET SCREW

7.20

Shocks

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

Shock Disassembly

1.

Remove the shock from the vehicle. Clean the shock
assembly to remove all dirt and foreign material.
Inspect the assembly for any noticeable signs of
damage.

2.

Clamp the body cap end of the shock in a soft-jawed
bench vise.

3.

Remove the bleed screw from the fill port. Insert the
needle of the gas fill tool, PN PS-45259, into the fill
port to depressurize the shock. Push the shock rod
down to ensure all nitrogen is expelled. Remove the
fill port from the body cap.

4.

Remove the bearing assembly from the shock body.
Remove the bearing assembly/shock rod from the
shock body.

5.

Release the bench vise and drain all of the oil out of
the shock body into a suitable container. Discard the
oil in accordances with local rules and regulations.

6.

Position the bearing cap end of the shock over a clean
shop towel on the bench. Use compressed air applied
to the fill port bore to push the IFP out of the shock
body.

7.

Using the shock body holding tool, PN 2871071,
clamp the shock body with the body cap pointed up
in a bench vise. Remove the body cap from the tube.

8.

Remove the lock nut from the shock rod. Remove the
backup plate, rebound stack, piston, compression
stack, and top-out plates as one assembly. Orientate
these components on a clean shop towel as they are
assembled on the shock rod.

9.

Remove the shock rod from the bearing.

10. With the shock disassembled, inspect all o-rings,

wiper, wearbands, and the ice scraper. It is
recommended that all be replaced with new parts.

11. Inspect the shock rod and shock body tube for

damage and/or pitting.

12. Inspect the rebound and compression stack valve

shims. Shims that are damaged, bent, chipped, or
wavy in appearance must be replaced.

13. Thoroughly clean all parts and dry with compressed

air.

FOX IFP Monotube Shock Assembly

Shock Assembly - IFP Air Bleed Shocks

1.

Place the shock rod eyelet in the bench vise. Apply a
liberal amount of shock oil to the surface of the shock
rod and internal bore of the bearing.

NOTE:  Install jounce bumper if equipped.

2.

Place the seal protector, PN 2201639, over the
threaded end of the shock rod. Carefully install the
bearing onto the shock rod.

3.

Install the topout plate, and compression valve stack.
Use a Vernier Caliper and reference the valve stack
specifications in this chapter if unsure of the shim
order of assembly.

4.

Install a new wearband on the piston valve. Lubricate
the piston with shock oil. Install the piston with the
greater number of relief ports facing up away from the
compression stack.

5.

Install the rebound valve stack. Again, if unsure of
order of shims, use a Vernier Caliper and reference
the valve stack specifications for the shock in this
chapter.

6.

Install the backup plate. Remove the seal protector
and install a new lock nut. Torque lock nut to 15-20 ft-
lb (20-27 Nm).

7.

Remove the shock rod from the bench vise. Secure
the shock body with shock body holding tool in the
vise.

8.

Install the bearing/shock rod assembly into the body
tube. Tighten securely. Remove shock body from
vise. Secure shock rod eyelet in bench vise.

9.

With the shock rod eyelet mounted in the vise, and the
body cap end of the shock pointed up, slowly fill 3/4
of the body tube with new shock oil.

10. Allow the oil to sit for several minutes to allow air

bubbles to escape. Gently tap on the shock body to
assist in removing any trapped air.

CAUTION

SHOCK CONTENTS UNDER HIGH PRESSURE.

ALWAYS WEAR SAFETY GLASSES WHEN

WORKING WITH SHOCKS.

CAUTION

SHOCK CONTENTS UNDER HIGH PRESSURE.

ALWAYS WEAR SAFETY GLASSES WHEN

WORKING WITH SHOCKS.

Fox 5W Shock Oil

2870995(Quart)

7.21

Shocks

7

9923311 - 2010-2012 PRO-RIDE RUSH/Switchback/RMK Service Manual

© 2011 Polaris Sales Inc.

11. After a few minutes, slowly and carefully pump the

shock body up and down to force the oil through the
valves stacks and piston orifices. Continue until air
bubbles no longer rise to the surface of the oil.

12. After removing all of the air from the shock oil, collapse

the shock rod into the shock body.

13. Remove the bleed screw from the IFP. Install a new

o-ring and wearband onto the IFP. Lubricate the
assembly with shock oil.

14. Set the depth of the IFP locator tool, PN 2871351, with

a Vernier Caliper. The IFP depth specifications are
noted for all rebuildable shocks in this chapter.

15. Slowly push the IFP down into the shock body until the

IFP locator tool bottoms-out on the tube. Tap on the
shock body to remove any air trapped under the IFP.

NOTE: The IFP must be completely submerged in
shock oil to ensure air does not become trapped
under the IFP.

16. With the IFP correctly set inside the tube, install the

IFP bleed screw. Make sure not to move the shock rod
after installing the screw as doing so will move the IFP.

17. Remove the shock from the bench vise and pour out

the remaining shock oil into a suitable container.

18. Install the body cap onto the shock body. Tighten

securely.

19. Reinstall the fill port. Charge the shock with nitrogen

to the specified pressure using the gas fill tool, PN PS-
45259. The shock rod should be pushed outwards as
the IFP compresses the shock oil.

20. Remove the fill tool from the fill port and reinstall the

bleed screw.

21. Test shock by pushing down on the shock rod. The rod

should extend slowly after pushing it into the tube with
no sound of trapped air inside the oil. If the sound of
air is present or the rate of shock rod compression or
extension dramatically changes, the shock should be
disassembled and the oil replaced.

FOX IFP Monotube Shock Assembly

Shock Assembly - Bearing Air Bleed Shocks

1.

Place the shock rod eyelet in the bench vise. Apply a
liberal amount of shock oil to the surface of the shock
rod and internal bore of the bearing.

NOTE:  Install jounce bumper if equipped.

2.

Place the seal protector, PN 2201639, over the
threaded end of the shock rod. Carefully install the
bearing onto the shock rod.

3.

Install the topout plate, and compression valve stack.
Use a Vernier Caliper and reference the valve stack
specifications in this chapter if unsure of the shim
order of assembly.

4.

Install a new wearband on the piston valve. Lubricate
the piston with shock oil. Install the piston with the
greater number of relief ports facing up away from the
compression stack.

5.

Install the rebound valve stack. Again, if unsure of
order of shims, use a Vernier Caliper and reference
the valve stack specifications for the shock in this
chapter.

6.

Install the backup plate. Remove the seal protector
and install a new lock nut. Torque lock nut to 15-20 ft-
lb (20-27 Nm).

7.

Remove the shock rod from the bench vise. Secure
the shock body with shock body holding tool in the
vise.

8.

With the body cap removed from the shock body, the
IFP must be installed as shown in the illustration.
Install a new o-ring and wearband onto the IFP.
Lubricate the assembly with shock oil.

9.

Set the depth of the IFP locator tool, PN 2871351, with
a Vernier Caliper. The IFP depth specifications are
noted for all rebuildable shocks in this chapter.

10. Slowly push the IFP down into the shock body until the

IFP locator tool bottoms-out on the tube.

11. Install the gas fill port bleed screw into the body cap.

Install a new body cap o-ring, and then reinstall the
body cap.  Tighten securely.

NOTE: The IFP should now be set in the correct
position inside the shock body.

CAUTION

SHOCK CONTENTS UNDER HIGH PRESSURE.

ALWAYS WEAR SAFETY GLASSES WHEN

WORKING WITH SHOCKS.
