Snowmobile Polaris IQ (2007-2008 year). Manual - part 79

12.4

Wiring Diagrams

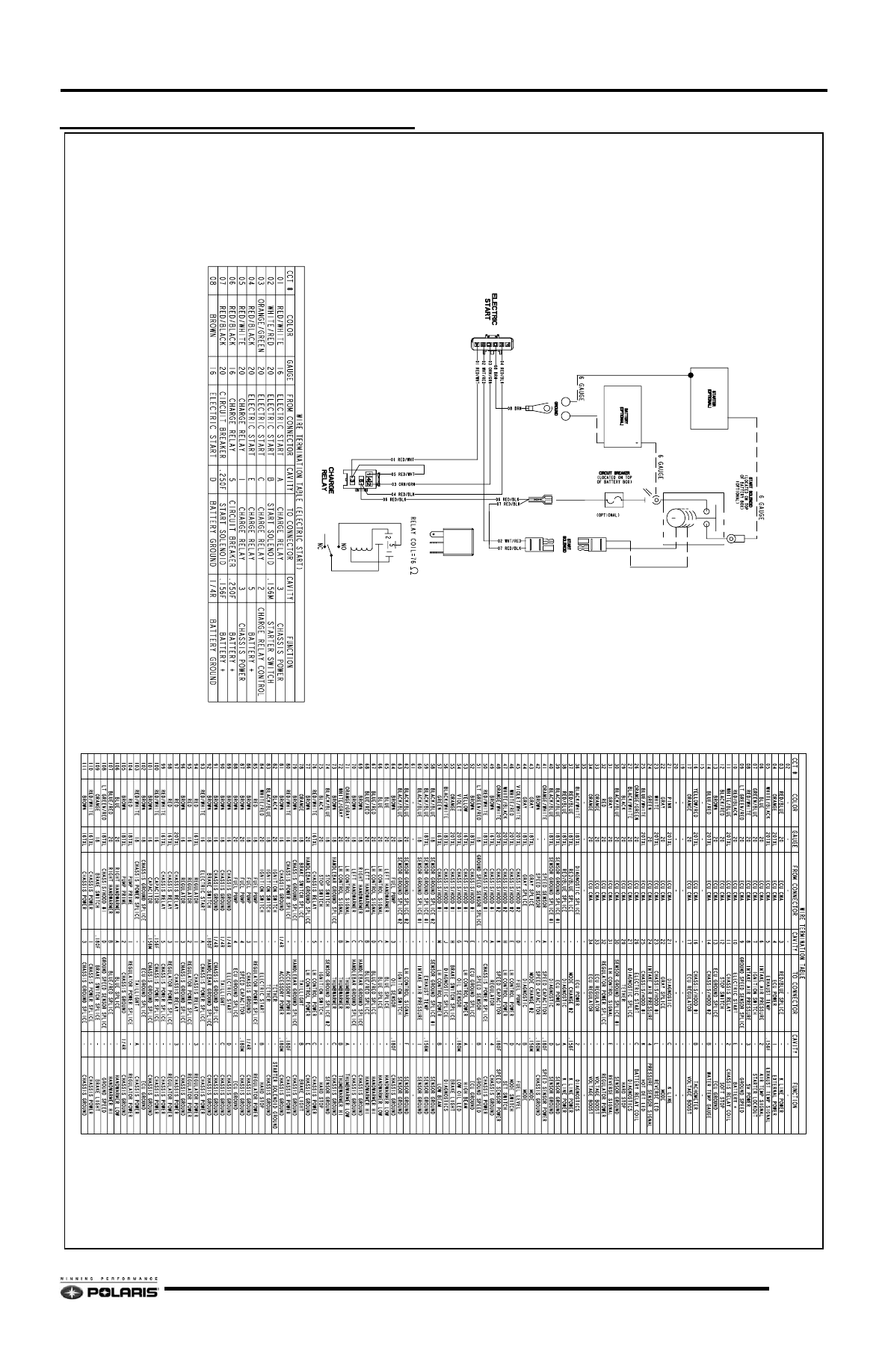

2007 600 / 700 CFI Chassis Harness 1 of 2

12.5

Wiring Diagrams

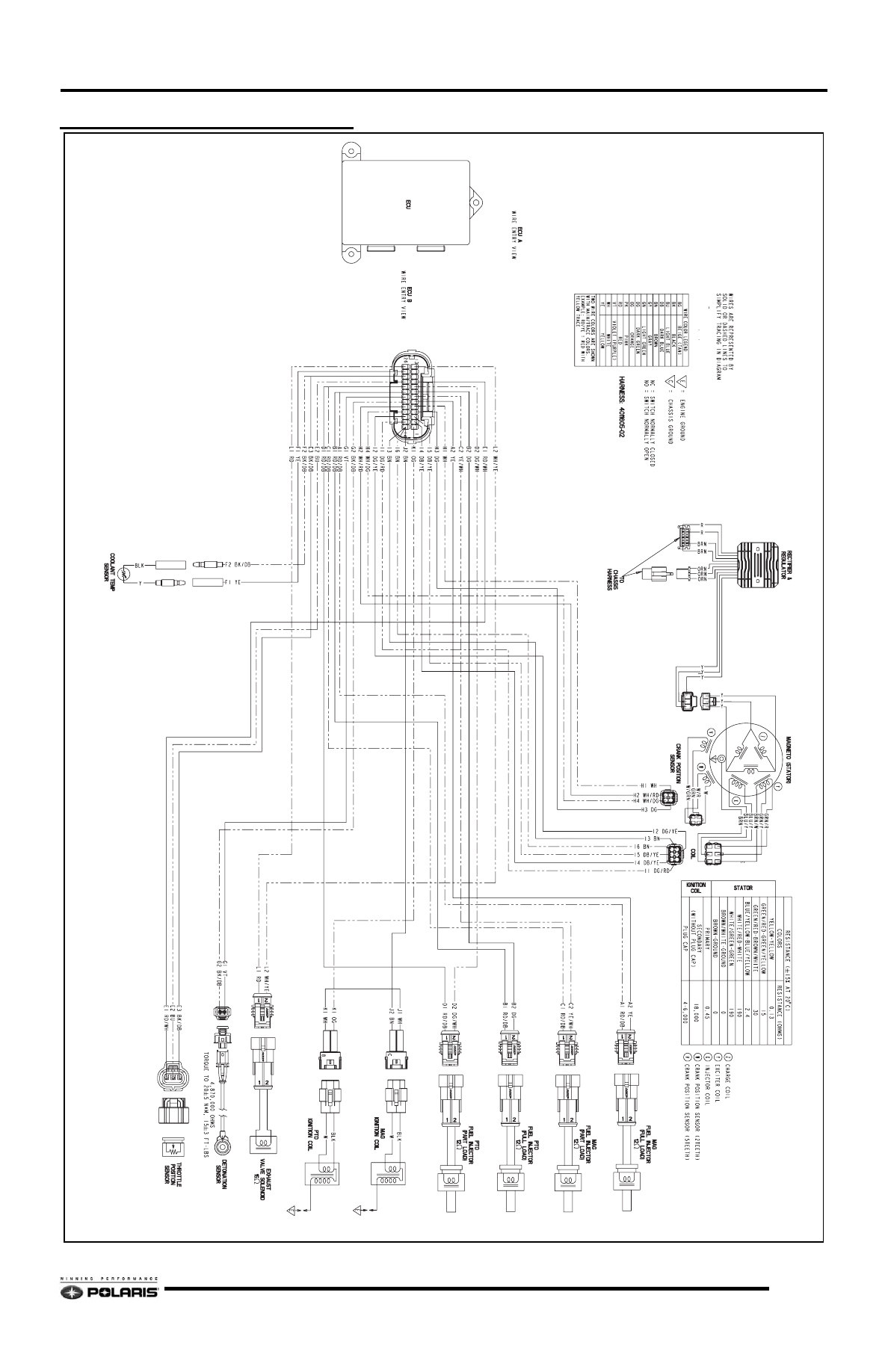

2007 600 / 700 CFI Chassis Harness 2 of 2

12.6

Wiring Diagrams

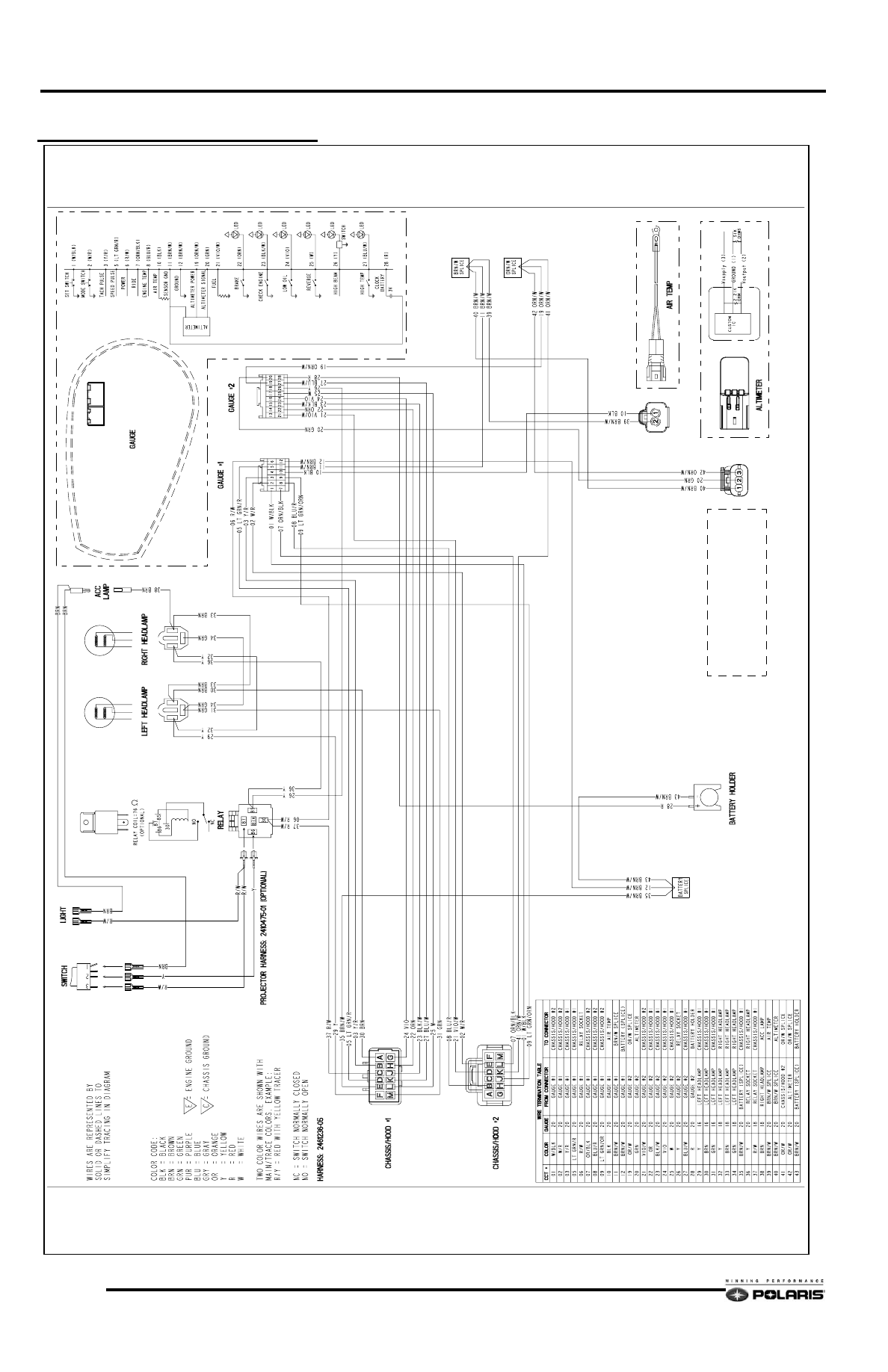

2007 600 / 700 CFI Hood Harness

NOTE:

A

L

TIMETER AND AIR



TEMP

. CONNECT

O

RS WILL

BE

M

A

L

E

 AND FEMALE

CONNECT

OS, NOT PLU

G

S.

12.7

Wiring Diagrams

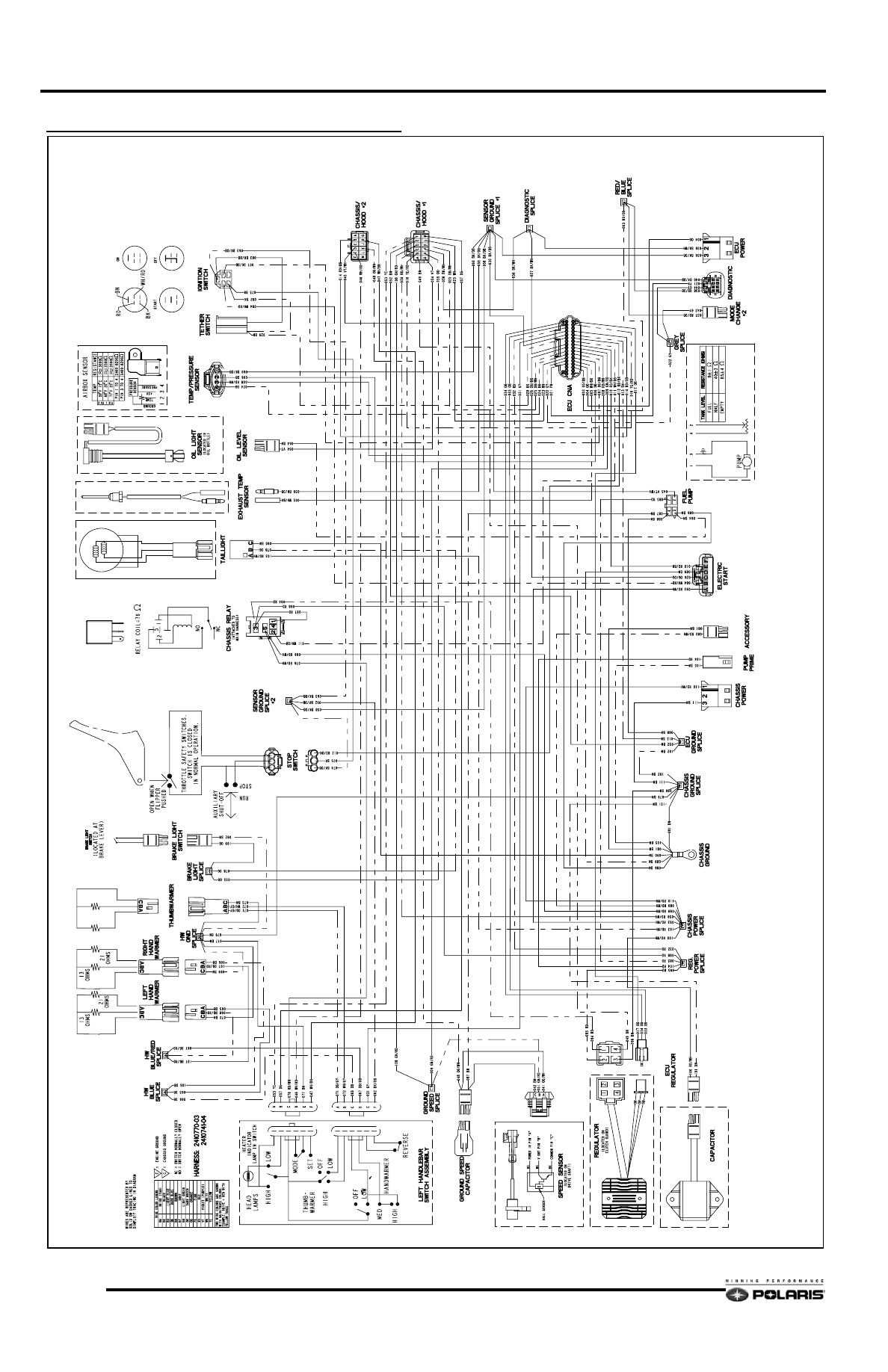

2007 600 / 700 CFI Engine Harness
