8.42

Steering and Suspensions

NOTE: By design, the BIASED COUPLE design of
the M-10 suspension displaces the rear arm as the
front arm is compressed. This means that when you
raise the front limiter strap, at some point you will
collapse the rear suspension arm, which will affect
SAG height and reduce rear suspension travel.

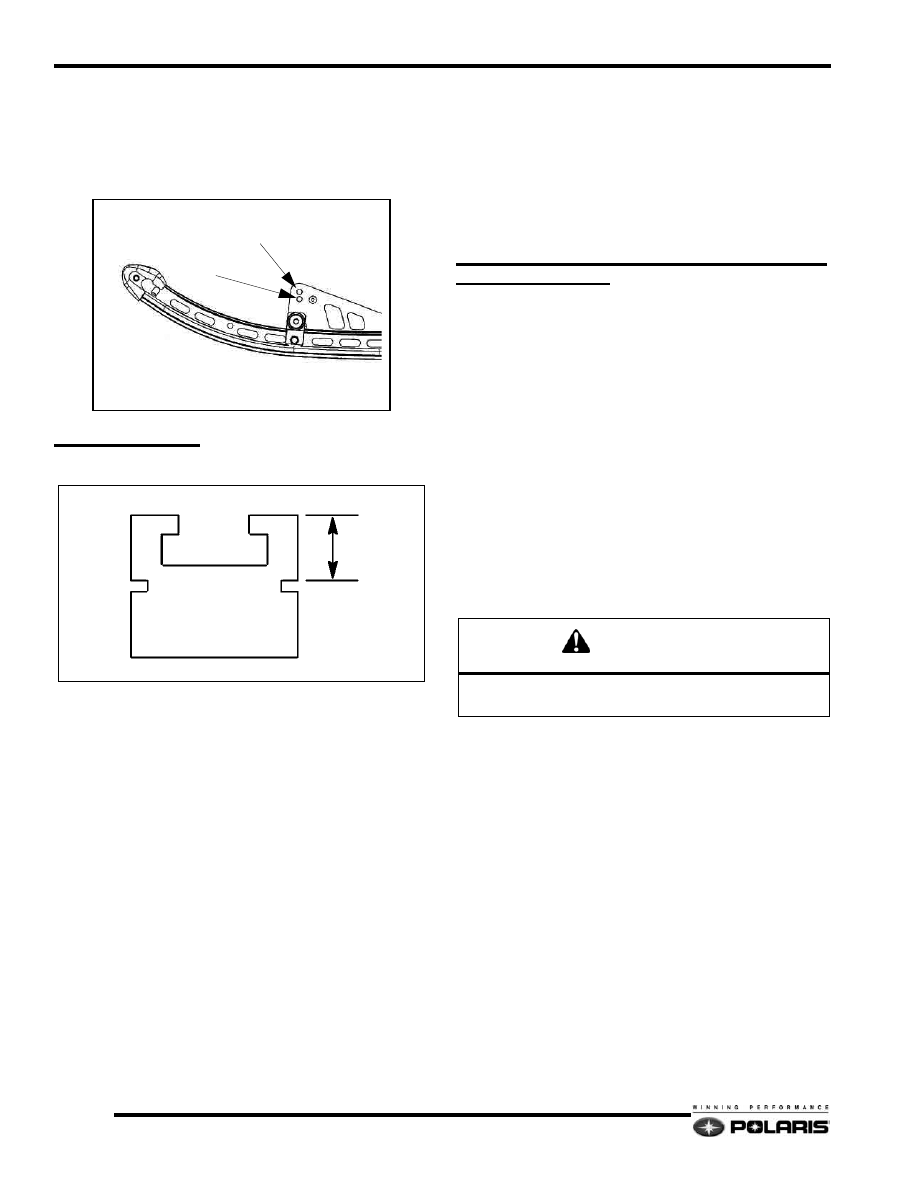

RAIL SLIDERS

Wear Limit

Replace sliders when wear exceeds notch. If sliders look
“wavy” in appearance, check and adjust track tension or
consider adding more bogie wheels.

Removal

1.

Remove the rear suspension.

NOTE:  Some models may allow the rail sliders to be
removed by sliding it through track windows with
the suspension mounted in the machine.

2.

Remove front rail slider retaining bolt, located at the rail tip.

3.

Use a block of wood or a drift punch and hammer to drive
the slider rearward off the slide rail.

4.

With the rail slider at room temperature, install a new rail
slider by reversing steps 1 - 3.

NOTE:  Lightly coat rail slider track clip area with a
lubricant such as LPS2 or WD-40 to ease installation.

Break-In

After installing new rail sliders they must be “broke in” for
longer life and better wear patterns. When performing the
breaking in procedure ride the sled on a surface that has
adequate snow conditions with deeper snow nearby. Run the
sled on the adequate snow surface and dip into the deeper snow
every so often.

REAR SUSPENSION REMOVAL AND
INSTALLATION

Removal

1.

Support the rear of the machine so that the track is off the
floor.

2.

Loosen the rear idler bolts, then push the rear idler shaft
toward the front of the machine.

3.

Carefully release the torsion spring pressure (if equipped).

4.

Remove the support from the tunnel letting the suspension
carry the weight of the machine.

5.

Remove the fasteners securing the skid to the tunnel.

6.

Place a protective mat on the floor and tip the unit over on
the left side, supporting the sled on the end of the handlebar.

7.

Collapse the torque arms, and remove the suspension from
the tunnel.

Installation

1.

With the unit on its left side, place the suspension in the
tunnel.

2.

Align the front and rear torque arms with the tunnel
mounting holes. Loosely install two new fasteners.

NOTE: On IQ 121 and Switchback skids, verify the
rear track shock pivot and brackets are rotated
forward before attempting to collapse the rear
torque arm.

3.

Set the machine upright.

4.

Install the remaining two new torque arm mounting
fasteners.

5.

Torque the rear suspension mounting bolts to specification.

6.

Align the track guides/clips with the suspension rails.

7.

Adjust the rear idler to achieve the correct amount of track
sag.

A

B

CAUTION

Always use new fasteners when securing the torque

arms to the tunnel.

Shocks

9.1

CHAPTER 9

Shocks

9

SPECIAL TOOLS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.2

SHOCK REBUILDING TOOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.2

VALVE SHIMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.3

RYDE FX™ SHOCK VALVE PART NUMBERS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.3
FOX™ SHOCK VALVE PART NUMBERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.4
WALKER EVANS SHOCK VALVE PART NUMBERS . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.5
WALKER EVANS SHOCK VALVE PART NUMBERS - 7/16 I.D.. . . . . . . . . . . . . . . . . . . 9.6
VALVE SHIM ARRANGEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.7
PISTON ORIENTATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.7

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.8

2007 SHOCK SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.8
2007 SHOCK VALVE SHIM STACK CONFIGURATIONS . . . . . . . . . . . . . . . . . . . . . . . . 9.9
2008 SHOCK SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.12
2008 SHOCK VALVE SHIM STACK CONFIGURATIONS . . . . . . . . . . . . . . . . . . . . . . . 9.13

OPTIONAL SHOCK SETTINGS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  9.15

WALKER EVANS AIR SHOCK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.15
RYDE FX AIR 2.0 SHOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.15

SHOCK MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  9.16

RYDE FX AIR 2.0 SHOCK DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.16
RYDE FX AIR 2.0 SHOCK ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.18
WALKER EVANS AIR SHOCK DISASSEMBLY  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.20
WALKER EVANS AIR SHOCK ASSEMBLY  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.20
WALKER EVANS REMOTE RESERVOIR / PIGGY BACK SHOCK DISASSEMBLY . . 9.21
WALKER EVANS REMOTE RESERVOIR / PIGGY BACK SHOCK ASSEMBLY . . . . . 9.22
RYDE FX REMOTE RESERVOIR SHOCK DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . 9.23
RYDE FX REMOTE RESERVOIR SHOCK ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . 9.24
RYDE FX MONO-TUBE SHOCK DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.26
RYDE FX MONO-TUBE SHOCK ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.27
FOX PS-5 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.27
FOX PS-5 ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.28

9.2

Shocks

SPECIAL TOOLS

Shock Rebuilding Tools

Special Tools

PART NUMBER

DESCRIPTION

2200421

Gas Shock Recharging Kit

2201639

Shock Shaft Seal Protector .50" Diameter

2201640

Shock Shaft Seal Protector .625" Diameter

2870623

Shock Absorber Spring Compression Tool

2870803

Shock Spring Pre-Load Adjustment Tool

PS-45259

Gas Fill Tool

9917736

VIDEO-Rebuilding Mono Tube Shocks

9917737

VIDEO-Rebuilding Remote Reservoir Shocks

Ryde FX Shock Special Tools

PART NUMBER

DESCRIPTION

PS-45259

Gas Fill Tool and Gauge (Incl. 5 needles)

PS-45259-1

Gas Fill Needles replacement pack

PS-45259-2

Gas Fill Gauge (replacement)

PS-45260

Lower Retainer Wrench

PS-45261

IFP Positioning / Extraction tool

PS-45262

Cylinder Head Wrench

PS-45263

Wear Band Tool

PS-45629

Arvin Shock Body Holder

PS-45280

Shock Collar Tool

PS-45821

Shock Reservoir Holder

FOX Shock Special Tools

PART NUMBER

DESCRIPTION

2871021

Shock Body Holding Tool

2871352

Shock Rod Holding Tool .50" Diameter Rod

2872429

Shock Rod Holding Tool .625" Diameter Rod

2871232

Fox Shock Spanner

2871351

Fox Shock IFP Depth Tool

PS-44925

Fox Inner Tube Puller PS 2

9.3

Shocks

9

VALVE SHIMS

Shock shim stacks can be adjusted to control the amount
of fluid that is forced by as the piston travels through its

motion. Refer to the appropriate parts manual for a
complete listing of shock parts.

Ryde FX™ Shock Valve Part Numbers

PART NUMBER

SIZE

THICKNESS

1700080

0.700

0.004

1700086

0.800

1700092

0.900

1700081

0.700

0.006

1700087

0.800

1700093

0.900

1700121

1.000

1700129

1.100

1700134

1.250

1700139

1.300

1700094

0.900

0.008

1700122

1.000

1700130

1.100

1700135

1.250

1700140

1.300

1700082

0.700

0.009

1700088

0.800

1700083

0.700

0.010

1700089

0.800

1700095

0.900

1700126

1.000

1700131

1.100

1700136

1.250

1700141

1.300

1700084

0.700

0.012

1700090

0.800

1700096

0.900

1700127

1.000

1700132

1.100

1700137

1.250

1700142

1.300

1700085

0.700

0.015

1700091

0.800

1700120

0.900

1700128

1.000

1700133

1.100

1700138

1.250

1700143

1.300
