7.6

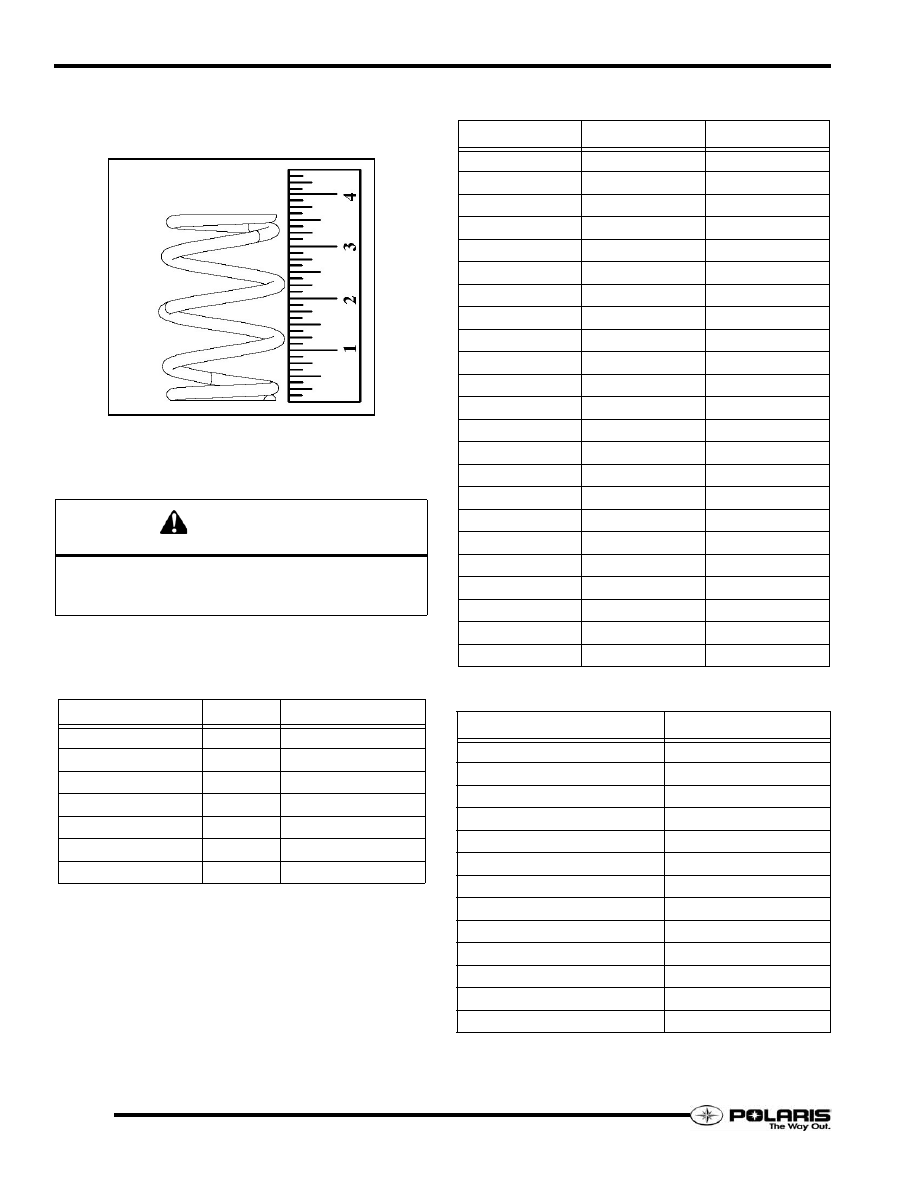

PVT System

Spring Free Length

Measure the drive and driven spring free length with the spring
resting on a flat surface. Replace spring if out of specification.

In addition to proper free length, the spring coils should be
parallel to one another when placed on a flat surface. Distortion
of the spring indicates stress fatigue. Replacement is required.

Drive Clutch Weights

CAUTION

Never shim a drive clutch spring to increase its compression

rate. This may result in complete stacking of the coils and

subsequent clutch cover failure

Full Tail Weights

WEIGHT

GRAMS

PART NUMBER

S43H

1321849

S45H

1321850

S47H

1321851

S49H

1321730

S51H

1321731

S53H

1321759

S55H

1322004

10 Series Weights

WEIGHT

GRAMS(+/- 1g)

PART NUMBER

10M - R

1321530

10M - W

1321527

10M - B

47.5

1321529

10M - 5

48.8

1321528

10M

49.5

1321531

10A - L

1321531

51.5

1321526

10A

1321589

10-54

1321685

10-56

1321684

10-58

1321588

10-60

1321587

10-62

1321586

10-62M

61.5

1321614

10-64

1321585

10-64M

63.5

1321615

10-66

1321584

10-68

1322427

10-70

1322414

10-72

1322428

10-74

1322429

10-76

1322585

10-78

1322586

11 Series Weights

WEIGHT GRAMS(+/- .8g)

PART NUMBER

11-40

1322593

11-42

1322592

11-44

1322591

11-48

1322590

11-50

1322589

11-52

1322595

11-64

1322604

11-66

1322559

11-68

1322558

11-70

1322523

11-72

1322524

11-74 1322525

11-76

1322526

7.7

PVT System

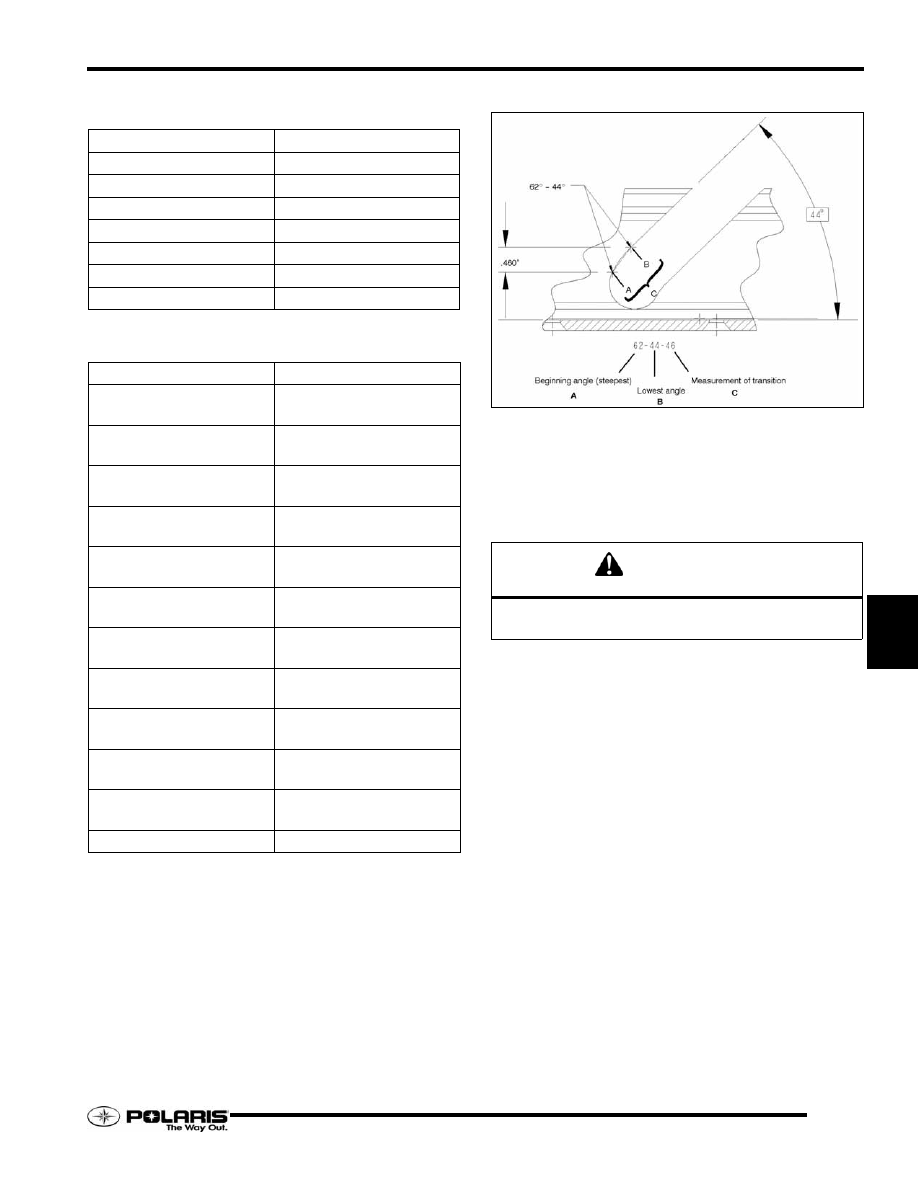

PERC Team LWT Driven Helixes (24 Fin)

Non-PERC Team LWT Driven Helixes (24 Fin)

Team Ramp Angles

The angles and length of the transition between the first and final
angle is stamped on the back of the helix. The first number (A)
designates the starting angle of the ramp. The second number
(B) designates the finish angle. The last number (C) is the
transition distance (in inches) between the starting and finish
angles.

PART NUMBER

DESCRIPTION

5135401

64 / 42 - .36

5135402

64 / 38 - .25

5135403

56 / 42 - .36

5135503

54 / 38 - .25

5136255

S42

5135504

S36

5135772

66 / 44 - .46

PART NUMBER

DESCRIPTION

5135375

62 / 40 - .46
64 / 40 - .55

5135376

64 / 38 - .65
64 / 38 - .46

5135438

70 / 44 - .46
66 / 44 - .46

5135480

64 / 38 - .65
64 / 38 - .46

5135486

62 / 40 - .46
64 / 40 - .55

5135521

74 / 50 - .46
74 / 48 - .46

5135522

74 / 44 - .46
74 / 40 - .46

5135523

70 / 50 - .46
70 / 48 - .46

5135524

70 / 44 - .46
70 / 40 - .46

5135525

66 / 50 - .46
66 / 48 - .46

5135526

66 / 44 - .46
66 / 40 - .46

5135537

64 / 38 - .65

CAUTION

Do not install a non-ER helix on a Perc-equipped

snowmobile where the engine changes directions.

7.8

PVT System

Team Driven Springs

NOTE: Team driven springs listed with a color - ### /
### will have the beginning and ending spring rates
painting on the spring coils. Tag the spring with the
part number when not in use.

TEAM Driven Springs

PART NUMBER

COLOR

LOAD @ 2.2

″(lbs)

LOAD @ 1.1

″(lbs)

Rate (Lbs. per inch)

7042181

Black/Yellow

145

208

7043058

Red/Black

140

240

7043059

Red/Green

120

220

7042066

Green/Black

135

198

7043061

Red/Silver

125

175

7043062

Red/Yellow

100

150

7043057

Red/Blue

140

200

7043064

Blue/Black

123

203

7043060

Red/White

100

200

7043069

Red/Pink

140

260

110

7043363

Black/Purple

160

240

7043063

Black- 155 / 222

155

222

7043252

Black - 160 / 280

160

280

109

7043253

Black - 180 / 280

180

280

7043254

Black - 140 / 300

140

300

146

7043255

Black - 160 / 300

160

300

127

7043256

Black - 180 / 300

180

300

109

7.9

PVT System

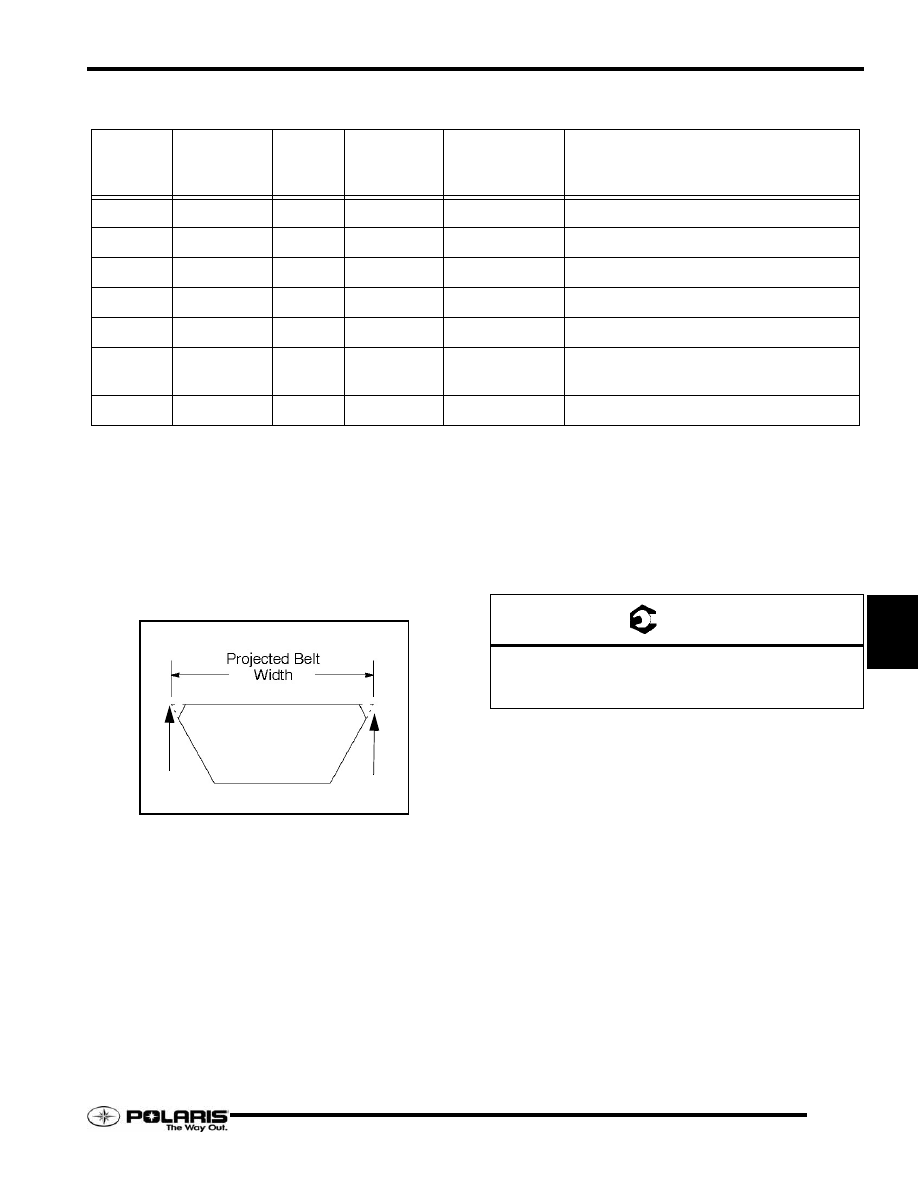

Drive Belts

*Belt dimensions are given in nominal dimensions. There is a +/
- variance for all critical dimensions. Clutch set up must be
inspected when a new belt is installed and, if necessary adjusted.

The drive belt is an important component of the converter
system. In order to achieve maximum efficiency from the
converter, drive belt tension (deflection), clutch offset, and
alignment must be adjusted properly.

Belt Inspection

Measure the belt width and replace it if it is worn severely.
Generally a belt should be replaced if the clutches can no
longer be adjusted to provide the proper belt deflection.

• Project the side profiles and measure from corner to

corner.

• Place a straight edge on each side of the drive belt and

measure the distance where the straight edges intersect
at the top (A,B).

Inspect the belt for loose cords. missing cogs, cracks,
abrasions, thin spots or excessive wear spots. Replace if
necessary.

Inspect the belt for hour glassing (extreme circular wear in
at least one spot an on both sides of the belt). Hour glassing

occurs when the drive train does not move and the drive
clutch engages the belt. Example would be taking off while
the track is frozen to the ground. Remember to always
warm up the track and free it from the ground.

Drive Clutch Bolt Torque

Follow the torque table below when installing the drive clutch.

Part

Number

Belt Width

(Projected)*

in/mm

Side

Angle

Overall*

Center to

Center

in/cm*

Outer

Circumference

in/cm

Notes

3211080

1.438 / 36.5

28_

11.5 / 29.2

46.625/118.4

Double Cog CVT version of 3211078

3211078

1.438 / 36.5

28_

11.5 / 29.2

46.62 / 118.4

Standard Drive Belt

3211117

1.46 / 37.1

26_

11 / 27.9

45.79 / 116

MBL High Performance Belt “Sanded Finish”

3211121

1.46 / 37.1

26_

11 / 27.9

45.79 / 116

MBL Kevlar Belt “Cut Finish”

3211122

1.46 / 37.1

26_

11.5 / 29.2

46.77 / 118.8

MBL Kevlar Belt “Cut Finish”

3211114

1.438 / 36.5

26_

10.625 / 27

45.2 / 114

MBL High Performance Race Belt

“Sanded Finish”

3211115

1.46 / 37.1

26_

11.5 / 29.2

46.77 / 118.8

MBL High Performance Belt “Sanded Finish”

BELT

= T

All 600 HO Carbureted Engines = 50 Ft.Lbs. (68 Nm)

All 600 / 700 / 800 CFI Engines = 80 Ft.Lbs. (108 Nm)

Re-torque clutch bolt after running engine.
