5.42

Engine and Cooling Systems

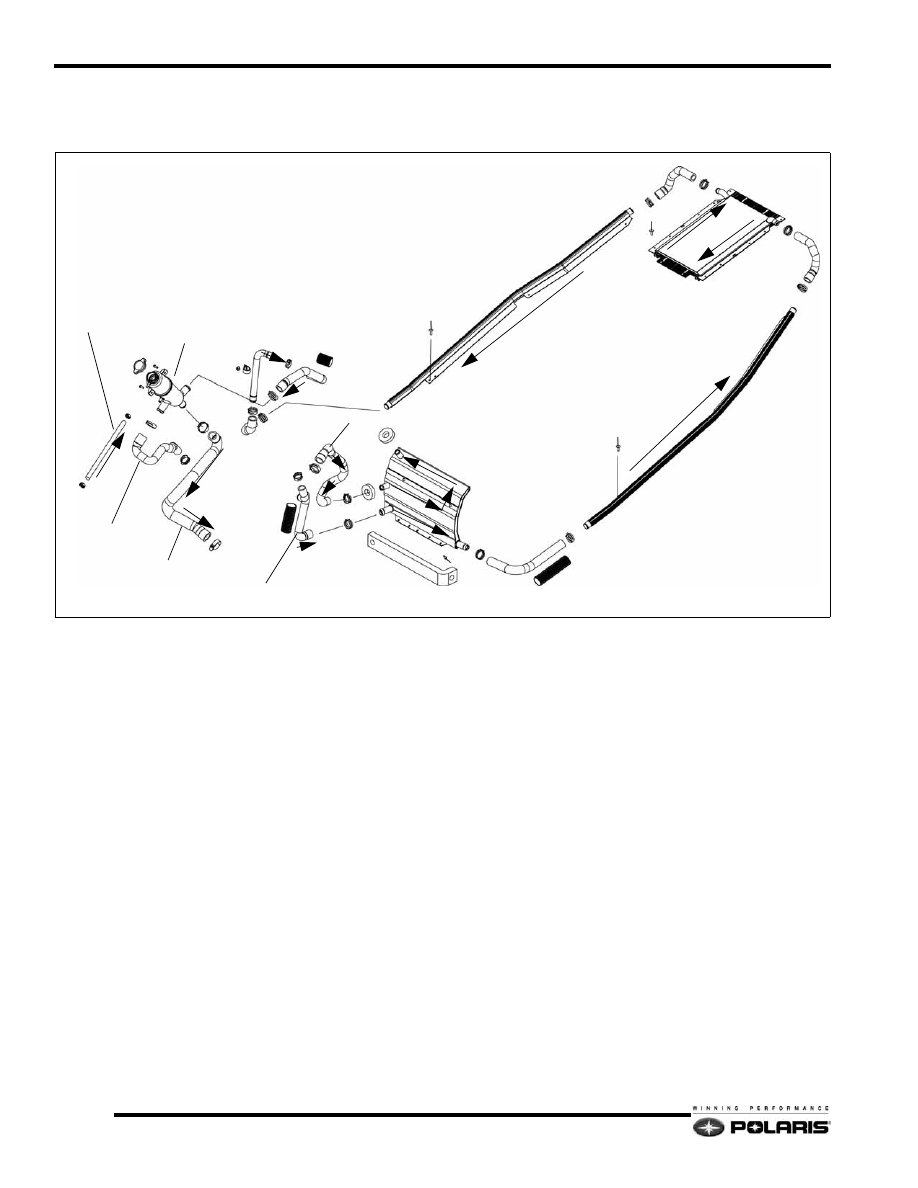

2007 700 Dragon IQ Cooling System

HOSE - THROTTLE BODY
OUT TO SURGE TANK
(CFI ONLY)

REAR TUNNEL COOLER

LH PERIMETER COOLER

RH PERIMETER COOLER

FRONT TUNNEL COOLER

FOAM

HOSE - SURGE BOTTLE OUT
TO ENGINE IN

HOSE - BYPASS OUT TO TUNNEL
COOLING SYSTEM (THERMOSTAT CLOSED / OPEN)

HOSE - ENGINE OUT TO FRONT COOLER

(THERMOSTAT OPEN)

HOSE - FRT COOLER
TO SURGE BOTTLE

SURGE BOTTLE

5.43

Engine and Cooling Systems

5

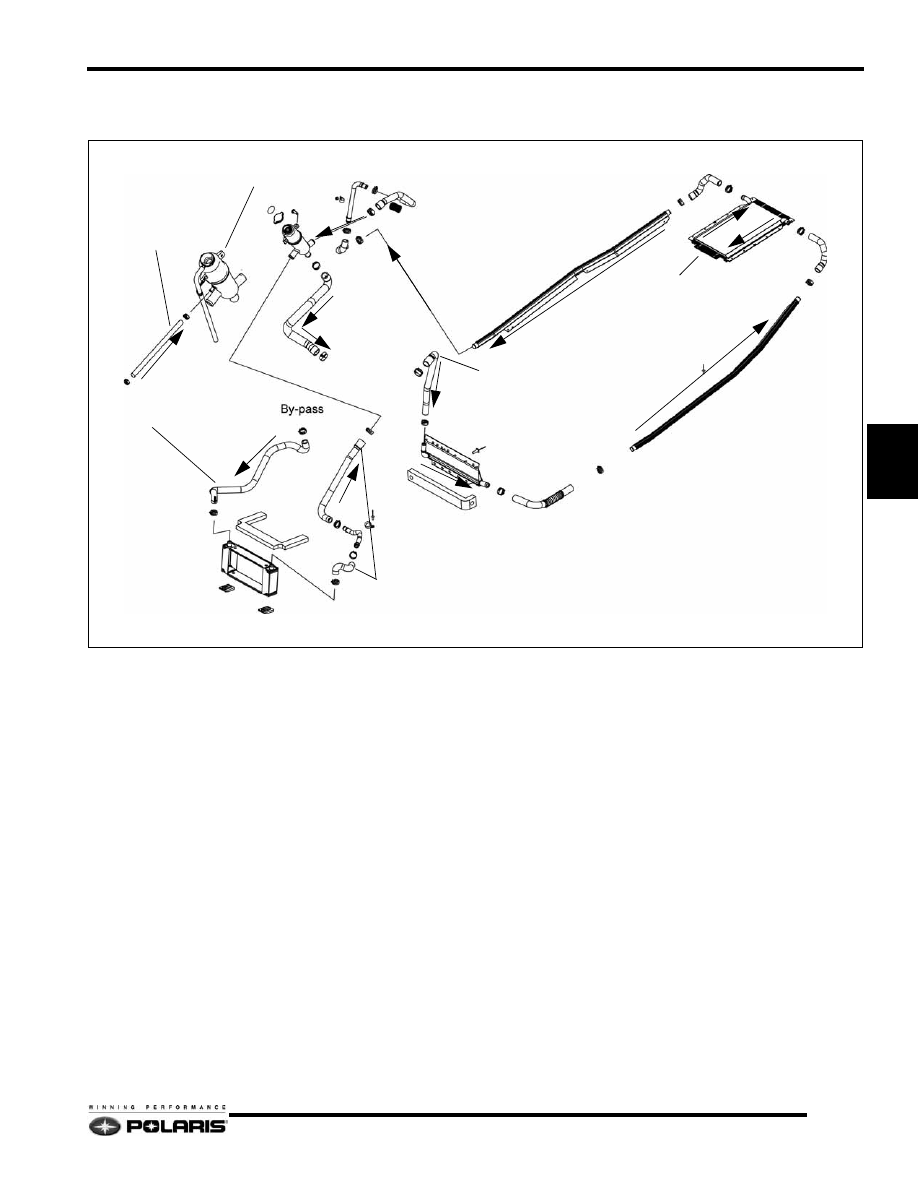

2007 600 IQ / Switchback / LX - 2008 CFI LX Cooling System

HOSE - THROTTLE BODY
OUT TO SURGE TANK
(CFI ONLY)

RADIATOR

SURGE BOTTLE

HOSE - BYPASS TO
RADIATOR

HOSE - RADIATOR TO
SURGE BOTTLE

FOAM

FRONT COOLER

REAR COOLER
(REVERSED ON S.B.)

LH PERIMETER COOLER

RH PERIMETER COOLER

HOSE - ENGINE OUT TO
TUNNEL COOLING SYSTEM
(THERMOSTAT OPEN)

HOSE - SURGE
BOTTLE TO ENGINE
IN

5.44

Engine and Cooling Systems

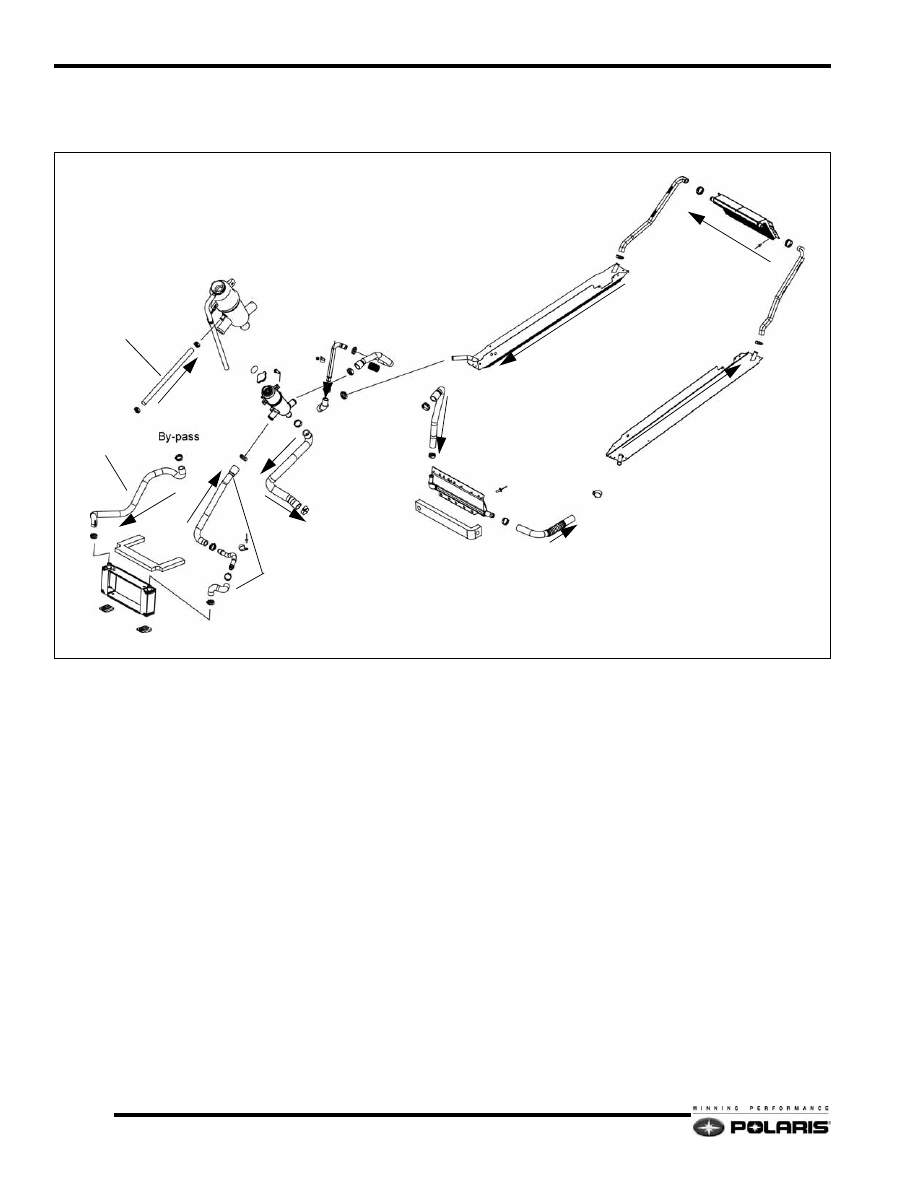

2007 - 2008 CFI Touring Cooling System

RH FOOTBOARD COOLER

LH FOOTBOARD COOLER

REAR COOLER

RADIATOR

SURGE TANK

HOSE - THROTTLE BODY
OUT TO SURGE TANK
(CFI ONLY)

FRONT COOLER

FOAM

HOSE - BYPASS
TO RADIATOR

HOSE - RADIATOR TO
SURGE TANK

HOSE - ENGINE OUT TO
TUNNEL COOLING SYSTEM
(THERMOSTAT OPEN)

HOSE - SURGE TANK
TO ENGINE IN

5.45

Engine and Cooling Systems

5

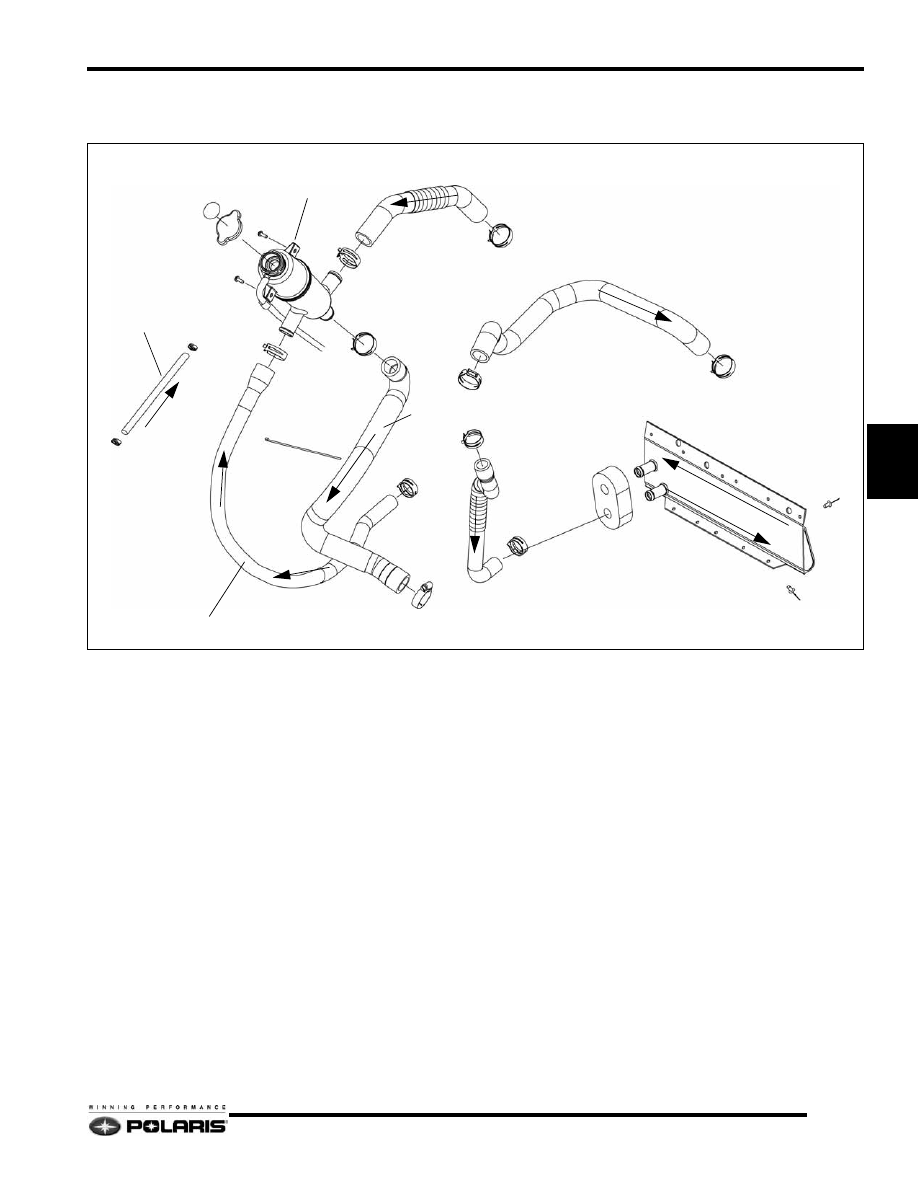

2007 - 2008 600 / 700 RMK Cooling System

HOSE - TUNNEL COOLER TO SURGE TANK

CAP

SURGE TANK

FRONT TUNNEL COOLER



(THERMOSTAT OPEN)



HOSE - ENGINE OUT TO TUNNEL COOLER

FOAM PAD



GEAR CLAMP



HOSE - CYLINDER HEAD OUT TO FRONT COOLER



HOSE - FRONT COOLER OUT TO SURGE TANK



HOSE - SURGE TANK TO ENGINE IN



SQUEEZE CLAMPS



HOSE - THROTTLE BODY
OUT TO SURGE TANK
(CFI ONLY)
