4.38

Fuel Systems

Version / Fileset Identification

Knowing what Digital Wrench or fileset versions are installed
will help determine which updates are required.

NOTE: Version and fileset versions are subject to
change.

1.

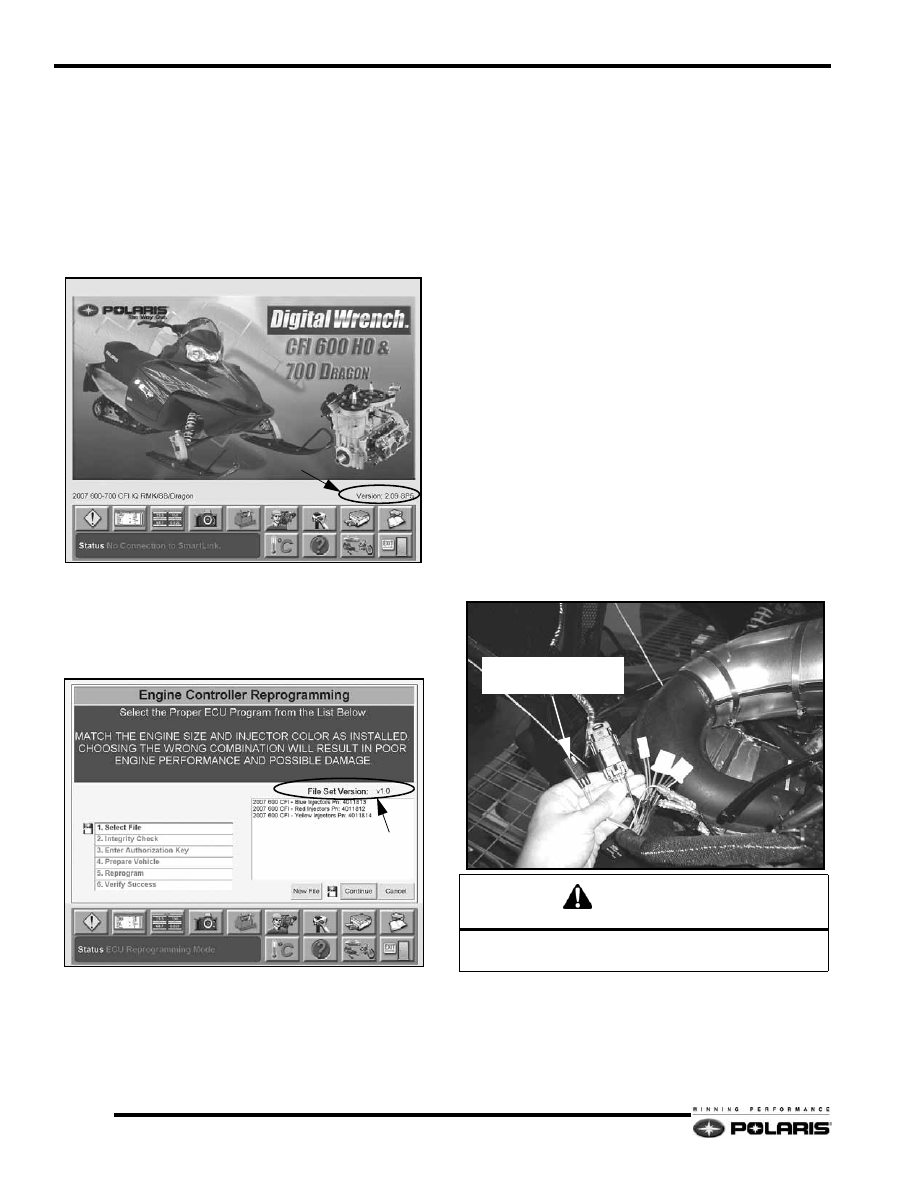

Start the Digital Wrench software.

2.

Locate the version ID on the title screen.

3.

Click on the “SPECIAL TESTS” icon (toolbox).

4.

Click on “ENGINE CONTROLLER
REPROGRAMMING”.

5.

Locate the fileset version number.

Engine Controller Reprogramming (Reflash)

NOTE:

New service replacement ECUs are

programmed as “no-start” and require a reflash in
able to work.

1.

Verify the most current service packs, updates and filesets
are downloaded and loaded into Digital Wrench. See
“Version / Fileset Identification” on page 4.38.

2.

Connect the communication cables to the snowmobile
connectors. See “Digital Wrench Connections” on
page 4.36.

3.

Start Digital Wrench. Select the model year and machine
using the “CHANGE VEHICLE TYPE” button.

4.

Click on the “SPECIAL TESTS” icon.

5.

Click on “ENGINE CONTROLLER
REPROGRAMMING”.

6.

Select the engine model and color of the injectors installed
on the engine.Record the 7 digit injector part number. Click
“CONTINUE”.

7.

All

NOTE:  four fuel injectors must share the same color
code.

8.

Locate the “program enable” or “mode change jumper
connector. Jump the two pins using a short length of wire.
Click “CONTINUE”.

CAUTION

Do not allow the jumper wire to touch the exhaust pipe
or any other grounded metal. ECU damage may occur.

PROGRAM ENABLE

JUMPER

(BLACK TWO-PIN PLUG)

4.39

Fuel Systems

4

9.

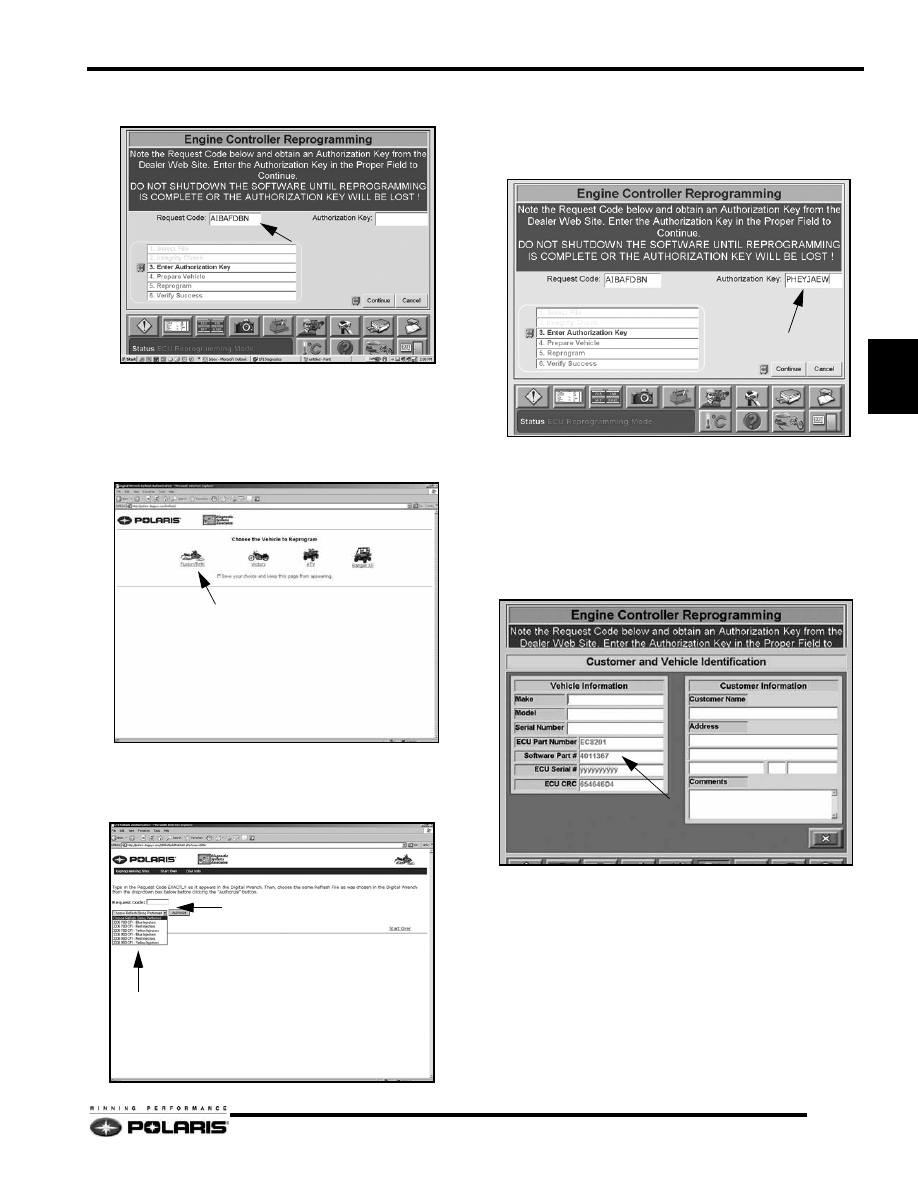

A request code will be generated. Record the code.

10. Access www.polarisdealers.com. Locate “REFLASH

AUTHORIZATION” under the “SERVICE AND
WARRANTY” drop-down menu.

11. Locate and click on the product requiring the reflash. Click

on the model year.

12. Enter the request code generated by Digital Wrench. Select

the fuel injector color and model year/engine from the drop-
down menu.

13. The website will generate an authorization code. Record the

code.

14. Enter the authorization number in the box on Digital

Wrench. Click on “CONTINUE”.

15. The reflash process will begin. Verify all connections are

properly made. Do not touch anything during the process.

16. Verify the reflash was a success by comparing the software

ID number listed under the “CUSTOMER AND VEHICLE
IDENTIFICATION” button with the number recorded in
step 6.

NOTES

Fuel Systems

4.40

Engine and Cooling Systems

5.1

CHAPTER 5

Engine and Cooling Systems

5
