Snowmobile Polaris 600 IQ LXT (2015 year). Manual - part 22

91

MAINTENANCE

Chaincase Oil

Oil Change

1. Position the vehicle on a level surface.

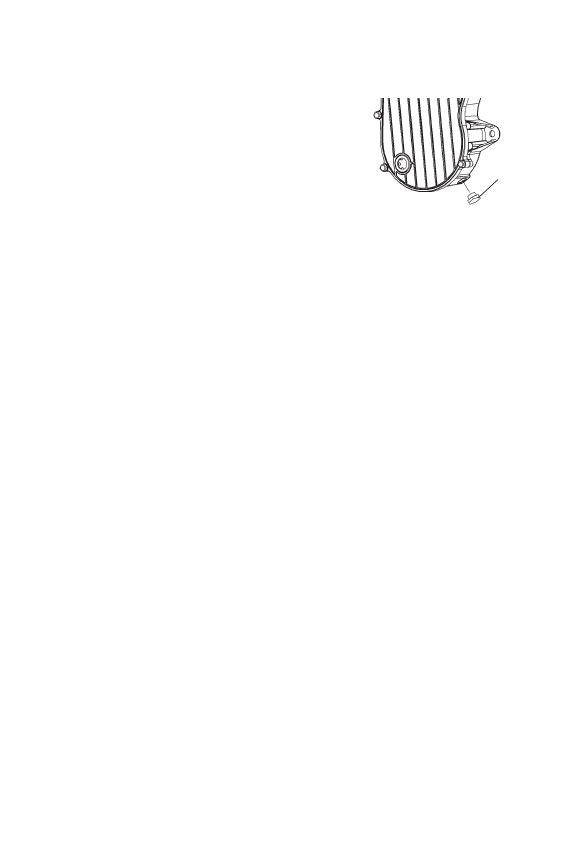

2. Remove the drain plug (4) and drain

the oil into a drain pan. Allow the oil
to drain completely.

3. Clean off all metal shavings from the

plug.

4. Install a new sealing washer on the

drain plug. The sealing surfaces on the drain plug and the oil tank
should be clean and free of burrs, nicks or scratches.

5. Reinstall the drain plug. Torque to 6-10 ft. lbs. (8-13 Nm).

6. Remove the fill plug. Clean off all metal shavings from the plug.

7. Add 11 oz. (325 ml) of the recommended oil. Do not overfill.

8. Reinstall the fill plug, making sure it is seated properly.

4

92

MAINTENANCE

Spark Plugs

A new engine can cause temporary spark plug fouling due to the
preservative added during the assembly process. Avoid prolonged idle
speeds, which cause plug fouling and carbonization.

NOTICE: Using non-recommended spark plugs can result in serious engine

damage. A spark plug with a heat range too high will always cause
engine damage if the engine is operated in conditions more severe
than intended for that plug. Always use the spark plugs recommended
for your snowmobile.

• Use recommended spark plugs with the proper gap. Refer to the

specifications section beginning on page 120.

• Use only resistor-type spark plugs.

• Torque spark plugs to 18-22 ft. lbs. (24-30 Nm).

Check the spark plug firing end condition after the engine has been
warmed up and the vehicle has been driven at higher speeds. If a plug is
fouled, replace the plug with a new plug.

CAUTION! A hot exhaust system and engine can cause burns. Wear
protective gloves when removing a spark plug for inspection.

93

MAINTENANCE

Spark Plugs

Normal Spark Plug

The normal insulator tip is gray, tan or light brown. There will be few
combustion deposits. The electrodes are not burned or eroded. This
indicates the proper type and heat range for the engine and the service.

Tip: The tip should not be white. A white insulator tip indicates overheating,

caused by use of an improper spark plug or incorrect carburetor/throttle
body adjustments.

Wet Fouled Spark Plug

The wet fouled insulator tip is black. A damp oil film covers the firing
end. There may be a carbon layer over the entire nose. Generally, the
electrodes are not worn. General causes of fouling are excessive oil or
use of non-recommended injection oil.

Spark Plug Removal and Replacement

1. Remove the spark plug cap.

2. Using the special wrench provided in the tool pouch, rotate the

spark plug counter-clockwise to remove.

3. Reverse the procedure for spark plug installation.

4. Torque to 18-22 ft. lbs. (24-30 Nm).

5. Reinstall the spark plug cap.

94

MAINTENANCE

Intake Filters

The intake foam filter limits snow
ingestion into the intake system.
When operating in loose powder
snow, check the top of the foam
filter periodically to remove any
accumulation of snow.

Fuel Injectors

All fuel injector service must be performed by an authorized POLARIS
dealer. Do not attempt to clean or service the fuel injectors.

Fuel Pump

All fuel pump service must be performed by an authorized POLARIS
dealer. Do not attempt to service the fuel pump.

Fuel Filter

See your POLARIS dealer for replacement of the fuel filter at the
intervals outlined in the Periodic Maintenance Table beginning on page
85.

Contaminated or poor quality fuel will shorten the life of the fuel filter
and result in poor engine performance. Always store fuel in clean fuel
containers. If low fuel pressure or reduced engine performance occurs
between the recommended fuel filter service intervals, the filter may
need replacement. See your dealer.

Fuel Lines

Inspect the fuel lines regularly for signs of deterioration or damage.
Always check fuel line condition after periods of storage. Normal
deterioration from weather and fuel compounds may occur. Replace
worn or damaged fuel lines promptly.

NOTICE: Kinking the fuel lines or using a pliers or similar tools to remove fuel

lines may cause damage to the lines. If a fuel line has been damaged
or kinked, replace it promptly.

X
