MAINTENANCE

Track

Track Tension

I

f the track needs adjustment:

6. Loosen the rear idler shaft bolt.

7. Loosen the locknuts.

8. Tighten or loosen the track adjusting screws as necessary to provide

equal adjustment on both sides of the track.

9. Repeat the measurement on the other side of the track.

Tip: Check more frequently when snowmobile is new.

10. Start the engine and slowly rotate the track at least five revolutions.

Let the track come to a stop (do not apply brakes).

11. Check track alignment (see page 91) and adjust as necessary.

12. Tighten the locknuts.

13. Tighten the idler shaft bolts. Torque to 35 ft. lbs. (47.5 Nm).

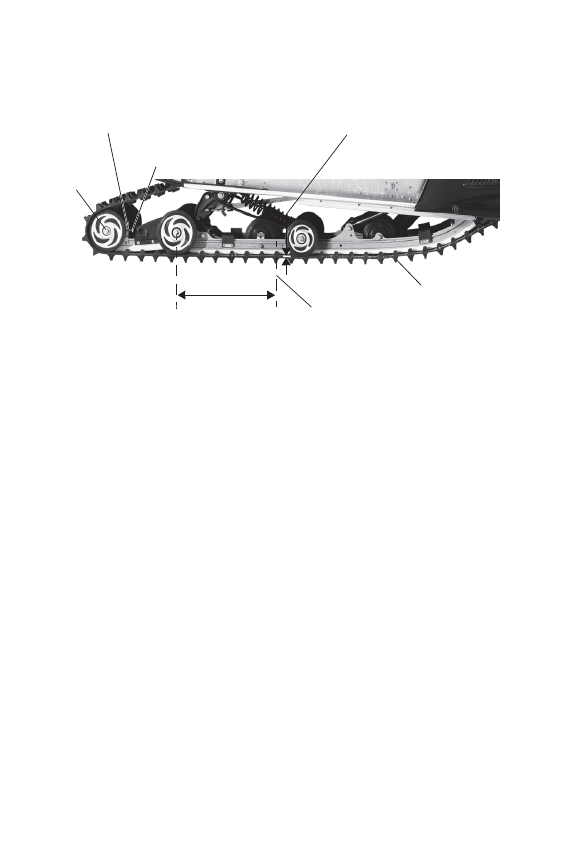

Adjusting

Screw

Locknut

Slack Measurement

Track

10 lbs. (4.54 kg)

Idler

Shaft

Bolt

16 in. (40 cm)

p

91

MAINTENANCE

Track

Track Alignment

Periodically check that the track is centered and running evenly on the
slide rails. Misalignment will cause excessive wear to the track and slide
rail.

1. Safely support the rear of the snowmobile with the track off the

ground.

2. Start the engine and apply a small amount of throttle until the track

turns slowly at least five complete revolutions. Stop the engine and
let the track come to a stop (do not apply brakes).

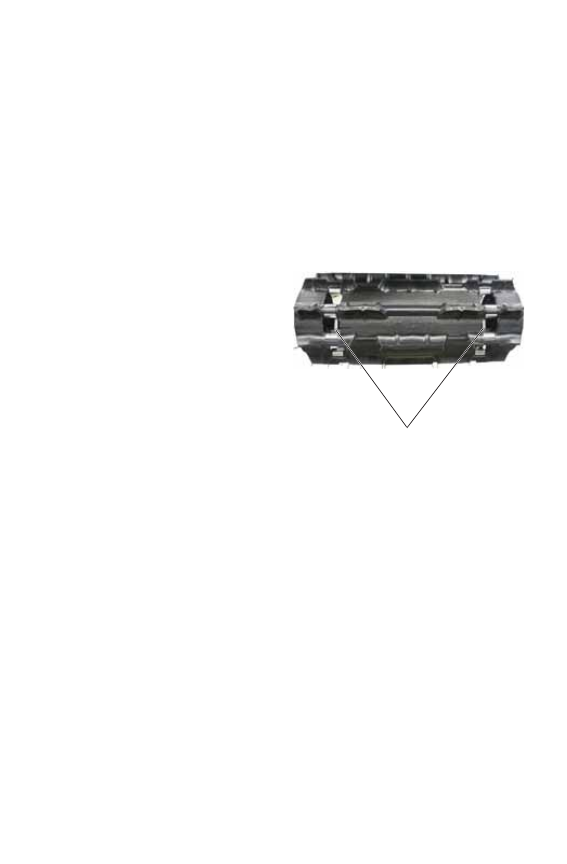

3. Inspect track alignment by

looking through the track
window to make sure the
rails are evenly spaced on
each side. If the track runs to
the left, loosen the left lock-
nut and tighten the left
adjusting bolt. If the track
runs to the right, loosen the
right locknut and tighten the
right adjusting bolt.

4. After adjustments are com-

plete, tighten locknuts and
torque idler shaft bolts to 35 ft. lbs. (47.5 Nm).

5. Repeat steps 2 and 3 to verify proper alignment.

Rails

92

MAINTENANCE

Steering System

Steering Inspection

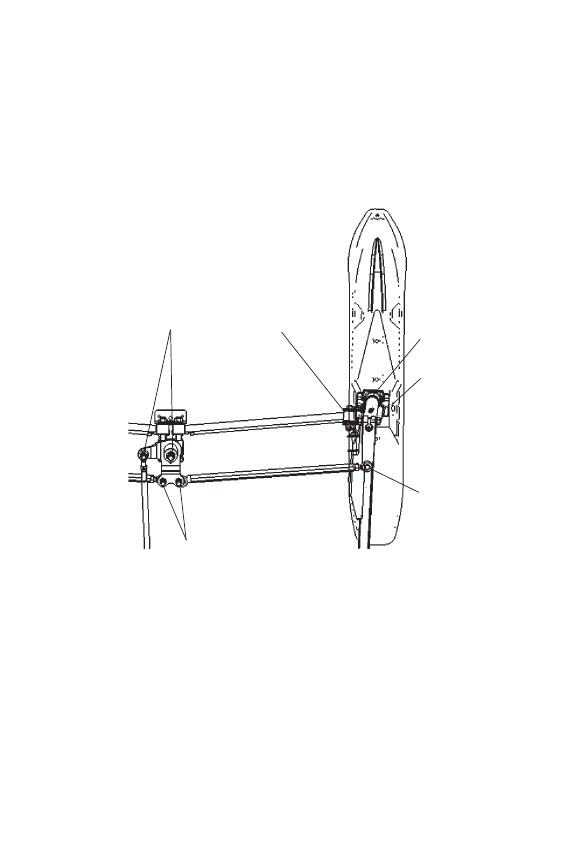

Each week, or before a long ride, check fasteners and tighten if
necessary. Specific fasteners that should be checked are marked with an
(X) in the illustration.

x

x

x

x

x

x

93

MAINTENANCE

Steering System

Ski Alignment

WARNING! Improper ski alignment or adjustment may cause loss of steering
control, resulting in serious injury or death. Do not attempt to change the ski
alignment or camber adjustment. See your POLARIS dealer.

1. Place the handlebars in a straight-ahead position.

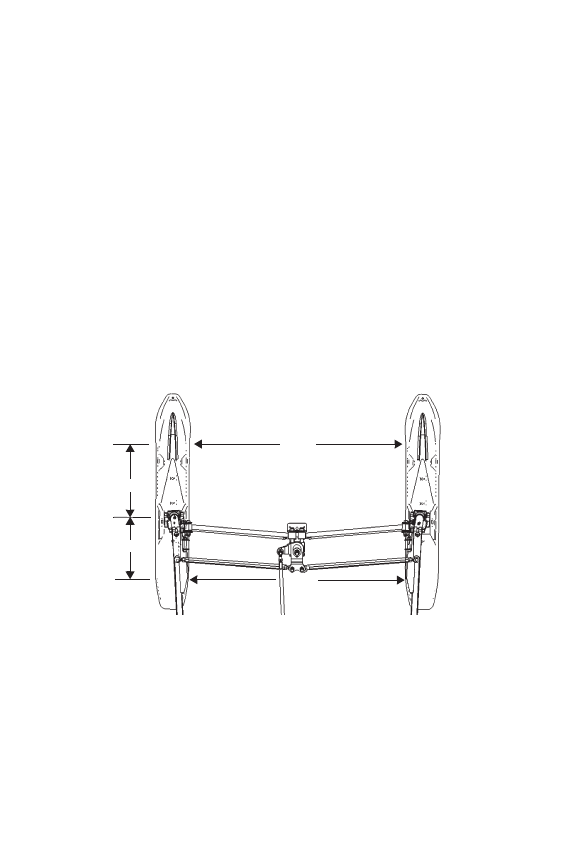

2. With only vehicle weight compressing the suspension, measure 10

inches (25.4 cm) forward from the center of the ski mounting bolt.
See illustration. At this point, measure between the skis. This is
measurement X.

3. Perform the same measurement rearward from the center of the ski

mounting bolt. This is measurement Y.

4. The X measurement should be 1/8-1/4 inch (3-6 mm) greater than

the Y measurement. If the skis are misaligned, see your dealer for
alignment correction as camber adjustment may also be affected.

X

Y

10 in. (25.4 cm)

10 in. (25.4 cm)
