REAR SUSPENSION

9

Walker Evans FTS 7043234

Ryde FX FTS 7043244

Fox FTS 7043142

Ryde FX FTS 7041975

ITEM

NOTE

Extended Length

12.49" (317.2mm)

Collapsed Length

8.92" (226.6mm)

Stroke

3.57" (90.7mm)

Shock Rod

1.124" (28.5mm)

IFP Depth

N/A

Shaft PN (assembly)

1800228

Pressure*

215psi/14.8 bar

Spring

N/A

Spring Ratio

N/A

Free Length

N/A

Fluid*

70 cc / 5 wt.

*= Critical specifications

ITEM

NOTE

Extended Length

12.12" (307.9mm)

Collapsed Length

8.61" (3.52mm)

Stroke

3.52" (89.3mm)

Shock Rod

.50" (12.7mm)

IFP Depth

4.68" (118.9mm)

Shaft PN

1700026

Pressure

200 psi (13.8 bar)

Spring

7043147

Spring Ratio

130/270 lb/in

Free Length

8.22" (209mm)

Fluid

107cc

Spring Installed Length

7.72" (196mm)

ITEM

NOTE

Extended Length

12.51" (317.8mm)

Collapsed Length

8.92" (226.6mm)

Stroke

3.59" (91.2mm)

Shock Rod

.50" (12.7mm)

IFP Depth measured

from the bottom of the

shock body

.84" (21.3)

Shaft PN

1500713

Pressure

200psi/13.8bar

Spring

7042050

Spring Ratio

170 lb/in

Free Length

7.50" (191mm)

Fluid

Full

ITEM

NOTE

Extended Length

12.10" (307.3mm)

Collapsed Length

8.60" (218.4mm)

Stroke

3.5" (89mm)

Shock Rod

.50" (12.7mm)

IFP Depth from the top of

the shock body

4.61" (117mm)

Shaft PN

1700026

PSI

200 psi (13.8 bar)

Spring

7041914

Spring Ratio

160 lb/in

Free Length

7.57

Fluid

102cc

9.28

REAR SUSPENSION

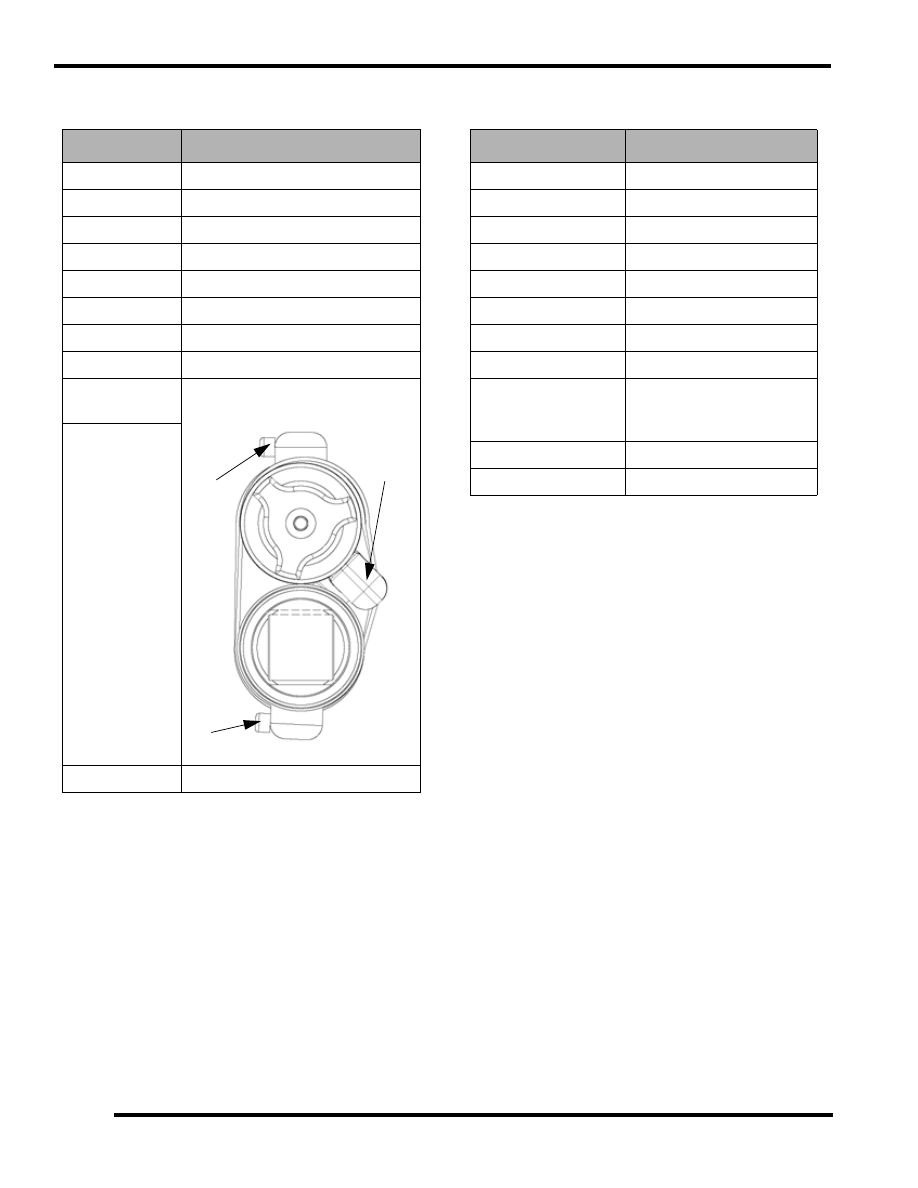

Walker Evans RTS 7043205

Fox RTS 7043246

ITEM

NOTE

Extended Length

15.60" (39.6mm)

Collapsed Length

10.56" (26.8cm)

Stroke

5.04" (12.8cm)

Shock Rod

.625" (1.59cm)

IFP Depth

2.25" (57.2mm)

Shaft PN

1800228

Pressure

200 psi (13.8 bar)

Fluid

5 wt

Hose clamp
orientation (1)

Fitting orientation
(2)

Clicker position

position 8 ± 1

2

1

1

ITEM

NOTE

Extended Length

16.60" (421.6mm)

Collapsed Length

10.91" (277.1mm)

Stroke

5.96" (151.4mm)

Shock Rod

.50" (12.7mm)

IFP Depth

2.23" (56.6mm)

Shaft PN

1500715

Pressure

200 psi (13.8 bar)

Fluid

Premium Fox

Body Cap

Apply primer N and Green
Loctite 638
Torque to75 ft-lb (102 N-m)

Shock Rod Bearing Cap Torque to 30 ft-lb (41 N-m)

Banjo Bolt Fitting

Torque to 15 ft-lb (20 N-m)

9.29

REAR SUSPENSION

9

Fox RTS 7043266

Fox RTS 7043177

Walker Evans RTS 7043235

Fox RTS (M-10) 7043216

ITEM

NOTE

Extended Length

15.65" (39.75cm)

Collapsed Length

10.56" (26.2cm)

Stroke

5.09" (12.9cm)

Shock Rod

.50" (1.27cm)

IFP Depth

1.63" (4.1cm)

Shaft PN

1500779

PSI

200 psi (13.8 bar)

Body Cap

Apply primer N and Green
Loctite 638
Torque to75 ft-lb (102 N-m)

Rod Eyelet

Apply primer N and Red
Loctite 277
Torque to 30 ft-lb (41 N-m)

Banjo Bolt

Torque to 15 ft-lb (20 N-m)

ITEM

NOTE

Extended Length

15.60" (39.6 cm)

Collapsed Length

10.56" (26.2 cm)

Stroke

5.04" (12.8 cm)

Shock Rod

.50" (1.27 cm)

IFP Depth

1.22" (3.1 cm)

Shaft PN

1500599

PSI

200 (13.8 bar)

ITEM

NOTE

Extended Length

16.71" (42.4 cm)

Collapsed Length

10.96" (27.8 cm)

Stroke

5.75" (14.6 cm)

Shock Rod

.50" (1.27 cm)

IFP Depth

7.25" (18.4 cm)

Shaft PN

1800296

PSI

200 (13.8 bar)

Fluid

Walker Evans 5 wt

ITEM

NOTE

Extended Length

14.12" (35.9 cm)

Collapsed Length

9.29" (23.6 cm)

Stroke

4.83" (12.3 cm)

Shock Rod

.50" (1.27 cm)

IFP Depth

2.40" (6.1cm)

Shaft PN

1500562

PSI

300 psi (20.6 bar)

Spring (Spring Ratio)

7042206 (425 lb/in 7.6 kg/mm)
7042207 (273 lb/in 4.9 kg/mm)

7042208 (715 lb/in1.8 kg/mm)

Free Length

7042206 (6.20" / 157 mm)
7042207 (5.40" / 137 mm)
7042208 (6.20" / 157 mm)

9.30

REAR SUSPENSION

SHOCK MAINTENANCE

Shock Maintenance

Changing oil on Shocks is recommended annually and should be
included when performing end of season storage preparation.
This oil change is necessary to avoid any chance of corrosion
which could be caused by moisture contamination.

When performing maintenance on Shocks, use Gas Shock
Recharging Kit PN 2200421. It consists of the necessary valves,
pressure gauge, and fittings to deflate and pressurize the shocks.
The Body Holder Tool, Internal Floating Piston (IFP), and
Shock Rod Holding Tool are not included in the Recharging Kit
and must be ordered separately. Refer to your SPX Specialty
Tool catalog for part numbers.Videos on shock rebuilding are
also available. Monotube shocks PN 9917736, Remote
Reservoir Shocks PN 9917737.

CAUTION

E

XTREME



CAUTION



SHOULD



BE



OBSERVED



WHILE



HANDLING



AND



WORKING



WITH



HIGH



PRESSURE



SERVICE



EQUIPMENT

.

W

EAR



A



FACE



SHIELD

,

SAFETY



GLASSES

,

AND



EAR



PROTECTION



DURING



SERVICE



OF



THESE



SHOCKS

. C

ARE



SHOULD



BE



OBSERVED



WHILE



HANDLING



THE



INFLATER



NEEDLE



AND



PRESSURE



GAUGES

. M

AINTAIN



YOUR



EQUIPMENT



AND



KEEP



IT



IN



GOOD



WORKING



CONDITION

. I

F



INJURY



SHOULD



OCCUR

,

CONSULT



A



PHYSICIAN



IMMEDIATELY

. E

XTREME



CLEANLINESS



IS



OF



UTMOST



IMPORTANCE



DURING



ALL



DISASSEMBLY



AND



REASSEMBLY



OPERATIONS



TO



PREVENT



ANY



DIRT



OR



FOREIGN



PARTICLES



FROM



GETTING



INTO



THE



SHOCKS

. K

EEP



THE



PARTS



IN



ORDER



AS



THEY



ARE



DISASSEMBLED

. N

OTE



THE



DIRECTION



AND



POSITION



OF



ALL



INTERNAL



PARTS



FOR



REASSEMBLY

.

CAUTION

B

EFORE



SERVICING



A



GAS



SHOCK



IT



IS



IMPORTANT



THAT



ALL



THE



GAS



PRESSURE



BE



DISCHARGED



FROM



THE



UNIT

.

R

EFER



TO



THE



INSTRUCTIONS



LISTED



BELOW



FOR



THE



PROPER



PROCEDURE



OF



DISCHARGING



THE



GAS



PRESSURE



FROM



A



SHOCK

. P

ROTECTIVE



EYE



WEAR



SHOULD



BE



WORN



TO



AVOID



RISK



OF



INJURY



WHILE



SERVICING

 R

YDE

FX

GAS



CHARGED



MONO

-

TUBE



SHOCKS

.

CAUTION

W

HEN



REMOVING



THE



SPRING



FROM



A



SHOCK



THAT



UTILIZES



A



FIXED



LOWER



RETAINER

;

THE



USE



OF



A



PROPER



SPRING



COMPRESSOR



SHOULD



BE



USED



TO



AVOID



RISK



OF



BODILY



INJURY

.

WARNING

W

HEN



USING



COMPRESSED



AIR



TO



DRY



COMPONENTS

,

PROTECTIVE



EYE



WEAR



SHOULD



BE



WORN



TO



AVOID



RISK



OF



INJURY

.

CAUTION

I

T



IS



IMPORTANT



THAT



THE



GAS



SHOCK



BE



RETAINED



IN



THE



VISE



BY



THE



LOWER



MOUNT

. A

NY



OTHER



METHOD



OF



SECURING



THE



CHOCK



BODY



DURING



THESE



PROCEDURES



MAY



DEFORM



THE



SHOCK



BODY



CYLINDER

.

WARNING

N

ITROGEN



GAS



IS



UNDER



EXTREME



PRESSURE

.

USE



CAUTION



WHEN



RELEASING



NITROGEN



GAS



FROM



SHOCK

. P

ROTECTIVE



EYE



WEAR



SHOULD



BE



WORN



TO



AVOID



RISK



OF



INJURY

.

CAUTION

Point air valve away from face and body when charging

or discharging any shock.
