Snowmobile Polaris Two Stroke (2007 year). Manual - part 21





FUEL DELIVERY

4.1

CHAPTER 4

FUEL DELIVERY

4

WARNINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.3

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.3

GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.3

SERVICE PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.3

FUEL DELIVERY SYSTEM (CARBURETED) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.4

CARBURETED SYSTEM OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.4

FUEL PUMP (CARBURETED UNITS)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.4

FUEL PUMP OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.4
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5

MIKUNI JET NEEDLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5

OVERVIEW. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5

MIKUNI TM 38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.6

CARBURETOR OVERVIEW  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.6

MIKUNI CARBURETOR  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.7

FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.7
FLOAT SYSTEM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8
FUEL METERING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8
FUEL DELIVERY  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.8
PILOT JET  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . 4.8
FUEL SCREW  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9
MAIN JET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9
JETTING GUIDELINES  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9
PISTON VALVE OR THROTTLE VALVE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.9
JET NEEDLE / NEEDLE JET . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.10
JET NEEDLE  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.10
NEEDLE JET  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.10
THROTTLE OPENING VS. FUEL FLOW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.11

MIKUNI TM38 FLAT SLIDE SERVICE  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  4.12

DISASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.12
ASSEMBLY  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.14

CARBURETOR SYNCRONIZATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  4.14

THROTTLE VALVE SYNCHRONIZATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.14

CARBURETOR COMPONENT PART NUMBERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  4.15

MIKUNI PILOT JETS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.15
MIKUNI MAIN JETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.15
MIKUNI JET NEEDLES  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.15
MIKUNI STARTER JETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.16
MIKUNI (SHORT) PILOT AIR JETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.16
MIKUNI (LONG) PILOT AIR JETS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.16
MIKUNI PISTON VALVES  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.16
MIKUNI (NOTCHED) PISTON VALVES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.16

CLEANFIRE INJECTION (CFI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  4.17

INJECTOR REPLACEMENT  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.17
600/700 CFI INJECTOR REPLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.17
600/700 CFI FUEL RAIL/INJECTOR(S) REMOVAL/INSTALLATION  . . . . . . . . . . . . . . 4.17
CLEANFIRE SYSTEM OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.19
FUEL PUMP (700)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.19
FUEL LEVEL INDICATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.19
2007 FUEL SUPPLY / RETURN FITTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.20
FUEL RAIL BLEEDING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.20
600 CFI FUEL TANK / FUEL SUPPLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.21
600 CFI PUMP / SENDER SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.21

4.3

FUEL DELIVERY

4

WARNINGS

When servicing the carburetor or fuel
system, it is important to heed the following
warnings.

GENERAL INFORMATION

Service Precautions

In order to perform service work efficiently and to prevent
costly errors, the technician should read the text in this manual,

thoroughly familiarizing him/herself with procedures before
beginning. Photographs and illustrations have been included
with the text as an aid. Notes, cautions and warnings have also
been included for clarification of text and safety concerns.
However, a knowledge of mechanical theory, tool use and shop
procedures is necessary to perform the service work safely and
satisfactorily. Use only genuine Polaris service parts.

Cleanliness of parts and tools as well as the work area is of
primary importance. Dirt and foreign matter will act as an
abrasive and cause damage to precision parts. Clean the
snowmobile before beginning service. Clean new parts before
installing.

Watch for sharp edges which can cause personal injury,
particularly in the area of the tunnel. Protect hands with gloves
when working with sharp components.

If difficulty is encountered in removing or installing a
component, look to see if a cause for the difficulty can be found.
If it is necessary to tap the part into place, use a soft face hammer
and tap lightly.

Some of the fasteners in the snowmobile were installed with
locking agents. Use of impact drivers or wrenches will help
avoid damage to fasteners.

Always follow torque specifications as outlined throughout this
manual. Incorrect torquing may lead to serious machine damage
or, as in the case of steering components, can result in injury or
death for the rider(s).

If a torquing sequence is indicated for nuts, bolts or screws, start
all fasteners in their holes and hand tighten. Then, following the
method and sequence indicated in this manual. Tighten evenly
to the specified torque value. When removing nuts, bolts or
screws from a part with several fasteners, loosen them all about
1/4 turn before removing them.

If the condition of any gasket or O-Ring is in question, replace
it with a new one. Be sure the mating surfaces around the gasket
are clean and smooth in order to avoid leaks.

Some procedures will require removal of retaining rings or
clips. Because removal weakens and deforms these parts, they
should always be replaced with new parts. When installing new
retaining rings and clips use care not to expand or compress
them beyond what is required for installation.

Because removal damages seals, replace any oil or grease seals
removed with new parts.

Polaris recommends the use of Polaris lubricants and greases,
which have been specially formulated for the top performance
and best protection of our machines. In some applications, such

WARNING

Always stop the engine and refuel outdoors or in a well

ventilated area

WARNING

Do not smoke or allow open flames or sparks in or near

the area where refueling is performed or where

gasoline is stored or used.

WARNING

Do not overfill the tank. Do not fill the tank neck.

WARNING

If you get gasoline in your eyes or if you swallow

gasoline, see your doctor immediately.

WARNING

If you spill gasoline on your skin or clothing,

immediately wash it off with soap and water and

change clothing.

WARNING

Never start the engine or let it run in an enclosed area.

Gasoline powered engine exhaust fumes are

poisonous and can cause loss of consciousness and

death in a short time.

4.4

FUEL DELIVERY

as the engine, warranty coverage may become void if other
brands are substituted.

Grease should be cleaned from parts and fresh grease applied
before reassembly of components. Deteriorating grease loses
lubricity and may contain abrasive foreign matter.

Whenever removing or reinstalling batteries, care should be
taken to avoid the possibility of explosion resulting in serious
burns. Always disconnect the negative (black) cable first and
reconnect it last. Battery electrolyte contains sulfuric acid and
is poisonous! Serious burns can result from contact with the
skin, eyes or clothing. ANTIDOTE: External - Flush with
water. Internal - Drink large quantities or water or milk. Follow
with milk of magnesia, beaten egg, or vegetable oil. Call
physician immediately. Eyes - Flush with water for 15 minutes
and get prompt medical attention.

FUEL DELIVERY SYSTEM
(CARBURETED)

Carbureted System Overview

The carbureted fuel system contains many components which
directly affect fuel mixture and performance. When performing
diagnosis or carburetor maintenance, the entire fuel delivery
system should be inspected.

Fuel filters should be replaced at least once per season. More
often if contamination is suspected.

Fuel lines should be replaced every other season. More often if
they become brittle or swollen. Fittings should be inspected for
cracks or leaks. Do not use pliers or other tools that may damage
fuel lines when installing or removing fuel lines.

Test run and check the fuel system for leaks any time parts are
replaced. Verify that all lines are routed correctly and away from
any moving parts.

NOTE:  Some models use fuel filters that are located
inside the fuel tank. To inspect/replace filter, remove
fuel cap and use a long clean wire, bend one end
into a hook shape. Pull the fuel line that is in the
tank up through the filler hole. Inspect filter on end
of fuel pick up line. Replace if worn or clogged.

Red fuel line is the exterior line for outside the tank. The violet
line is the interior line for inside the fuel tank. They cannot be
interchanged! The violet line used inside the tank will fade and
turn clear after a relatively short time. This does not affect the
function or durability of the line.

When replacing fuel line, be sure to use the correct color line for
inside or outside the fuel tank. Also, be very careful not to bend
fuel line to a point of kinking it. If it becomes kinked, it must be
replaced. Always inspect fuel lines when replacing, or if carbs,
carburetor racks, or fuel pumps are removed from chassis.

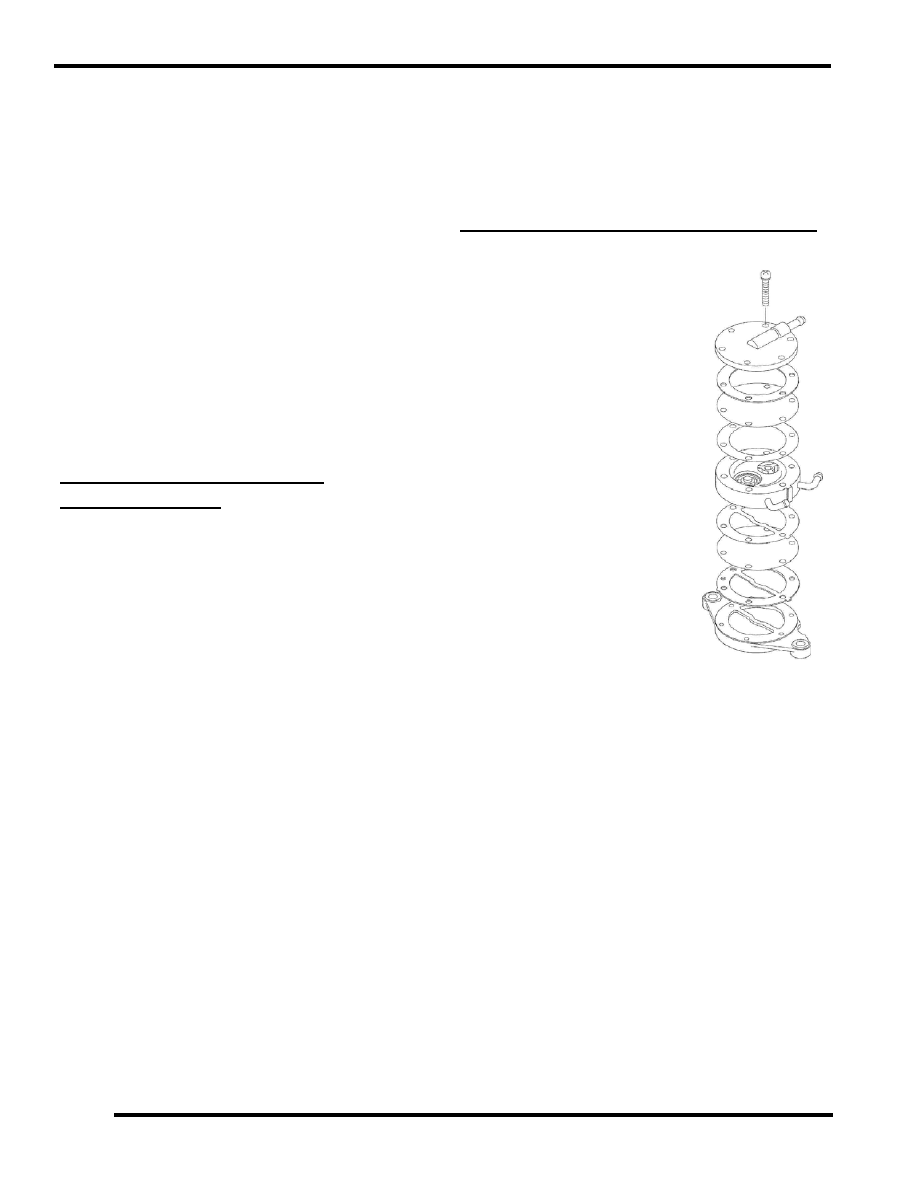

FUEL PUMP (CARBURETED UNITS)

Fuel Pump Overview

The differences are in the size and
location of the pumps. Pumps may
be mounted to the engine, air/oil box
or to the chassis.

In the two cycle engine, the pressure
in the crankcase changes with the up
and down stroke of the piston. The
amplitudes of pressure vary
according to the RPM and degree of
throttle opening. Whether idling or at
full throttle, the pressure built up in
the crankcase has enough amplitude
to operate the pump.

When the piston is on the upstroke,
crankcase pressure in that cylinder
becomes less positive. The
diaphragm in the fuel pump moves
toward the engine, causing a
negative pressure or suction in the
pump chamber. This causes the inlet
valve from the fuel supply to open
and permits fuel to enter the chamber. This same suction causes
the outlet valve (to the carburetor) to close so that fuel cannot
return to the carburetor. (340/550 style shown)

When the piston begins its downward stroke, the pressure from
the crankcase becomes positive, causing the fuel pump
diaphragm to move in the opposite direction and reversing the
pressure in the fuel pump chamber. This causes the inlet valve
in the pump to close and the outlet valve to open, filling the float
bowl in the carburetor. When the float level in the carburetor
reaches its standard level, the needle valve will close,
preventing more fuel from entering the carburetor, even though
the fuel pump continues to try to provide the carburetor with
fuel.















Content   ..  19  20  21  22   ..
