Snowmobile Polaris Turbo IQ LXT (2014 year). Manual - part 10

43

FEATURES

Instrumentation

MFD Settings

Speedometer/Tachometer

The speedometer and tachometer can be viewed in either the analog or
the digital display. If the analog display is set to show speedometer read-
ings, the digital screen will automatically display the tachometer (option
1). If the analog is set to show the tachometer, the digital screen will
show the speedometer (option 2).

To change viewing preferences, press and hold the MODE button for
three seconds. When the button is released, the new setting becomes
active and screen colors change. See table below.

Option

Analog

Display

Digital

Display

Analog

Screen

Digital

Screen

1

Speed

RPM

Blue “MPH”

Blue

Backlight

2

RPM

Speed

Red

“X100RPM”

Red

Backlight

44

FEATURES

Instrumentation

MFD Digital Display Programs

Press and release the MODE button to cycle through the three MFD pro-
grams: Performance, Engine and History. Each program remains active
until you cycle to the next program. While any program is active, press
and release the SET button to cycle through the program’s screens.

Performance Program

Press and release the MODE button until the performance program
screen is active. The default display for this screen includes electrical
system voltage, fuel level (if equipped) and either speed or tachometer,
whichever is selected. See page 43.

Press and release the SET button to cycle through the following screens:
odometer, trip 1 odometer, trip 2 odometer, fuel trip odometer (if fuel is
low) and clock (if equipped). Use the following procedures to make
changes to these screens.

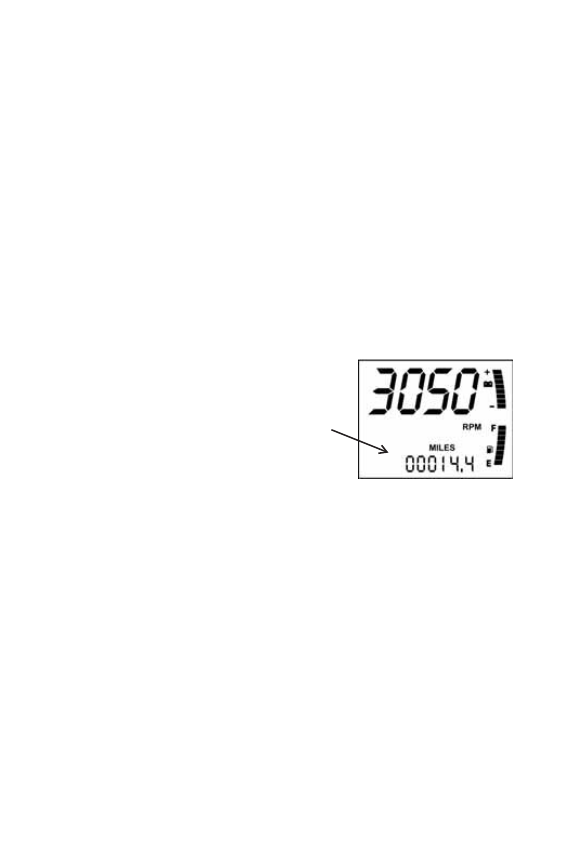

Odometer Setting

The odometer records the vehicle's total
distance traveled since manufacture. The
odometer cannot be reset.

45

FEATURES

Instrumentation

MFD Digital Display Programs

Performance Program

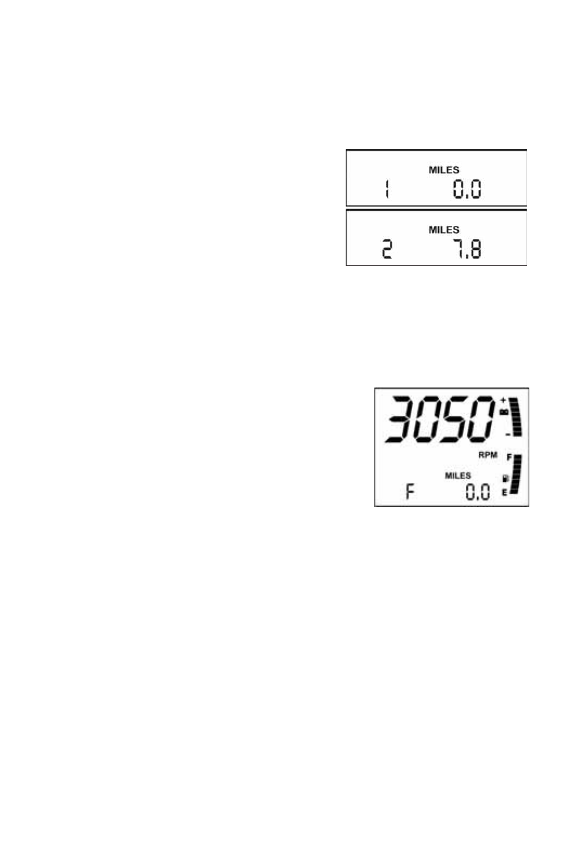

Trip Settings

Trip 1 and Trip 2 are odometers used
to check fuel mileage or to keep
track of distance traveled. Both
odometers can be reset to zero.

1. Enter the Performance Program.

2. Press and release the SET button

until the desired trip screen is
active.

3. Press and hold the SET button for two seconds to reset the trip

odometer to zero.

4. Press and release the SET button to cycle through additional

screens.

Trip F automatically displays when the
fuel level is low if the snowmobile is
equipped with an electronic fuel gauge.
The fuel symbol and the last fuel bar on
the MFD gauge (if equipped) will blink
when the fuel level reaches 1/8 of a tank.

The Trip F odometer records distance
traveled, and the fuel symbol continues
to blink, until enough fuel is added to
raise the level above 1/4 of a tank. The
Trip F odometer will automatically reset
to zero after refueling.

46

FEATURES

Instrumentation

MFD Digital Display Programs

Performance Program

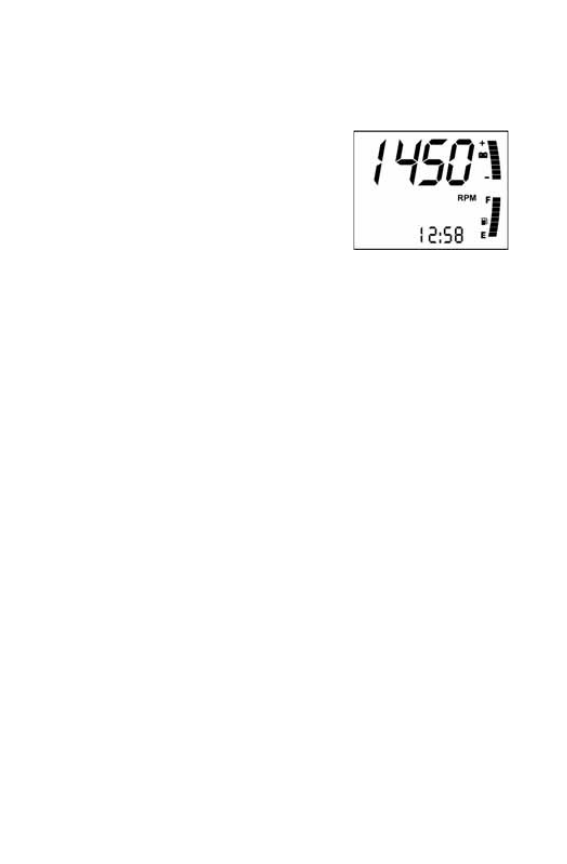

Clock Setting (if equipped)

1. Enter the Performance Program.

2. Press and release the SET button

until the clock screen is active.

3. Press and hold the SET button for

five seconds.

4. When the hour starts flashing,

press the SET switch once to advance one hour. (Press and hold the
SET button to advance the hours quickly.)

5. Press and release the MODE button to save the hour. The minutes

will begin flashing.

6. Set the minutes in the same manner.

7. When finished, press and release the MODE button to save the new

setting. If the MODE button is not pressed within ten seconds, the
gauge will automatically save the new entry.
