38

FEATURES

Instrumentation

MFD Digital Display Programs

Press and release the MODE button to cycle through the three MFD pro-
grams: Performance, Engine and History. Each program remains active
until you cycle to the next program. While any program is active, press
and release the SET button to cycle through the program’s screens.

Performance Program

Press and release the MODE button until the performance program
screen is active. The default display for this screen includes electrical
system voltage (unless equipped with ACE suspension adjustment), fuel
level (if equipped) and either speed or tachometer, whichever is
selected. See page 37.

Press and release the SET button to cycle through the following screens:
odometer, trip 1 odometer, trip 2 odometer, fuel trip odometer (if fuel is
low) and clock (if equipped). Use the following procedures to make
changes to these screens.

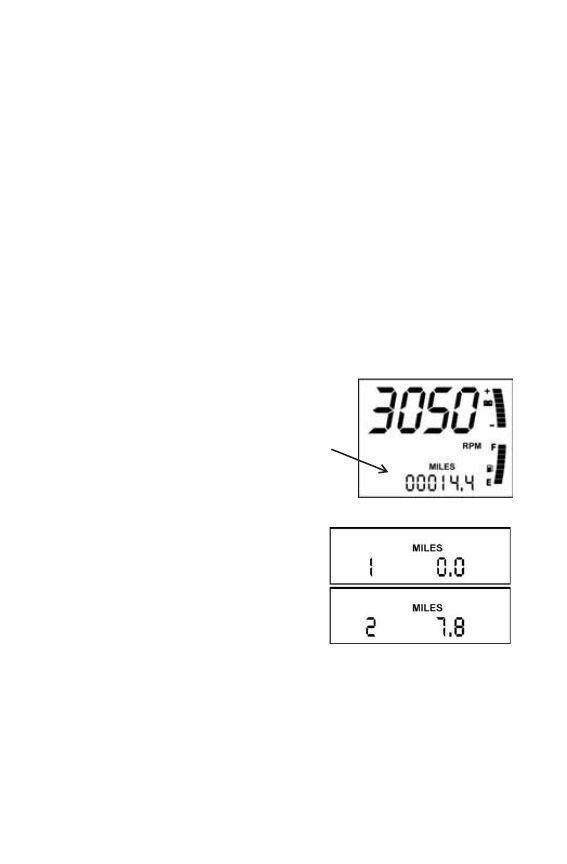

Odometer Setting

The odometer records the vehicle's total
distance traveled since manufacture. The
odometer cannot be reset.

Trip Settings

Trip 1 and Trip 2 are odometers used
to check fuel mileage or to keep
track of distance traveled. Both
odometers can be reset to zero.

1. Enter the Performance Program.

2. Press and release the SET button

until the desired trip screen is
active.

3. Press and hold the SET button for two seconds to reset the trip

odometer to zero.

4. Press and release the SET button to cycle through additional

screens.

39

FEATURES

Instrumentation

MFD Digital Display Programs

Performance Program
Trip Settings

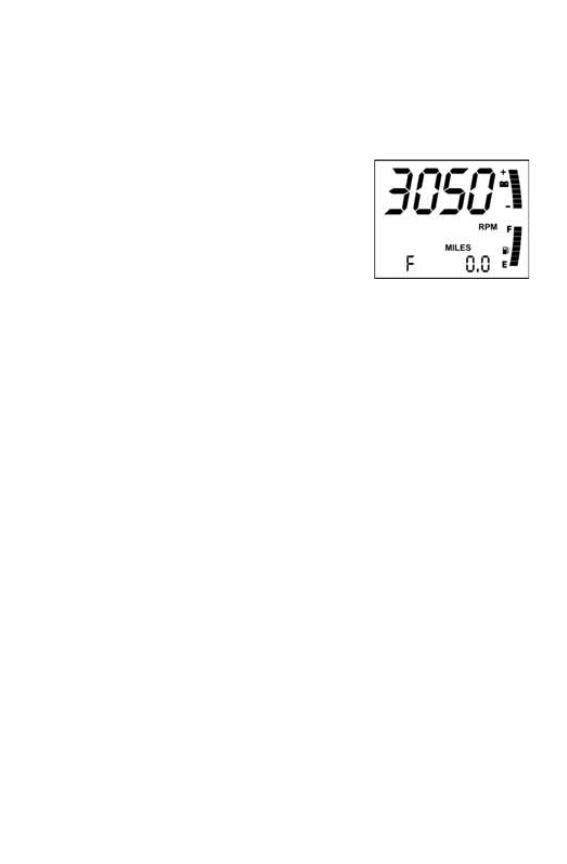

Trip F automatically displays when the
fuel level is low if the snowmobile is
equipped with an electronic fuel gauge.
The fuel symbol and the last fuel bar on
the MFD gauge (if equipped) will blink
when the fuel level reaches 1/8 of a tank.

The Trip F odometer records distance
traveled, and the fuel symbol continues
to blink, until enough fuel is added to
raise the level above 1/4 of a tank. The
Trip F odometer will automatically reset
to zero after refueling.

40

FEATURES

Instrumentation

MFD Digital Display Programs

Performance Program

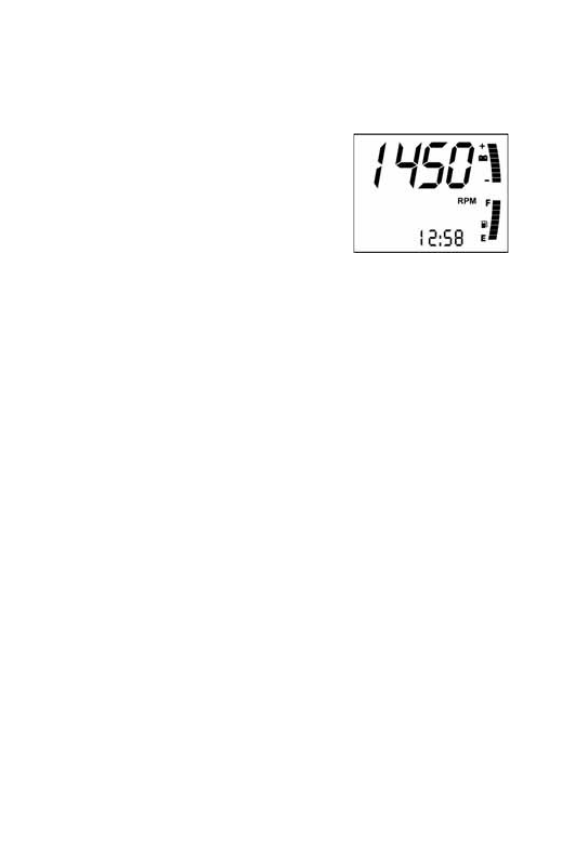

Clock Setting (if equipped)

1. Enter the Performance Program.

2. Press and release the SET button

until the clock screen is active.

3. Press and hold the SET button for

five seconds.

4. When the hour starts flashing,

press the SET switch once to advance one hour. (Press and hold the
SET button to advance the hours quickly.)

5. Press and release the MODE button to save the hour. The minutes

will begin flashing.

6. Set the minutes in the same manner.

7. When finished, press and release the MODE button to save the new

setting. If the MODE button is not pressed within ten seconds, the
gauge will automatically save the new entry.

41

FEATURES

Instrumentation

MFD Digital Display Programs

Engine Program

Press and release the MODE button until the engine program screen is
active. The default display for this screen includes engine hours, electri-
cal system voltage level, fuel level (if equipped) and either engine cool-
ant temperature, air temperature (accessory) or altimeter (accessory).

Press and release the SET button to cycle through the following screens:
hour meter, engine temperature, air temperature (available as an acces-
sory), altimeter (available as an accessory) and turbo boost (if
equipped).

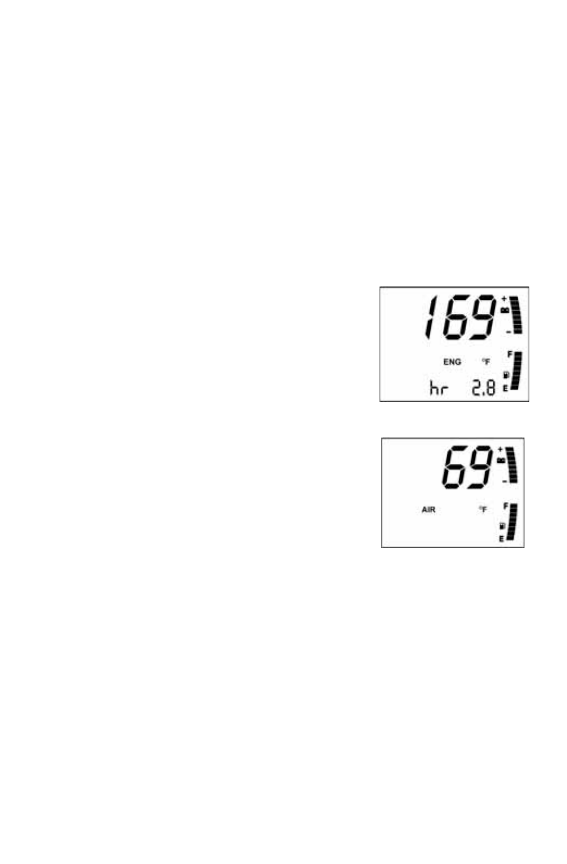

Hour Meter

The hour meter records the total hours of
engine operation since manufacture. This
meter cannot be reset.

Engine Temperature

A thermometer measures water temperature,
giving an indication of engine temperature.

Air Temperature (if equipped)

The MFD displays actual air temperature in
either standard or metric units.

1. Enter the Engine Program.

2. Press and hold the MODE switch for ten

seconds to switch between standard and
metric units of measurement.
