Snowmobile Polaris FS IQ Widetrak (2013 year). Manual - part 6

26

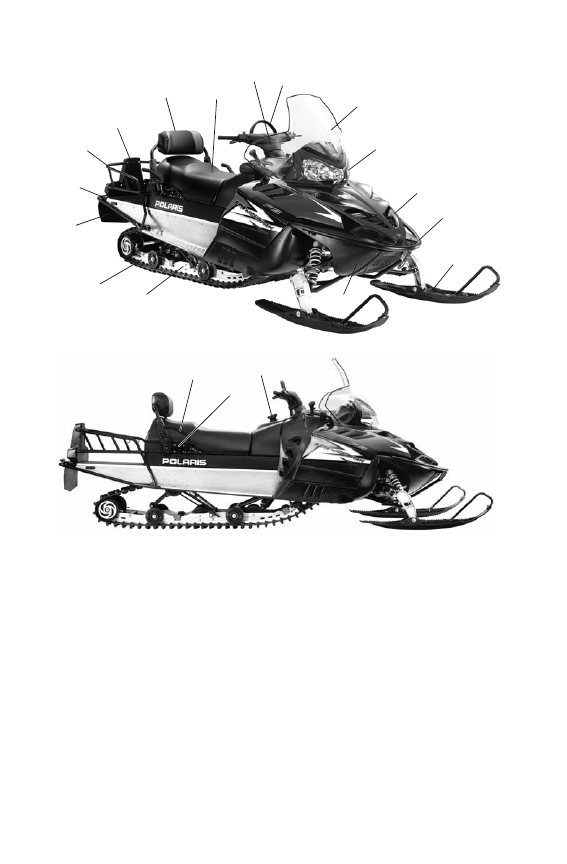

FEATURES

3

4

5

6

12

2

1

9

10

11

13

14

15

16

17

18

19

7

8

1.

Nosepan

2.

Skis

3.

Front Bumper

4.

Hood

5.

Headlight

6.

Windshield

7.

Mountain Bar

8.

Handlebar

9.

Seat

10. Backrest

11. Taillights
12. Cargo Carrier
13. Rear Bumper
14. Snow Flap
15. Track
16. Suspension
17. Passenger Grab Handle
18. Seat Latch
19. Fuel Filler Cap

27

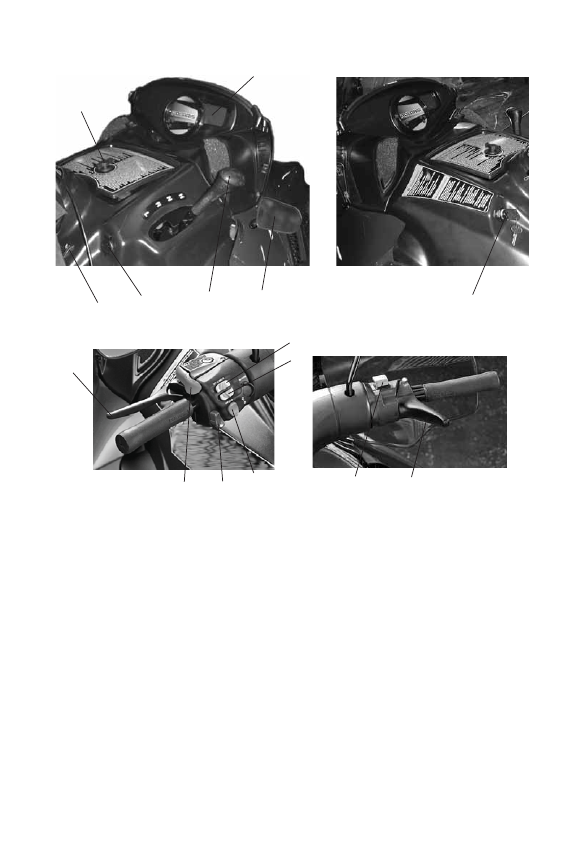

FEATURES

2

4

7

8

15

9

10

13

14

3

12

11

1

6

5

1.

Glove Box

2.

MFD Display

3.

Ignition Switch

4.

Mirror

5.

Shifter

6.

12-Volt DC Outlet

7.

Work Light Switch

8.

Brake Lever

9.

Handlebar Grip Warmer
Switch

10. Thumbwarmer Switch
11. Throttle Control
12. Engine Stop Switch
13. MFD Control Switch
14. Headlight Dimmer Switch
15. Parking Brake Lock

28

FEATURES

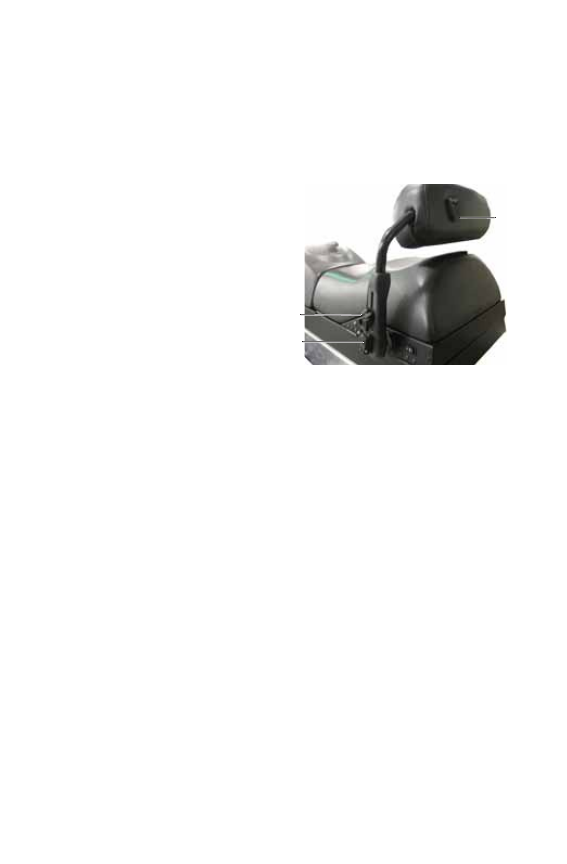

Backrest

The backrest can be adjusted for rider comfort. Whenever making
adjustments, always make sure all lock levers are securely locked before
operating.

Tip: If an adjustment is difficult, rotate the lock levers to relieve tension, then

make the adjustment.

Height Adjustment

1. Lift the upper lock levers (1)

on both backrest supports to
release the locks.

2. Raise or lower the backrest to

the desired position.

3. Push the lock levers inward to

secure the locks.

Angle Adjustment

1. Lift the lock lever at the center of the backrest (3).

2. Tilt the backrest forward or rearward to the desired position.

3. Push the lock lever inward to secure the lock.

Operator/Passenger Conversion

1. Lift the lower lock levers (2) on both backrest supports to release

the locks.

2. Move the backrest forward for operator use or rearward for

passenger use.

3. Push the lock levers inward to secure the locks.

1

2

3

29

FEATURES

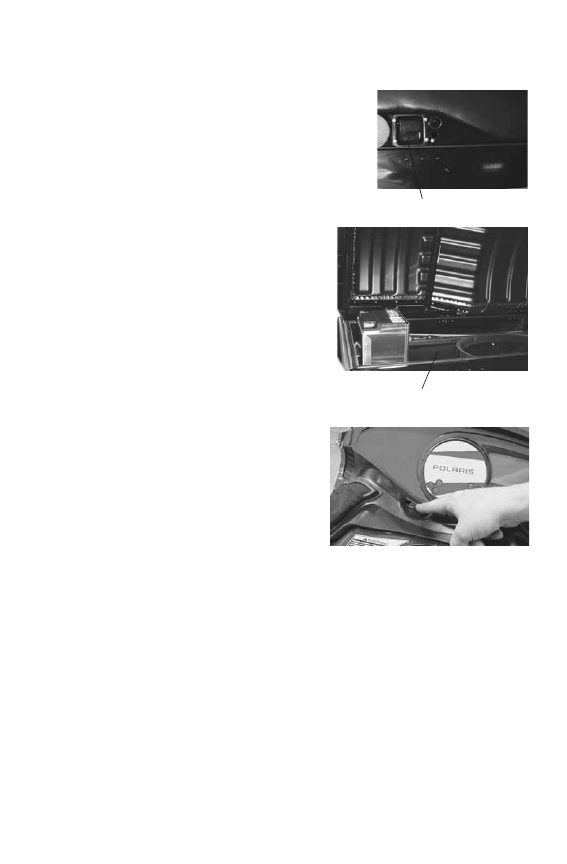

Seat Latch

Release the seat latch and raise the seat to
access the battery and under-seat storage
area.

Check the seat latch before each use of
the snowmobile. Push downward on the
seat near the seat latch, then attempt to
raise the seat by pulling upward on the
right-hand passenger grab handle. Make
sure the latch is secure before riding.

Under-Seat Storage

When using the under-seat storage area
to transport supplies and other items,
pack the items securely to prevent them
from moving around in the storage area.



Smaller items should be placed in bags or
containers to keep them secure.

Adjustable Headlights

Move the headlight adjuster to raise or
lower the headlight beam.

• Move the adjuster to the left to lower

the beam.

Move the adjuster to the right to raise
the beam.

Seat Latch

Storage Area
