9.4

Chassis

9923396 - 2007-2012 EDGE/Widetrak LX Service Manual

©2011 Polaris Sales Inc.

Seat Cover Replacement

1.

Remove seat.

2.

Remove the old covering by removing the staples that
hold it on the base.

3.

If replacing the tail light assembly. See “Tail Light
Assembly Replacement” on page 9.4.

4.

Drape the new cover over the seat foam.

5.

Turn the assembly over and begin upholstering by
lining up the seat cover vinyl side flaps with the
indented square location indicators located on the
plastic seat base.

6.

Using a staple fun, tack each side of the vinyl cover
in place using two staples (1). If cover has a Polaris
emblem carefully align emblem with the bottom edge
of the seat. This will help ensure that the cover is
positioned properly.

7.

Align the two sewn seams located at the rear of the
seat cover with the two back corners of the seat base.

8.

Pull the vinyl tight and tack the seat cover to the plastic
seat base in each corner. Use two or three staples per
corner.

9.

Now that the cover is positioned, and tacked to the
plastic seat base in for places, turn the assembly over
an inspect it. If the seat cover seems to fit correctly and
everything looks straight, including the tool
compartment flap, continue.

10. Staple the remainder of the unattached seat cover to

the plastic seat base. Always staple between two
existing staples and follow this procedure until the
seat cover is completely stapled to the seat base see
the staple sequence above.

11. Turn the seat cushion assembly over and inspect for

wrinkles or imperfections. If imperfections are visible,
remove the staples in the affected area and staple
correctly.

12. Trim excess vinyl from the bottom around the back of

the seat area only after a satisfactory fit is obtained.

CONSOLE

Console Removal/Installation

1.

Place the adjustable steering in the center (if
equipped).

2.

Remove the two T25 Torx screws (A).

3.

Remove filler cap and the threaded filler retainer (B).

4.

Remove the two T25 Torx screws on each side of the
shroud (C).

5.

You can set the console aside with the starter rope still
installed or you can carefully un-tie the knot in the
recoil handle and route it through the chassis, then
secure a knot and let the rope rest on the recoil
housing.

TAIL LIGHT

Edge Tail Light Assembly Replacement

1.

Remove the tail light lens.

2.

Remove the taillight assembly.

3.

Replace taillight assembly.

4.

Replace seat.

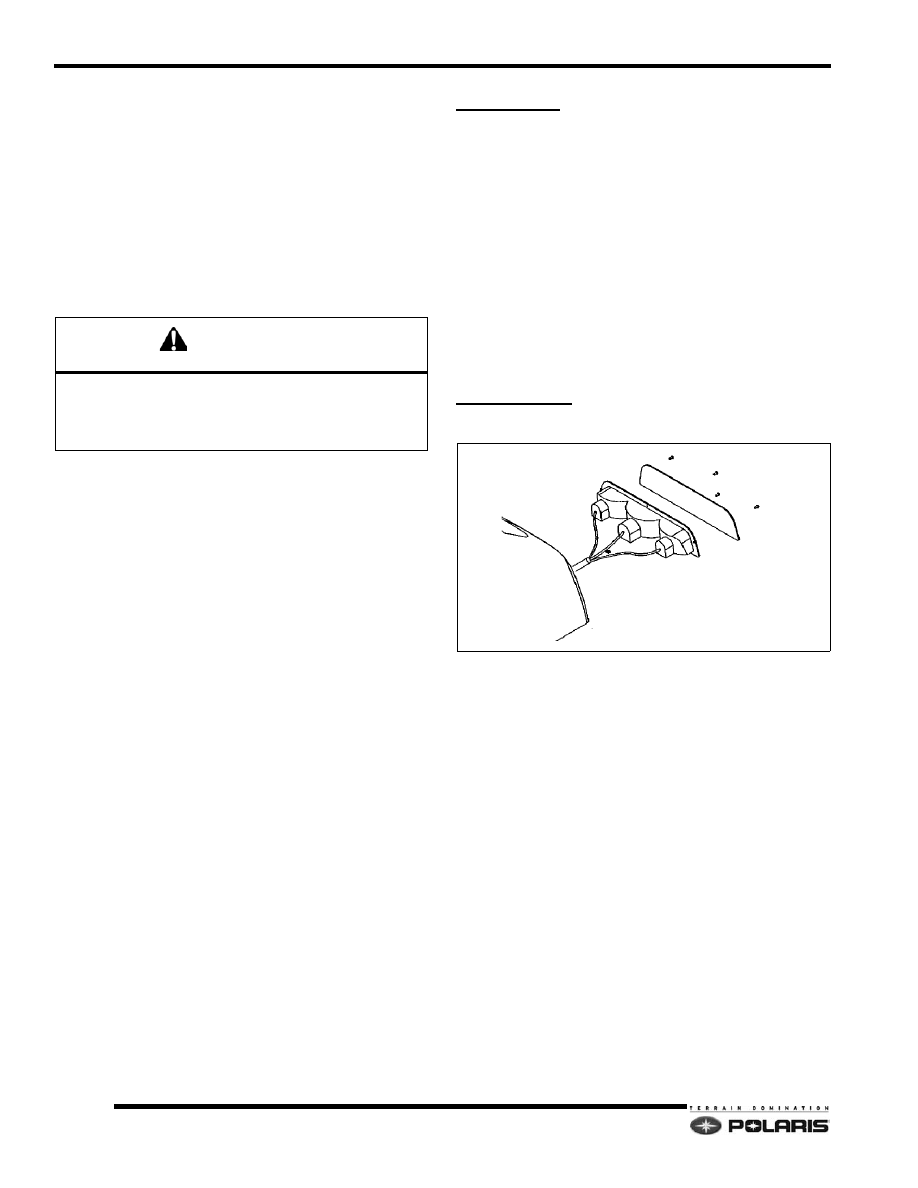

Tail Light Assembly Replacement

1.

After removal of seat cover, drill out three rivets from
top of taillight.

2.

Remove taillight assembly and wire harness.

3.

Install new taillight assembly and rivet into place.

4.

Connect taillight wire harness. Taillight harness wires
must be routed away from any possible contact with
seat cover staples to prevent electrical shorts.

5.

Pull seat cover tightly and evenly into position and re-
staple to seat pan.

6.

Inspect cover for a wrinkle-free finish before
reinstalling on the snowmobile.

WARNING

Apply staples in the stapling channel only. If you apply

staples outside the channel, you will damage the fuel

tank reservoir in the seat base. If this happens you will

have to replace the entire seat assembly.

Battery and Electrical Systems

10.1

CHAPTER 10

Battery and Electrical Systems

10

9923396 - 2007-2012 EDGE/Widetrak LX Service Manual

©2011 Polaris Sales Inc.

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.2

ENGINE MODELS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.2
SPARK PLUGS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.2
CHARGING SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.2
IGNITION TIMING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.2

CONVENTIONAL BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.2

BATTERY PREPARATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.2
SPECIFICATIONS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.3
REFILLING A CONVENTIONAL BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.3

FRESH PACK BATTERY  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.3

BATTERY PREPARATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.3
SPECIFICATIONS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.3

BATTERY TESTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.3

TESTING PROCEDURES  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.3
OPEN CIRCUIT VOLTAGE TEST (OCV) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.3
LOAD TEST  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.3
SPECIFIC GRAVITY TEST (CONVENTIONAL BATTERY) . . . . . . . . . . . . . . . . . . . . . . 10.4
BATTERY CONDUCTANCE ANALYZER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.4
OFF SEASON STORAGE  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.5

IGNITION TIMING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.6

TIMING PROCEDURE - CARBURETED ENGINES  . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.6
IGNITION TIMING CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.7

THROTTLE POSITION SENSOR (TPS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.8

TPS TEST TOOL SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.8
USING THE TPS TEST TOOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.8
TPS ADJUSTMENT - CARBURETED MODELS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.9

ELECTRIC START - GEN II / EDGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.10

SYSTEM SCHEMATIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.10
STARTER MOTOR ASSEMBLY (TYPICAL)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.11
BATTERY BOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.12
DYNAMIC TESTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.13
STATIC TESTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.13
STARTER HOUSING / FIELD COIL TESTING  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.14
ARMATURE TESTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.14

CARBURETED ELECTRICAL SYSTEMS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.15
TROUBLESHOOTING TABLES  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.16

NO SPARK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.16

ELECTRONIC REVERSE (PERC)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.17

OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.17
FORWARD OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.17
ALTITUDE SETTING  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.17
IMPORTANT NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.17

HAND/THUMB WARMERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.18

THUMB WARMER DIAGNOSTICS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.18
THUMB WARMER RESISTANCE CHECKS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.18
HAND WARMER DIAGNOSTICS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.19
HAND WARMER RESISTANCE CHECKS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.19

LEFT HAND CONTROL  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.20

LEFT HAND CONTROL DIAGNOSTICS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.20
LEFT HAND CONTROL CONTINUITY CHECKS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.20
LEFT HAND CONTROL POWER INPUT/OUTPUT CHECK  . . . . . . . . . . . . . . . . . . . . 10.20

10.2

Battery and Electrical Systems

9923396 - 2007-2012 EDGE/Widetrak LX Service Manual

©2011 Polaris Sales Inc.

SPECIFICATIONS

Engine Models

Spark Plugs

Charging System

Ignition Timing

CONVENTIONAL BATTERY

NOTE:   Do not service the battery unless it will be put
into regular service within 30 days.

Battery Preparation

1.

Fill battery with electrolyte to the upper level marks on
the case.

2.

Set battery aside and allow it to cool and stabilize for
at least 30 minutes.

3.

Add electrolyte to bring the level back to the upper
level mark on the case.

NOTE:  This is the last time electrolyte is added. After
charging the battery, only add distilled water.

4.

Charge battery at 1/10 of its amp/hour rating.
Example:1/10 of 9 amp battery =.9 amps, 1/10 of 14
amp battery = 1.4 amps, 1/10 of 18 amp battery = 1.8
amps (recommended charging rates).

5.

Check specific gravity of each cell with a hydrometer
to ensure each has a reading of 1.270 or higher.

6.

Install vent covers.

Model Number

Engine

EC34

Fuji 340cc Fan-Cooled

EC50PL

Fuji 488cc Liquid-Cooled

EC55PM

Fuji 544cc Fan-Cooled

S3303-5044-PF5C

Polaris 500cc Liquid-Cooled

Model

Spark Plug

Gap (Inches /
mm)

EC34

NGK BR8ES

0.028 / 0.70

EC50PL

Champion RN3C 0.028 / 0.70

EC55PM

NGK BR9ES

0.028 / 0.70

S3303-5044-
PF5C

Champion
RN57YCC

0.028 / 0.70

Model

Stator Output

# of Pulses

EC34

240W

6

EC50PL

200W

2

EC55PM

240W

6

S3303-5044-PF5C

280W

6

Model

Specification

EC34

26.5° @ 3000 RPM

EC50PL

28° @ 3000 RPM

EC55PM

27° @ 3500 RPM
14° @ 6500 RPM

S3303-5044-PF5C

25° @ 2500RPM
(TPS Disconnected)

WARNING

BATTERY



ELECTROLYTE



IS



POISONOUS

IT



CONTAINS



ACID

!

SERIOUS



BURNS



CAN



RESULT



FROM



CONTACT



WITH



THE



SKIN

EYES

OR



CLOTHING

.

ANTIDOTE:
EXTERNAL:

FLUSH



WITH



WATER

.

INTERNAL:

DRINK



LARGE



QUANTITIES



OF



WATER



OR



MILK

FOLLOW



WITH



MILK



OF



MAGNESIA

BEATEN



EGG

OR



VEGE

-

TABLE



OIL

CALL



PHYSICIAN



IMMEDIATELY

.

EYES:

FLUSH



WITH



WATER



FOR

 15

MINUTES



AND



GET



PROMPT



MEDICAL



ATTENTION

BATTERIES



PRODUCE



EXPLOSIVE



GASES

KEEP



SPARKS

FLAME

CIGARETTES

ETC

AWAY

VENTILATE



WHEN



CHARG

-

ING



OR



USING



IN



CLOSED



SPACE

ALWAYS



SHIELD



EYES



WHEN



WORKING



NEAR



BATTERIES

.

KEEP OUT OF REACH OF CHILDREN.

10.3

Battery and Electrical Systems

10

9923396 - 2007-2012 EDGE/Widetrak LX Service Manual

©2011 Polaris Sales Inc.

Specifications

Refilling a Conventional Battery

The normal charge/discharge cycle of a battery causes
the cells to give off gases. These gases, hydrogen and
oxygen, are the components of water. Because of the loss
of these gases and the lowering of the electrolyte level, it
will be necessary to add pure, clean distilled water to bring
the fluid to the proper level. After filling, charge the battery
to raise the specific gravity to 1.270 or greater.

FRESH PACK BATTERY

NOTE:   Do not service the battery unless it will be put
into regular service within 30 days.

Battery Preparation

Some models are equipped with a fresh pack battery.
These batteries require filling with electrolyte and a full
charge prior to service.

1.

Fill battery with electrolyte to the upper level marks on
the case.

2.

Set battery aside and allow it to cool and stabilize for
at least 30 minutes.

3.

Add electrolyte to bring the level back to the upper
level mark on the case.

NOTE:  This is the last time that electrolyte should be
added.

4.

Charge battery at 1/10 of its amp/hour rating.
Example:1/10 of 9 amp battery =.9 amps, 1/10 of 14
amp battery = 1.4 amps, 1/10 of 18 amp battery = 1.8

amps (recommended charging rates).

5.

Check specific gravity of each cell with a hydrometer
to ensure each has a reading of 1.270 or higher.

6.

Install vent cover.

NOTE:  Once the vent cover is installed, the battery is
sealed. Do not remove the cover.

Specifications

BATTERY TESTING

Testing Procedures

Batteries should be kept at or as near full charge as
possible. If the battery is stored or used in a partially
charged condition, hard crystal sulfication will form on the
plates, reducing their efficiency and possibly ruining the
battery.

Open Circuit Voltage Test (OCV)

Check static battery voltage with multimeter. Voltage
should be no less than 12.8 Vdc. Charge battery if voltage
is lower than 12.8 Vdc.

Load Test

A battery may pass the OCV test, but still not have the
storage capacity necessary to properly function.

1.

Connect multimeter to the battery as if performing the
OCV test.

2.

Turn the engine over using the electric starter.

3.

Replace battery if Vdc drops below 9.5Vdc.

NOTE: Battery load test tools can be purchased
commercially. Follow the manufactures’ instructions
for use.

Battery PN 4140006

Battery Type

YB14A-A2 - Conventional

Nominal Capacity

12Vdc / 14AH

Electrolyte Volume

30.4oz.

CCA @ 0F (-18C)

195 AMPS

Charging Current

1.4 AMPS

Battery PN 4140005

Battery Type

Y50-N18L-A  -
Conventional

Nominal Capacity

12Vdc / 20AH

Electrolyte Volume

47.3oz.

Charging Current

2 AMPS

Battery PN 4010774

Battery Type

YTX14AH-Sealed

Nominal Capacity

12Vdc / 12AH

Electrolyte Volume

22.3oz.

Specific Gravity

1.320

CCA @ 0F (-18C)

210 AMPS

Charging Current

1.2 AMPS















Content   ..  58  59  60  61   ..
