Polaris Ace RZR 570, RZR 570 EPS (2018 year). Manual - part 15

61

OPERATION

Driving on Slippery Surfaces

When driving on slippery surfaces such as wet trails, loose gravel, or
ice, be alert for the possibility of skidding and sliding.

Follow these precautions when encountering slippery conditions:

1. Slow down before entering slippery areas.

2. Maintain a high level of alertness, reading the trail and avoiding

quick, sharp turns, which can cause skids.

3. Engage all-wheel drive before wheels begin to lose traction.

NOTICE: Severe damage to the drive train may occur if the AWD is engaged

while the wheels are spinning. Always allow the wheels to stop
spinning before engaging AWD.

4. Correct a skid by turning the steering wheel in the direction of the

skid. Never apply the brakes during a skid.

Sideways

skid

Turn in

direction of

skid

62

OPERATION

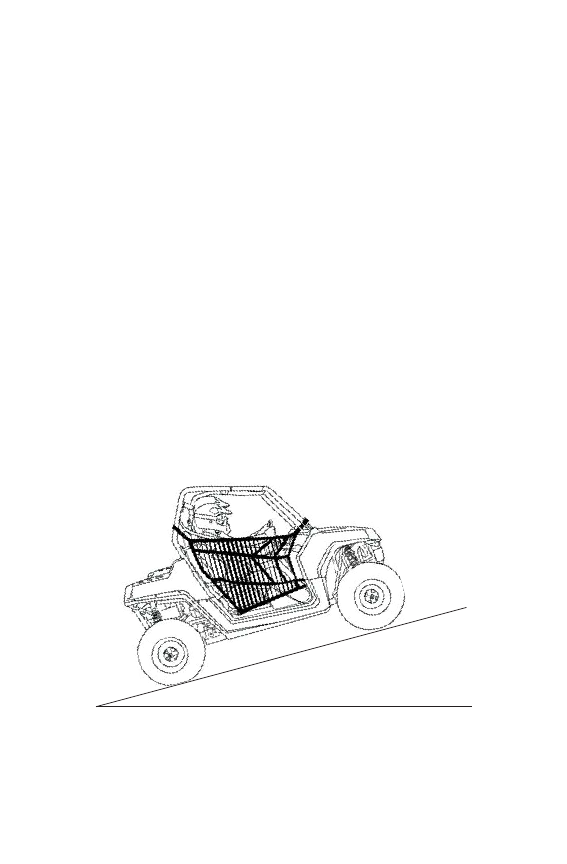

Driving Uphill

Whenever traveling uphill, follow these precautions:

1. Always check the terrain carefully before ascending any hill. Never

drive on hills with excessively slippery or loose surfaces.

2. Never operate in TURF mode (if equipped) while operating on a hill

or other irregular terrain. Always move the AWD switch to AWD
before ascending or descending a hill. See page 43.

3. Avoid excessively steep hills. If ascending a steeper grade is

unavoidable, engage all-wheel drive before ascending.

4. Drive straight uphill.

5. Proceed at a steady rate of speed and throttle opening. Never open

the throttle suddenly.

6. Avoid unnecessary changes in speed or direction.

7. Never go over the crest of a hill at high speed. An obstacle, a sharp

drop, or another vehicle or person could be on the other side of the
hill.

8. If the vehicle stalls while climbing a hill, apply the brakes. Place the

transmission in reverse and slowly allow the vehicle to roll straight
downhill while applying light brake pressure to control speed.

63

OPERATION

Driving on a Sidehill (Sidehilling)

Driving on a sidehill is not recommended. Improper procedure could
cause loss of control or rollover. Avoid crossing the side of any hill
unless absolutely necessary.

If crossing a hill is unavoidable, follow these precautions:

1. Engage all-wheel drive.

2. Never operate in TURF mode (if equipped) while operating on a hill

or other irregular terrain. Always move the AWD switch to AWD
before ascending or descending a hill. See page 43.

3. Drive slowly and use extreme caution.

4. If the vehicle begins to overturn, or if it feels as if it may overturn,

immediately turn downhill.

5. Avoid obstacles and changes in terrain that may lower or raise one

side of the vehicle or cause the vehicle to slide.

6. If the vehicle begins to slide downhill, immediately turn downhill to

stop the slide, or stop the vehicle and maneuver slowly and
carefully until the vehicle can be driven straight downhill.

Driving Downhill

Whenever descending a hill, follow these precautions:

1. Avoid excessively steep hills.

2. Never operate in TURF mode (if equipped) while operating on a hill

or other irregular terrain. Always move the AWD switch to AWD
before ascending or descending a hill. See page 43.

3. Slow down. Never travel down a hill at high speed.

4. Always check the terrain carefully before descending a hill. Never

drive on hills with excessively slippery or loose surfaces.

5. Always descend a hill with the transmission in forward gear. Never

descend a hill with the transmission in neutral.

6. Avoid traveling down a hill at an angle, which would cause the

vehicle to lean sharply to one side. Travel straight downhill.

7. Apply the brakes lightly to aid in slowing.

64

OPERATION

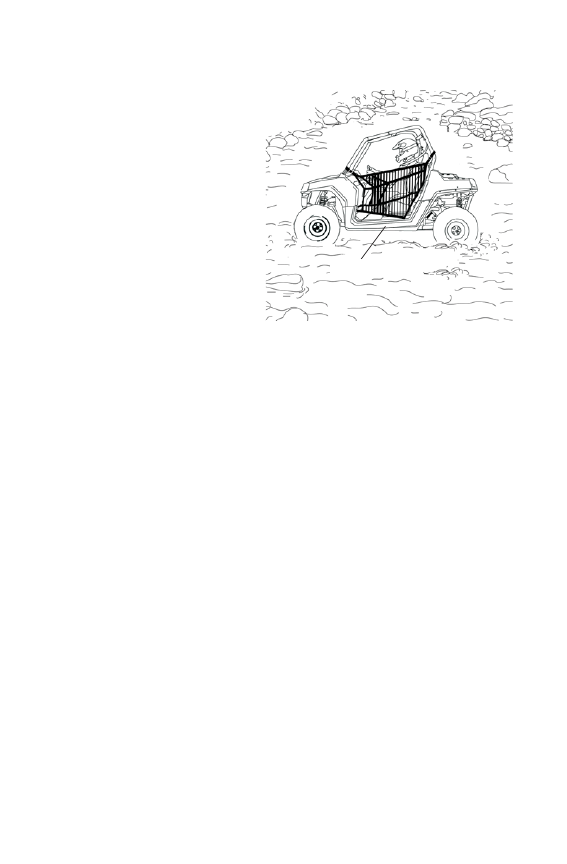

Driving Through Water

Your vehicle can operate through
water with a maximum
recommended depth equal to
floor level. Follow these
precautions when operating
through water:

1. Determine water depth and

current before entering
water.

2. Choose a crossing where the

water level is lowest and
where both banks have
gradual inclines. Never
operate in water that exceeds
the maximum recommended depth.

WARNING! The large tires on your vehicle may cause the vehicle to float in
deep or fast-flowing water, which could result in loss of traction, loss of control,
rollover or accident.

3. Wet brakes may have reduced stopping ability. After leaving water,

test the brakes. Apply them lightly several times while driving
slowly. The friction will help dry out the pads.

NOTICE: Major engine damage can result if the vehicle is not thoroughly

inspected after operation in water. Perform the services outlined in
the maintenance chart. See page 83. Give special attention to engine
oil, transmission oil, demand drive fluid, rear gearcase oil (if
equipped), and all grease fittings.

If your vehicle becomes immersed or is operated in water that
exceeds the floor level, service is required before starting the engine.
Your POLARIS dealer can provide this service. If it's impossible to
bring the vehicle in before starting the engine, perform the service
outlined on page 117,  and take the vehicle in for service at the first
opportunity.

Floor Level
